Kurt Machine Vise: Single-Station, 6.00" Jaw Width, 6" Jaw Opening, Stationary Base, Precision 09219320 Applications
- CNC machining centers requiring accurate and repeatable workholding.
- Production machining operations utilizing pneumatic clamping systems.
- Milling, drilling, boring, and machining of precision components.
- Industrial manufacturing facilities focused on reducing setup time and increasing productivity.
- Fixture-based machining systems utilizing fixture key compatibility.
- Automated machining environments requiring consistent clamping force.
- General metalworking applications requiring secure workpiece positioning.

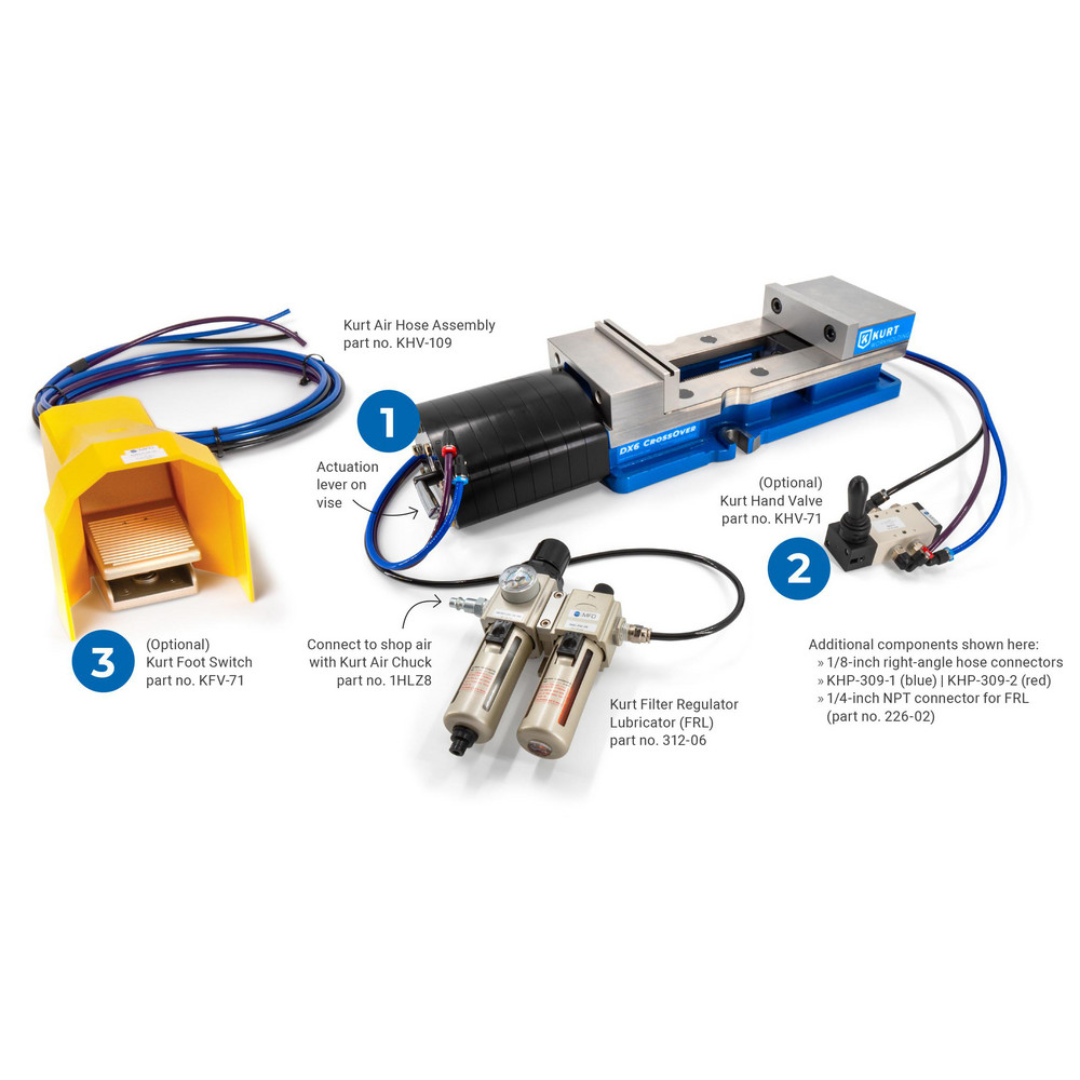

Designed for high-efficiency production environments, this air-operated vise combines precision workholding with fast and consistent pneumatic clamping performance.
Kurt Machine Vise: Single-Station, 6.00" Jaw Width, 6" Jaw Opening, Stationary Base, Precision 09219320 Specifications
| Product Type | Machine Vise |
|---|---|
| Model Number | 3600A |
| Operation Type | Air (Pneumatic) |
| Number of Stations | 1 |
| Orientation | Horizontal |
| Base Motion Type | Stationary |
| Jaw Width | 6.00" |
| Maximum Jaw Opening Capacity | 6" |
| Jaw Height | 1.7350" |
| Throat Depth | 1-31/64" |
| Base Length | 15.0600" |
| Base Height | 3.1870" (3-3/16") |
| Overall Length | 17.0000" |
| Overall Width | 6.00" |
| Overall Height | 4.9220" |
| Load Capacity | 5,000 lb |
| Maximum Clamping Force | 5,000 lb |
| Maximum Clamping Pressure | 100 psi |
| Features | Versatile Lock, Pneumatic Vise, AngLock® Vise, Fixture Key Compatible, Side Mounting |
| Precision Ground | Yes |
| UNSPSC Code | 27112100 |
Kurt Machine Vise: Single-Station, 6.00" Jaw Width, 6" Jaw Opening, Stationary Base, Precision 09219320 Features & Benefits
- Air-operated clamping system delivers consistent and repeatable holding force while reducing operator effort.
- Single-station configuration provides dedicated workholding for precision machining operations.
- 6-inch jaw width offers secure support for a wide range of workpiece sizes.
- 6-inch jaw opening capacity accommodates diverse machining applications.
- 5,000-pound clamping force provides strong and reliable workpiece retention during cutting operations.
- Precision-ground construction supports accurate setups and repeatable machining results.
- AngLock® vise technology helps reduce jaw lift and improves workpiece stability.
- Fixture key compatibility simplifies alignment and installation on machining centers.
- Side mounting capability enhances installation flexibility.
- Versatile Lock feature improves adaptability for varying machining requirements.
- Horizontal vises provide secure and accurate positioning of the workpiece during machining operations, helping improve part consistency and machining accuracy.
- Stationary vises are used for machining straight surfaces and can be fastened to the machine either parallel to the workpiece or at a right angle to accommodate different machining setups.
Kurt Machine Vise: Single-Station, 6.00" Jaw Width, 6" Jaw Opening, Stationary Base, Precision 09219320 Performance & Construction
- Engineered for high-production machining environments requiring fast and repeatable clamping cycles.
- Pneumatic operation helps improve productivity while reducing operator fatigue.
- Rigid stationary base provides excellent stability during demanding machining operations.
- Precision-ground surfaces support accurate workpiece alignment and positioning.
- Horizontal orientation allows easy loading and unloading of workpieces.
- High clamping capacity helps maintain workpiece security under substantial cutting forces.
- Built for long-term reliability in industrial machining and manufacturing environments.
Why Choose the Kurt Machine Vise: Single-Station, 6.00" Jaw Width, 6" Jaw Opening, Stationary Base, Precision 09219320
- Powerful pneumatic operation with up to 5,000 pounds of clamping force.
- Precision-ground construction for repeatable machining accuracy.
- AngLock® technology helps improve workpiece stability.
- Stationary base design maximizes rigidity and performance.
- Fixture key compatibility simplifies setup and alignment.
- Ideal for CNC machining, automated production, and industrial manufacturing environments.
The Kurt Machine Vise: Single-Station, 6.00" Jaw Width, 6" Jaw Opening, Stationary Base, Precision 09219320 delivers precision pneumatic workholding, exceptional clamping performance, and industrial-grade durability for demanding machining applications where productivity and accuracy are essential.
