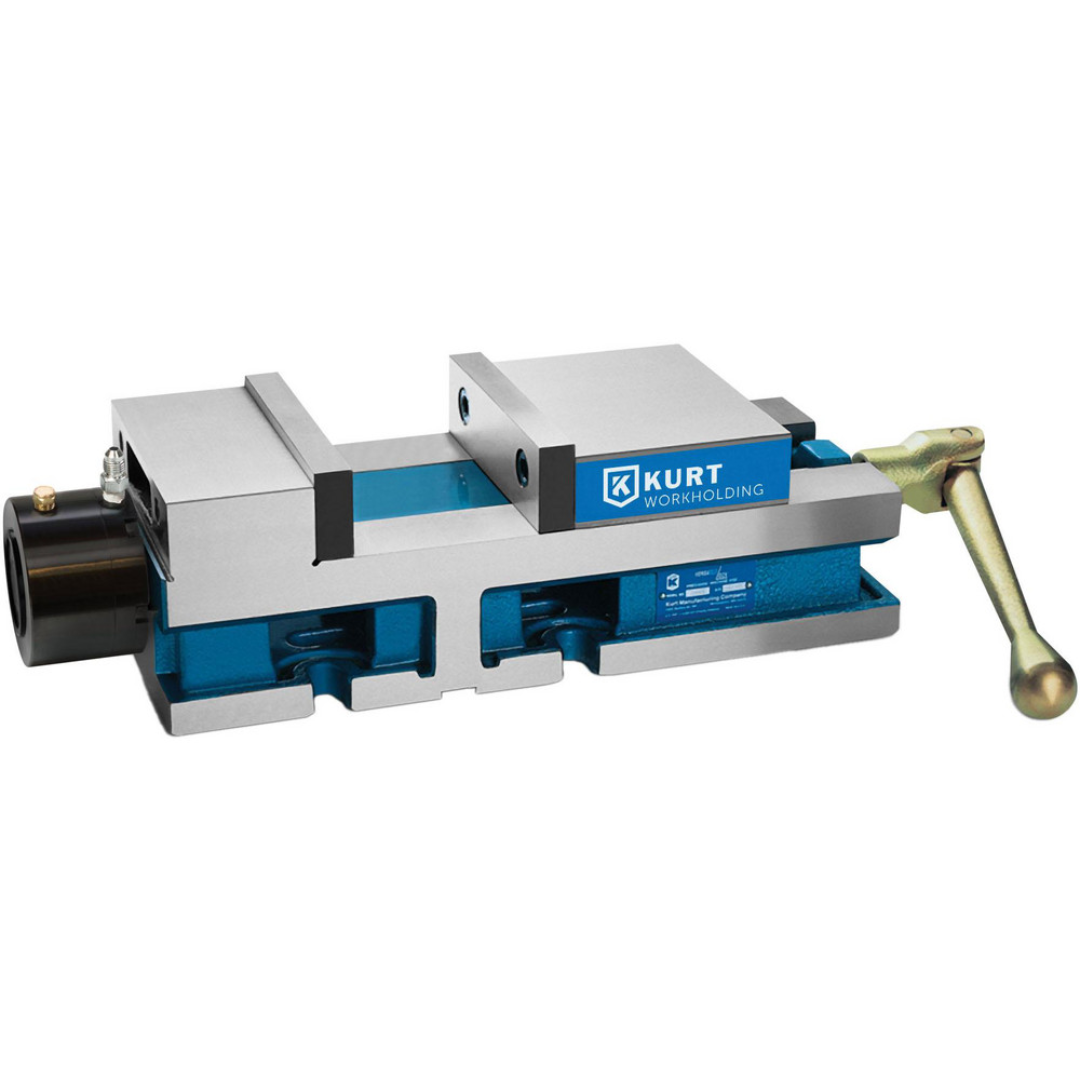

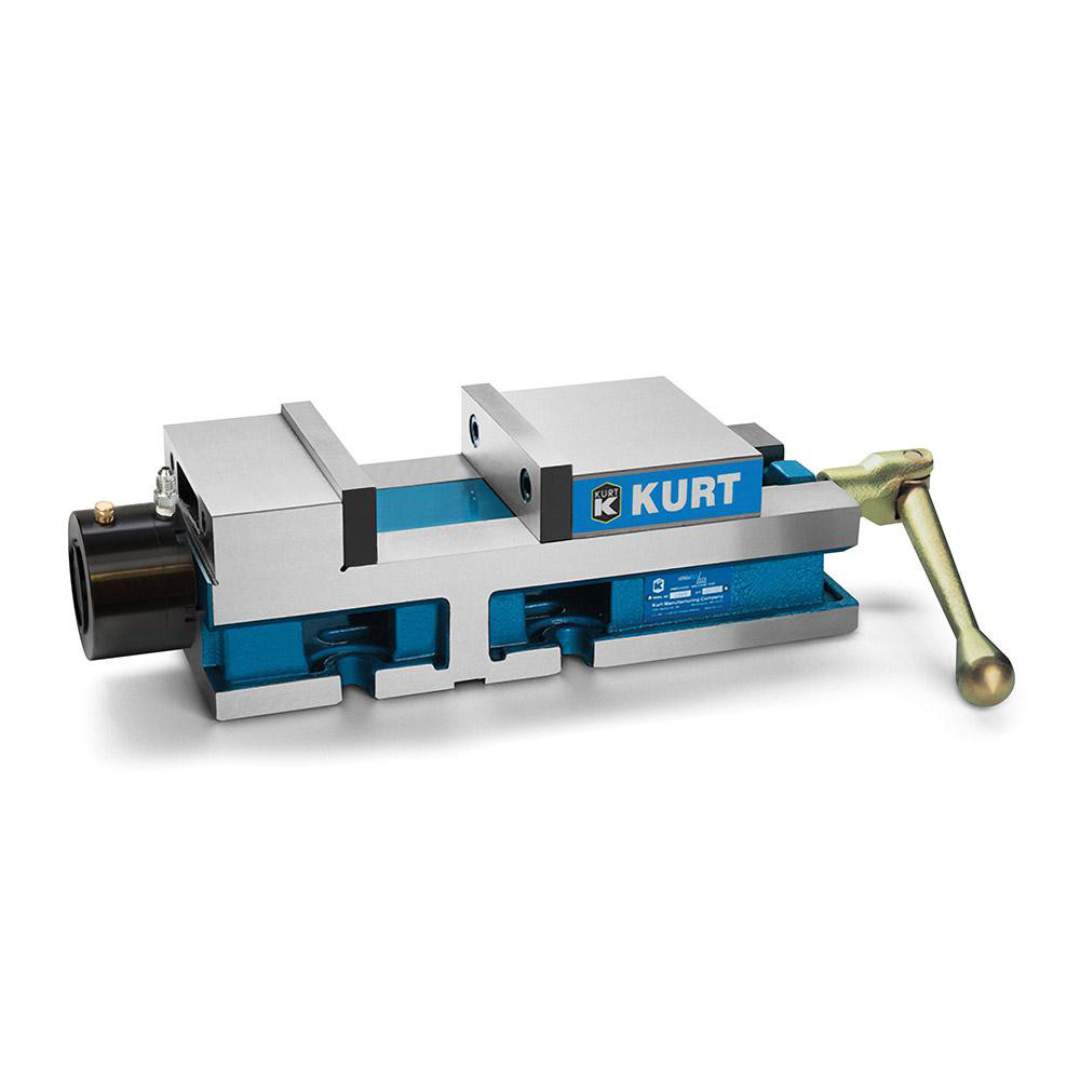

Kurt Machine Vise: Single-Station, 6.00" Jaw Width, 6" Jaw Opening, Stationary Base, Precision 09219080 Applications
- CNC machining centers and milling machines.
- Production manufacturing requiring repeatable workholding.
- Precision metalworking and fabrication operations.
- Toolroom and maintenance machining environments.
- Fixture-based machining setups utilizing fixture keys.
- High-accuracy milling, drilling, and machining applications.
- Automated and semi-automated machining environments.
- Machining straight surfaces with stable stationary workholding.
Horizontal vises provide secure and accurate positioning of the workpiece during machining operations. Stationary vises are used for machining straight surfaces and can be fastened to the machine table either parallel or at a right angle depending on setup requirements.
Kurt Machine Vise: Single-Station, 6.00" Jaw Width, 6" Jaw Opening, Stationary Base, Precision 09219080 Specifications
| Model Number | 3600H |
|---|---|
| Jaw Width | 6.00" |
| Jaw Height | 1.7350" |
| Maximum Jaw Opening | 6" |
| Throat Depth | 1-31/64" |
| Operation Type | Hydraulic |
| Orientation | Horizontal |
| Number of Stations | 1 |
| Base Motion Type | Stationary |
| Base Length | 15.0600" |
| Base Height | 3.1870" (3-3/16") |
| Overall Length | 17.0000" |
| Overall Width | 6.00" |
| Overall Height | 4.9220" |
| Load Capacity | 12,600 lb |
| Maximum Clamping Force | 3,200 PSI |
| Precision Rated | Yes |
| For Use With | Machine |
| UNSPSC Code | 27112100 |
Kurt Machine Vise: Single-Station, 6.00" Jaw Width, 6" Jaw Opening, Stationary Base, Precision 09219080 Features & Benefits
- Hydraulic Clamping System provides consistent clamping pressure and improved efficiency in repetitive machining operations.
- AngLock® Vise Design minimizes jaw lift and pulls the workpiece downward for enhanced machining accuracy.
- Precision-Rated Construction delivers repeatable positioning and dependable workholding performance.
- Versatile Lock Mechanism supports secure workpiece retention across a wide range of machining applications.
- Stationary Jaw Configuration promotes stable workholding and improved dimensional consistency.
- Fixture Key Compatible Design allows precise positioning and repeatable machine table setups.
- Side Mounting Capability provides additional installation flexibility for specialized machining requirements.
- 1/4-Inch Vise Stroke enables controlled clamping adjustment for accurate workpiece engagement.
- Rigid Stationary Base reduces vibration and movement during demanding machining operations.
- 12,600 lb Load Capacity supports secure retention of a broad range of workpiece sizes and materials.
Why Choose the Kurt Machine Vise: Single-Station, 6.00" Jaw Width, 6" Jaw Opening, Stationary Base, Precision 09219080
- Hydraulic operation improves consistency and production efficiency.
- AngLock® technology enhances workpiece stability and machining accuracy.
- Precision-rated performance supports demanding manufacturing applications.
- Fixture key compatibility enables repeatable setup positioning.
- Heavy-duty construction withstands industrial machining environments.
- Stationary base design provides dependable rigidity and support.
- Ideal for CNC machining, production milling, and precision manufacturing operations.
The Kurt Machine Vise: Single-Station, 6.00" Jaw Width, 6" Jaw Opening, Stationary Base, Precision 09219080 combines hydraulic clamping technology, AngLock® workholding performance, and precision engineering to deliver reliable, repeatable results in demanding machining environments. It is an excellent solution for manufacturers seeking efficiency, accuracy, and long-term durability.
