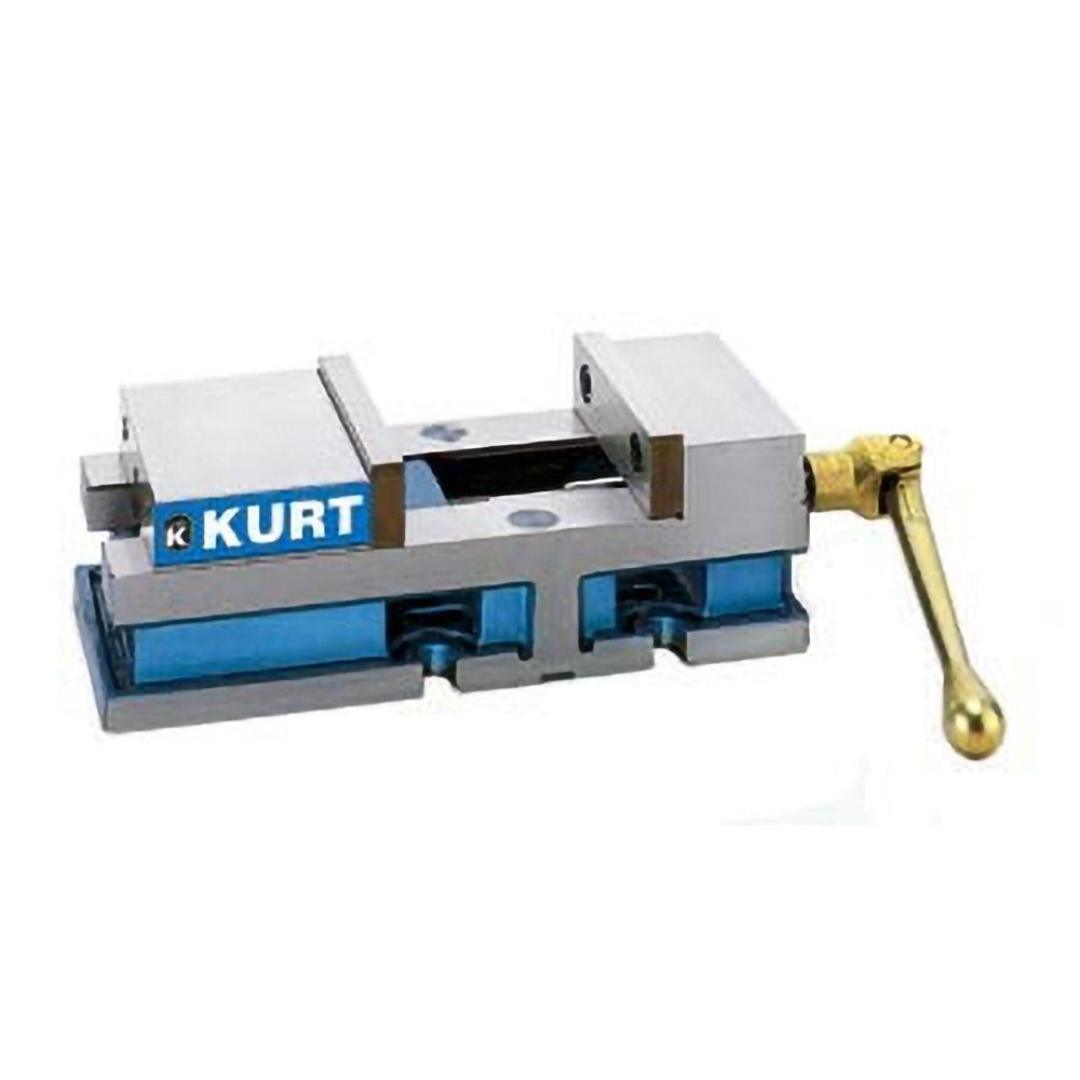

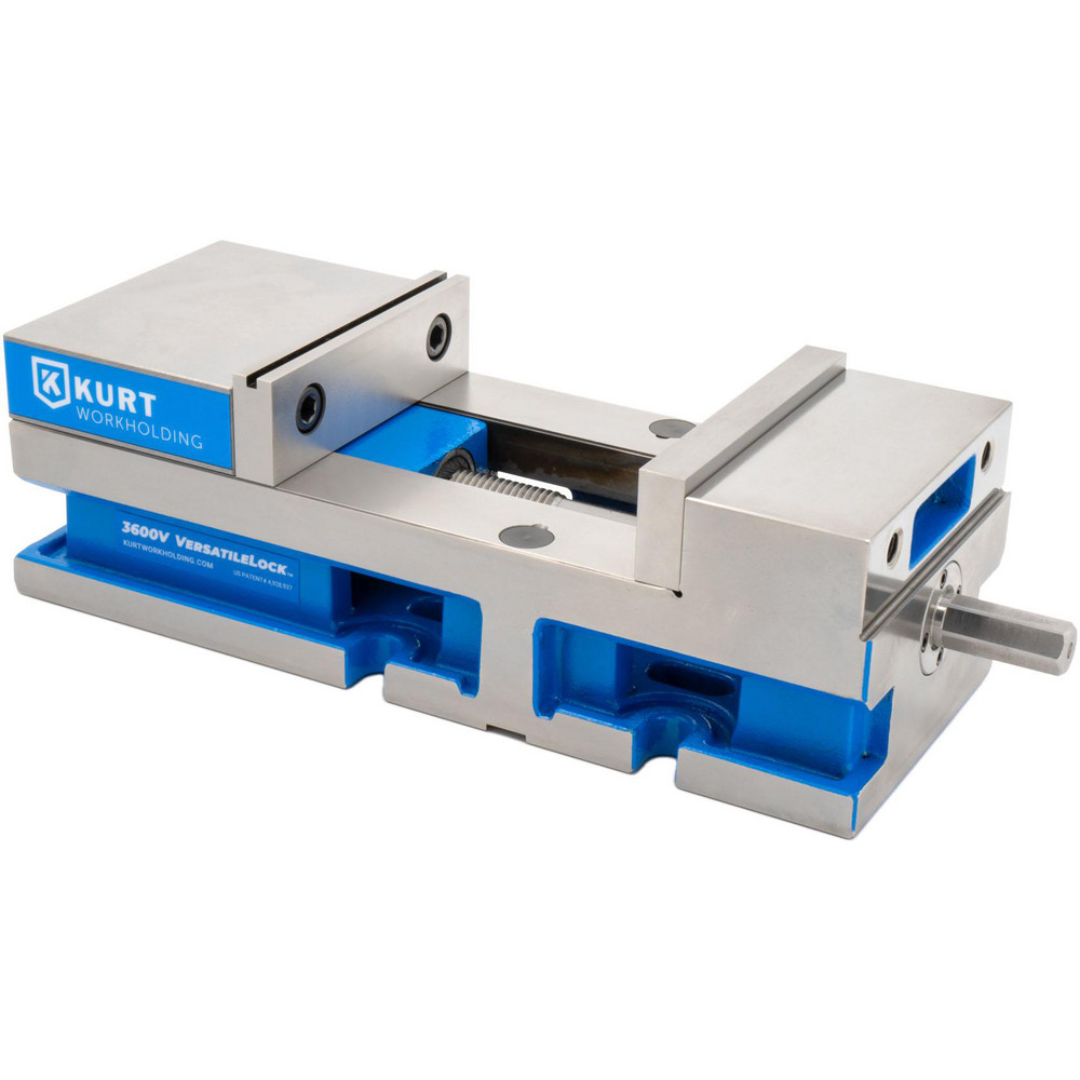

Kurt Machine Vise: Single-Station, 6.00" Jaw Width, 6" Jaw Opening, Stationary Base, Precision 09219023 Applications
- Precision milling and machining operations.
- Drilling, boring, reaming, and finishing applications.
- Toolroom, maintenance, and manufacturing facilities.
- Prototype development and production machining.
- General metalworking requiring secure workpiece retention.
- Machining straight surfaces with accurate and repeatable positioning.
Horizontal vises provide secure and accurate positioning of the workpiece during machining operations. Stationary vises are commonly used for machining straight surfaces and can be mounted parallel or at a right angle to the machine table for flexible setup options.
Kurt Machine Vise: Single-Station, 6.00" Jaw Width, 6" Jaw Opening, Stationary Base, Precision 09219023 Specifications
| Model Number | 3610 |
|---|---|
| Product Type | Precision Machine Vise |
| Number of Stations | 1 |
| Jaw Width | 6.00 in |
| Jaw Height | 1.7350 in |
| Maximum Jaw Opening | 6.00 in |
| Throat Depth | 1-31/64 in |
| Orientation | Horizontal |
| Operation Type | Reverse Manual |
| Base Motion Type | Stationary |
| Base Length | 15.0600 in |
| Base Height | 3-3/16 in (3.1870 in) |
| Overall Length | 17.0000 in |
| Overall Width | 6.00 in |
| Overall Height | 4.9220 in |
| Load Capacity | 6,356 lb |
| Maximum Clamping Force | 80 ft-lb |
| Precision Ground | Yes |
| UNSPSC Code | 27112100 |
Kurt Machine Vise: Single-Station, 6.00" Jaw Width, 6" Jaw Opening, Stationary Base, Precision 09219023 Features & Performance
- Horizontal vise configuration provides secure and accurate workpiece positioning during machining operations.
- Matched stationary jaw design promotes consistent clamping performance and repeatable machining accuracy.
- 6-inch jaw width offers excellent support and gripping capability for a variety of workpiece sizes.
- 1.7350-inch jaw height increases contact area and improves workpiece stability.
- 6-inch jaw opening capacity accommodates a broad range of machining applications.
- 15.0600-inch base length provides a stable platform that helps reduce movement during cutting operations.
- Versatile Lock system enhances setup flexibility and workholding adaptability.
- Fixture key compatibility allows accurate alignment and repeatable machine table positioning.
- Reverse manual operation offers precise control over clamping and workpiece positioning.
- Precision-ground construction supports tight tolerances and dependable machining results.
Why Choose the Kurt Machine Vise: Single-Station, 6.00" Jaw Width, 6" Jaw Opening, Stationary Base, Precision 09219023
- Built for precision machining and reliable workholding performance.
- Horizontal stationary design delivers excellent stability and repeatability.
- Fixture key compatibility supports faster setup and alignment.
- Matched stationary jaw construction improves accuracy and consistency.
- Durable design suitable for machine shops, production facilities, and toolrooms.
- Ideal for milling, drilling, finishing, and general machining operations.
The Kurt Machine Vise: Single-Station, 6.00" Jaw Width, 6" Jaw Opening, Stationary Base, Precision 09219023 combines dependable clamping performance, precision construction, and versatile workholding features to help machinists achieve accurate and repeatable results in demanding applications.
