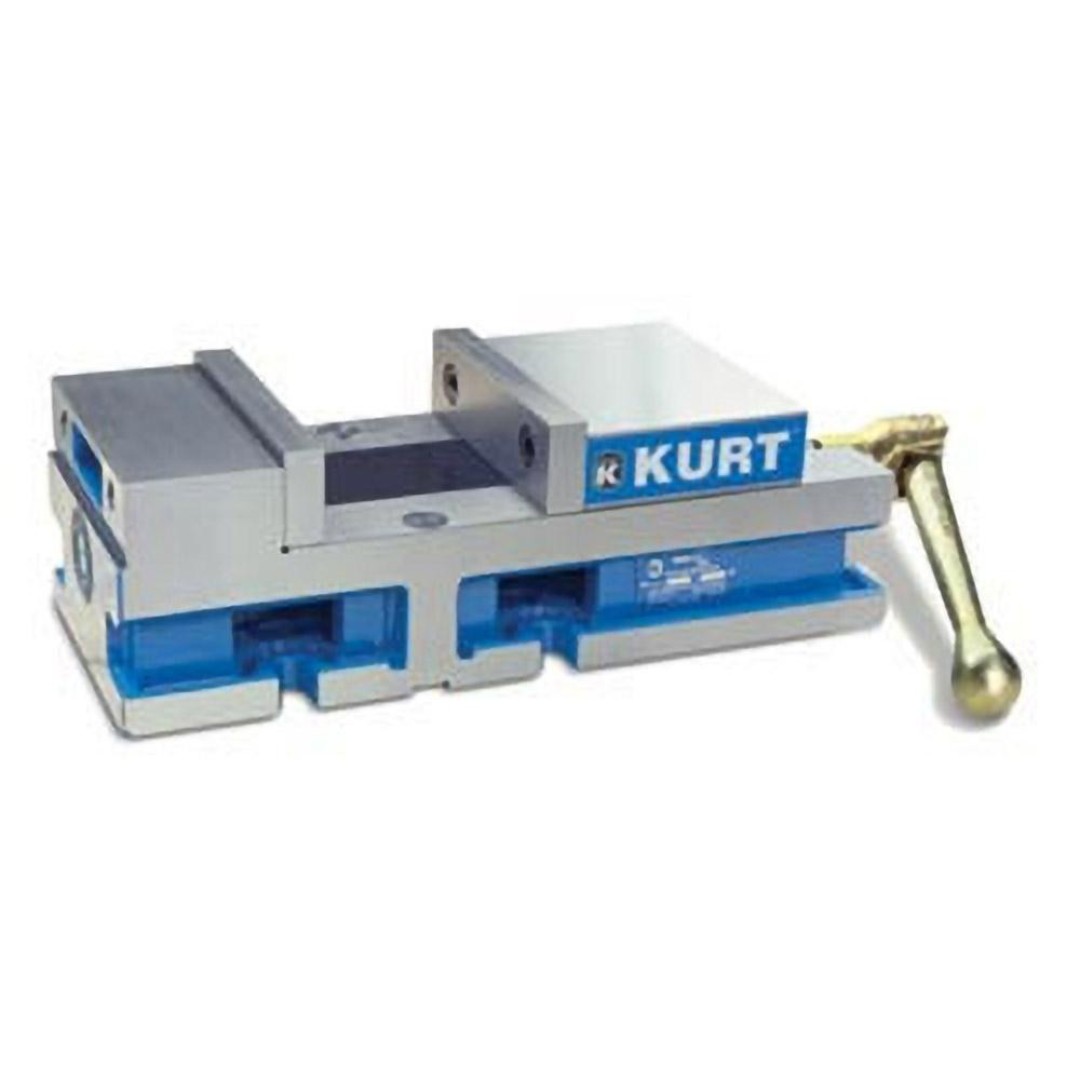

Kurt Machine Vise: Single-Station, 6.00" Jaw Width, 4" Jaw Opening, Stationary Base, Precision 09219049 Applications
- Precision CNC milling and machining operations.
- General metalworking and fabrication environments.
- Toolrooms and maintenance machining applications.
- Fixture-based production machining requiring repeatable positioning.
- Prototype development and short-run manufacturing.
- Machining straight surfaces with rigid workholding support.
- Inspection and secondary machining operations requiring accuracy.
- Industrial manufacturing facilities utilizing precision machine vises.
Horizontal vises provide secure and accurate positioning of the workpiece during machining operations. Stationary vises are used for machining straight surfaces and can be fastened to the machine table either parallel or at a right angle depending on application requirements.
Kurt Machine Vise: Single-Station, 6.00" Jaw Width, 4" Jaw Opening, Stationary Base, Precision 09219049 Specifications
| Model Number | 3620V |
|---|---|
| Jaw Width | 6.00" |
| Jaw Height | 1.7350" |
| Maximum Jaw Opening | 4" |
| Throat Depth | 1-31/64" |
| Operation Type | Manual |
| Orientation | Horizontal |
| Number of Stations | 1 |
| Base Motion Type | Stationary |
| Base Length | 12.9400" |
| Base Height | 3.1870" (3-3/16") |
| Overall Length | 14.8800" |
| Overall Width | 6.00" |
| Overall Height | 4.9220" |
| Load Capacity | 6,356 lb |
| Maximum Clamping Force | 6,356 lb |
| Precision Rated | Yes |
| For Use With | Machine |
| UNSPSC Code | 27112100 |
Kurt Machine Vise: Single-Station, 6.00" Jaw Width, 4" Jaw Opening, Stationary Base, Precision 09219049 Performance & Construction
- Single-Station Configuration provides dedicated, secure workholding for precision machining applications.
- Precision-Rated Design delivers consistent repeatability and positioning accuracy for critical machining operations.
- 6,356 lb Clamping Force ensures dependable holding power during milling, drilling, and machining processes.
- Versatile Lock System enhances setup flexibility while maintaining secure workpiece retention.
- Fixture Key Compatible Design supports precise vise alignment and repeatable machine table positioning.
- Matched Stationary Jaw Construction promotes uniform clamping pressure and improved machining accuracy.
- Rigid Stationary Base minimizes movement and vibration under load for superior machining stability.
- Manual Operation provides simple, reliable, and controlled clamping performance.
- Compact Footprint allows efficient use of machine table space without sacrificing holding capability.
- Industrial-Grade Construction designed to withstand demanding production and shop environments.
Kurt Machine Vise: Single-Station, 6.00" Jaw Width, 4" Jaw Opening, Stationary Base, Precision 09219049 Benefits
- Provides accurate and repeatable workpiece positioning.
- Delivers strong clamping force for reliable machining performance.
- Improves setup consistency with fixture key compatibility.
- Supports a wide range of machining and fabrication applications.
- Maintains stability during demanding cutting operations.
- Compact design maximizes available machine table workspace.
- Built for long service life in industrial manufacturing environments.
The Kurt Machine Vise: Single-Station, 6.00" Jaw Width, 4" Jaw Opening, Stationary Base, Precision 09219049 combines precision-rated performance, strong clamping capability, and rugged construction to provide dependable workholding for CNC machining centers, milling machines, toolrooms, and production manufacturing facilities.
