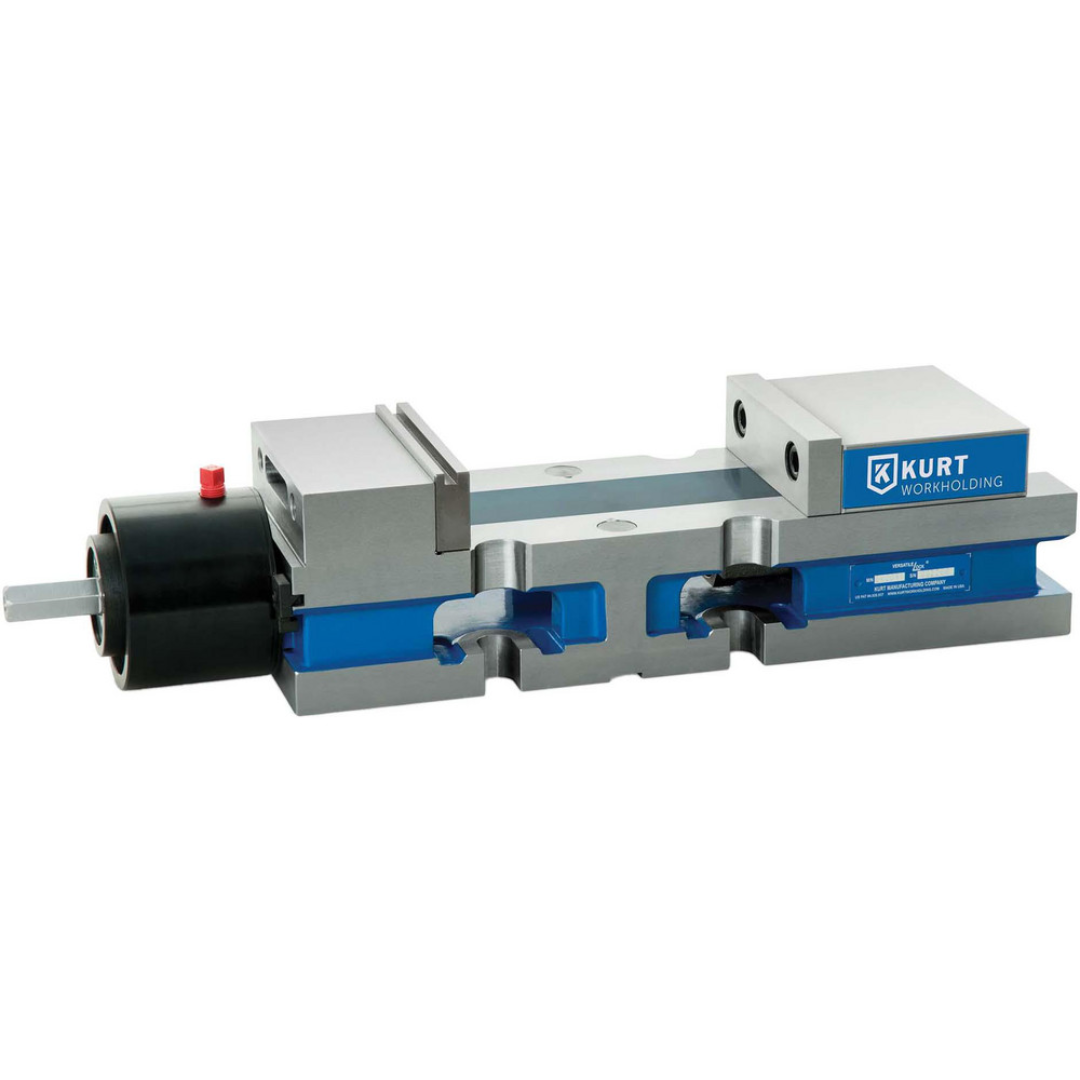

Kurt Machine Vise: Single-Station, 4.0000" Jaw Width, 6" Jaw Opening, Stationary Base, Precision 61764221 Applications
- CNC milling and precision machining operations.
- Production manufacturing environments requiring repeatable workholding.
- Machining of straight surfaces and precision components.
- Fixture-based machining setups in horizontal machining applications.
- Toolroom, prototype, and production machining operations.
- Metalworking applications involving steel, aluminum, brass, and engineered materials.
- Manufacturing environments requiring stable and accurate part positioning.
Ideal for machining operations requiring secure workpiece retention, precision alignment, and consistent clamping performance.
Kurt Machine Vise: Single-Station, 4.0000" Jaw Width, 6" Jaw Opening, Stationary Base, Precision 61764221 Specifications
| Vise Type | Single-Station Machine Vise |
|---|---|
| Operation Type | Reverse Hydraulic |
| Orientation | Horizontal |
| Base Motion Type | Stationary |
| Number of Stations | 1 |
| Jaw Width | 4.0000" |
| Jaw Height | 1.2350" |
| Maximum Jaw Opening | 6.0000" |
| Throat Depth | 1-15/64" |
| Base Width | 4.00" |
| Overall Length | 13.9850" |
| Overall Height | 3.4900" |
| Load Capacity | 7,800 lb |
| Vise Material | Ductile Iron |
| Precision | Yes |
| Application | Machine Workholding |
| UNSPSC Code | 27112100 |
Kurt Machine Vise: Single-Station, 4.0000" Jaw Width, 6" Jaw Opening, Stationary Base, Precision 61764221 Performance & Construction
- Precision horizontal vise design provides secure and accurate workpiece positioning during machining operations.
- Stationary base configuration delivers maximum rigidity for machining straight surfaces and precision components.
- Reverse hydraulic operation provides consistent clamping force and dependable workholding performance.
- Ductile iron construction offers exceptional strength, vibration dampening, and long-term durability.
- Single-station workholding platform maximizes machining accuracy while simplifying setup procedures.
- 6-inch jaw opening capacity accommodates a wide range of workpiece sizes and machining applications.
- Precision-ground components contribute to improved repeatability and machining consistency.
- 7,800 lb load capacity provides robust holding power for demanding production operations.
Kurt Machine Vise: Single-Station, 4.0000" Jaw Width, 6" Jaw Opening, Stationary Base, Precision 61764221 Features & Benefits
- Horizontal vise configuration supports accurate and repeatable machining operations.
- Stationary base can be mounted parallel or at a right angle depending on application requirements.
- Heavy-duty ductile iron body resists deformation under high clamping loads.
- Precision construction improves part quality and machining consistency.
- Hydraulic operation enhances productivity in repetitive manufacturing processes.
- Compact footprint maximizes machine table utilization.
- Designed for long service life in demanding industrial environments.
- Excellent choice for CNC machining centers, milling machines, and production workholding applications.
Why Choose the Kurt Machine Vise: Single-Station, 4.0000" Jaw Width, 6" Jaw Opening, Stationary Base, Precision 61764221
- Precision workholding for CNC machining and milling applications.
- Reverse hydraulic operation delivers consistent clamping performance.
- Stationary base provides maximum rigidity and stability.
- Large 6-inch jaw opening accommodates diverse workpiece sizes.
- Ductile iron construction ensures durability and long-term reliability.
- 7,800 lb load capacity supports demanding machining operations.
- Designed for accuracy, repeatability, and production efficiency.
The Kurt Machine Vise: Single-Station, 4.0000" Jaw Width, 6" Jaw Opening, Stationary Base, Precision 61764221 delivers dependable hydraulic clamping, exceptional rigidity, and precision workholding performance for manufacturers who demand accuracy, productivity, and long-term durability.
