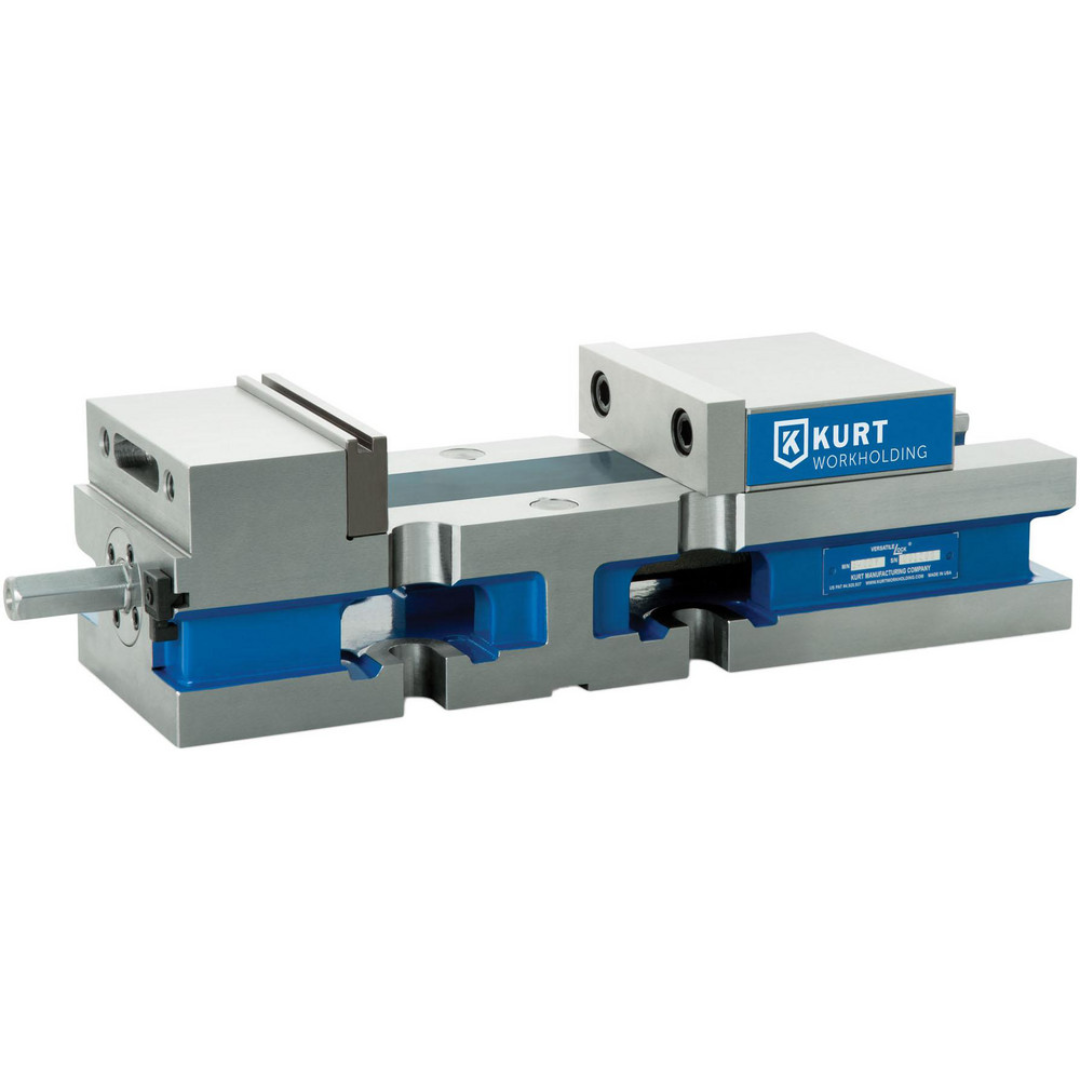

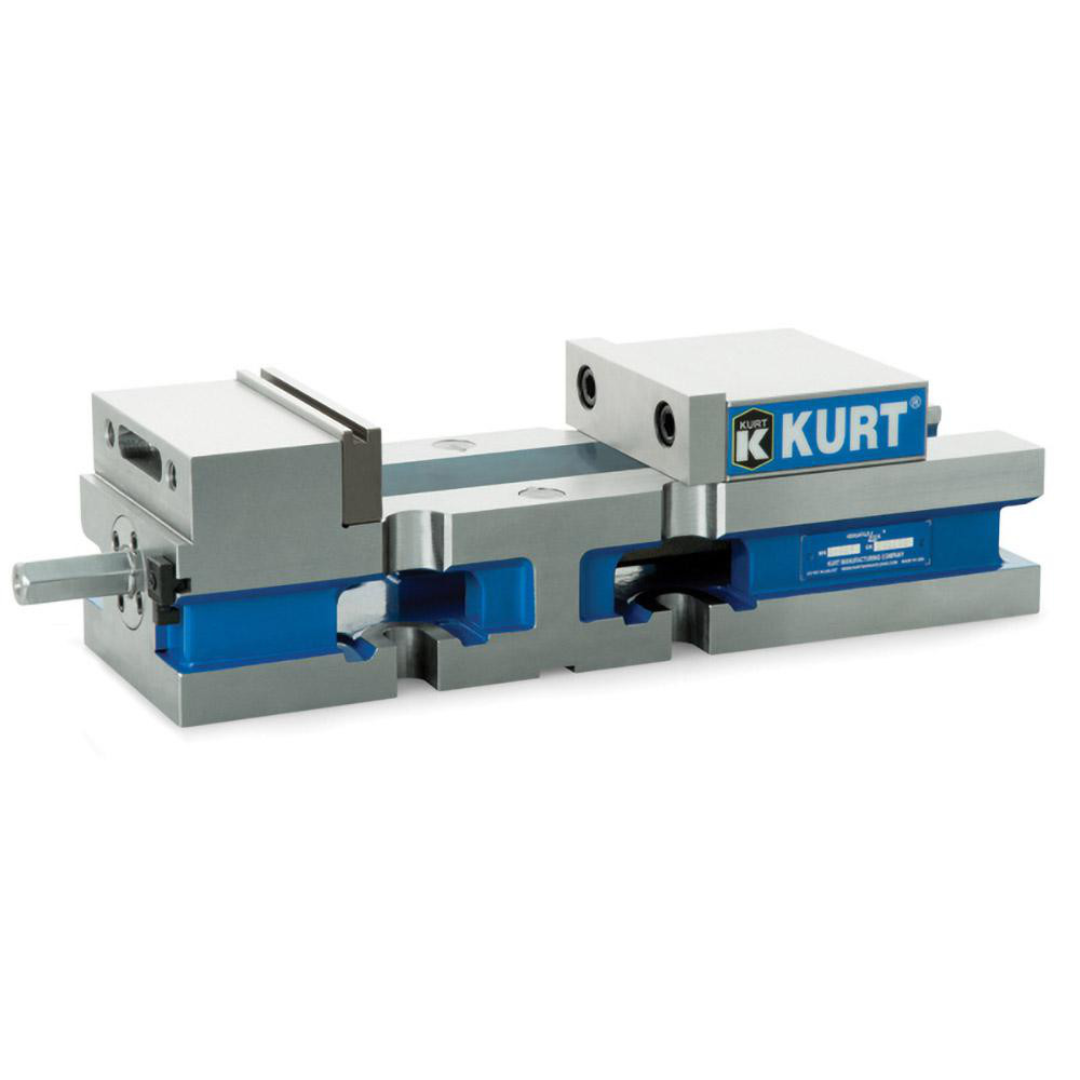

Kurt Machine Vise: Single-Station, 4.0000" Jaw Width, 6" Jaw Opening, Stationary Base, Precision 61696746 Applications
- CNC milling and precision machining operations.
- Production machining requiring repeatable workholding performance.
- Machining straight surfaces and precision components.
- Toolroom, fixture-building, and prototype manufacturing environments.
- Metalworking applications involving steel, aluminum, brass, and engineered materials.
- Horizontal machining setups requiring accurate part positioning.
- General manufacturing and production workholding applications.
Ideal for machinists and manufacturers who require secure workpiece retention, precision alignment, and repeatable machining accuracy.
Kurt Machine Vise: Single-Station, 4.0000" Jaw Width, 6" Jaw Opening, Stationary Base, Precision 61696746 Specifications
| Vise Type | Single-Station Machine Vise |
|---|---|
| Operation Type | Reverse Manual |
| Orientation | Horizontal |
| Base Motion Type | Stationary |
| Number of Stations | 1 |
| Jaw Width | 4.0000" |
| Jaw Height | 1.2350" |
| Maximum Jaw Opening | 6.0000" |
| Throat Depth | 1-15/64" |
| Base Width | 4.00" |
| Overall Length | 13.9850" |
| Overall Height | 3.4900" |
| Load Capacity | 7,500 lb |
| Vise Material | Ductile Iron |
| Precision | Yes |
| Included | Groove Lock Workstop |
| UNSPSC Code | 27112100 |
Kurt Machine Vise: Single-Station, 4.0000" Jaw Width, 6" Jaw Opening, Stationary Base, Precision 61696746 Features & Benefits
- AngLock® Design reduces jaw lift during clamping to improve workpiece stability and machining accuracy.
- Versatile Lock System provides flexible workholding capabilities for a variety of machining applications.
- Fixture Key Compatible for fast and accurate machine table positioning and repeatable setups.
- Matched Stationary Jaw enhances precision and contributes to consistent machining results.
- Ultra-Precise Functionality supports tight-tolerance machining operations and repeatable production work.
- Reverse Manual Operation offers dependable clamping control and straightforward operation.
- Groove Lock Workstop Included helps improve part positioning consistency and production efficiency.
- Ductile Iron Construction provides exceptional strength, rigidity, and vibration dampening characteristics.
- 7,500 lb Load Capacity delivers strong workholding performance for demanding machining applications.
- Precision Ground Components help maintain alignment and improve machining accuracy.
Kurt Machine Vise: Single-Station, 4.0000" Jaw Width, 6" Jaw Opening, Stationary Base, Precision 61696746 Performance & Construction
- Horizontal vise configuration provides secure and accurate workpiece positioning during machining operations.
- Stationary base design is ideal for machining straight surfaces and precision components.
- Can be mounted parallel or at a right angle to accommodate various machining requirements.
- Heavy-duty ductile iron construction resists deflection and enhances machining stability.
- Single-station design maximizes rigidity and supports repeatable workholding performance.
- Precision manufacturing helps ensure long-term reliability and consistent results.
- Optimized for CNC machining, production manufacturing, and high-accuracy metalworking applications.
Why Choose the Kurt Machine Vise: Single-Station, 4.0000" Jaw Width, 6" Jaw Opening, Stationary Base, Precision 61696746
- Proven AngLock® technology minimizes jaw lift and improves accuracy.
- 7,500 lb load capacity provides secure and dependable workholding.
- Precision-engineered ductile iron construction ensures durability and rigidity.
- Fixture key compatibility simplifies setup and improves repeatability.
- Groove Lock Workstop enhances production efficiency and part positioning.
- Stationary base design supports accurate machining of straight surfaces.
- Built for demanding CNC machining and manufacturing environments.
The Kurt Machine Vise: Single-Station, 4.0000" Jaw Width, 6" Jaw Opening, Stationary Base, Precision 61696746 combines AngLock® clamping technology, precision construction, and heavy-duty performance to deliver reliable workholding accuracy for CNC machining, milling, and production manufacturing applications.
