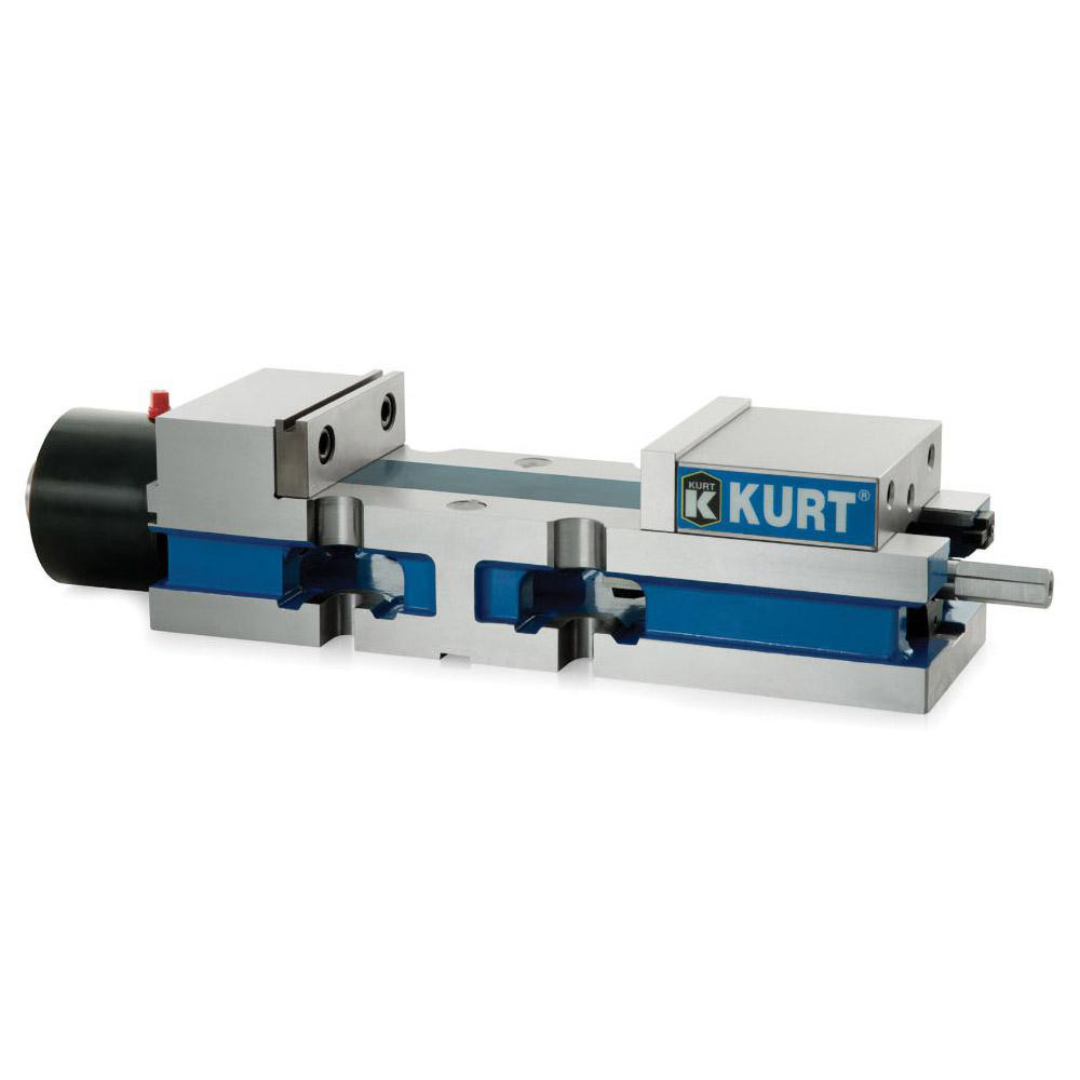

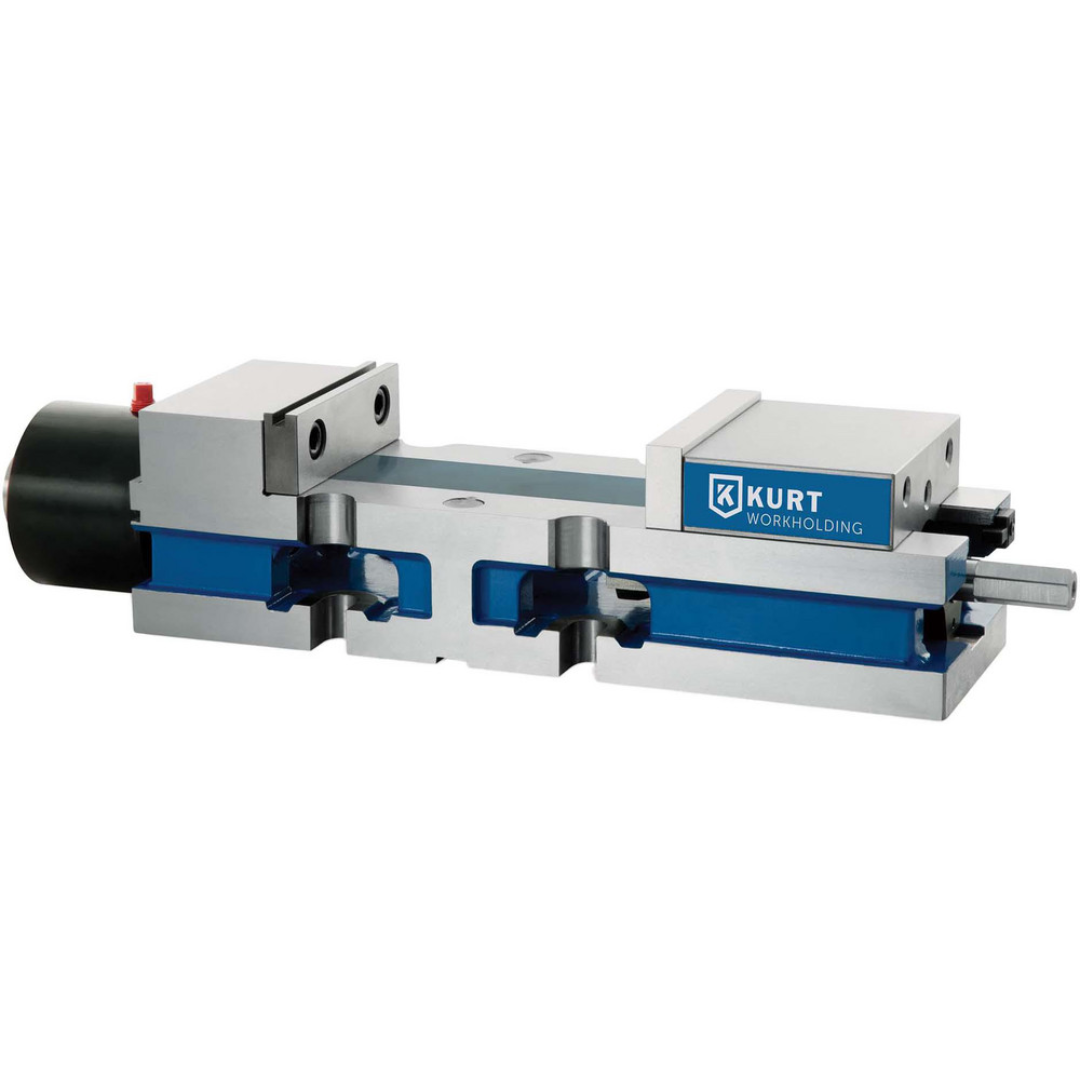

Kurt Machine Vise: Single-Station, 4.0000" Jaw Width, 6" Jaw Opening, Stationary Base, Precision 30804561 Applications
- Precision CNC milling and machining operations.
- Horizontal machining centers and production manufacturing systems.
- Drilling, boring, tapping, and finishing applications.
- Tool rooms, fabrication facilities, and industrial machine shops.
- High-accuracy workholding requirements in aerospace, automotive, and general manufacturing.
- Machining straight surfaces requiring rigid and repeatable workpiece positioning.
Horizontal vises provide secure and accurate positioning of the workpiece during machining operations, helping improve productivity and machining consistency.
Kurt Machine Vise: Single-Station, 4.0000" Jaw Width, 6" Jaw Opening, Stationary Base, Precision 30804561 Specifications
| Product Type | Hydraulic Precision Machine Vise |
|---|---|
| Part Number | 30804561 |
| Operation Type | Hydraulic |
| Number of Stations | 1 |
| Orientation | Horizontal |
| Base Motion Type | Stationary |
| Jaw Width | 4.0000" |
| Jaw Height | 1.2350" |
| Maximum Jaw Opening | 6" |
| Throat Depth | 1-15/64" |
| Load Capacity | 7,800 lb |
| Base Width | 4.00" |
| Overall Length | 14.1600" |
| Overall Height | 3.4900" |
| Vise Material | Ductile Iron |
| Includes | Groove Lock Workstop |
| Precision Rated | Yes |
| For Use With | Machine Applications |
| UNSPSC Code | 27112100 |
Kurt Machine Vise: Single-Station, 4.0000" Jaw Width, 6" Jaw Opening, Stationary Base, Precision 30804561 Features & Benefits
- Hydraulic operation provides consistent and repeatable clamping force for demanding machining applications.
- AngLock® design minimizes jaw lift during clamping, improving workpiece stability and machining accuracy.
- Ultra-precise functionality supports tight tolerance manufacturing and precision machining operations.
- Matched stationary jaw enhances repeatability and alignment consistency.
- Fixture key compatible for simplified setup and repeatable machine table positioning.
- 1/4-inch vise stroke allows efficient hydraulic clamping action.
- Groove Lock workstop included for repeatable part positioning and increased productivity.
- Heavy-duty ductile iron construction provides excellent rigidity, vibration dampening, and long service life.
Kurt Machine Vise: Single-Station, 4.0000" Jaw Width, 6" Jaw Opening, Stationary Base, Precision 30804561 Performance & Construction
- 7,800 lb load capacity provides powerful and secure workpiece retention.
- Hydraulic actuation ensures consistent clamping performance from part to part.
- Horizontal orientation allows efficient loading and unloading in machining operations.
- Stationary base design delivers maximum rigidity and positioning accuracy.
- Suitable for machining straight surfaces while maintaining stable workholding conditions.
- Can be mounted parallel or at right angles to the machine depending on application requirements.
- Built for continuous operation in demanding industrial and production environments.
Why Choose the Kurt Machine Vise: Single-Station, 4.0000" Jaw Width, 6" Jaw Opening, Stationary Base, Precision 30804561
- Hydraulic clamping delivers repeatable and dependable workholding performance.
- AngLock® technology minimizes jaw lift and improves machining accuracy.
- 7,800 lb load capacity supports demanding production applications.
- Precision-rated construction designed for tight-tolerance machining.
- Includes Groove Lock workstop for faster setups and repeatable positioning.
- Heavy-duty ductile iron body ensures durability and long-term reliability.
The Kurt Machine Vise: Single-Station, 4.0000" Jaw Width, 6" Jaw Opening, Stationary Base, Precision 30804561 combines hydraulic clamping power, AngLock® technology, and precision-engineered construction to provide secure, repeatable, and highly accurate workholding for modern machining environments.
