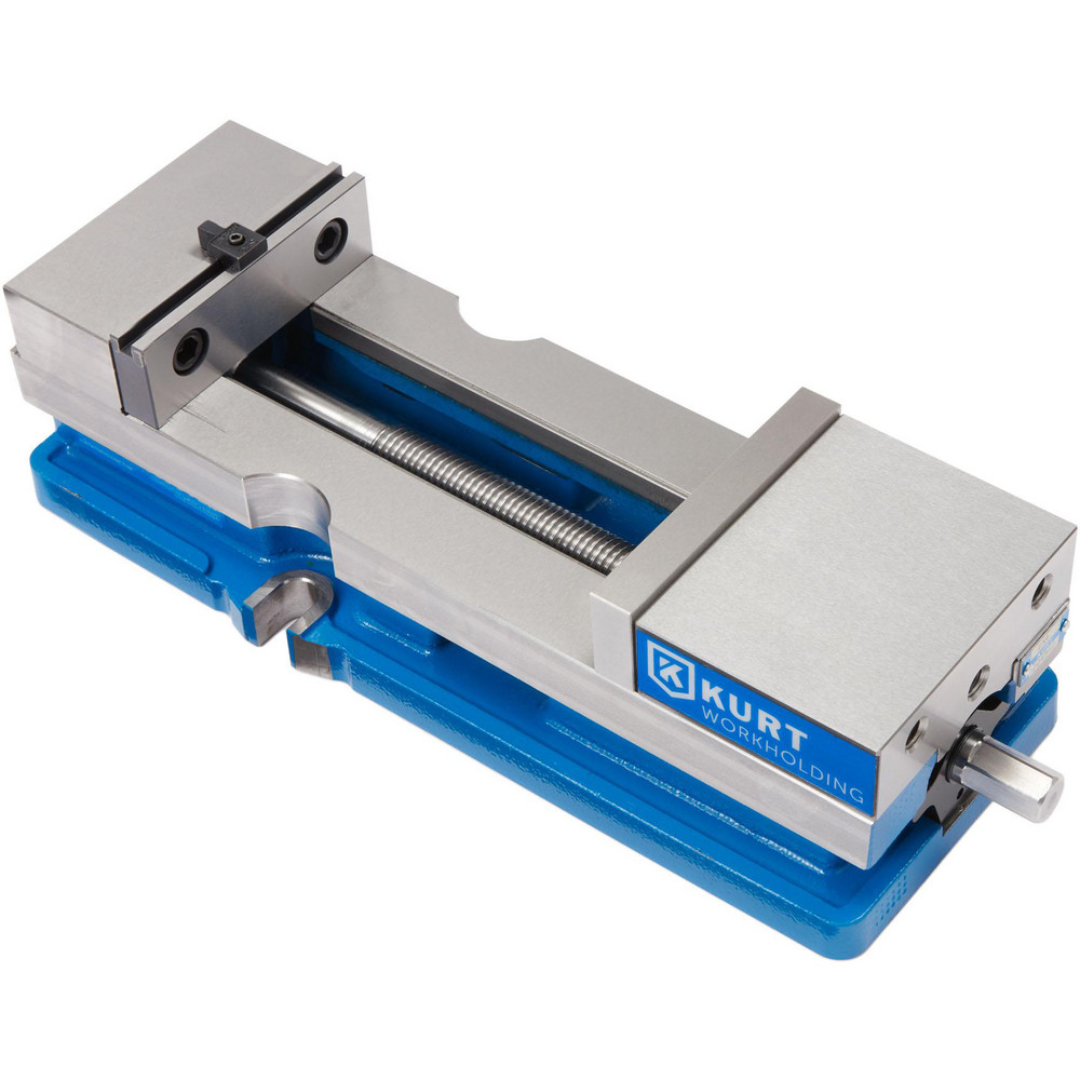

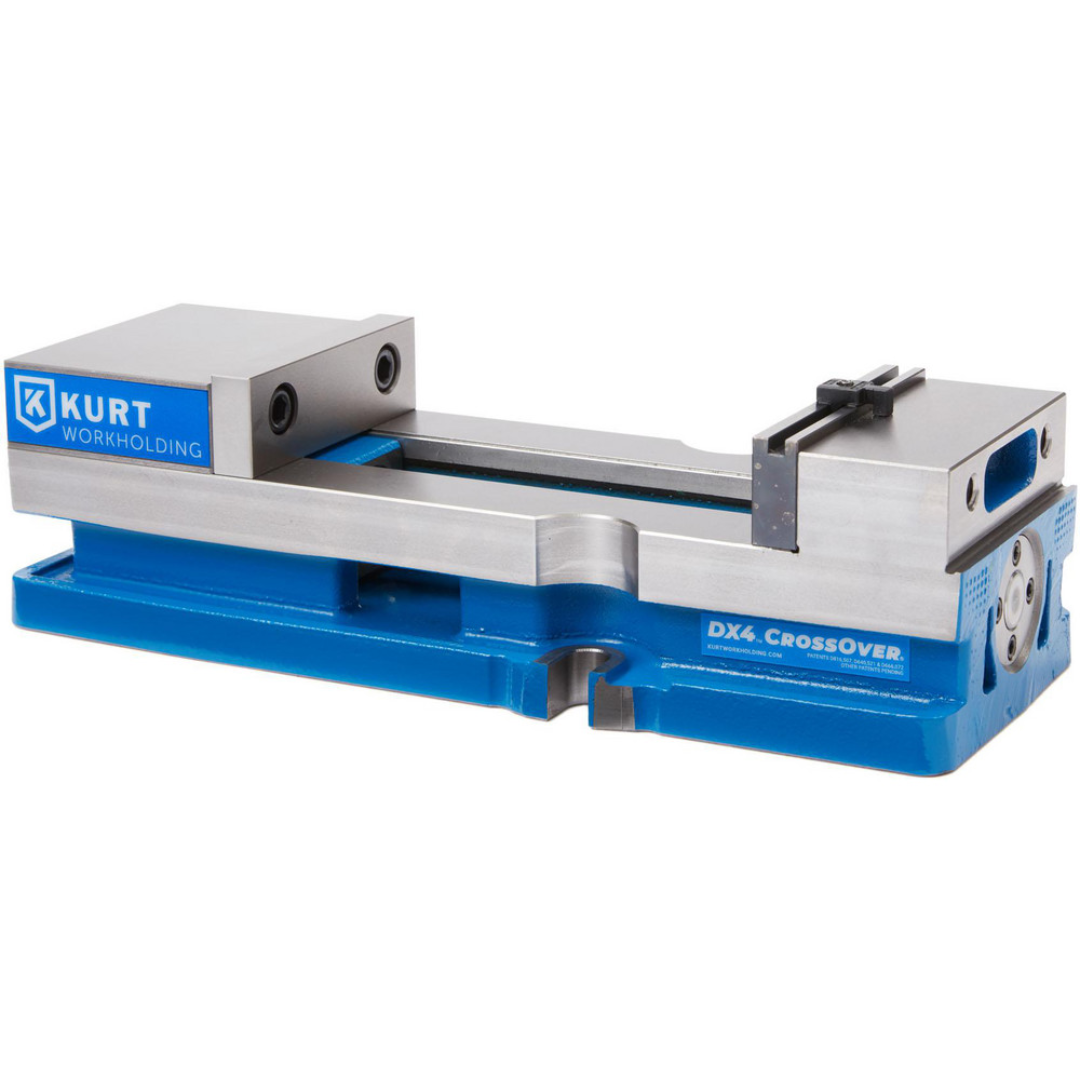

Kurt Machine Vise: Single-Station, 4.00" Jaw Width, 6-1/2" Jaw Opening, Stationary Base, Precision 30980429 Applications
- Horizontal milling machine operations requiring precise workpiece positioning.
- General machining, drilling, boring, and finishing applications.
- Toolroom and maintenance machining environments.
- Prototype development and short-run production work.
- Precision manufacturing operations requiring repeatable setup accuracy.
- Metalworking applications involving steel, aluminum, and engineered materials.
The compact 12.5000-inch base length makes this vise an excellent choice for machine tables where space efficiency and precision workholding are equally important.
Kurt Machine Vise: Single-Station, 4.00" Jaw Width, 6-1/2" Jaw Opening, Stationary Base, Precision 30980429 Specifications
| Product Type | Precision Machine Vise |
|---|---|
| Number of Stations | 1 |
| Jaw Width | 4.00 in |
| Jaw Height | 1.2350 in |
| Maximum Jaw Opening | 6-1/2 in |
| Throat Depth | 1-15/64 in |
| Orientation | Horizontal |
| Operation Type | Manual |
| Base Motion Type | Stationary |
| Base Length | 12.5000 in |
| Base Width | 4.96 in |
| Base Height | 2-1/4 in |
| Overall Length | 14.5600 in |
| Overall Width | 4.96 in |
| Overall Height | 3.3650 in |
| Jaw Material | Steel |
| Vise Material | Ductile Iron |
| Maximum Clamping Force | 7,500 ft-lb |
| Load Capacity | 60 lb |
| Included Accessories | Handle |
| Precision Ground | Yes |
| UNSPSC Code | 27112100 |
Kurt Machine Vise: Single-Station, 4.00" Jaw Width, 6-1/2" Jaw Opening, Stationary Base, Precision 30980429 Features & Performance
- Anglock® design reduces jaw lift and helps maintain secure workpiece positioning during machining.
- 4-inch precision steel jaws provide reliable gripping performance for a wide variety of parts.
- 1.2350-inch jaw height delivers excellent support and contact area for improved holding stability.
- 6-1/2-inch jaw opening capacity accommodates larger workpieces while maintaining precision clamping.
- Heavy-duty ductile iron body offers superior strength, rigidity, and long-term durability.
- Hardened vise bed improves wear resistance and extends service life in demanding shop environments.
- Integrated chip guard helps protect internal components from machining debris.
- Groove Lock® jaw plate system supports secure jaw retention and consistent performance.

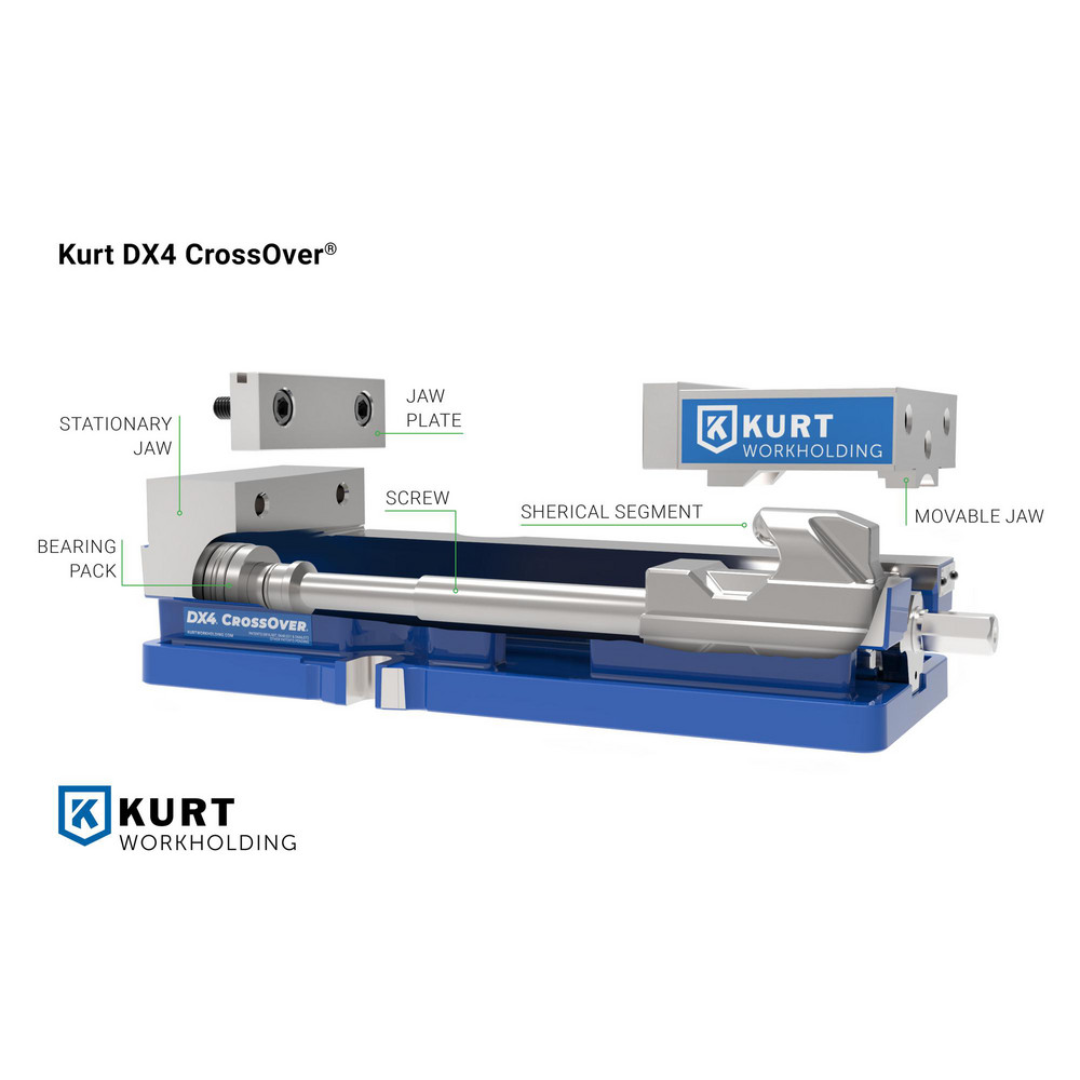

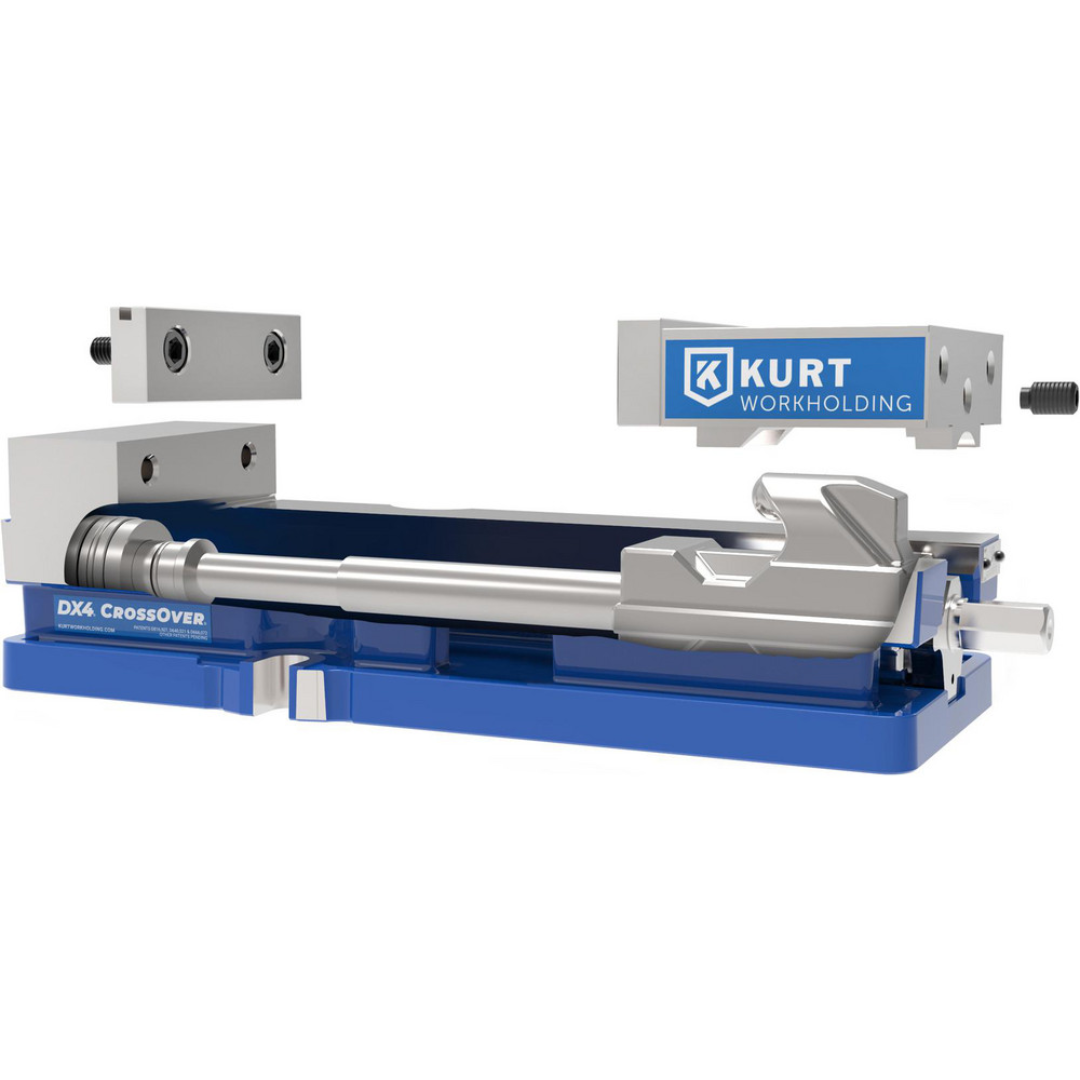

- Crossover® vise construction combines reduced weight with excellent clamping strength.
- Powder-coated finish provides added protection against corrosion and shop wear.
Why Choose the Kurt Machine Vise: Single-Station, 4.00" Jaw Width, 6-1/2" Jaw Opening, Stationary Base, Precision 30980429
- Compact footprint with a 12.5000-inch base length for efficient machine table utilization.
- Anglock® technology helps improve machining accuracy and repeatability.
- Heavy-duty ductile iron construction withstands demanding shop conditions.
- 7,500 ft-lb clamping force provides dependable holding power.
- Precision-ground construction supports high-accuracy machining operations.
- Ideal for milling, drilling, toolroom work, and general machining applications.
The Kurt Machine Vise: Single-Station, 4.00" Jaw Width, 6-1/2" Jaw Opening, Stationary Base, Precision 30980429 delivers professional-grade workholding performance, combining compact dimensions, proven Anglock® technology, and exceptional durability for precision machining environments.
