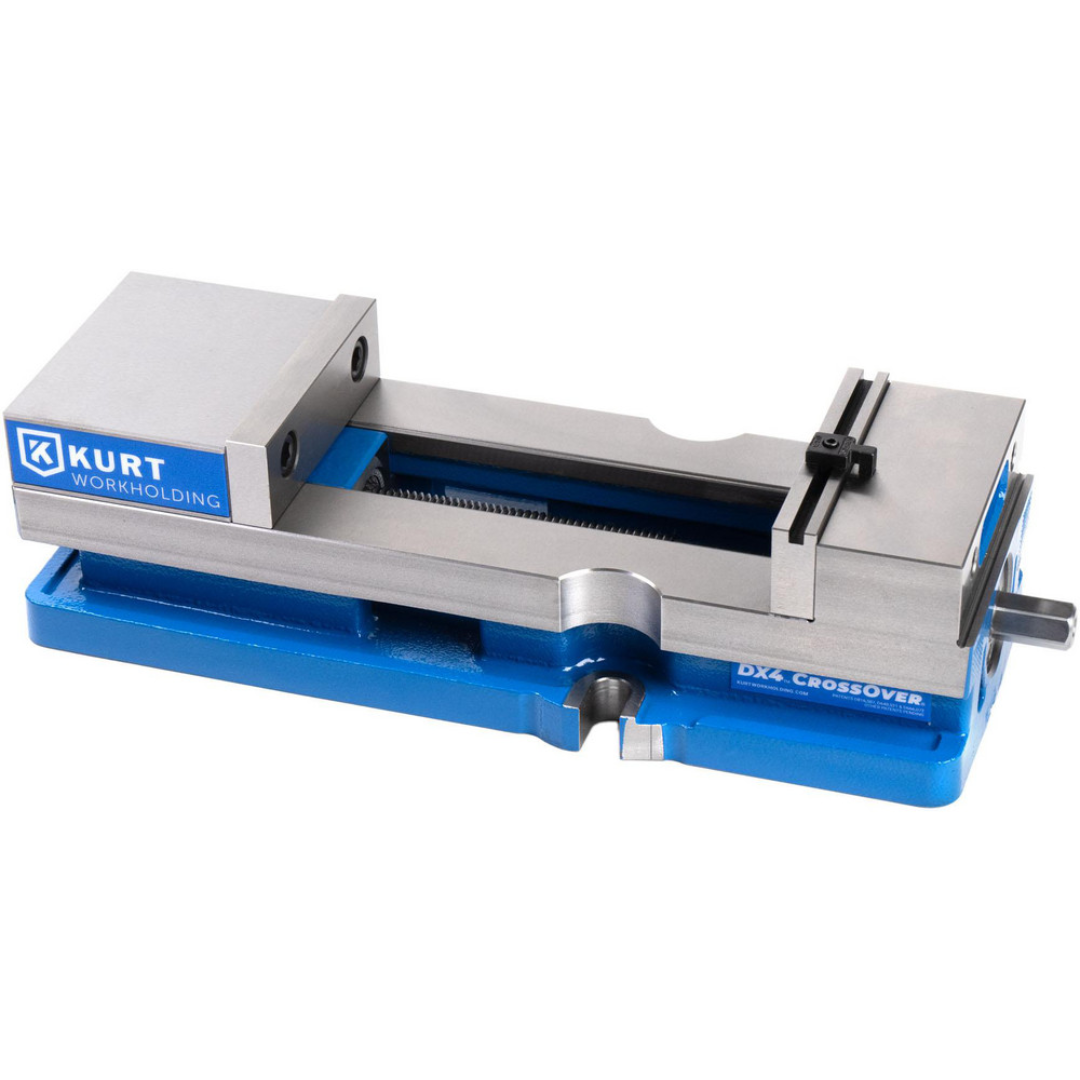

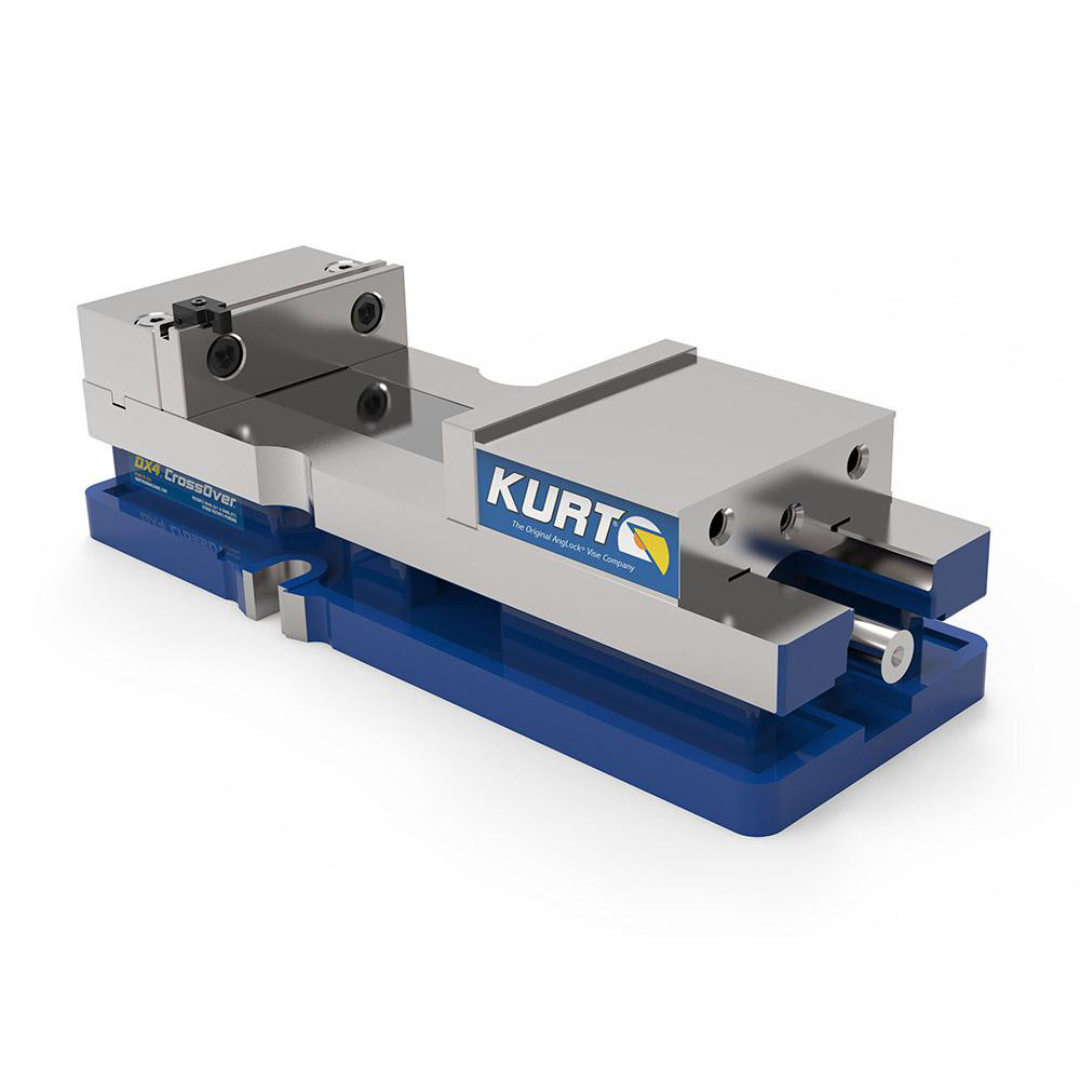

Kurt Machine Vise: Single-Station, 4.00" Jaw Width, 6-1/2" Jaw Opening, Stationary Base, Precision 30929426 Applications
- CNC machining centers and vertical mills.
- Toolroom and maintenance machining operations.
- Precision milling, drilling, and finishing applications.
- Production manufacturing requiring repeatable workholding.
- Metalworking and fabrication facilities.
- Fixture-based machining setups.
- Prototype and short-run machining operations.
- Machining straight surfaces with stable stationary workholding.
Horizontal vises provide secure and accurate positioning of the workpiece during machining operations. Stationary vises are used for machining straight surfaces and can be mounted either parallel or at a right angle to the machine table depending on the application requirements.
Kurt Machine Vise: Single-Station, 4.00" Jaw Width, 6-1/2" Jaw Opening, Stationary Base, Precision 30929426 Specifications
| Jaw Width | 4.00" |
|---|---|
| Jaw Height | 1.2350" |
| Maximum Jaw Opening | 6-1/2" |
| Throat Depth | 1-15/64" |
| Operation Type | Reverse Manual |
| Orientation | Horizontal |
| Number of Stations | 1 |
| Base Motion Type | Stationary |
| Base Length | 12.5000" |
| Base Width | 4.96" |
| Base Height | 2-1/4" |
| Overall Length | 14.5600" |
| Overall Width | 4.96" |
| Overall Height | 3.3650" |
| Jaw Material | Steel |
| Vise Material | Ductile Iron |
| Maximum Clamping Force | 7,500 lb |
| Load Capacity | 60 lb |
| Precision Rated | Yes |
| Included | Handle |
| UNSPSC Code | 27112100 |
Kurt Machine Vise: Single-Station, 4.00" Jaw Width, 6-1/2" Jaw Opening, Stationary Base, Precision 30929426 Features & Benefits
- AngLock® Design reduces jaw lift and pulls the workpiece downward for improved machining accuracy and repeatability.
- CrossOver® Vise Technology combines precision workholding performance with rugged industrial durability.
- Hardened Vise Bed provides exceptional wear resistance and long service life under demanding operating conditions.
- Groove Lock® Jaw Plate System allows secure jaw positioning and dependable clamping performance.
- Semi-Hard Screw Assembly enhances durability while maintaining smooth operation and long-term reliability.
- Integrated Chip Guard helps protect internal components from chips and debris generated during machining.
- Efficient Chip Evacuation Design assists in keeping critical clamping components cleaner during operation.
- Powder Coat Finish provides corrosion resistance and protects exposed surfaces from shop wear.
- Precision Ground Components support accurate workpiece positioning and consistent machining results.
- 7,500 lb Clamping Force delivers strong and secure workholding for a wide variety of machining applications.
Why Choose the Kurt Machine Vise: Single-Station, 4.00" Jaw Width, 6-1/2" Jaw Opening, Stationary Base, Precision 30929426
- Compact footprint ideal for smaller machining centers and workspaces.
- Precision-rated performance for demanding machining applications.
- AngLock® technology improves workpiece stability and machining accuracy.
- Heavy-duty ductile iron construction ensures long-term durability.
- Hardened bed and protected internal components extend service life.
- Strong clamping force for reliable workpiece retention.
- Excellent choice for CNC machining, toolrooms, production manufacturing, and fabrication operations.
The Kurt Machine Vise: Single-Station, 4.00" Jaw Width, 6-1/2" Jaw Opening, Stationary Base, Precision 30929426 delivers the precision, rigidity, and durability that machinists expect from Kurt workholding solutions. Its compact design, AngLock® technology, and robust clamping force make it an outstanding choice for precision machining and manufacturing environments.
