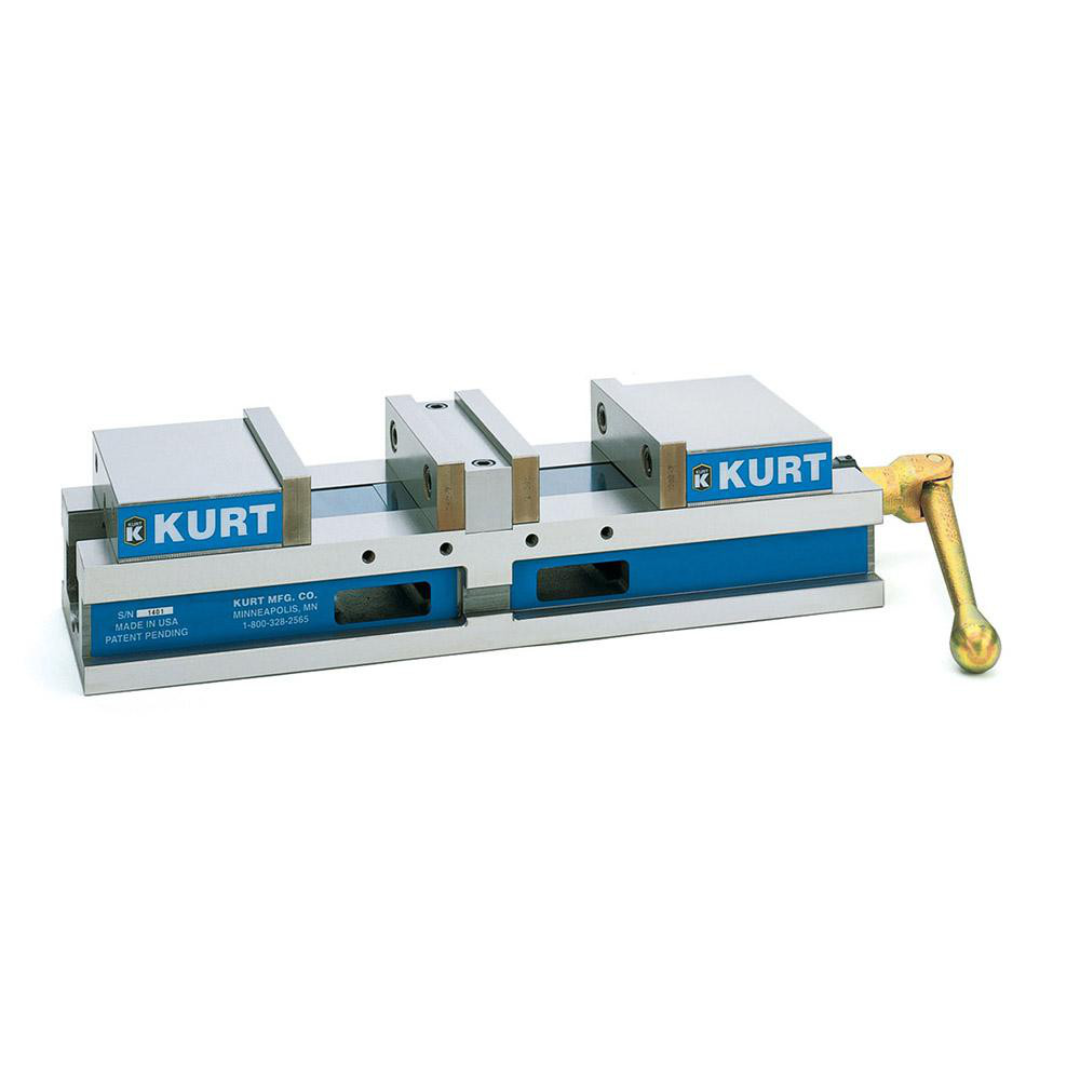

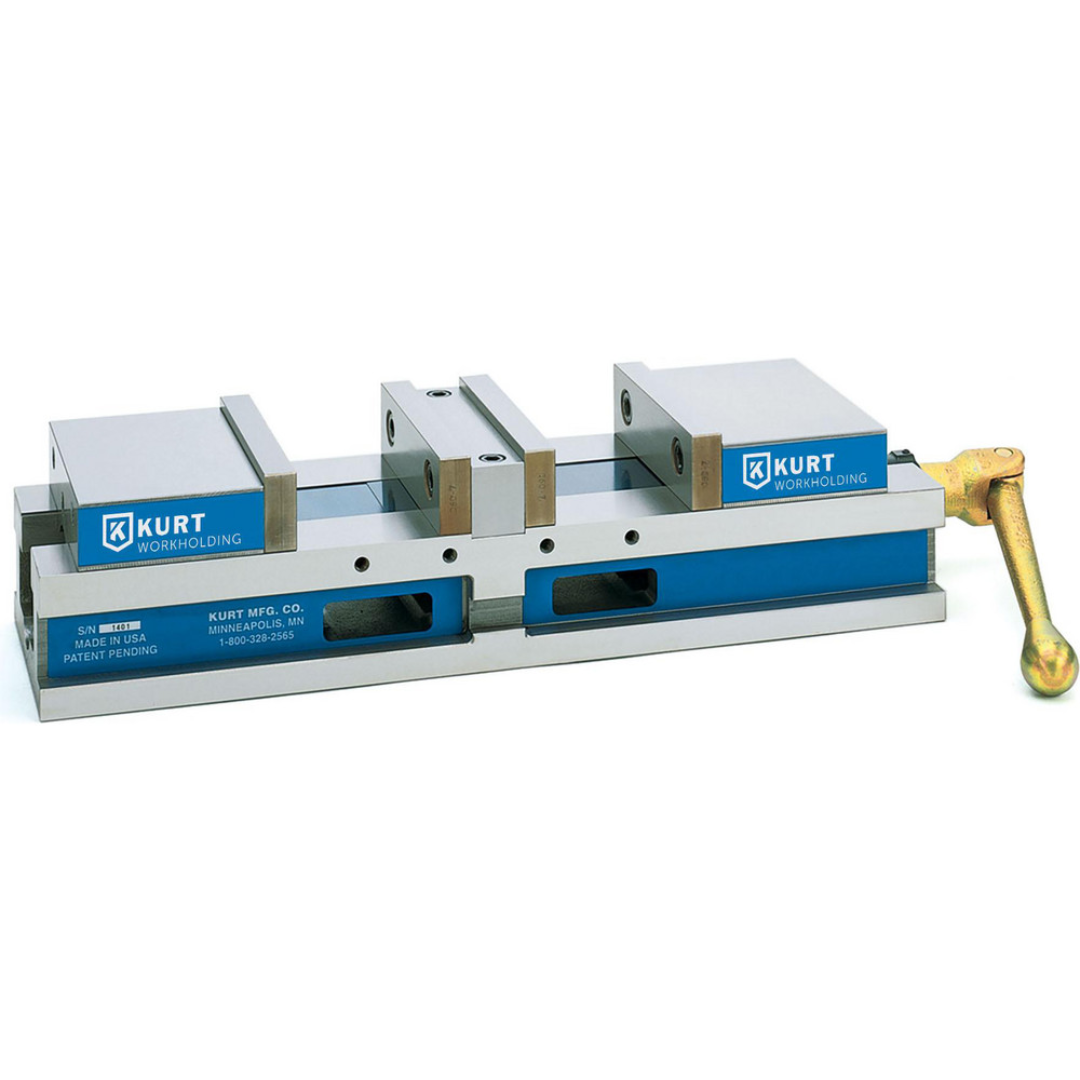

Kurt Machine Vise: Double-Station, 8.0000" Jaw Width, 6" Jaw Opening, Stationary Base, Precision DL800 Applications
- CNC milling and machining center operations.
- High-production manufacturing environments requiring increased throughput.
- Precision machining of steel, aluminum, stainless steel, and specialty alloys.
- Automotive, aerospace, toolmaking, and general industrial manufacturing.
- Drilling, milling, tapping, boring, contouring, and finishing operations.
- Multi-part machining setups designed to reduce machine downtime.
- Applications requiring repeatable positioning and dependable workpiece retention.
The dual-station design enables multiple parts to be machined in a single setup, helping increase productivity while reducing setup and changeover time.
Kurt Machine Vise: Double-Station, 8.0000" Jaw Width, 6" Jaw Opening, Stationary Base, Precision DL800 Specifications
| Model Number | DL800 |
|---|---|
| Number of Stations | 2 |
| Jaw Width | 8.0000" |
| Jaw Height | 2.2000" |
| Maximum Jaw Opening Capacity | 6" |
| Throat Depth | 2-13/64" |
| Orientation | Horizontal |
| Operation Type | Manual |
| Base Motion Type | Stationary |
| Base Length | 30.0000" |
| Base Height | 3.7500" (3-3/4") |
| Overall Length | 34.2500" (34-1/4") |
| Overall Width | 7.2500" (7-1/4") |
| Overall Height | 5.9500" |
| Load Capacity | 8,997 lb |
| Maximum Clamping Force | 80,000 PSI |
| Jaw Material | Steel |
| Vise Material | Ductile Iron |
| Precision | Yes |
| UNSPSC Code | 27112100 |
Kurt Machine Vise: Double-Station, 8.0000" Jaw Width, 6" Jaw Opening, Stationary Base, Precision DL800 Features & Benefits
- Double-station configuration allows two workpieces to be clamped simultaneously, increasing machine utilization and productivity.
- 8.0000" jaw width provides a large gripping surface for stable and secure workholding.
- 6" jaw opening capacity accommodates a broad range of workpiece sizes.
- 2.2000" jaw height delivers enhanced support and improved gripping performance.
- 30.0000" base length provides excellent rigidity and stability during demanding machining operations.
- Horizontal design ensures secure and accurate positioning of workpieces throughout the machining process.
- Patented Double Lock technology enhances clamping consistency and helps maintain part positioning accuracy.
- Self-adjusting holding block automatically compensates for variations and improves workholding reliability.
- High load capacity of 8,997 lb supports demanding industrial machining applications.
- Maximum clamping force of 80,000 PSI provides exceptional holding power for heavy machining operations.
- Ductile iron construction offers superior strength, durability, and vibration dampening characteristics.
- Manual operation provides dependable clamping control with minimal maintenance requirements.
- Precision-machined components help ensure repeatable positioning and consistent machining results.
Horizontal vises provide secure and accurate positioning of the workpiece during machining operations. Stationary vises are commonly used for machining straight surfaces and can be mounted parallel to the cutting path or at a right angle, providing flexible setup options for a variety of machining applications.
Why Choose the Kurt Machine Vise: Double-Station, 8.0000" Jaw Width, 6" Jaw Opening, Stationary Base, Precision DL800
- Dual-station design improves throughput and reduces setup time.
- Patented Double Lock technology enhances workholding accuracy.
- Self-adjusting holding block improves clamping consistency.
- Heavy-duty ductile iron construction delivers long-term durability.
- High load and clamping capacities support demanding production environments.
- Ideal for CNC machining, manufacturing, and precision workholding applications.
The Kurt Machine Vise: Double-Station, 8.0000" Jaw Width, 6" Jaw Opening, Stationary Base, Precision DL800 is engineered to provide exceptional productivity, accuracy, and durability for manufacturers seeking reliable dual-station workholding performance in demanding machining environments.
