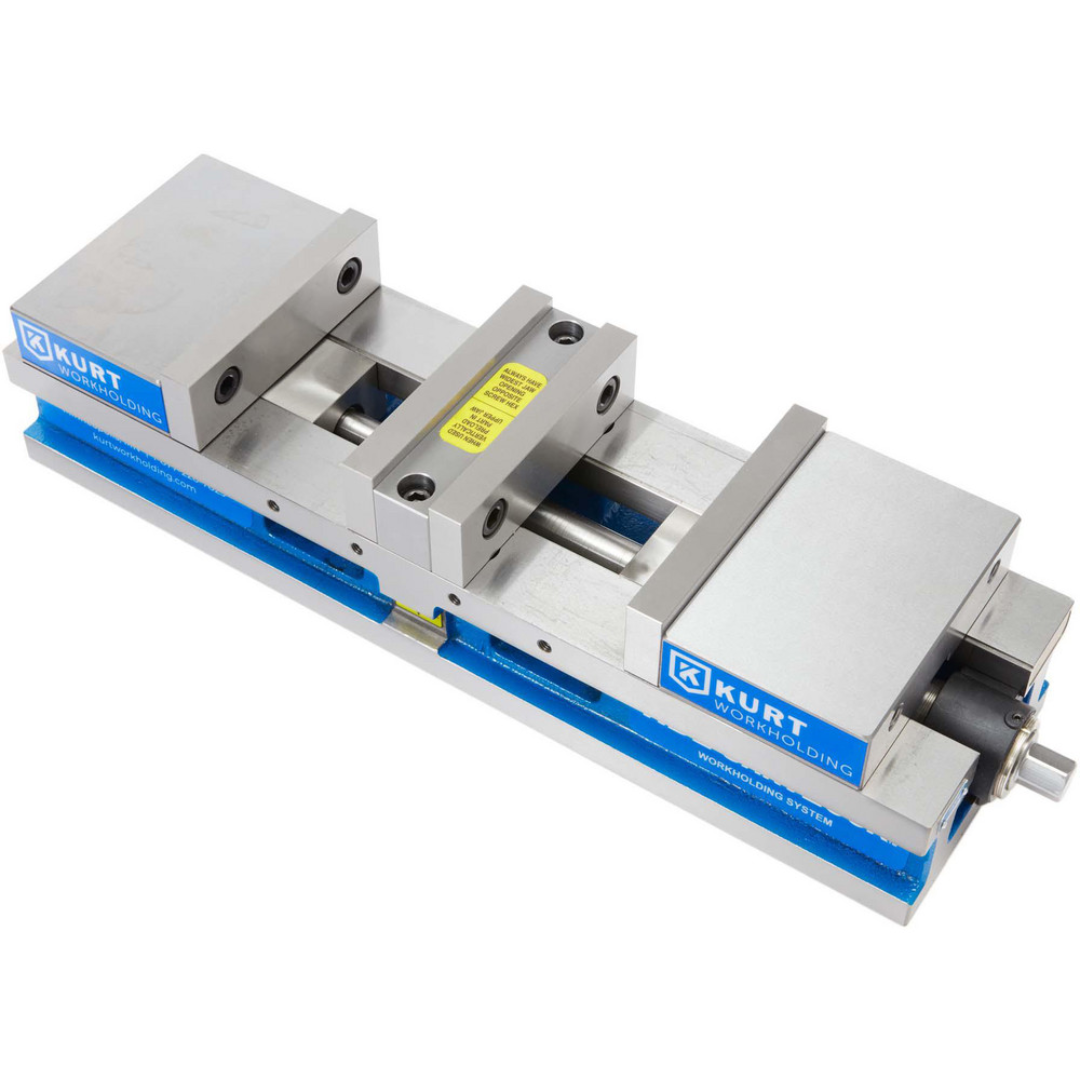

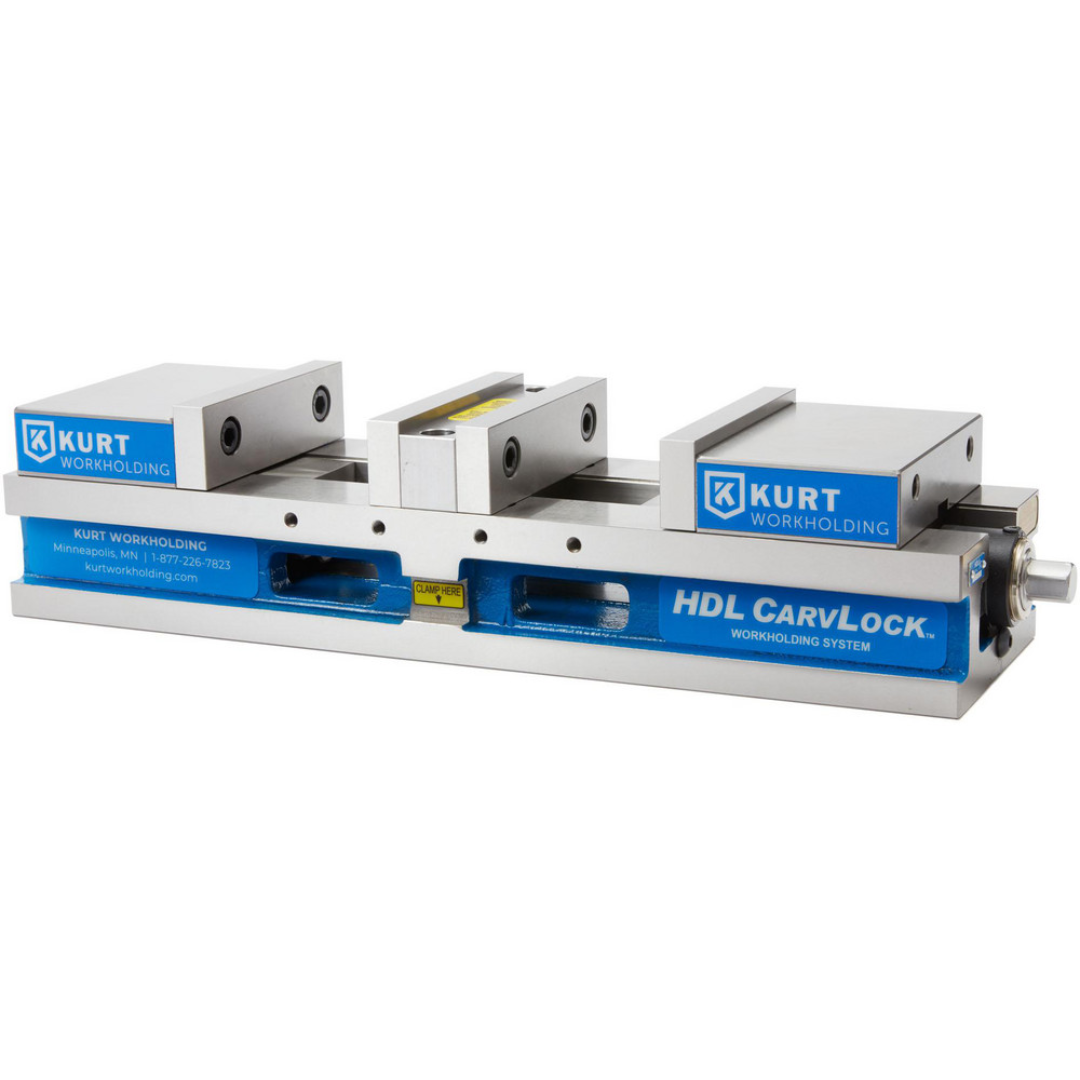

Kurt Machine Vise: Double-Station, 6.00" Jaw Width, 4" Jaw Opening, Stationary Base 73411738 Applications
- Production CNC milling operations requiring multiple-part workholding.
- Precision machining environments focused on maximizing spindle uptime.
- General metalworking and fabrication applications.
- Toolrooms and machine shops performing repetitive machining processes.
- Manufacturing facilities seeking increased throughput and efficiency.
- Fixture and workholding setups requiring dependable repeatability.
- Machining straight surfaces with rigid stationary workholding.
- Horizontal machining applications where secure workpiece positioning is critical.
Horizontal vises provide secure and accurate positioning of the workpiece during machining operations. Stationary vises are used for machining straight surfaces and can be fastened to the machine table either parallel or at a right angle depending on the machining setup.
Kurt Machine Vise: Double-Station, 6.00" Jaw Width, 4" Jaw Opening, Stationary Base 73411738 Specifications
| Model Number | HDL6J |
|---|---|
| Jaw Width | 6.00" |
| Jaw Height | 1.7350" (44.07 mm) |
| Maximum Jaw Opening | 4" |
| Throat Depth | 1-47/64" |
| Operation Type | Manual |
| Orientation | Horizontal |
| Number of Stations | 2 |
| Base Motion Type | Stationary |
| Base Length | 21.0000" (533.4 mm) |
| Base Width | 6.00" |
| Base Height | 3.1250" (79.38 mm) |
| Overall Length | 22.4500" |
| Overall Height | 4.8530" |
| Vise Material | Ductile Iron |
| Load Capacity | 7,460 lb |
| For Use With | Machine |
| UNSPSC Code | 27112100 |
Kurt Machine Vise: Double-Station, 6.00" Jaw Width, 4" Jaw Opening, Stationary Base 73411738 Performance & Construction
- Double-Station Design allows two workpieces to be machined simultaneously, increasing productivity and reducing setup time.
- Ductile Iron Construction provides excellent rigidity, vibration resistance, and long-term durability.
- Patented Workholding Technology helps maintain consistent clamping pressure and dependable machining accuracy.
- Adjustable Pre-Load System enables fine-tuning for optimized performance and repeatability.
- Quick-Change Jaw Capability simplifies jaw replacement and setup changes for greater operational flexibility.
- High-Density Construction minimizes deflection under load for improved machining stability.
- Holding Block Design enhances workpiece security during demanding machining operations.
- Rigid Stationary Base provides stable support for precision milling and machining applications.
- Load Capacity of 7,460 lb supports secure workholding across a broad range of materials and part sizes.
- Long-Term Accuracy Design engineered to maintain precision and performance throughout extended service life.
Kurt Machine Vise: Double-Station, 6.00" Jaw Width, 4" Jaw Opening, Stationary Base 73411738 Benefits
- Machines two parts simultaneously for increased production efficiency.
- Reduces machine downtime by minimizing multiple workholding setups.
- Provides dependable clamping strength and repeatable positioning.
- Supports precision machining with excellent rigidity and stability.
- Quick-change jaw system improves versatility and setup flexibility.
- Heavy-duty ductile iron construction withstands demanding shop environments.
- Ideal for both high-volume production and precision manufacturing applications.
The Kurt Machine Vise: Double-Station, 6.00" Jaw Width, 4" Jaw Opening, Stationary Base 73411738 is designed for manufacturers seeking greater machining efficiency, rigid workholding performance, and dependable long-term accuracy. Its dual-station configuration helps maximize machine utilization while maintaining the precision expected from Kurt workholding solutions.
