Kurt Machine Vise: Double-Station, 6.00" Jaw Width, 11" Jaw Opening, Stationary Base, Precision 63911804 Applications
- CNC milling and machining operations requiring high repeatability.
- Production machining environments utilizing multiple workholding stations.
- General-purpose metalworking and fabrication applications.
- Precision machining of steel, aluminum, and other machinable materials.
- Manufacturing facilities focused on improving machining efficiency.
- Toolrooms and maintenance departments performing precision work.
- Fixture and workholding setups requiring accurate positioning.
- Machining straight surfaces with stable, stationary workholding.
Horizontal vises provide secure and accurate positioning of the workpiece during machining operations. Stationary vises are used for machining straight surfaces and can be fastened to the machine at either a parallel or at a right angle depending on the machining setup requirements.
Kurt Machine Vise: Double-Station, 6.00" Jaw Width, 11" Jaw Opening, Stationary Base, Precision 63911804 Specifications
| Jaw Width | 6.00" |
|---|---|
| Jaw Height | 1.6875" |
| Maximum Jaw Opening | 11" |
| Throat Depth | 1.6875" |
| Jaw Style | Detachable, Standard |
| Jaw Material | Aluminum; Steel |
| Operation Type | Manual |
| Orientation | Horizontal |
| Number of Stations | 2 |
| Base Motion Type | Stationary |
| Base Length | 21.0000" |
| Base Width | 6.0000" |
| Base Height | 3.1250" |
| Overall Length | 22.0800" |
| Overall Width | 6.0000" |
| Overall Height | 4.8125" |
| Vise Material | Cast Iron; Steel |
| Maximum Clamping Force | 5,550 lb |
| Precision Rated | Yes |
| For Use With | Machine |
| UNSPSC Code | 27112100 |
Kurt Machine Vise: Double-Station, 6.00" Jaw Width, 11" Jaw Opening, Stationary Base, Precision 63911804 Performance & Construction

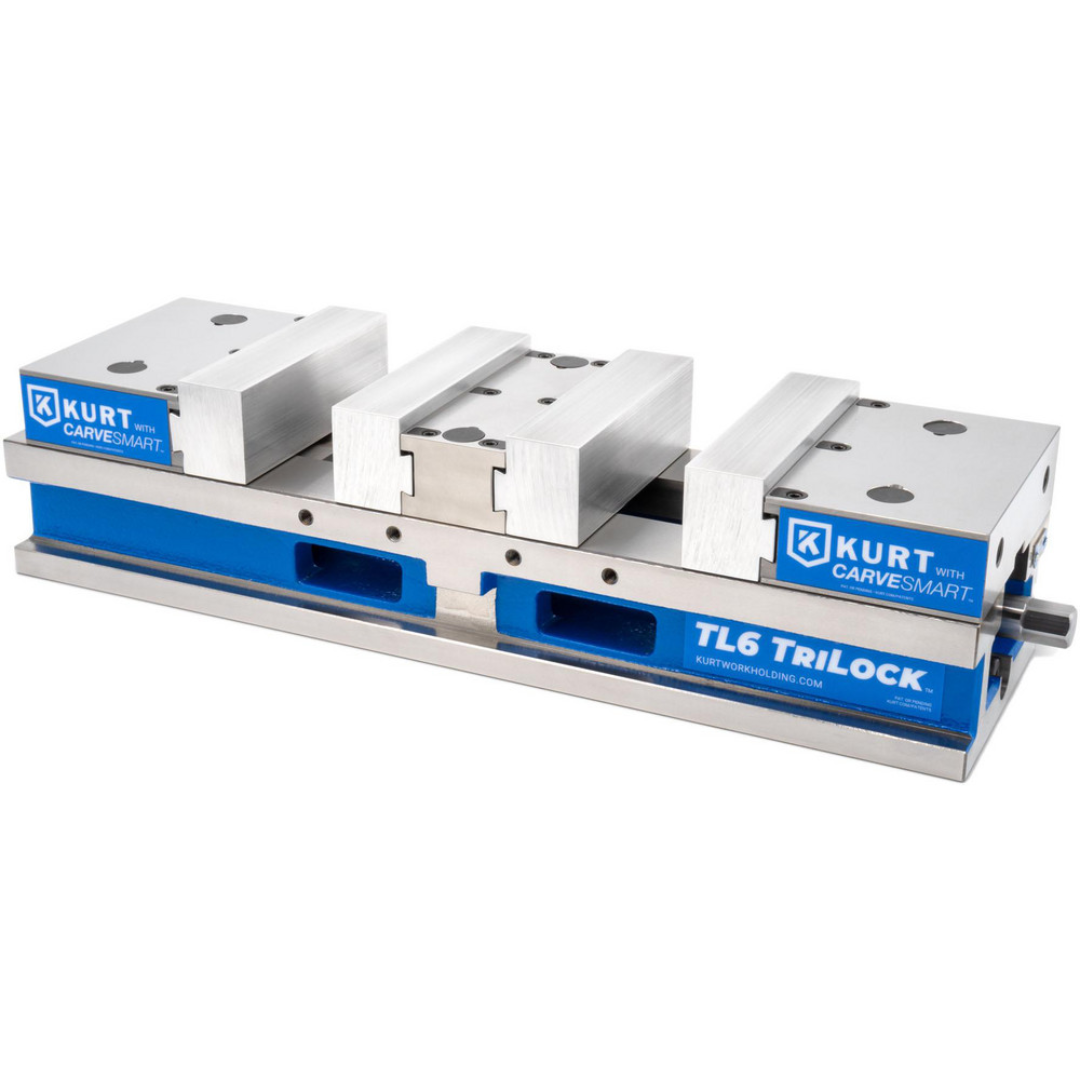

- Double-Station Configuration allows two workpieces to be securely clamped simultaneously, increasing machining productivity and reducing setup time.
- Precision-Rated Design delivers repeatable positioning and consistent machining accuracy for demanding manufacturing applications.
- 5,550 lb Maximum Clamping Force provides strong and dependable workpiece retention during machining operations.

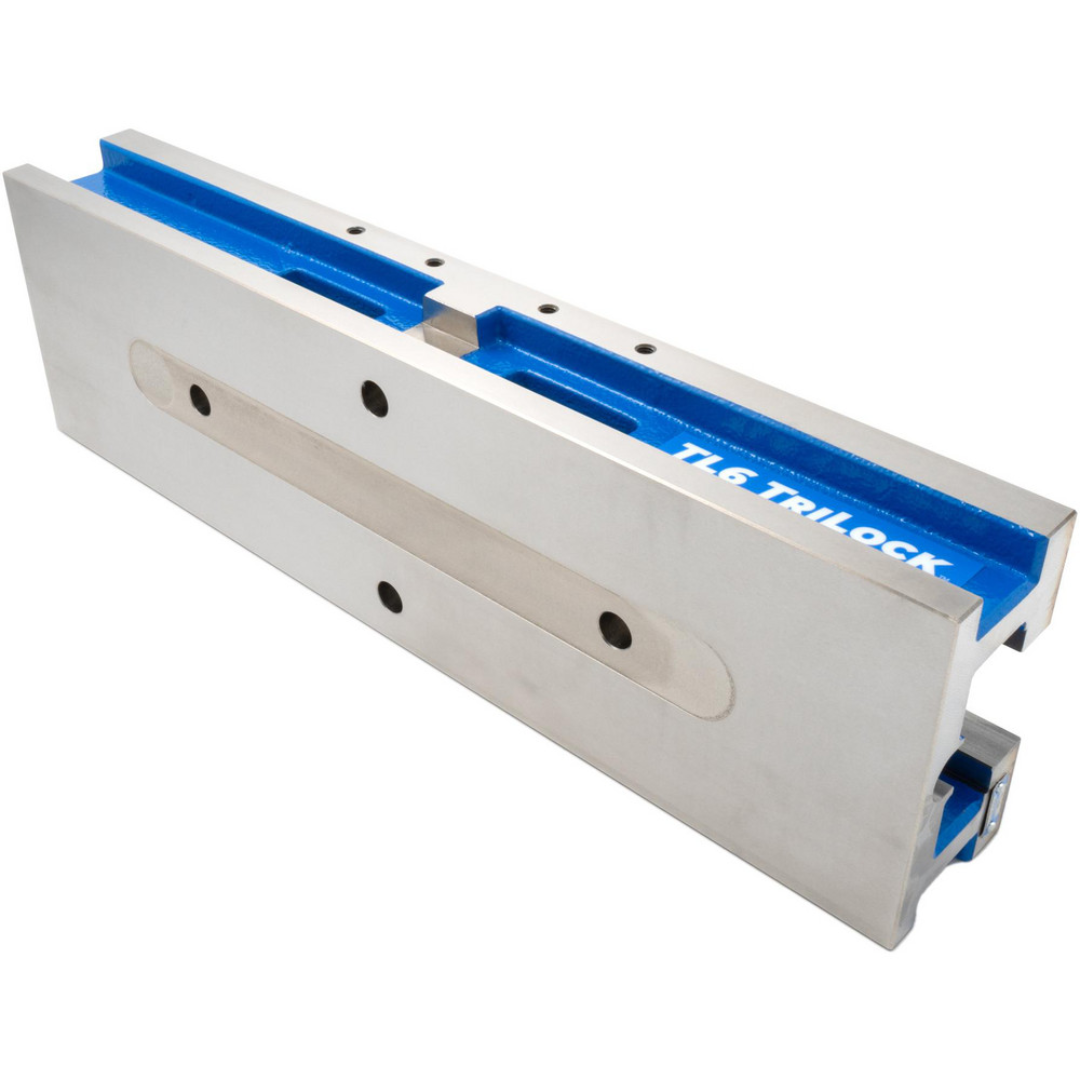

- Cast Iron and Steel Construction offers exceptional rigidity, vibration resistance, and long-term durability.

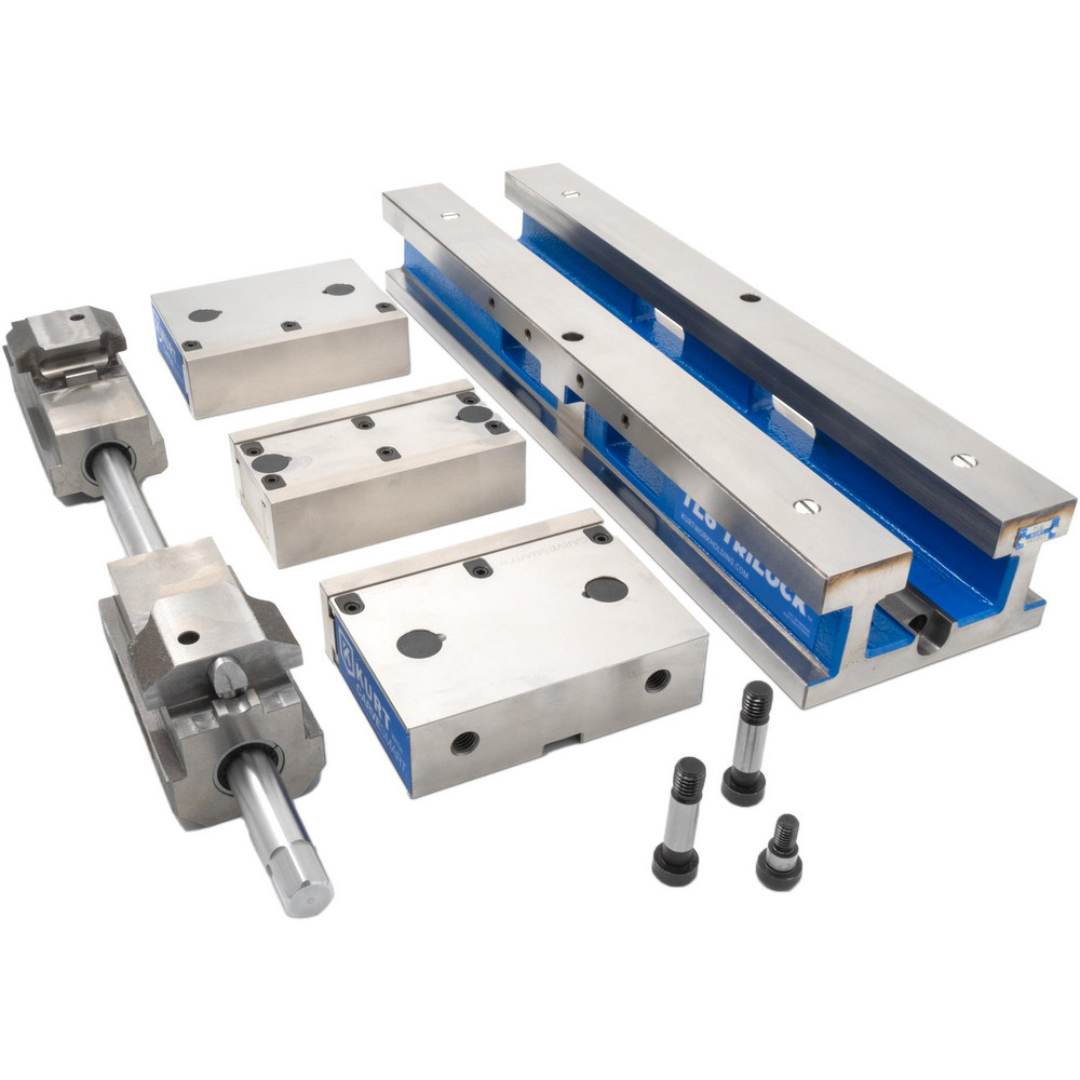

- Detachable Standard Jaws allow convenient jaw replacement and flexible workholding configurations.
- Aluminum and Steel Jaw Materials provide versatility for a wide range of machining applications and workpiece materials.

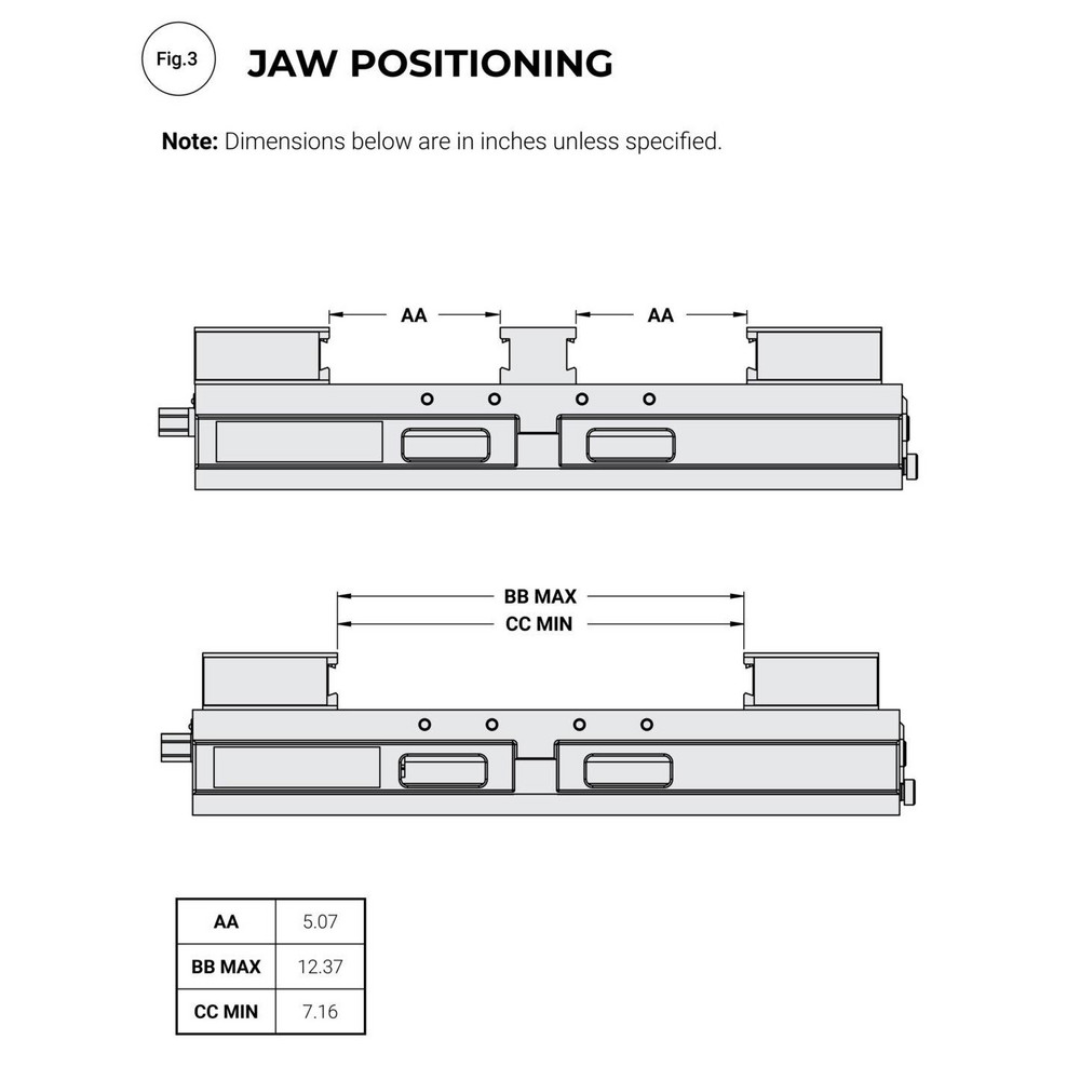

- 11" Maximum Jaw Opening accommodates larger workpieces while maintaining secure clamping performance.
- Rigid Stationary Base minimizes movement and deflection during heavy machining operations.
- Manual Operation provides reliable control and straightforward setup for production and prototype machining.
- Compact Footprint maximizes machine table utilization while maintaining excellent holding capability.
Kurt Machine Vise: Double-Station, 6.00" Jaw Width, 11" Jaw Opening, Stationary Base, Precision 63911804 Benefits
- Increases machining throughput by holding multiple parts simultaneously.
- Delivers reliable precision and repeatability for production operations.
- Reduces setup frequency and machine downtime.
- Provides strong clamping force for demanding machining applications.
- Supports a variety of workpiece materials and sizes.
- Built for long service life in industrial manufacturing environments.

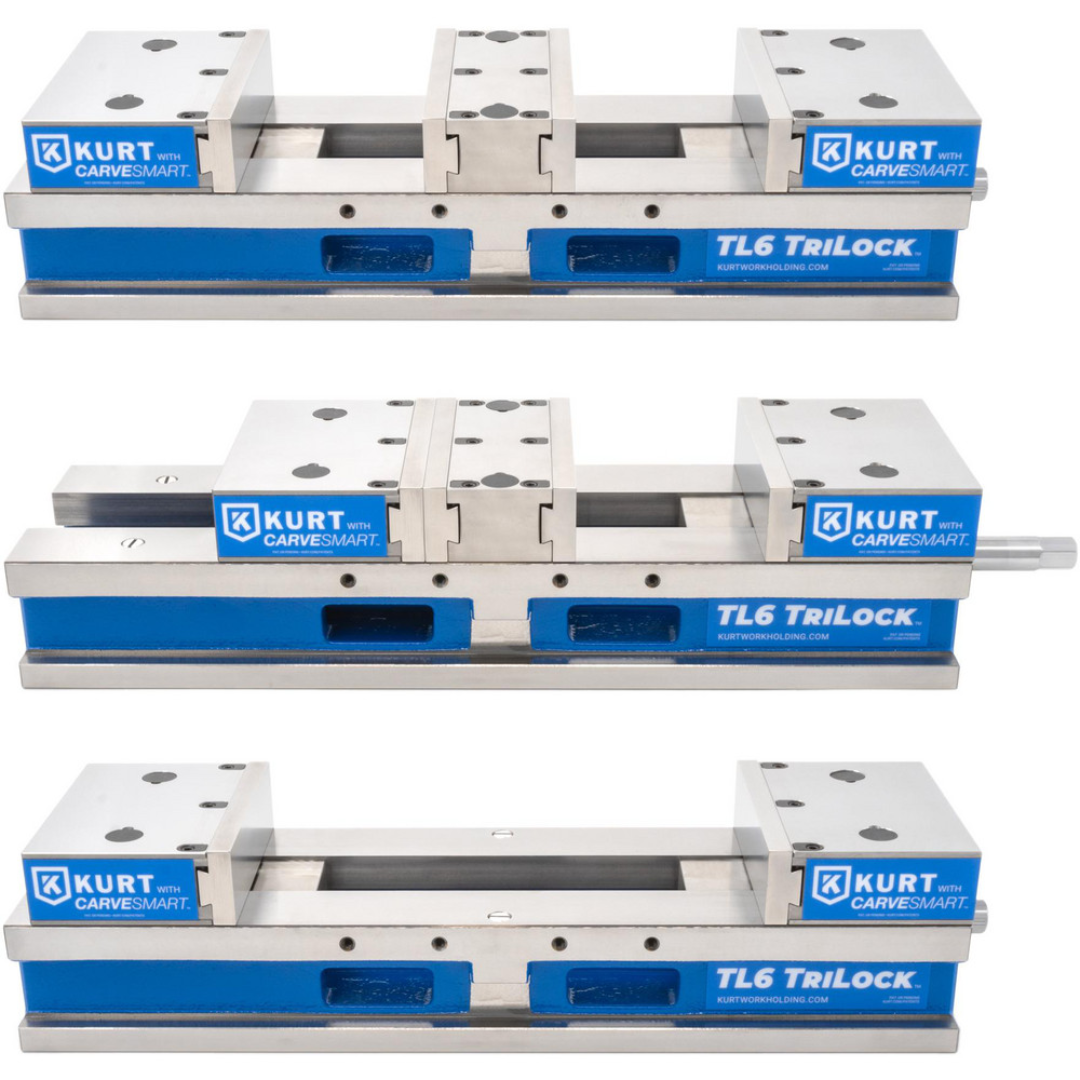

- Offers flexible jaw configurations through detachable jaw design.
The Kurt Machine Vise: Double-Station, 6.00" Jaw Width, 11" Jaw Opening, Stationary Base, Precision 63911804 combines dual-station productivity, precision-rated performance, and rugged industrial construction to deliver dependable workholding for CNC machining centers, milling machines, and high-volume manufacturing operations.
