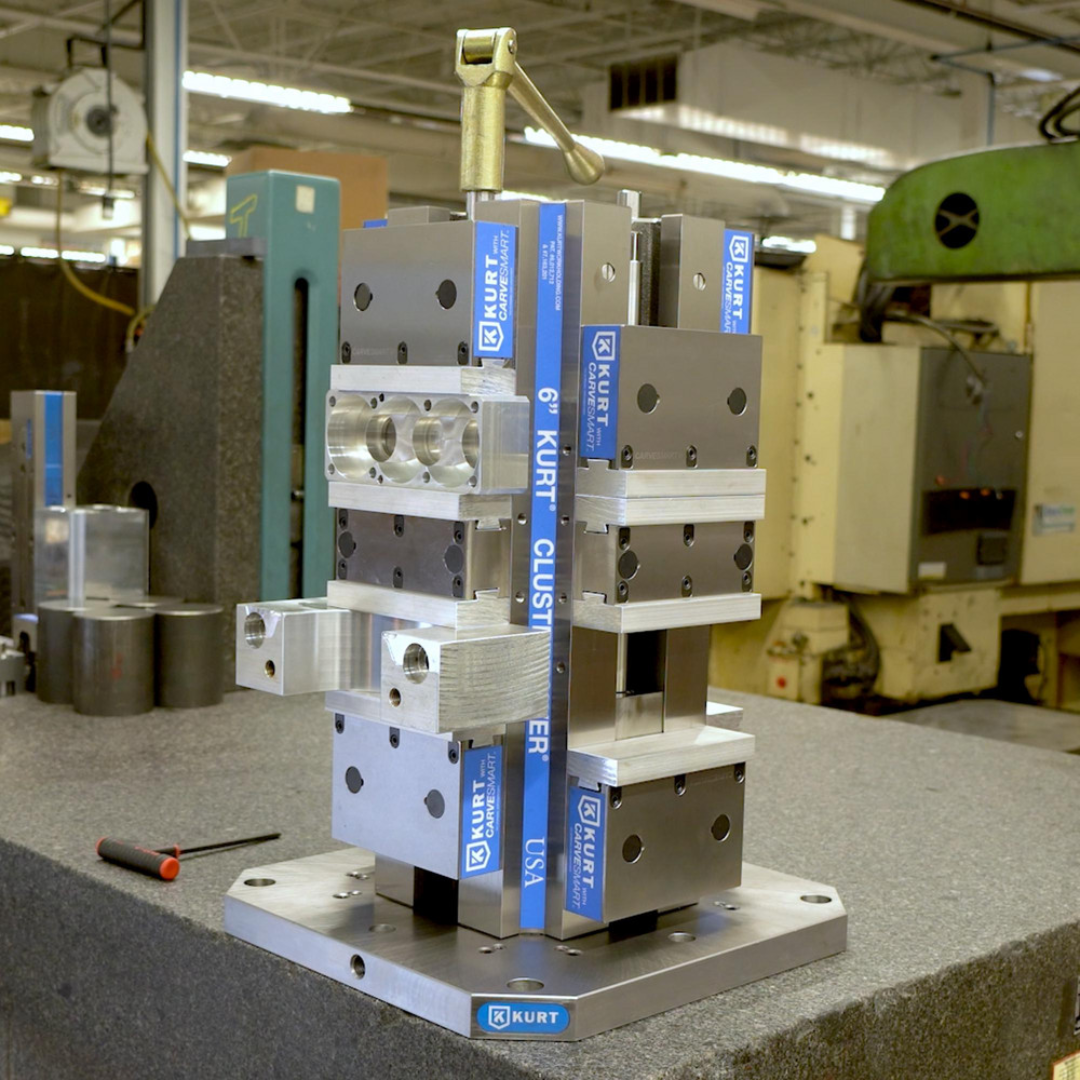

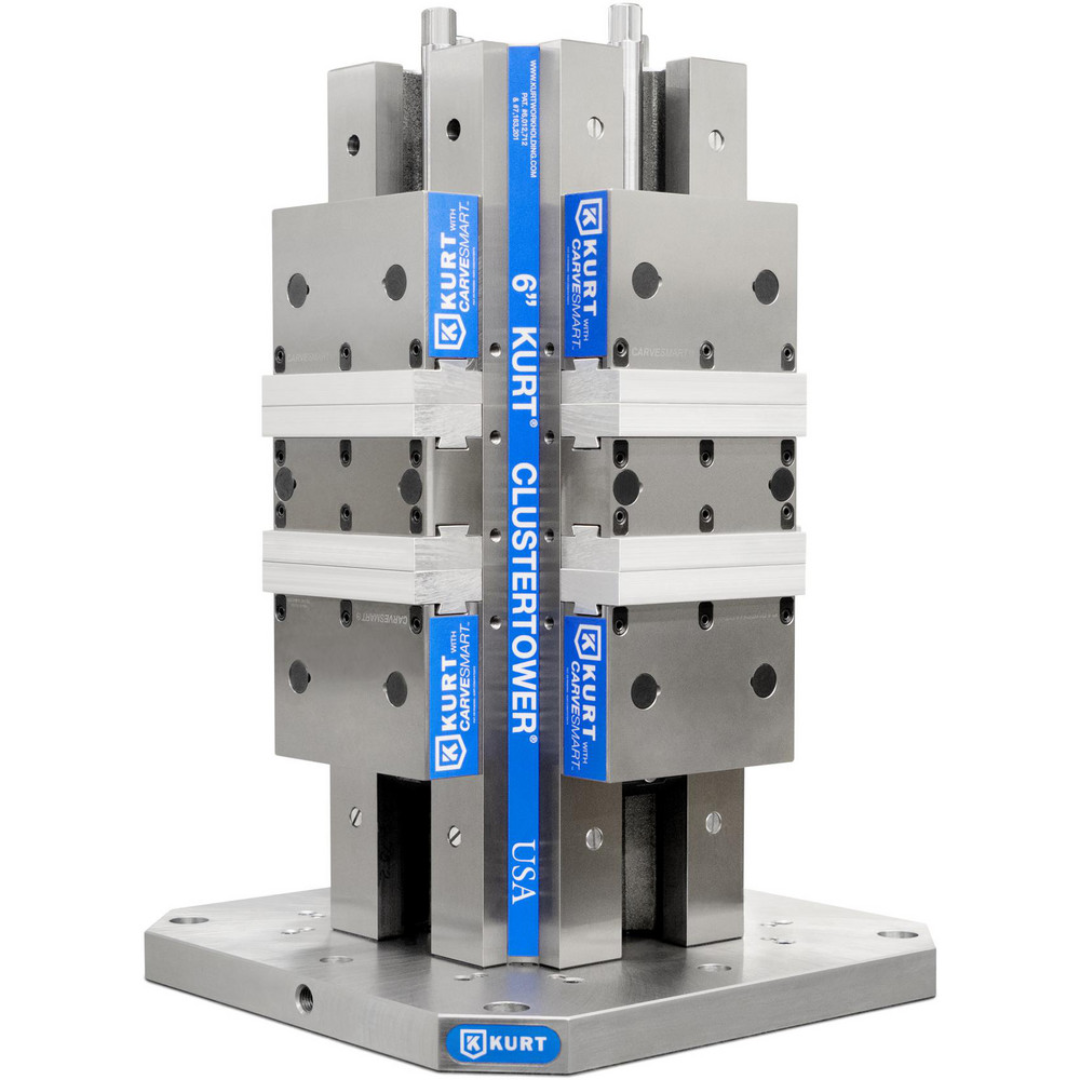

Kurt Machine Vise: 8-Station, 6.0000" Jaw Width, 11" Jaw Opening, Stationary Base, Precision CTTL66CS Applications
- CNC milling and machining center operations.
- High-volume manufacturing and production machining.
- Precision machining of steel, aluminum, stainless steel, and specialty alloys.
- Toolrooms, fabrication facilities, and industrial machine shops.
- Drilling, boring, tapping, contouring, and finishing applications.
- Vertical machining environments requiring high-density workholding.
- Operations where multiple parts must be machined within a single setup.
The eight-station tower design helps increase productivity by reducing setup changes and allowing more parts to be machined during each production cycle.

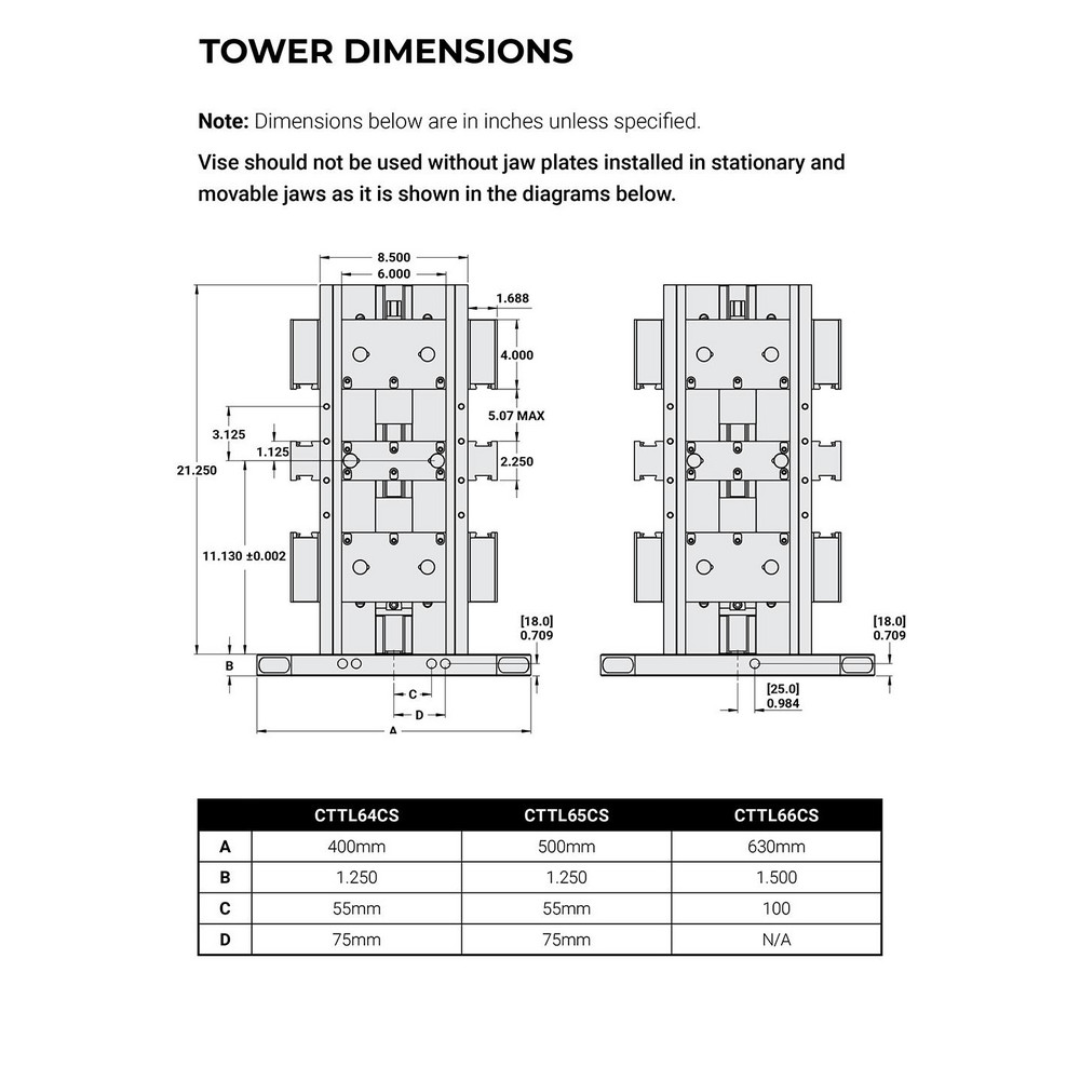

Kurt Machine Vise: 8-Station, 6.0000" Jaw Width, 11" Jaw Opening, Stationary Base, Precision CTTL66CS Specifications
| Model | CTTL66CS |
|---|---|
| Jaw Width | 6.0000" (152.4 mm) |
| Jaw Height | 1.6875" |
| Throat Depth | 1.6875" |
| Maximum Jaw Opening Capacity | 11" |
| Number of Stations | 8 |
| Orientation | Vertical |
| Operation Type | Manual |
| Base Motion Type | Stationary |
| Base Length | 630 mm |
| Base Width | 6.0000" |
| Base Height | 1.5000" |
| Overall Length | 630 mm |
| Overall Width | 630 mm |
| Overall Height | 22.7500" |
| Maximum Clamping Force | 5,550 Ft/Lb |
| Jaw Style | Detachable, Standard |
| Jaw Material | Aluminum; Steel |
| Vise Material | Cast Iron; Steel |
| Includes | Tower |
| Precision | Yes |
| UNSPSC Code | 27112100 |
Kurt Machine Vise: 8-Station, 6.0000" Jaw Width, 11" Jaw Opening, Stationary Base, Precision CTTL66CS Features & Benefits
- Eight independent clamping stations allow multiple workpieces to be machined simultaneously, improving throughput and machine utilization.
- 6.0000" jaw width provides a stable and secure gripping surface for a wide range of workpiece sizes.
- 11" jaw opening capacity offers versatility when handling larger components and varying part dimensions.
- 1.6875" jaw height and throat depth provide reliable clamping performance while maintaining accessibility to machining areas.
- Vertical tower orientation maximizes machine table space and supports efficient multi-part machining setups.
- Stationary base design delivers exceptional rigidity and repeatable positioning accuracy.
- 5,550 Ft/Lb maximum clamping force helps maintain secure workpiece retention during aggressive cutting operations.
- Cast iron and steel construction enhances durability, vibration dampening, and long service life.
- Detachable standard jaws simplify maintenance and provide flexibility for replacement or customization.
- Precision manufacturing supports consistent part quality and dependable machining results.
- Manual operation provides reliable and straightforward clamping control without additional power requirements.
Stationary vises are used for machining straight surfaces and can be fastened to the machine at either a parallel position or a right angle, providing flexibility for a wide variety of machining setups and production requirements.
Why Choose the Kurt Machine Vise: 8-Station, 6.0000" Jaw Width, 11" Jaw Opening, Stationary Base, Precision CTTL66CS
- Eight-station design increases productivity and machining efficiency.
- Heavy-duty cast iron and steel construction ensures long-term durability.
- Precision workholding supports accurate and repeatable machining results.
- Strong clamping force helps maintain workpiece stability during demanding operations.
- Vertical tower configuration optimizes valuable machine table space.
- Ideal for CNC machining, production manufacturing, and high-volume workholding applications.
The Kurt Machine Vise: 8-Station, 6.0000" Jaw Width, 11" Jaw Opening, Stationary Base, Precision CTTL66CS combines precision, durability, and high-density workholding capability to help manufacturers increase productivity while maintaining exceptional machining accuracy.
