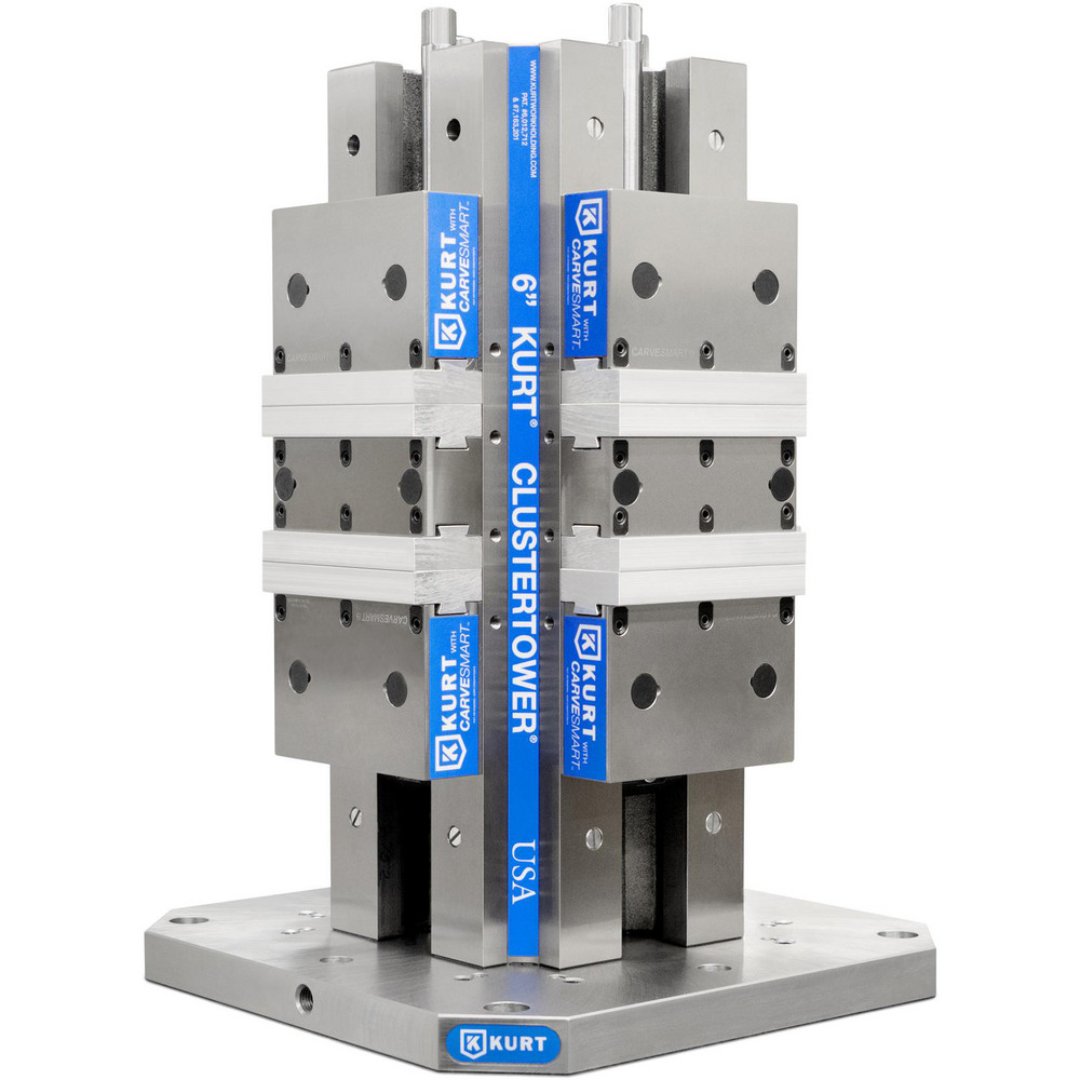

Kurt Machine Vise: 8-Station, 6.0000" Jaw Width, 11" Jaw Opening, Stationary Base, Precision CTTL65CS Applications
- CNC milling and machining center operations.
- High-volume production machining requiring multiple workholding stations.
- Precision machining of aluminum, steel, stainless steel, and engineered materials.
- Toolrooms, manufacturing facilities, and industrial machine shops.
- Drilling, milling, boring, tapping, and finishing applications.
- Vertical machining setups where machine table space must be optimized.
- Operations requiring repeatable positioning and consistent part quality.
Designed to maximize machine productivity by securely holding multiple workpieces in a single setup, reducing downtime and increasing throughput.
Kurt Machine Vise: 8-Station, 6.0000" Jaw Width, 11" Jaw Opening, Stationary Base, Precision CTTL65CS Specifications
| Model | CTTL65CS |
|---|---|
| Jaw Width | 6.0000" (152.4 mm) |
| Jaw Height | 1.6875" |
| Throat Depth | 1.6875" |
| Maximum Jaw Opening Capacity | 11" |
| Number of Stations | 8 |
| Orientation | Vertical |
| Operation Type | Manual |
| Base Motion Type | Stationary |
| Base Length | 500 mm |
| Base Width | 6.0000" |
| Base Height | 1.2500" |
| Overall Length | 500 mm |
| Overall Width | 500 mm |
| Overall Height | 22.5000" |
| Maximum Clamping Force | 5,550 Ft/Lb |
| Jaw Style | Detachable, Standard |
| Jaw Material | Aluminum; Steel |
| Vise Material | Cast Iron; Steel |
| Includes | Tower |
| Precision | Yes |
| UNSPSC Code | 27112100 |
Kurt Machine Vise: 8-Station, 6.0000" Jaw Width, 11" Jaw Opening, Stationary Base, Precision CTTL65CS Features & Benefits
- Eight-station tower design allows multiple parts to be clamped simultaneously, improving productivity and reducing setup frequency.
- 6.0000" jaw width provides a stable clamping surface for a wide variety of workpiece sizes.
- 11" maximum jaw opening accommodates larger components and versatile machining applications.
- 1.6875" jaw height and throat depth deliver secure workholding while maintaining access to critical machining areas.
- Vertical orientation helps maximize machine table efficiency and supports high-density workholding configurations.
- Stationary base construction provides exceptional rigidity and repeatable positioning accuracy.
- Maximum clamping force of 5,550 Ft/Lb helps keep workpieces securely in place during demanding machining operations.
- Cast iron and steel body construction offers outstanding durability, vibration dampening, and long service life.
- Detachable standard jaws simplify maintenance and allow replacement when needed.
- Precision-manufactured design supports consistent machining accuracy across production runs.
- Manual operation provides dependable clamping performance without the complexity of powered systems.
Stationary vises are used for machining straight surfaces and can be fastened to the machine either parallel to the cutting path or at a right angle, providing flexible setup options for a wide range of machining operations.
Why Choose the Kurt Machine Vise: 8-Station, 6.0000" Jaw Width, 11" Jaw Opening, Stationary Base, Precision CTTL65CS
- Eight independent stations increase machining efficiency and throughput.
- Heavy-duty cast iron and steel construction provides long-term durability.
- Precision design supports repeatable and accurate machining results.
- Strong 5,550 Ft/Lb clamping force secures workpieces during aggressive cutting operations.
- Vertical tower configuration optimizes machine table utilization.
- Ideal for production machining, CNC manufacturing, and precision workholding applications.
The Kurt Machine Vise: 8-Station, 6.0000" Jaw Width, 11" Jaw Opening, Stationary Base, Precision CTTL65CS is engineered to deliver reliable, accurate, and efficient multi-station workholding performance for demanding industrial machining environments.
