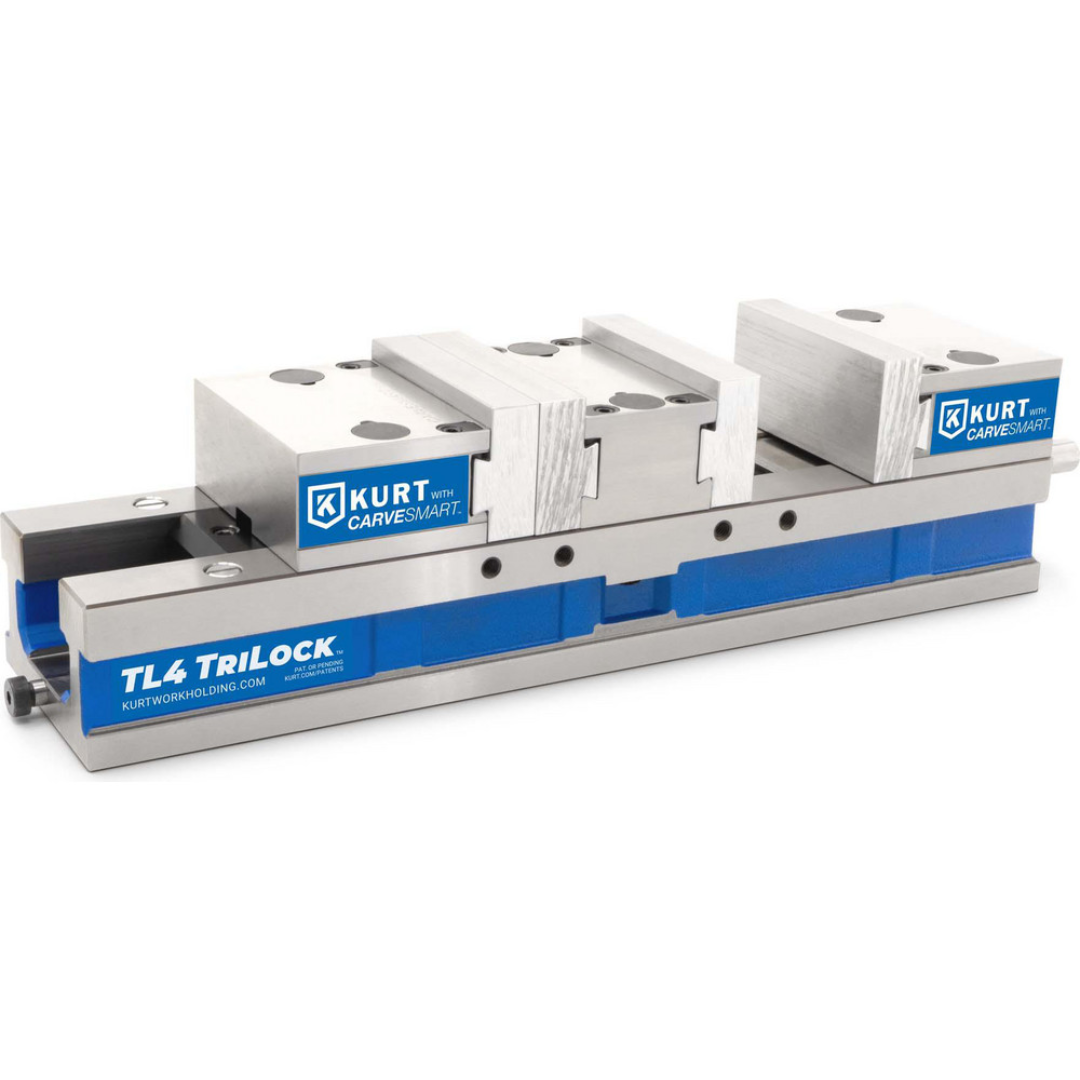

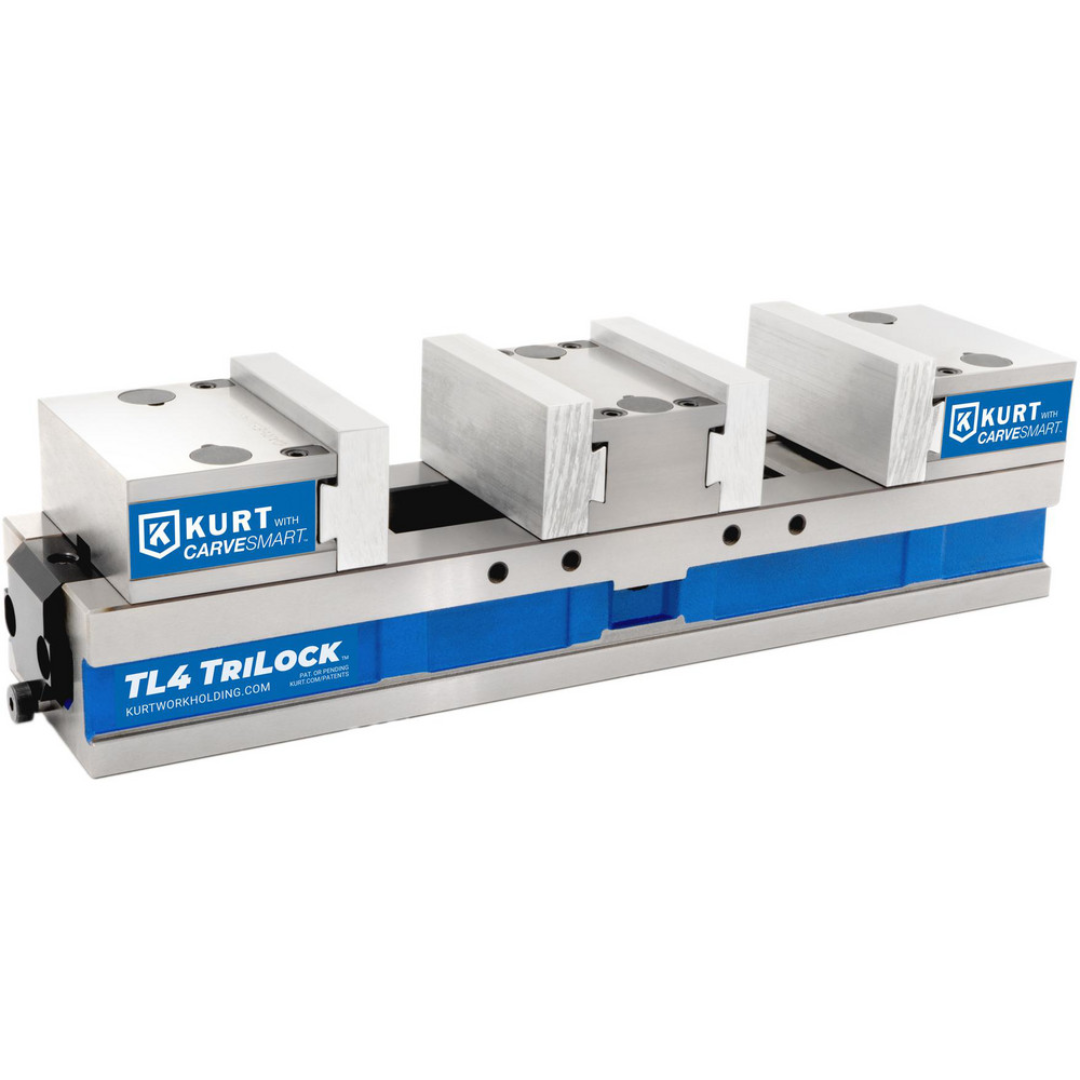

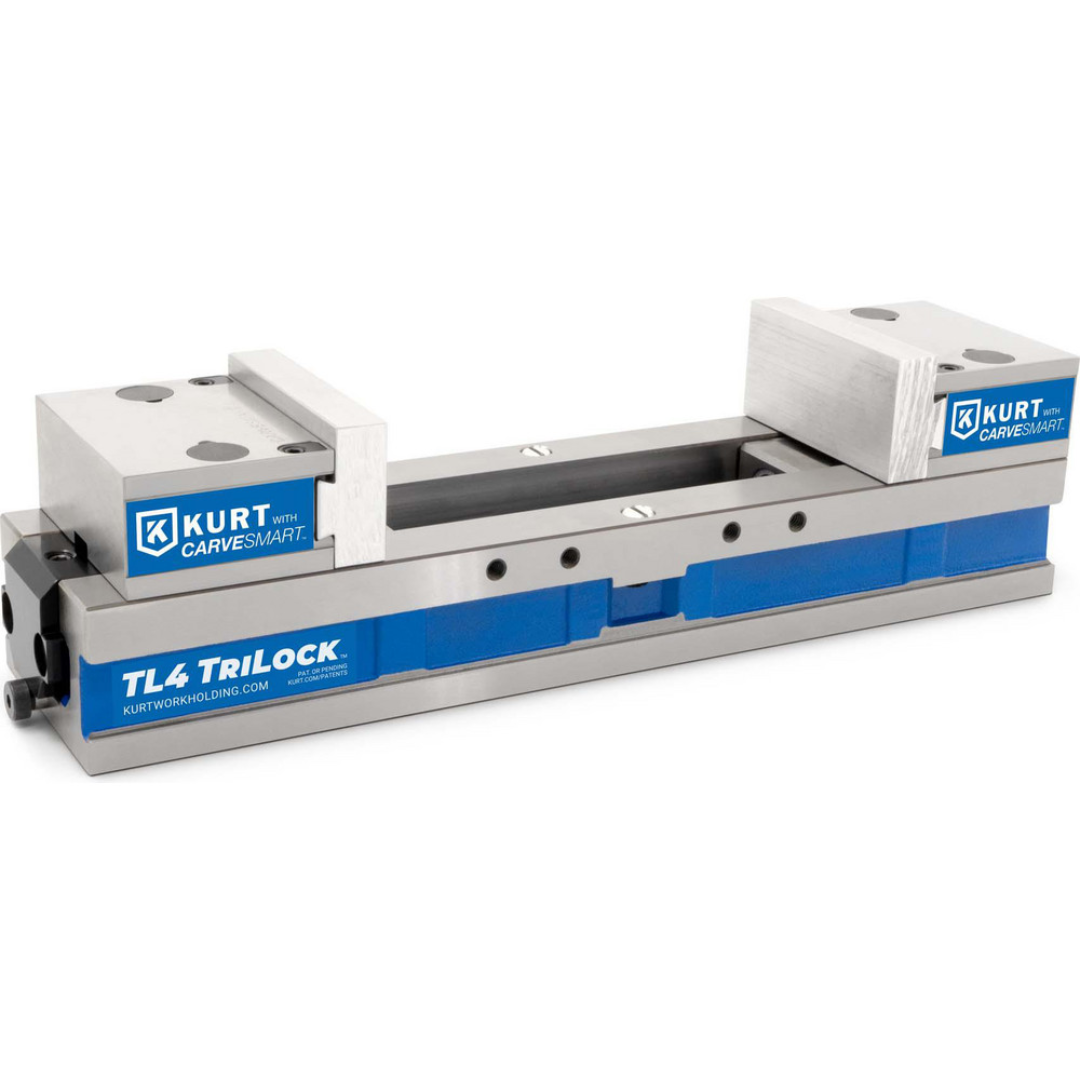

Kurt CNC Machines Vise: TriLock, Double-Station, 3.9700" Jaw Width, 9.8" Jaw Opening, Stationary Base, Precision 55542674 Applications
- CNC machining centers requiring flexible multi-part workholding.
- Production machining operations focused on reducing setup time.
- High-volume manufacturing environments seeking improved machine utilization.
- Milling, drilling, tapping, contouring, and finishing applications.
- Horizontal machining setups requiring repeatable workpiece positioning.
- Facilities utilizing multiple vises mounted side-by-side for maximum throughput.
The TriLock platform is designed to reduce setup costs and increase productivity by allowing multiple workholding configurations within a single vise system.
Kurt CNC Machines Vise: TriLock, Double-Station, 3.9700" Jaw Width, 9.8" Jaw Opening, Stationary Base, Precision 55542674 Specifications
| Series | TriLock |
|---|---|
| Model | TL4CS |
| Operation Type | Manual |
| Number of Stations | 2 |
| Orientation | Horizontal |
| Base Motion Type | Stationary |
| Jaw Width | 3.9700" |
| Jaw Height | 1.6875" |
| Maximum Jaw Opening Capacity | 9.8" |
| Throat Depth | 1.6875" |
| Jaw Style | Detachable, Standard |
| Jaw Material | Aluminum, Steel |
| Vise Material | Steel |
| Base Length | 16.3750" |
| Overall Length | 17.8750" |
| Base Width | 4.9740" |
| Overall Width | 3.9700" |
| Base Height | 2.3750" |
| Precision Rated | Yes |
| Country of Origin | United States |
| For Use With | CNC Machines |
| UNSPSC Code | 27112100 |
Kurt CNC Machines Vise: TriLock, Double-Station, 3.9700" Jaw Width, 9.8" Jaw Opening, Stationary Base, Precision 55542674 Features & Benefits
- 3-in-1 TriLock vise design helps reduce setup costs while increasing machining flexibility.
- Double-station configuration allows multiple parts to be machined in a single setup for greater productivity.
- Fast teardown design enables complete cleaning and maintenance in just minutes.
- Modular construction allows easier handling and installation by a single operator when disassembled.
- CarveSmart jaw compatibility supports multiple jaw sizes and styles for a wide range of applications.
- SmartStopped jaw technology utilizes locating pins for fast, repeatable jaw positioning.
- Space-saving footprint allows multiple vises to be mounted side-by-side on machining centers.
- Precision-engineered workholding platform delivers repeatable accuracy for demanding CNC operations.
Kurt CNC Machines Vise: TriLock, Double-Station, 3.9700" Jaw Width, 9.8" Jaw Opening, Stationary Base, Precision 55542674 Included Components
- Two Sets of CarveSmart 3/4" × 2" × 4" Soft Jaws
- Vise Handle
- Two Hex Wrenches
- TriLock Double-Station Vise Assembly
The TL4CS package includes the essential accessories required for setup, jaw installation, and day-to-day machining operations.
Kurt CNC Machines Vise: TriLock, Double-Station, 3.9700" Jaw Width, 9.8" Jaw Opening, Stationary Base, Precision 55542674 Performance & Construction
- Supports increased machine throughput through double-station workholding.
- Reduces setup frequency and machine downtime.
- Horizontal stationary-base design provides rigid and repeatable positioning.
- Precision construction supports tight-tolerance machining requirements.
- Steel body construction delivers long-term durability and wear resistance.
- Modular cleaning and maintenance design helps minimize production interruptions.
- Optimized for modern CNC manufacturing environments focused on efficiency and repeatability.
Why Choose the Kurt CNC Machines Vise: TriLock, Double-Station, 3.9700" Jaw Width, 9.8" Jaw Opening, Stationary Base, Precision 55542674
- Innovative 3-in-1 TriLock design increases versatility and reduces setup costs.
- Double-station workholding maximizes productivity and spindle utilization.
- Quick-clean construction minimizes maintenance downtime.
- Compatible with CarveSmart jaw systems for enhanced flexibility.
- Compact footprint allows multiple vises to be mounted side-by-side.
- Manufactured in the USA for dependable industrial performance.
The Kurt CNC Machines Vise: TriLock, Double-Station, 3.9700" Jaw Width, 9.8" Jaw Opening, Stationary Base, Precision 55542674 combines precision workholding, modular flexibility, and production-focused efficiency to help manufacturers reduce setup time, increase output, and maintain consistent machining accuracy.
