CALIFORNIA AIR TOOLS 60040DCAD Powerful 4.0 Hp Ultra Quiet & Oil-Free Air Compressor Applications
- Automotive shops and repair facilities
- Manufacturing and assembly lines
- Woodworking and metal fabrication
- Garages and professional workshops
- Applications requiring reduced moisture in compressed air systems
Ideal for users needing dependable airflow with partial moisture removal and ultra-quiet operation for indoor environments.

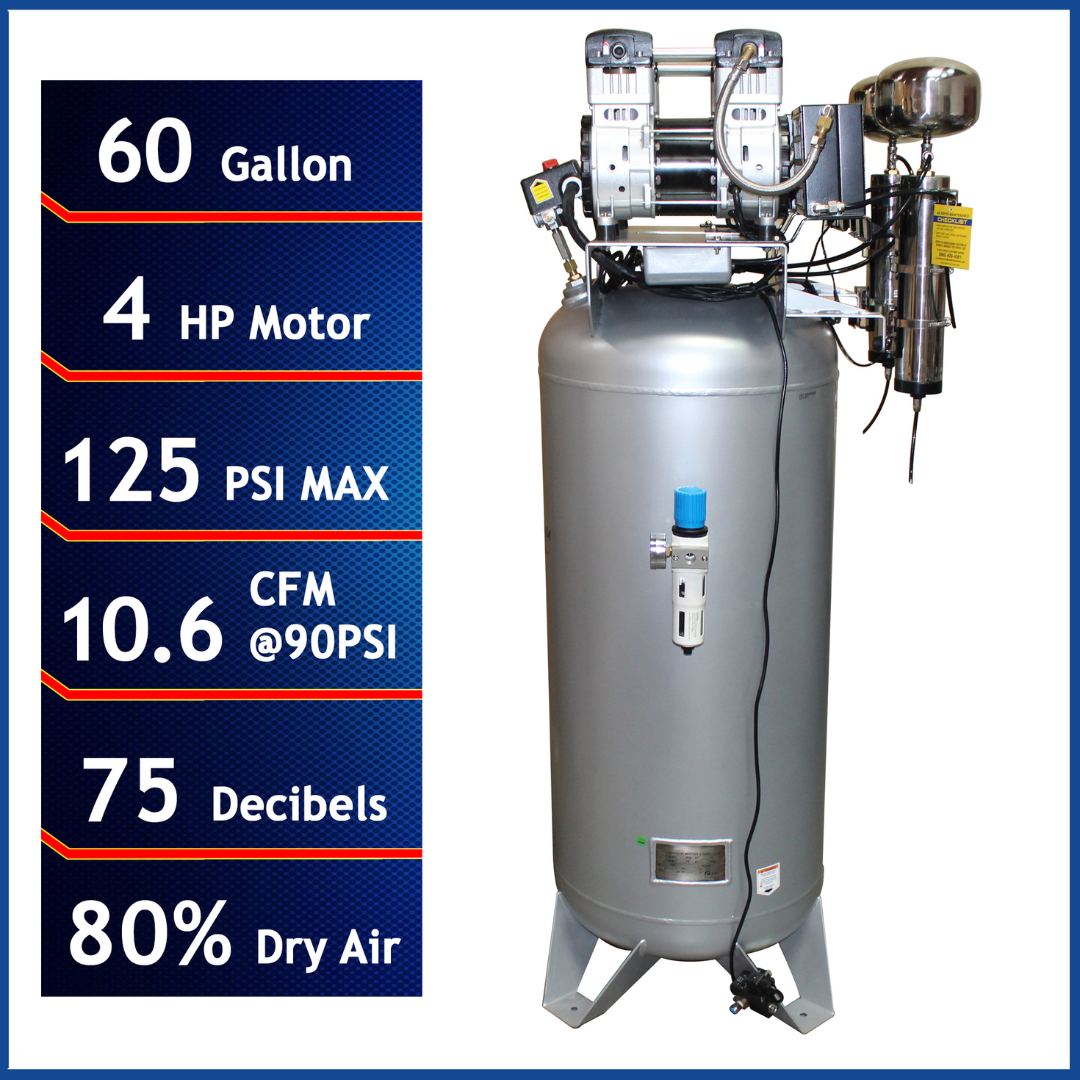

CALIFORNIA AIR TOOLS 60040DCAD Powerful 4.0 Hp Ultra Quiet & Oil-Free Air Compressor Specifications
| Model | 60040DCAD |
|---|---|
| Motor Power | 4.0 HP (Rated/Running) |
| Motor Type | Twin 2.0 HP Motors |
| Tank Size | 60 Gallon ASME Certified Steel |
| Air Flow @ 40 PSI | 12.80 CFM |
| Air Flow @ 90 PSI | 10.60 CFM |
| Maximum Pressure | 125 PSI |
| Noise Level | 75 dB (Ultra Quiet) |
| Voltage | 220V / 60Hz / Single Phase |
| Amperage | 14 Amps |
| Air Drying System | 80% Efficiency with Aftercooler |
| Drying Media | Activated Alumina Desiccant (4000 Hour Life) |
| Duty Cycle | 70/30 |
| Tank Fill Time | 6 Minutes 30 Seconds |
| Recovery Time | 2 Minutes (95 PSI to 125 PSI) |

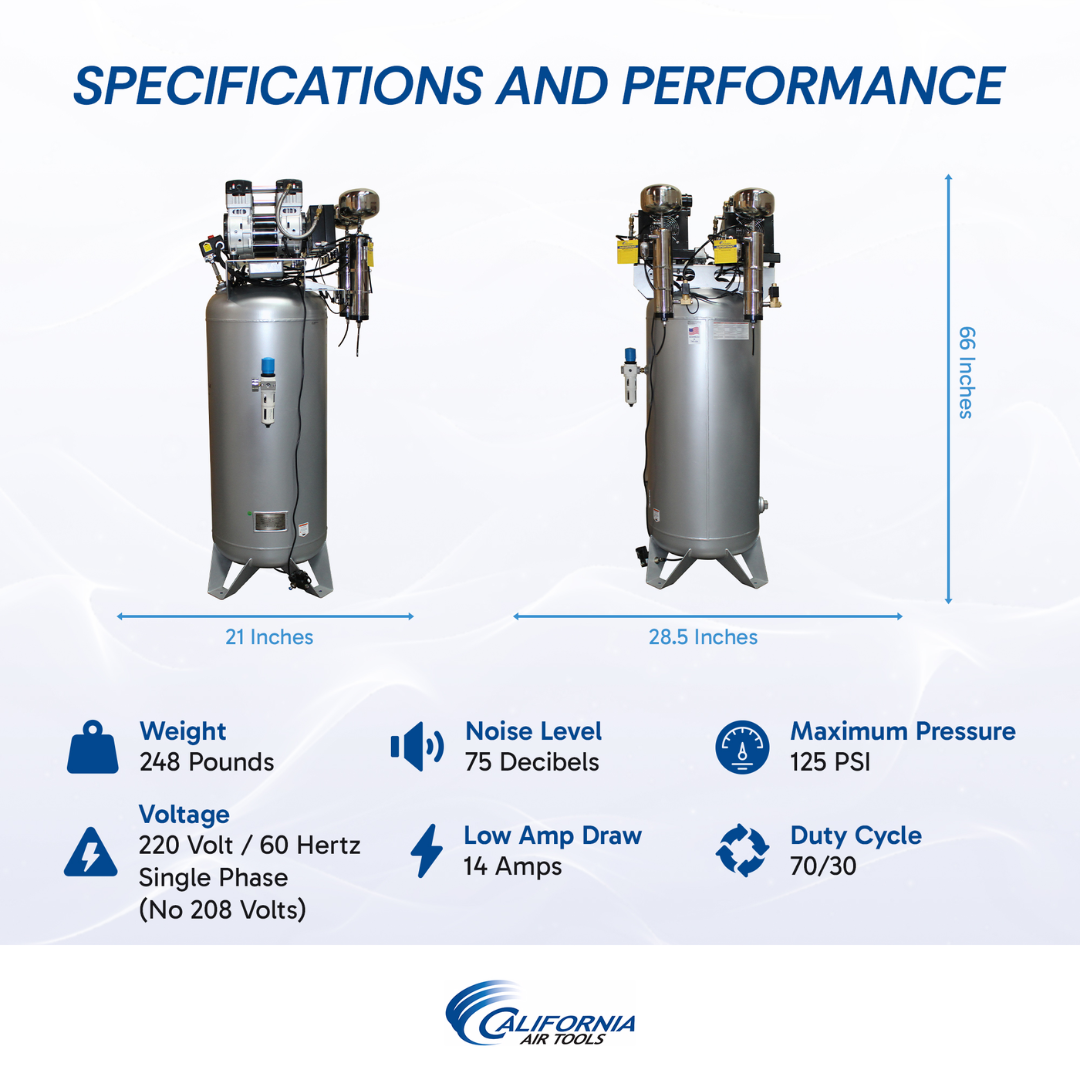

| Dimensions (L × W × H) | 25.5" × 29" × 66.5" |
| Weight | 248 lbs |

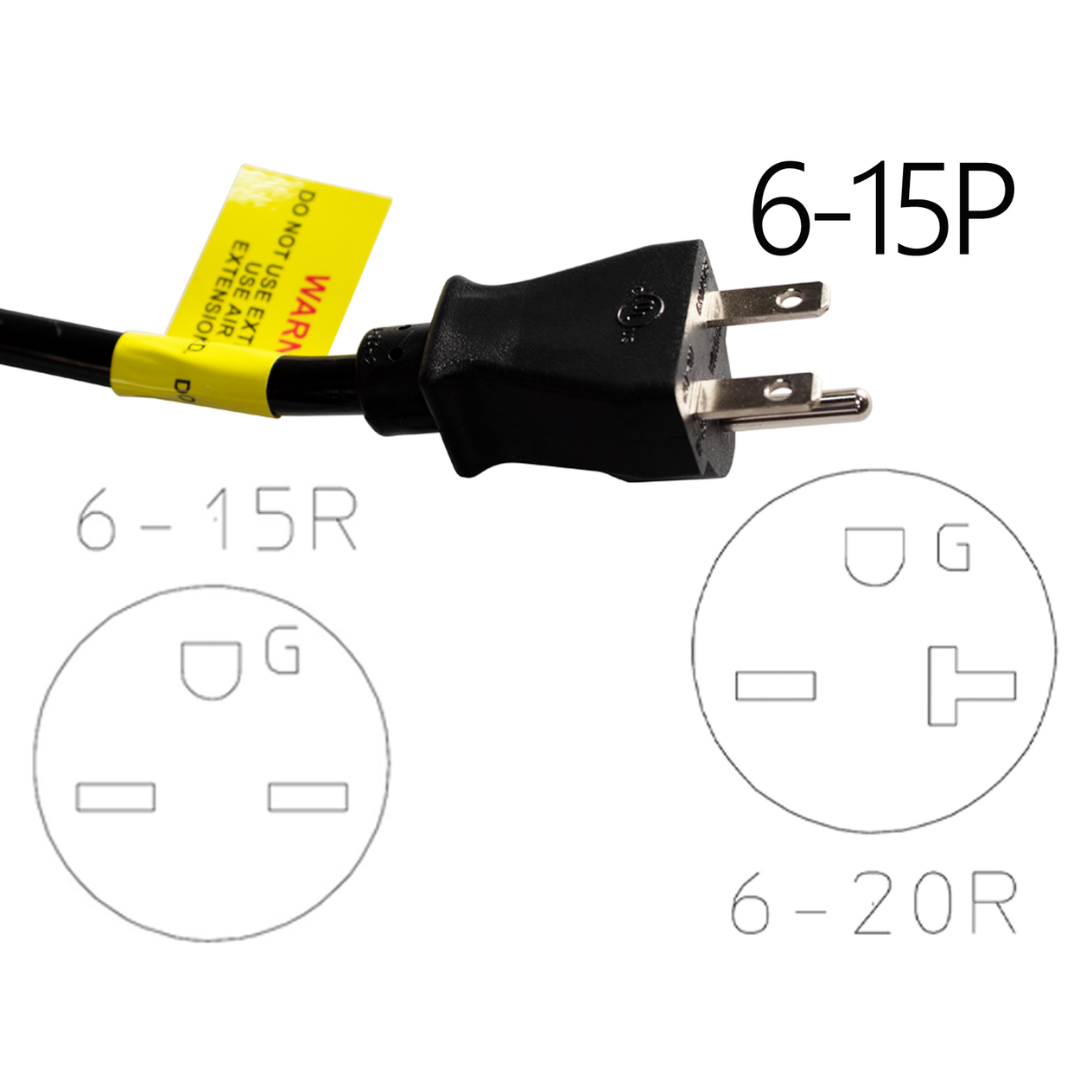

| Plug Type | NEMA 6-15P |
| Certification | ASME Certified for Commercial Use |

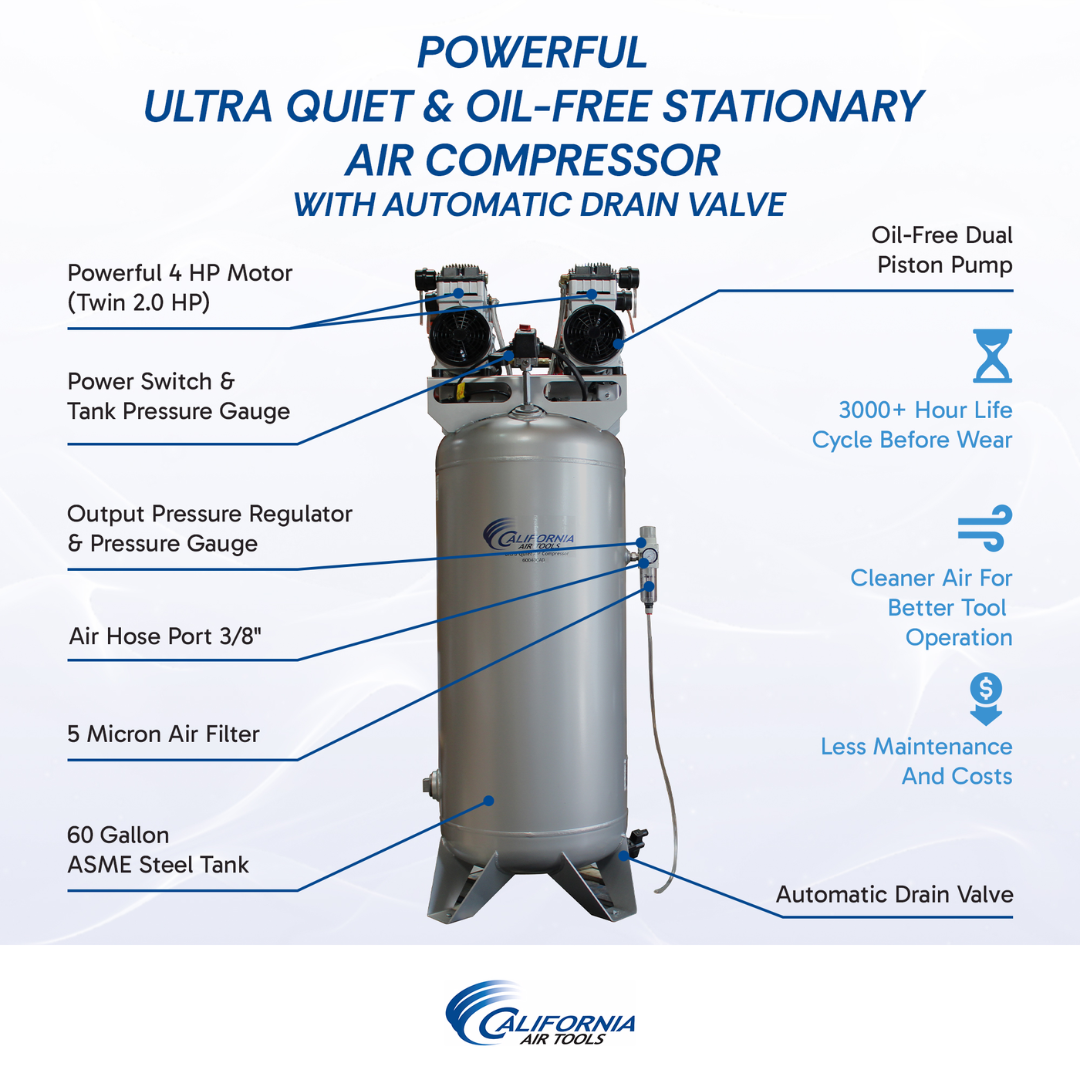

CALIFORNIA AIR TOOLS 60040DCAD Powerful 4.0 Hp Ultra Quiet & Oil-Free Air Compressor Performance & Construction

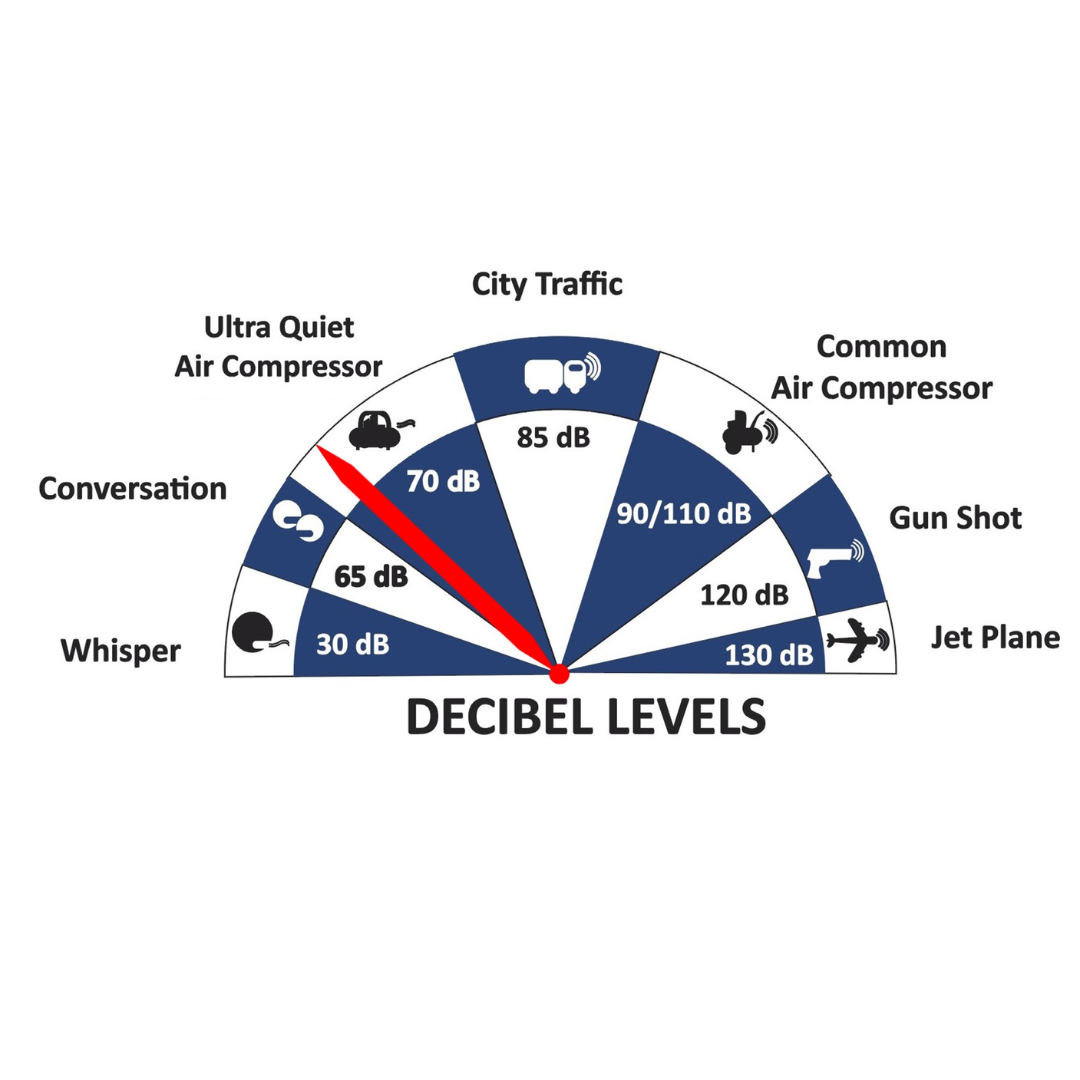

- Ultra Quiet Operation (75 dB) – One of the quietest compressors in its class, ideal for indoor use and shared workspaces.

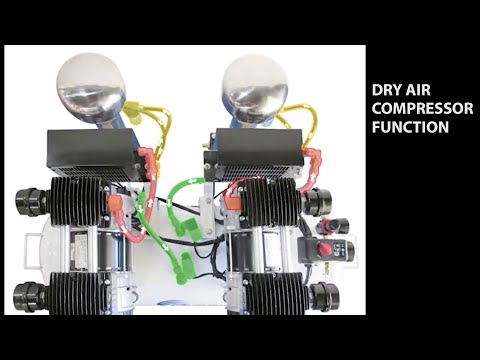

- Dual 2.0 HP Motors – Low 1680 RPM operation reduces vibration, wear, and heat buildup.
- Oil-Free Dual Piston Pump – Provides cleaner air, eliminates oil maintenance, and improves reliability.
- Extended Pump Life – Designed for over 3000 hours of operation before service.
- 80% Air Drying System – Integrated aftercooler and desiccant dryer remove majority of moisture from compressed air.
- Activated Alumina Desiccant – High-capacity drying media with approximately 4000-hour lifespan.
- Aftercooler System – Condenses moisture from compressed air before entering the drying stage.

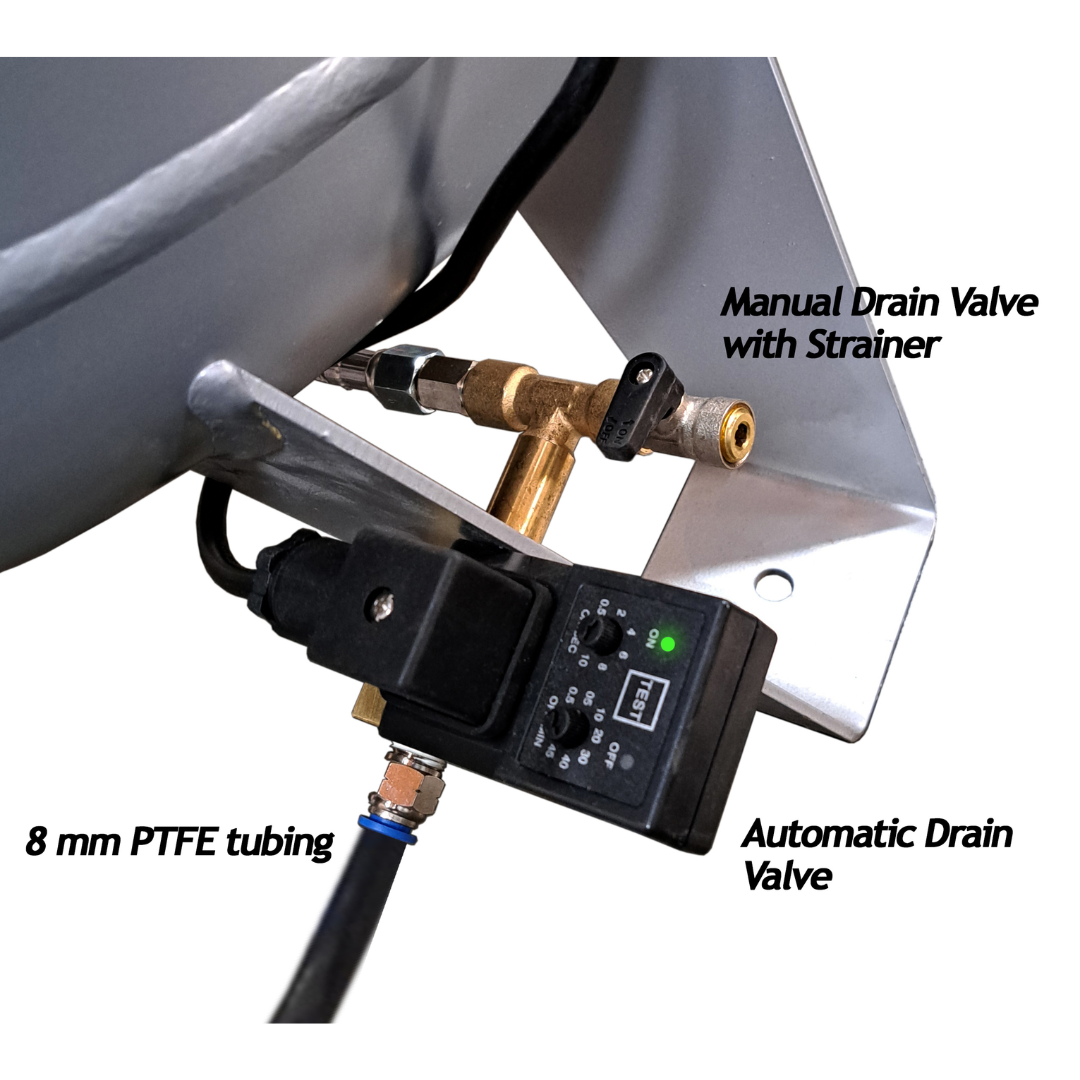

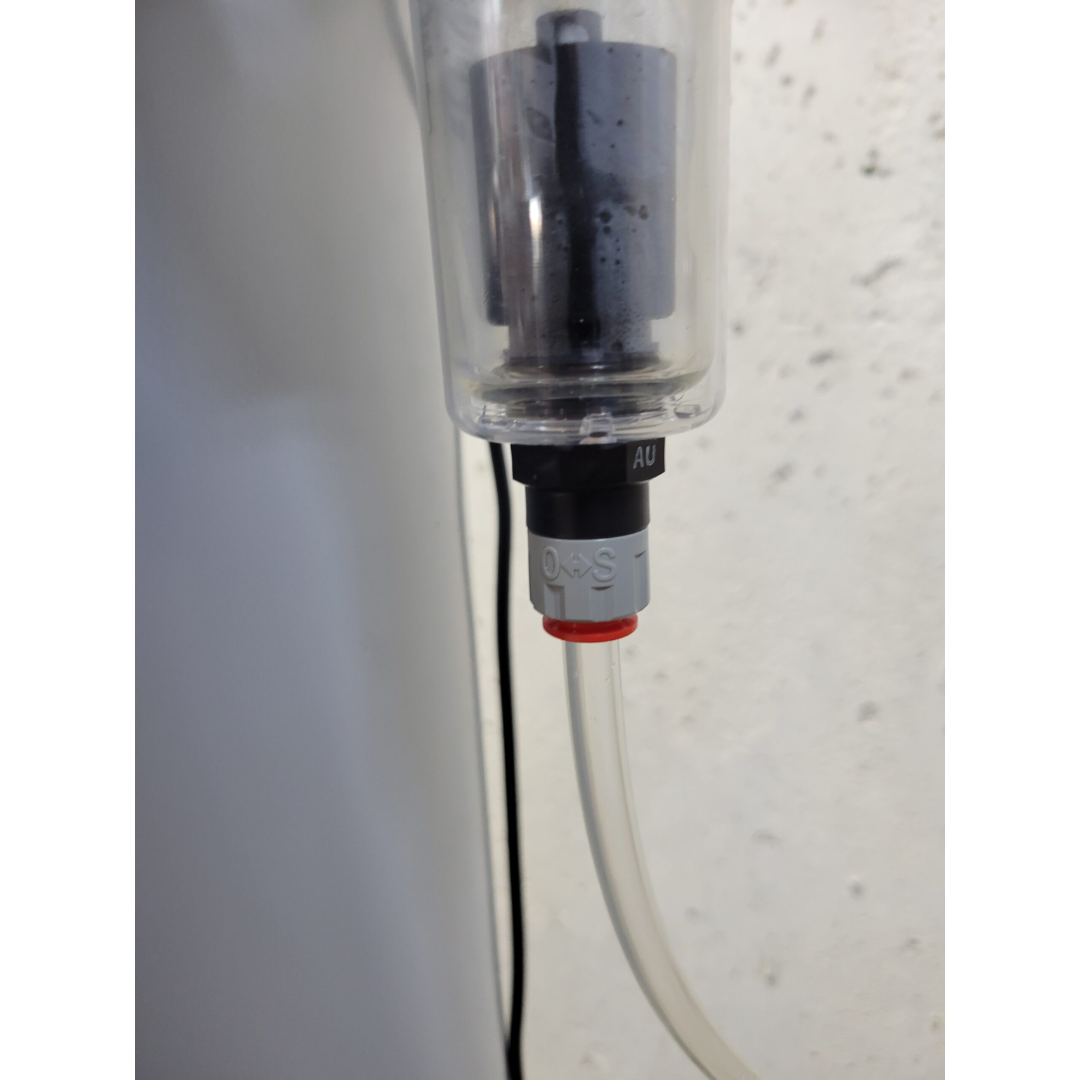

- Automatic Drain Valve (EZ-1) – Eliminates manual draining with programmable timing for efficient moisture removal.

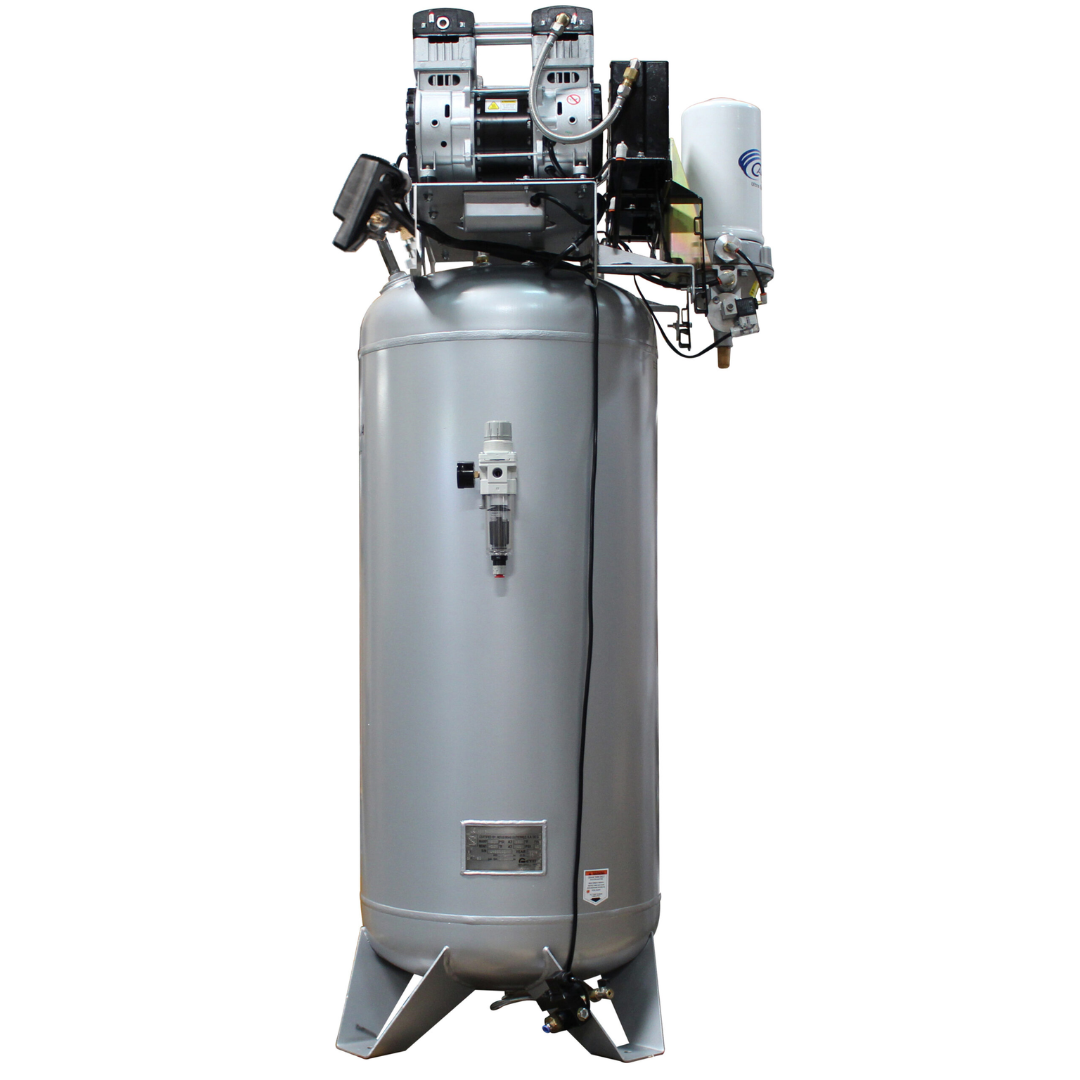

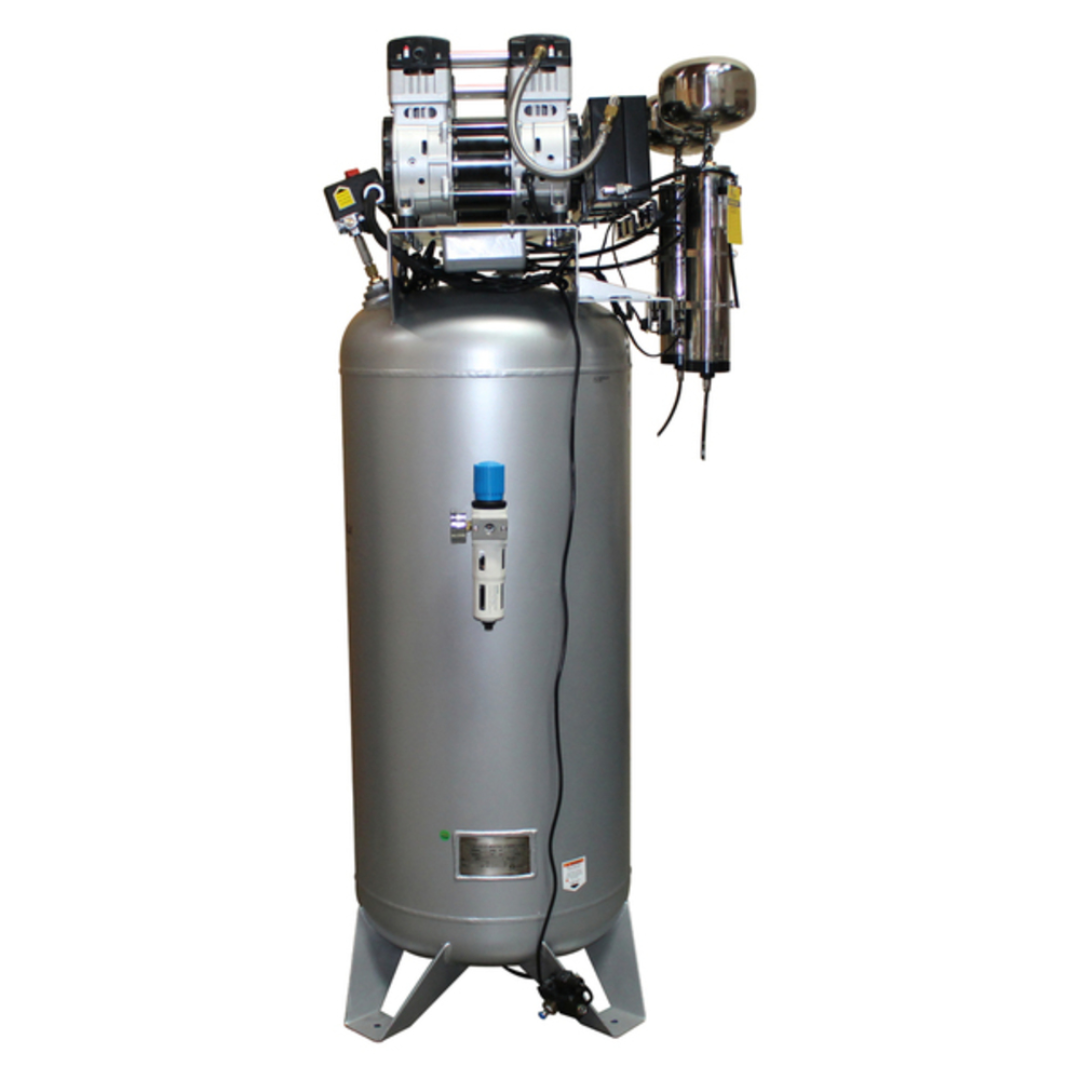

- Heavy-Duty ASME Steel Tank – 60-gallon vertical tank designed for durability and consistent air supply.
- Thermal Overload Protection – Protects motor and electrical components from overheating.
- Condor Pressure Switch – Reliable system control and pressure regulation.

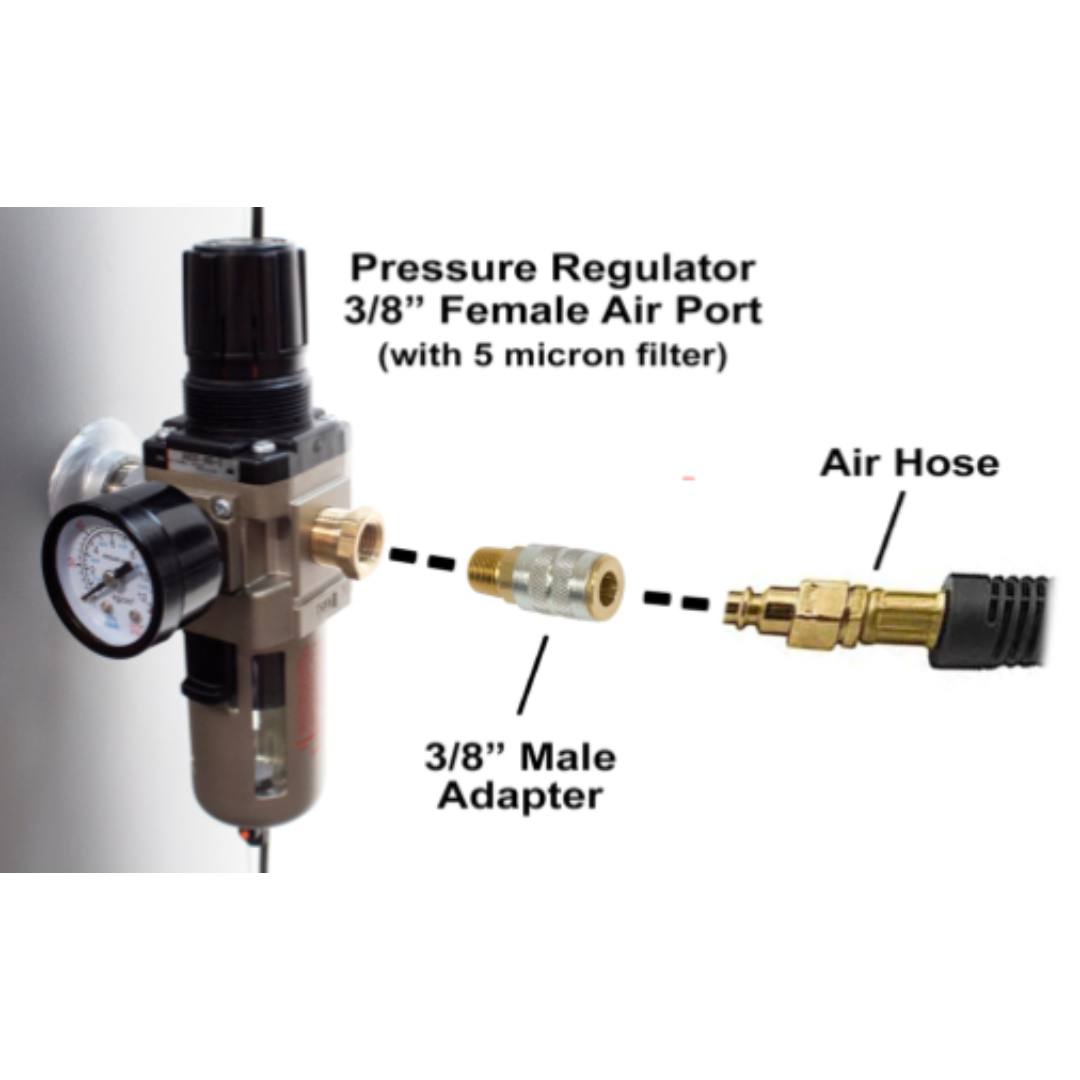

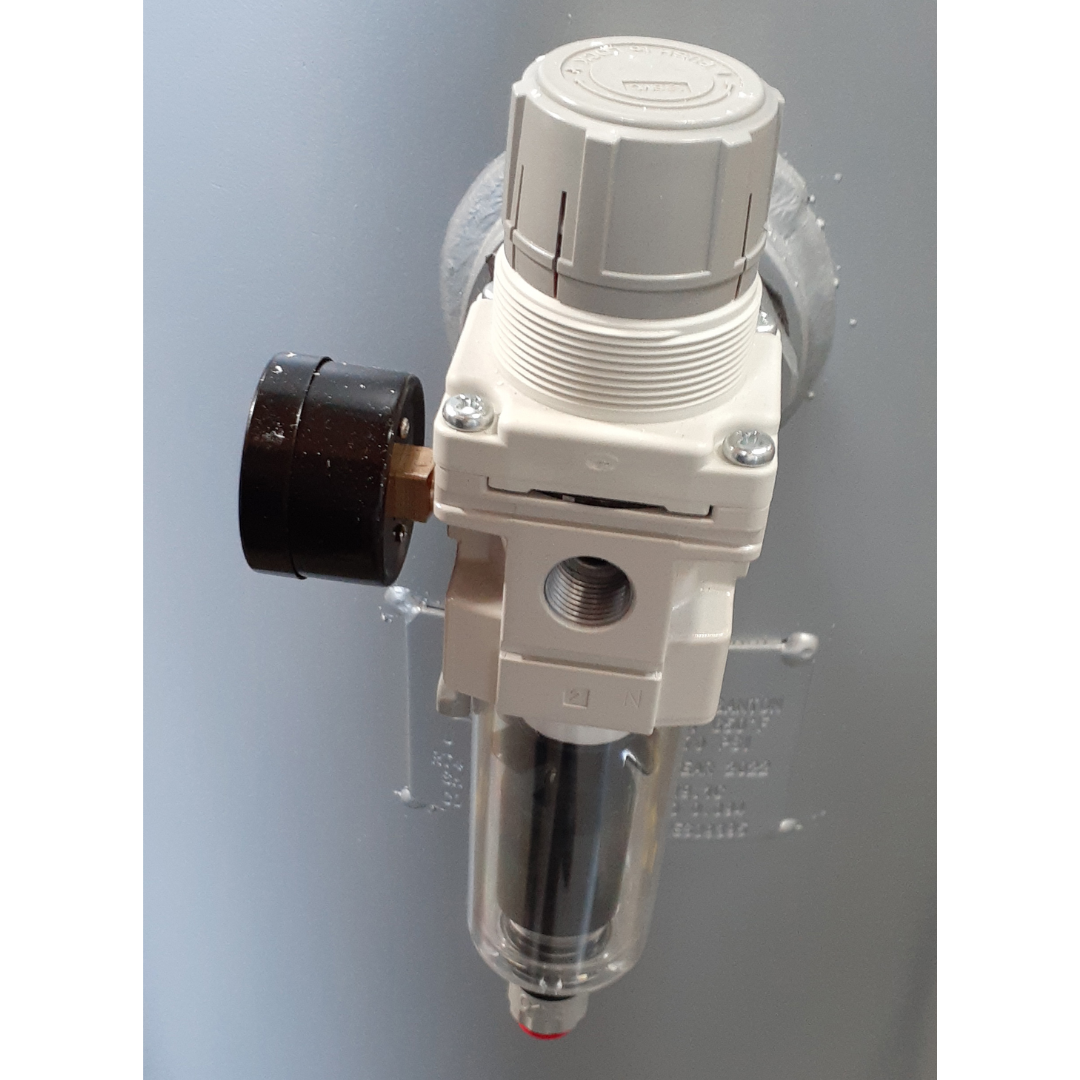

- Integrated Filtration System – Includes 5-micron air filter and regulator for cleaner air output.
- Low Amp Draw – Energy-efficient 14-amp operation reduces electrical demand.
- Cold Start Capability – Oil-free system ensures reliable startup in low temperatures and varied environments.
Why Choose the CALIFORNIA AIR TOOLS 60040DCAD Powerful 4.0 Hp Ultra Quiet & Oil-Free Air Compressor
- Delivers strong 4.0 HP performance with high airflow capacity.
- 80% air drying system protects tools and equipment from moisture.
- Ultra-quiet operation improves working conditions.
- Low-maintenance oil-free design reduces service costs.
- Durable ASME-certified tank ensures safe and reliable operation.
The CALIFORNIA AIR TOOLS 60040DCAD Powerful 4.0 Hp Ultra Quiet & Oil-Free Air Compressor with 80% Air Drying System and Automatic Drain Valve is a dependable, efficient solution for professionals seeking quiet operation, reduced moisture, and long-lasting performance.
