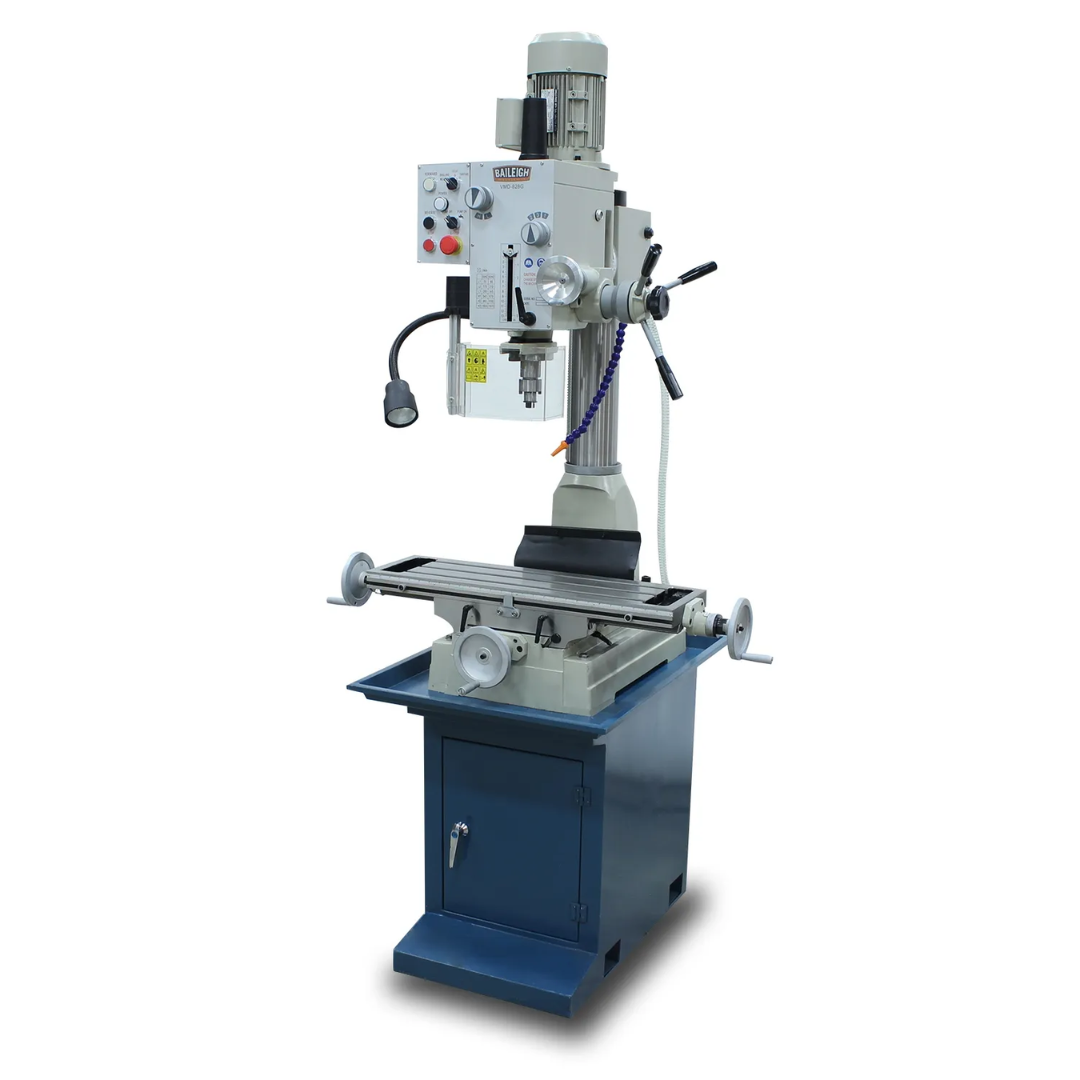

Baileigh Vertical Mill Drill - VMD-828G 1020692 Applications
- General machining and metalworking operations.
- Precision drilling and milling of steel, aluminum, and non-ferrous materials.
- Prototype manufacturing and product development.
- Tool room and maintenance department machining.
- Educational and vocational machine shop training.
- Fixture, tooling, and component production.
- Repair and custom fabrication projects.
- Small production and job shop machining environments.
Perfect for shops that need the versatility of both a drill press and milling machine while maximizing valuable floor space.
Baileigh Vertical Mill Drill - VMD-828G 1020692 Specifications
| Model | VMD-828G |
|---|---|
| Product Keyword | Baileigh Vertical Mill Drill - VMD-828G 1020692 |
| Motor Power | 2 HP |
| Horsepower | 2 HP |
| Input Power | 115V Single Phase |
| Motor Voltage | 110V |
| Motor Phase | Single Phase |
| Maximum Drilling Capacity | 1.5" Mild Steel |
| Drilling Capacity (Mild Steel) | 1.25" |
| Face Mill Capacity | 3" |
| Spindle Speed Range | 90 – 1970 RPM |

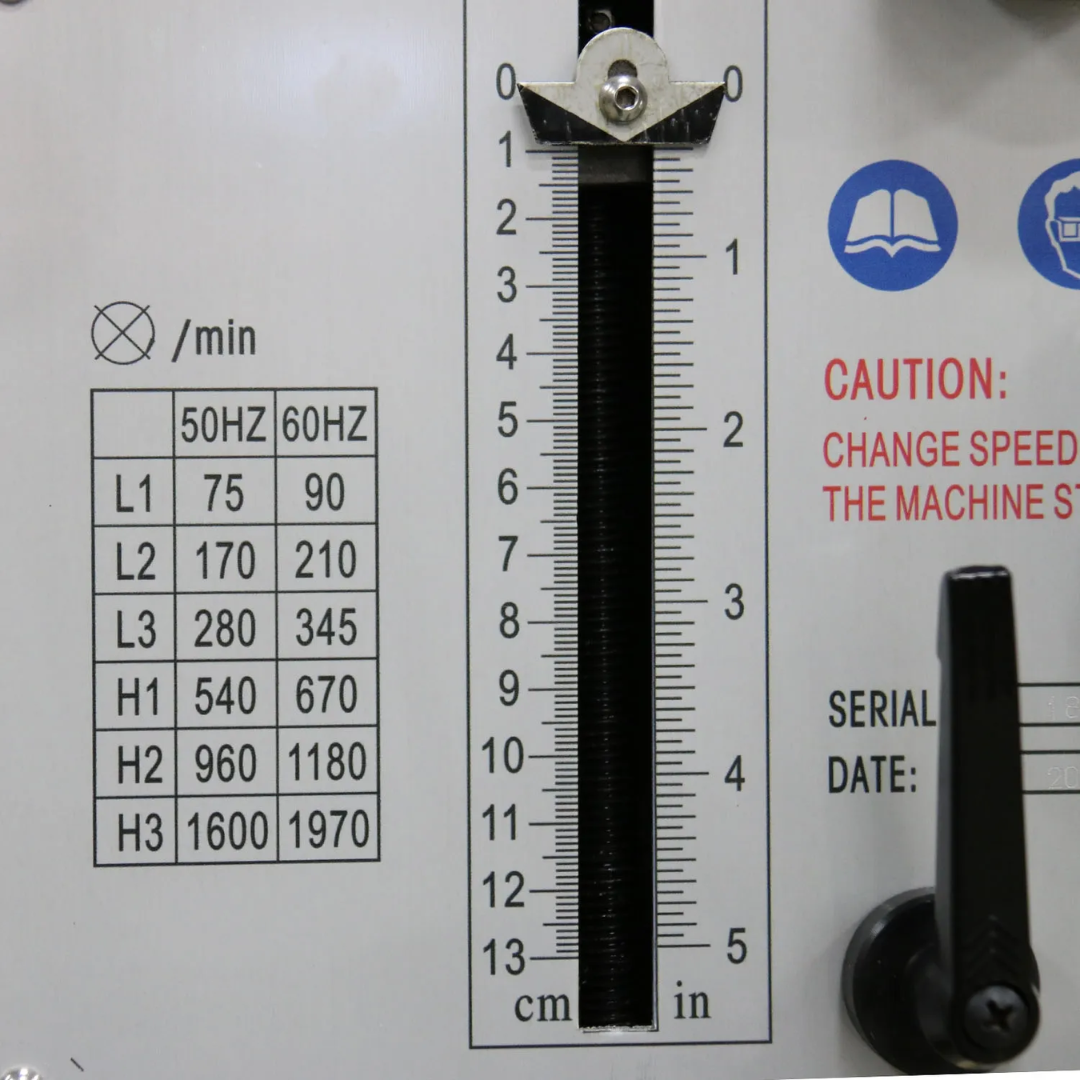

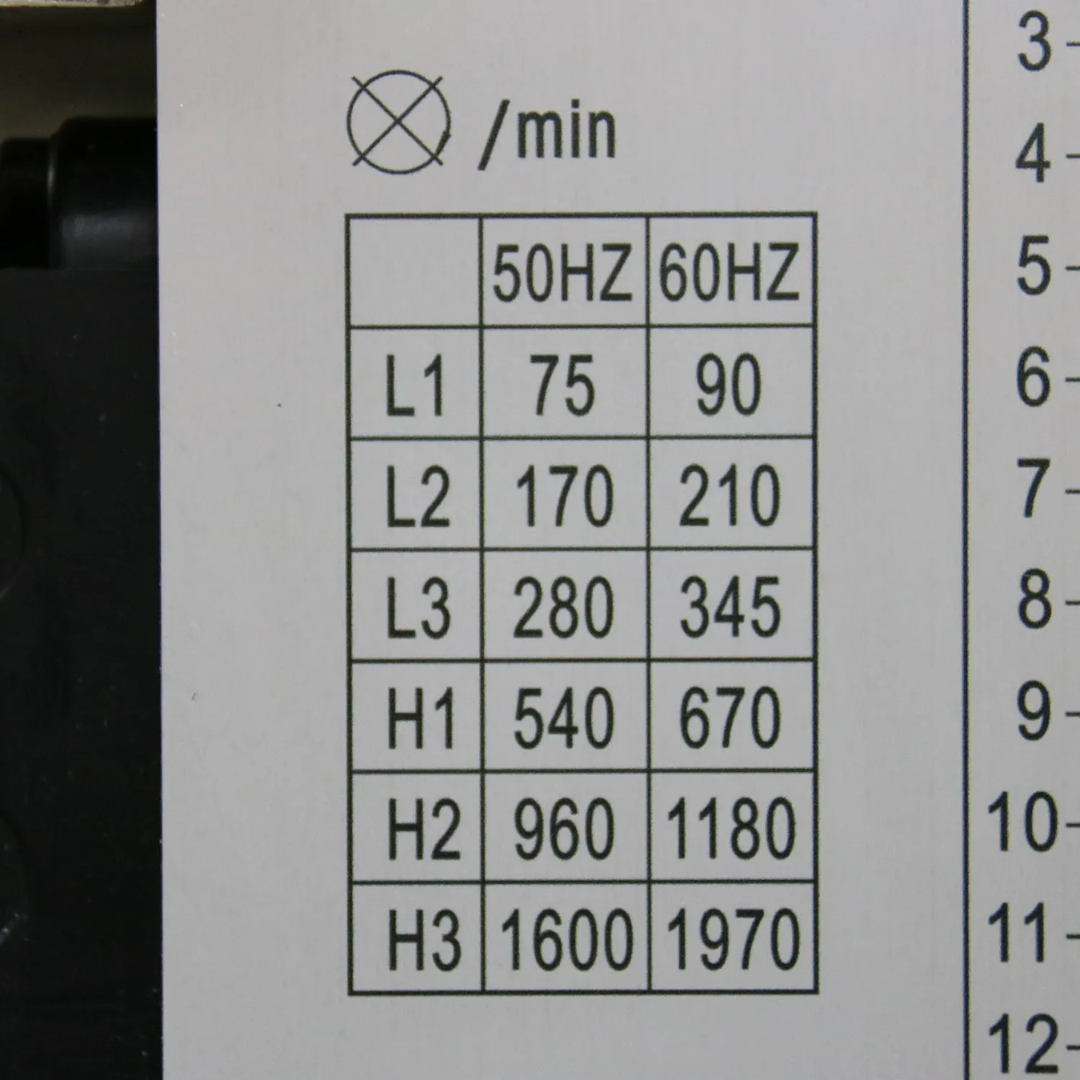

| Spindle Speeds | 90, 210, 345, 670, 1180, 1970 RPM |
| Number of Speeds | 6 |
| Spindle Taper | R8 |
| Work Table Size | 29" x 8" |
| Head Type | Gear-Driven |
| Coolant System | Included |
| Work Light | Flexible Halogen Lamp Included |
| Column Construction | Wide Cast Column |
| Machine Base | Rigid Cast Base |
| Net Weight | 740 lbs |
| Gross Weight | 740 lbs |
| UPC | 19907768647 |
| Warranty | 1 Year |
Baileigh Vertical Mill Drill - VMD-828G 1020692 Performance & Construction

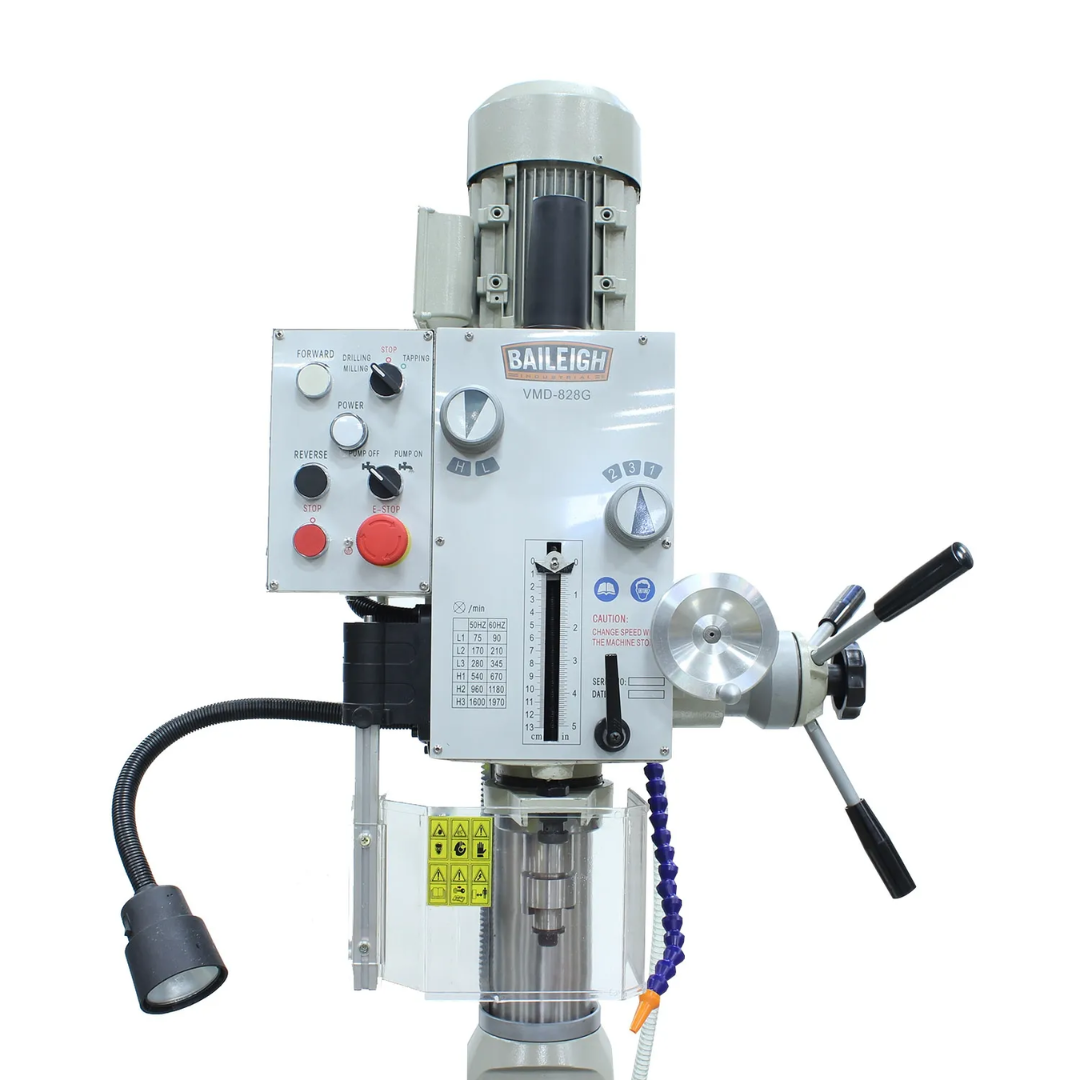

- Combination milling and drilling machine provides exceptional versatility while reducing equipment footprint requirements.
- Powerful 2 HP motor delivers reliable cutting performance for a broad range of machining applications.
- 110V single-phase operation allows installation in many shops without requiring industrial three-phase power.
- Maximum drilling capacity up to 1.5" supports larger drilling operations in mild steel and similar materials.
- Six gear-driven spindle speeds provide precise control and improved torque transfer compared to belt-driven alternatives.
- Wide spindle speed range of 90 to 1970 RPM allows optimization for drilling, milling, facing, and boring operations.
- R8 spindle taper ensures compatibility with a large selection of standard milling machine tooling.

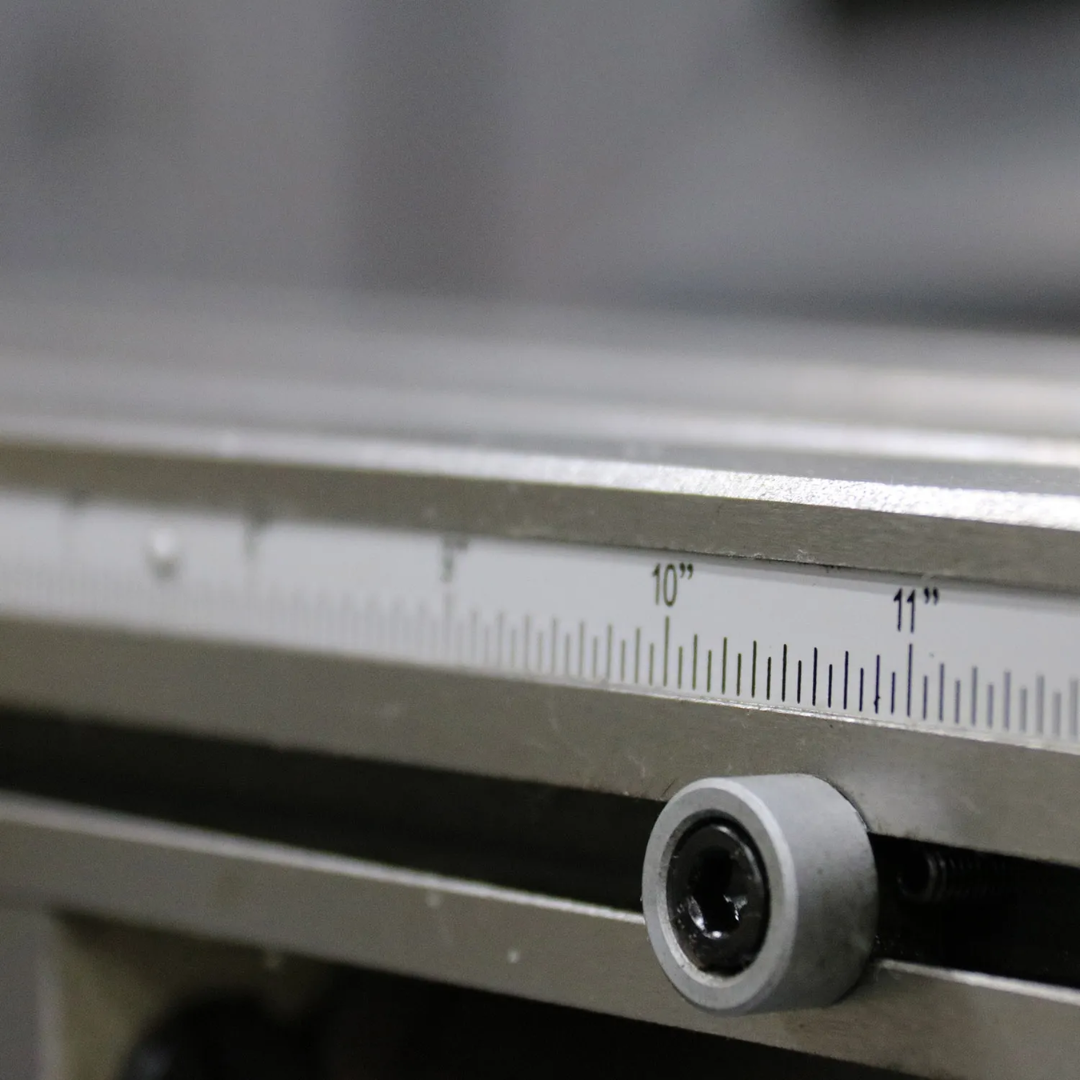

- 29" x 8" milling table offers ample workspace for fixtures, vises, and workholding accessories.
- 3" face mill capacity supports light-to-medium milling operations with excellent accuracy.

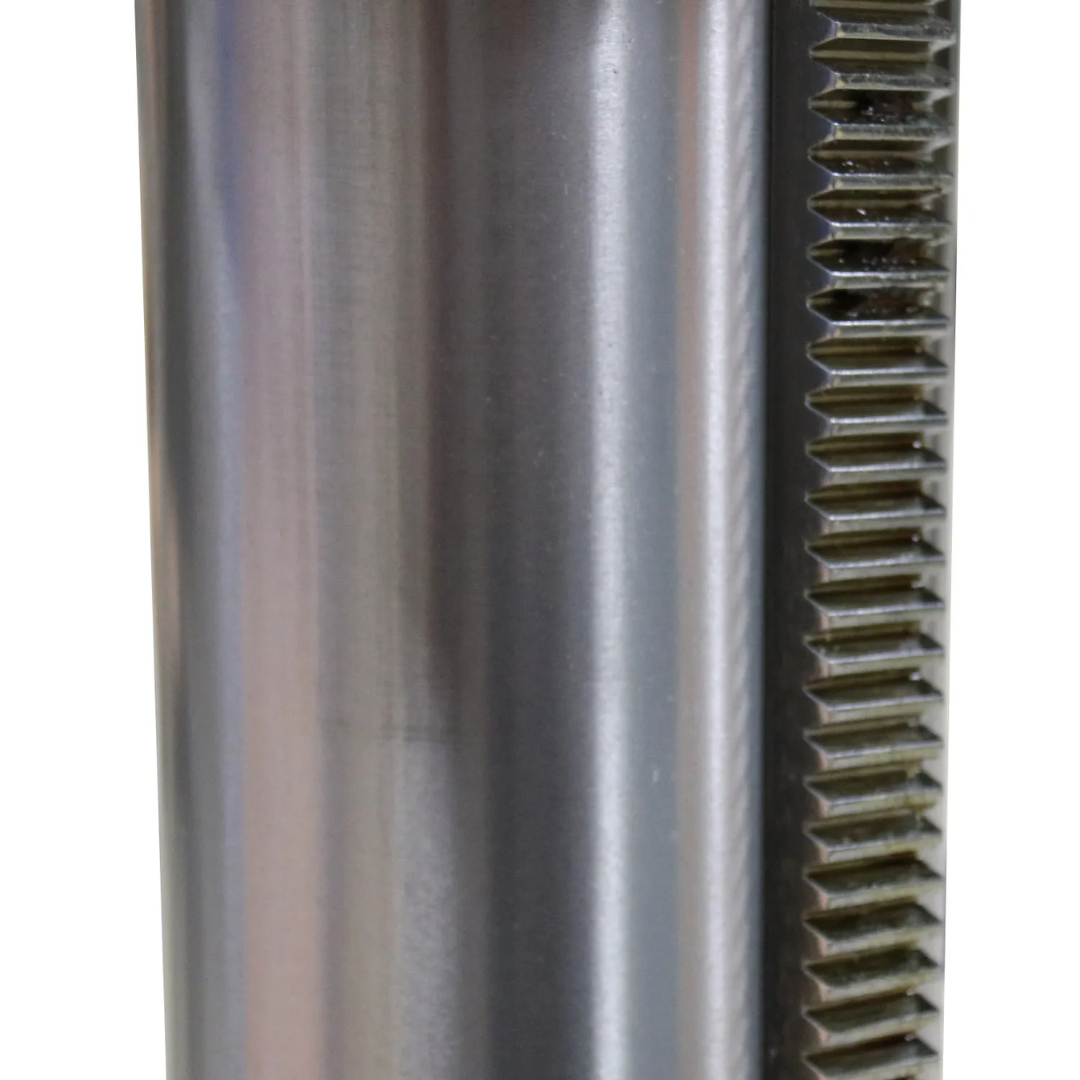

- Rigid cast column and base construction minimize flex and vibration for improved machining precision.
- Integrated coolant system assists with heat reduction, improved surface finish, and extended tooling life.
- Flexible halogen work light enhances visibility for setup, machining, and inspection tasks.
- Heavy-duty 740 lb construction provides stability and confidence during demanding machining operations.
- Designed for long-term industrial performance in production, maintenance, and educational environments.
- Backed by Baileigh lifetime technical support and a 1-year parts warranty.
Why Choose the Baileigh Vertical Mill Drill - VMD-828G 1020692
- Combines milling and drilling capabilities in one compact machine.
- Powerful 2 HP motor handles a wide variety of machining operations.
- Six spindle speeds provide flexibility across different materials and tooling.
- R8 spindle taper supports readily available industry-standard tooling.
- Integrated coolant system improves machining efficiency and tool life.
- Heavy cast construction enhances stability and machining accuracy.
- 29" x 8" table accommodates diverse workholding configurations.
- Excellent choice for machine shops, maintenance facilities, schools, and fabrication operations.
The Baileigh Vertical Mill Drill - VMD-828G 1020692 delivers the precision, versatility, and durability required for modern machining operations. Combining a powerful gear-driven spindle, rigid cast construction, coolant system, and milling functionality into one efficient package, this machine provides outstanding value for professionals seeking dependable drilling and milling performance.
