Baileigh Shop Press: H Frame, 9.8" Stroke 1004859 Applications
- Pressing bearings, bushings, sleeves, and shafts.
- Straightening bent steel components and fabricated assemblies.
- Heavy-duty metal forming and shaping operations.
- Bending steel plates, brackets, and structural components.
- Assembly and disassembly of industrial machinery components.
- Automotive repair, restoration, and maintenance work.
- Manufacturing and production support operations.
- General fabrication shop pressing applications.
Designed for shops requiring maximum pressing force, flexible operation modes, and dependable performance for high-demand industrial applications.
Baileigh Shop Press: H Frame, 9.8" Stroke 1004859 Specifications
| Product | Baileigh Air/Hand Hydraulic Shop Press |
|---|---|
| Model Number | HSP-75A |
| Part Number | 1004859 |
| Press Capacity | 75 Tons |
| Frame Style | H-Frame |
| Power Source | Pneumatic & Manual Hydraulic Operation |
| Working Width | 31.5" |
| Stroke Length | 9.8" |
| Required Air Pressure | 90 – 115 PSI |
| Frame Construction | Fully Welded Heavy-Duty Steel |
| Work Table | Adjustable |
| Ram Head | Movable |
| Control Method | Foot Pedal Pneumatic Control & Manual Operation |
| Included Accessories | V-Block Set |
| Input Power | Pneumatic |
| Net Weight | 1,110 lbs. |
| Gross Weight | 1,110 lbs. |
| Warranty | 1 Year Parts Warranty |
| UPC | 731325407907 |
| Prop 65 | Cancer and Reproductive Harm |
Baileigh Shop Press: H Frame, 9.8" Stroke 1004859 Features & Benefits
- Massive 75-ton pressing capacity provides the force necessary for heavy industrial pressing, forming, and straightening operations.
- Dual-operation functionality combines pneumatic speed with manual hydraulic precision for maximum versatility.

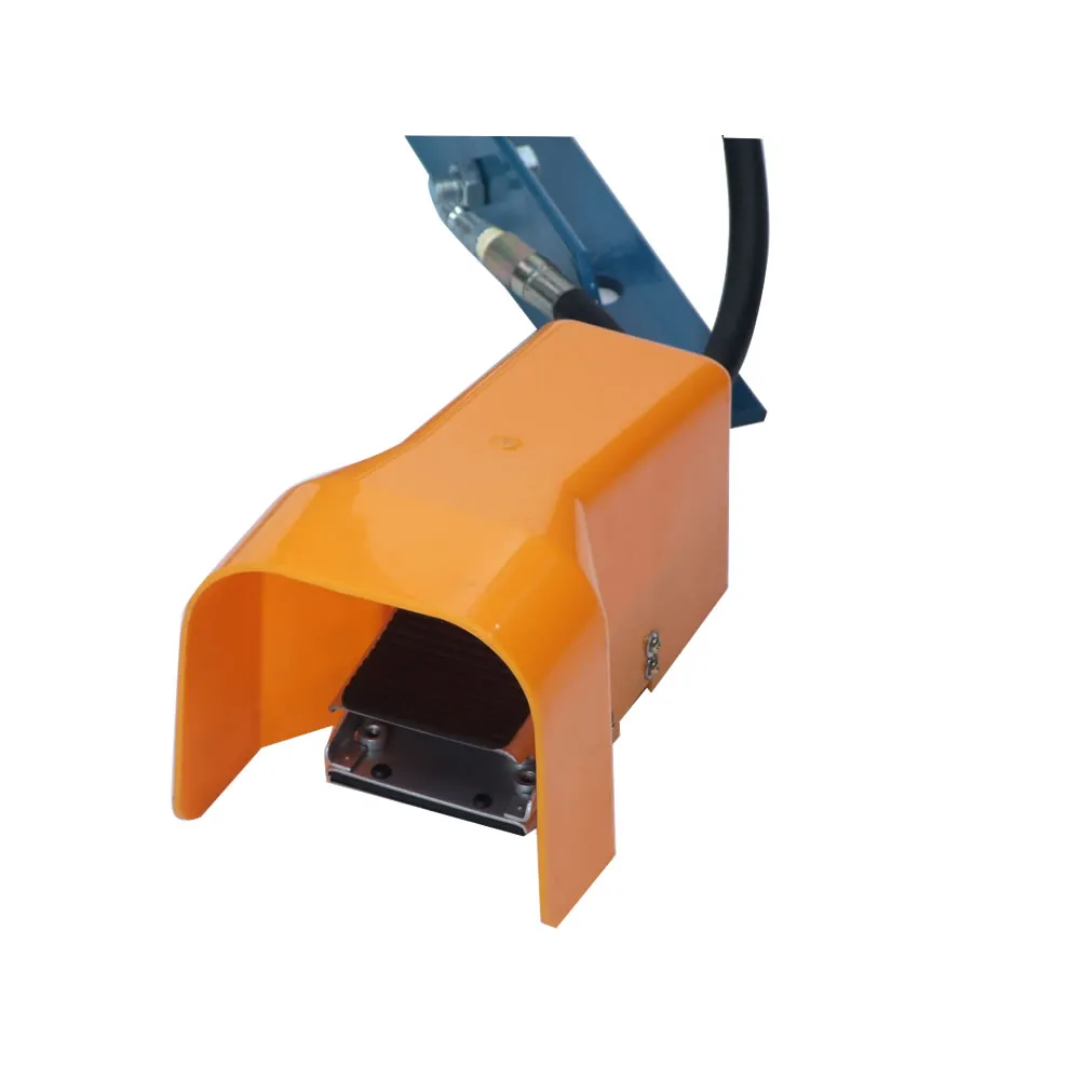

- Foot pedal pneumatic control allows safe, hands-free operation and improved productivity.
- Manual control capability offers greater precision for delicate or highly controlled pressing tasks.
- 31.5-inch working width accommodates larger workpieces and more complex fabrication projects.
- 9.8-inch cylinder stroke enables deep pressing operations and increased application flexibility.

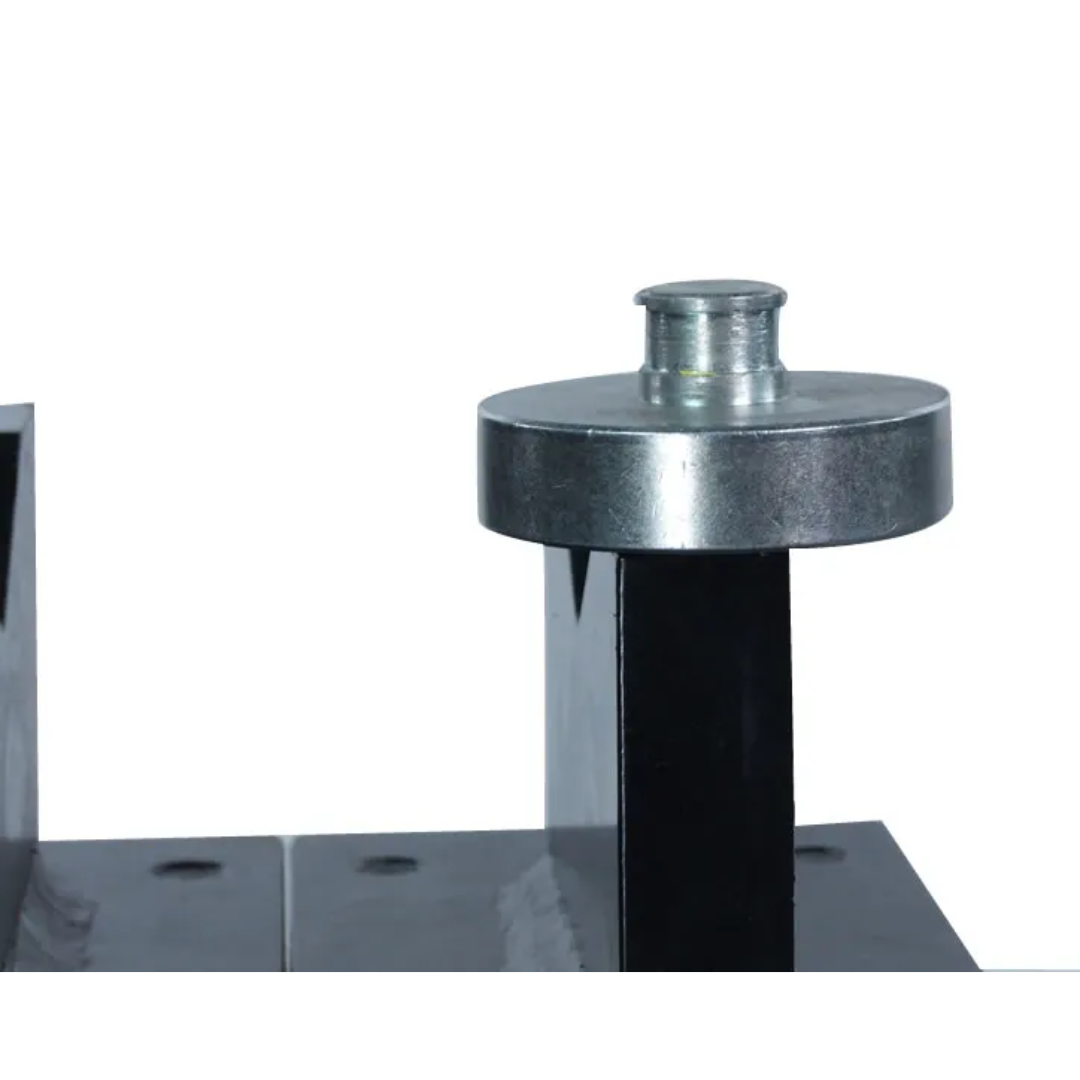

- Movable ram head supports off-center pressing and improves setup options for irregularly shaped parts.

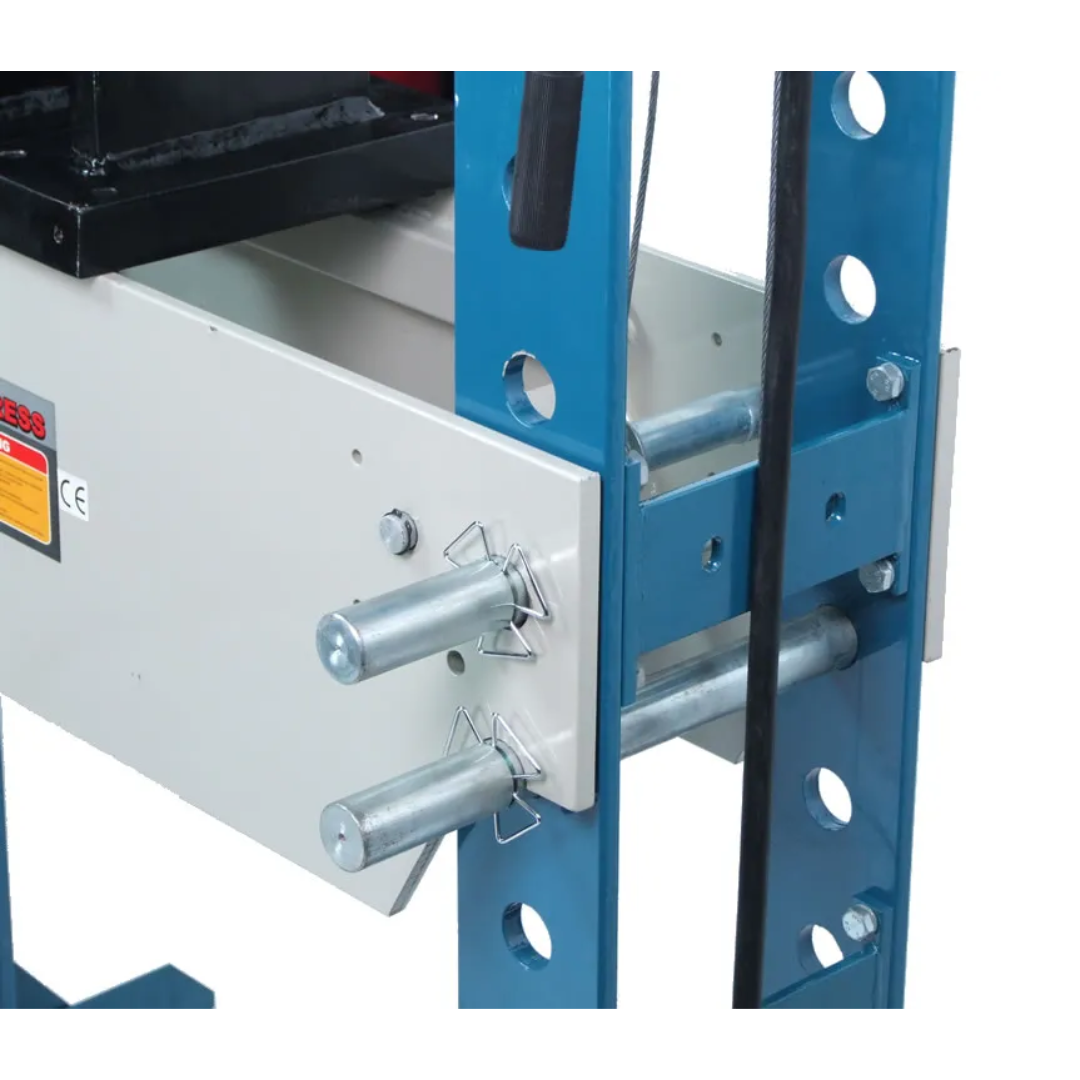

- Adjustable work table provides multiple working heights for efficient positioning of various materials.

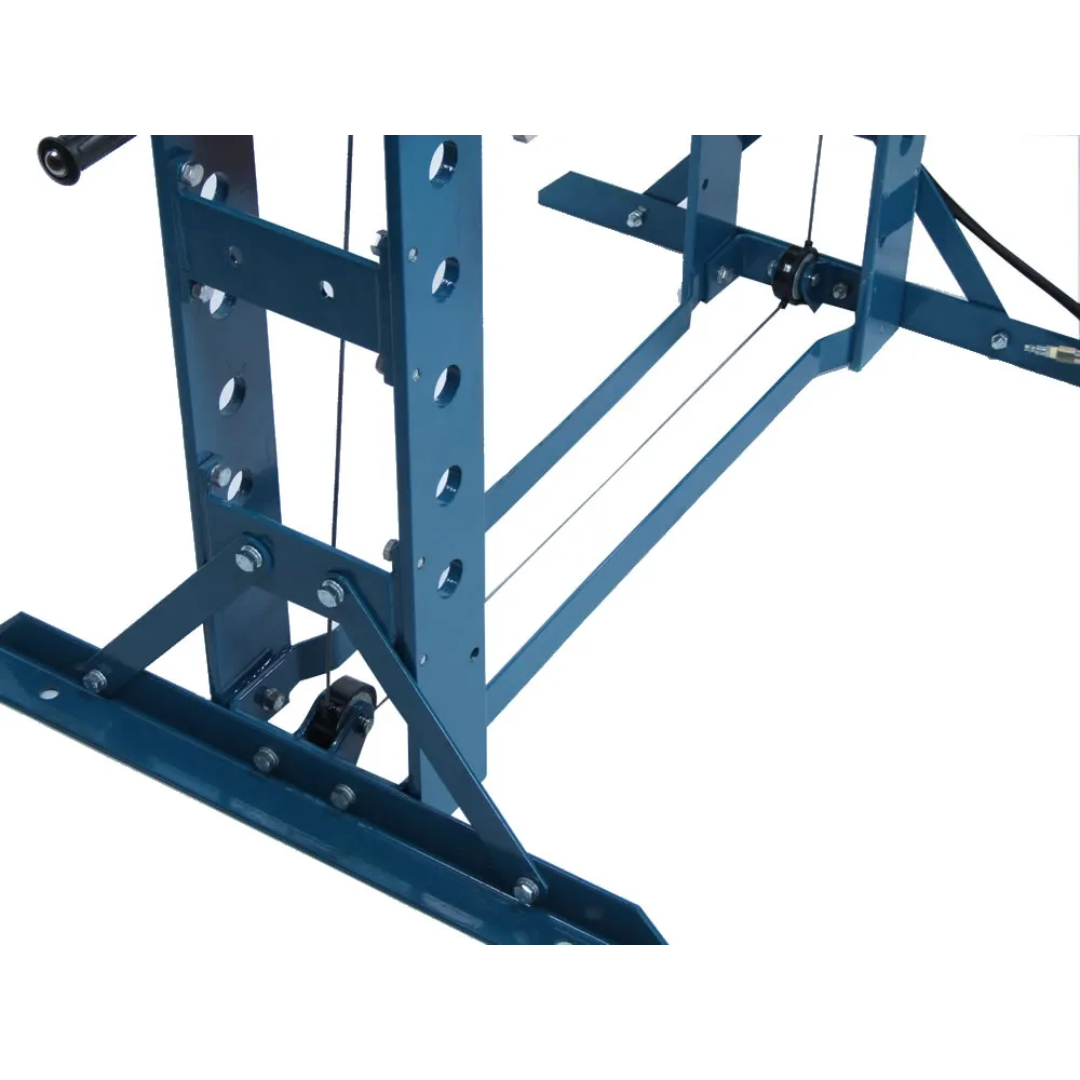

- Fully welded heavy-duty steel frame maximizes rigidity, stability, and long-term durability.

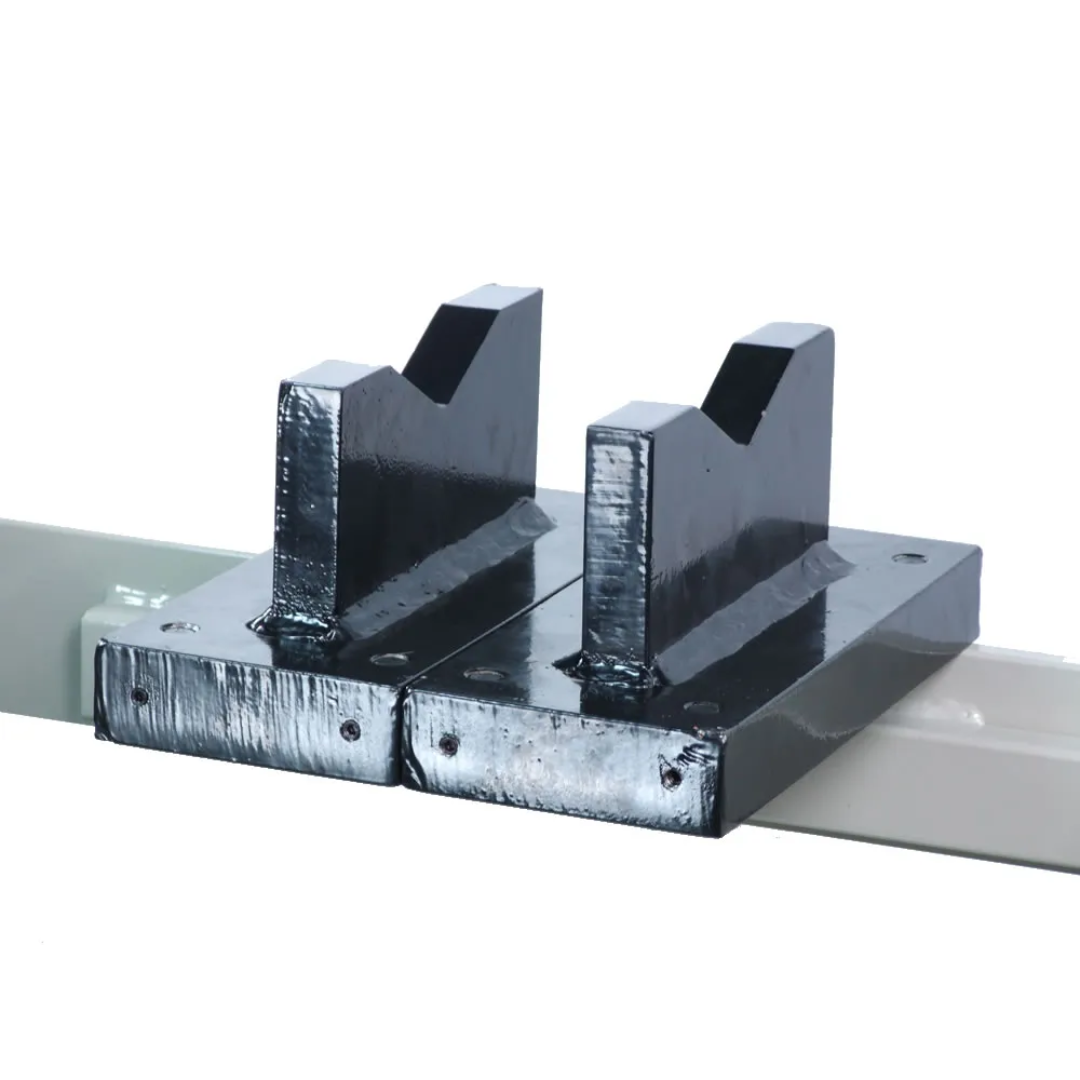

- Includes V-block set for securely supporting shafts, tubing, and cylindrical components during pressing operations.
Baileigh Shop Press: H Frame, 9.8" Stroke 1004859 Performance & Construction
- Engineered for demanding fabrication, maintenance, manufacturing, and repair environments.
- Rigid H-frame design minimizes deflection and helps maintain pressing accuracy under heavy loads.

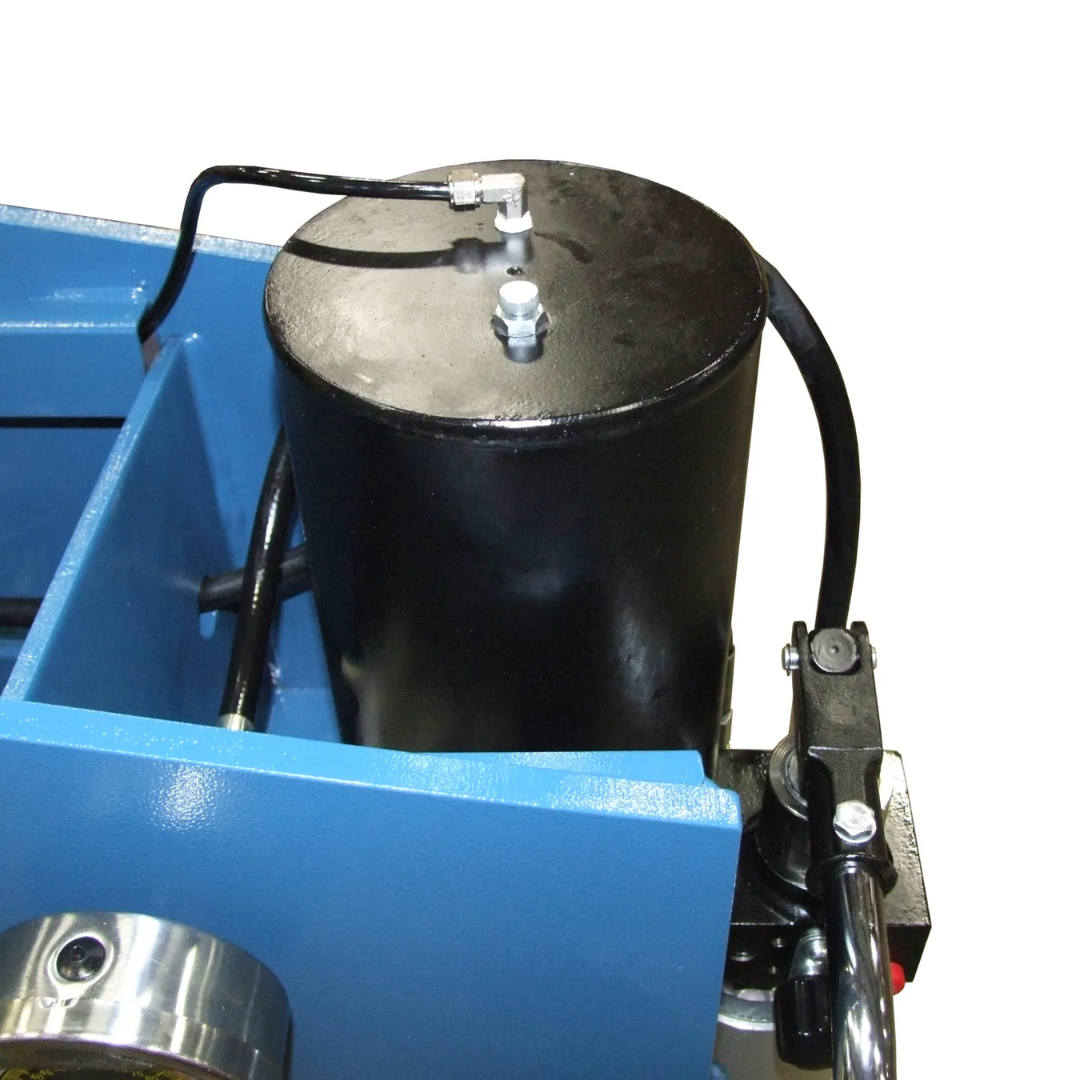

- Pneumatic hydraulic system reduces operator fatigue while delivering consistent force output.
- Manual operation mode allows precise control when working with sensitive or precision components.
- Movable ram design increases versatility for off-center pressing applications and unique setups.
- Heavy-duty welded steel construction withstands years of continuous industrial service.

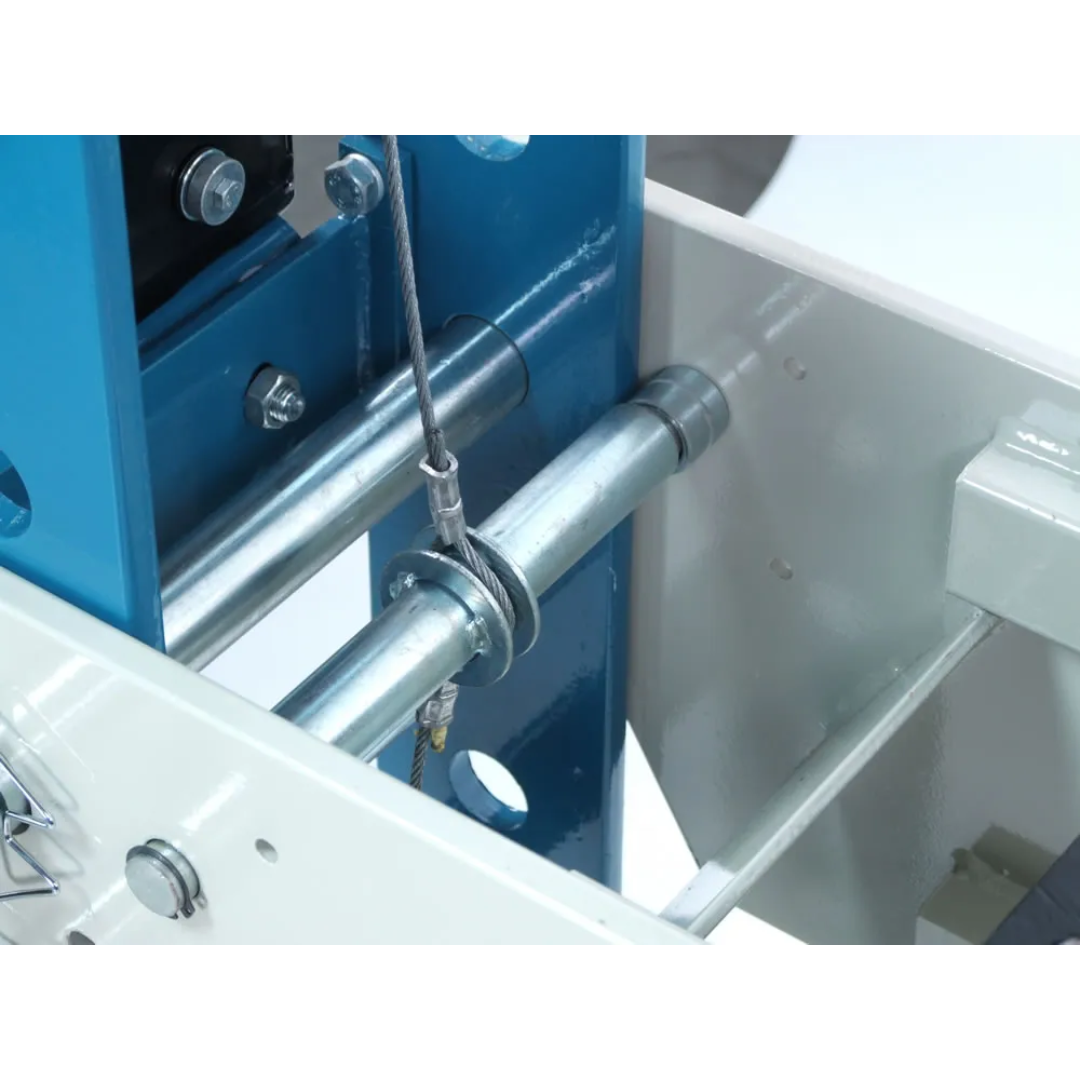

- Adjustable bed configuration accommodates a wide variety of workpiece sizes and geometries.
- Designed to deliver reliable performance during high-force production and maintenance operations.
Why Choose the Baileigh Shop Press: H Frame, 9.8" Stroke 1004859
- Powerful 75-ton pressing force for heavy-duty industrial applications.
- Dual pneumatic and manual operation for flexibility and precision.
- Large 31.5-inch working width supports oversized workpieces.
- 9.8-inch stroke provides extensive pressing travel.
- Movable ram head and adjustable table improve versatility.
- Fully welded steel H-frame construction ensures durability and stability.
- Includes V-blocks for additional functionality.
- Backed by Baileigh's 1-year warranty and lifetime technical support.
The Baileigh Shop Press: H Frame, 9.8" Stroke 1004859 combines industrial-strength 75-ton pressing capability, pneumatic convenience, manual precision, and heavy-duty welded-steel construction to deliver dependable performance for fabrication, manufacturing, maintenance, and repair operations.
