Baileigh Radial Jaw Tube and Pipe Notcher, 2.5" OD Capacity (TN-250) BA9-METN250 Applications
- Race car chassis and roll cage fabrication.
- Handrail, guardrail, and architectural tube fabrication.
- Motorcycle and automotive custom fabrication projects.
- Tube frame structures and custom welded assemblies.
- Industrial pipe and tubing preparation.
- Ornamental metalworking and artistic fabrication.
- Aerospace, agricultural, and manufacturing support projects.
- Producing precise fishmouth joints and saddle cuts for welding preparation.
The TN-250 is ideal for fabricators who require highly accurate tube notching, versatile angle adjustment, and the ability to notch tubing even in difficult positions or along pre-bent sections.
Baileigh Radial Jaw Tube and Pipe Notcher, 2.5" OD Capacity (TN-250) BA9-METN250 Specifications
| Model | TN-250 |
|---|---|
| Product Type | Manual Tube & Pipe Notcher |
| Tube Capacity | 0.5 in. to 2.5 in. OD |

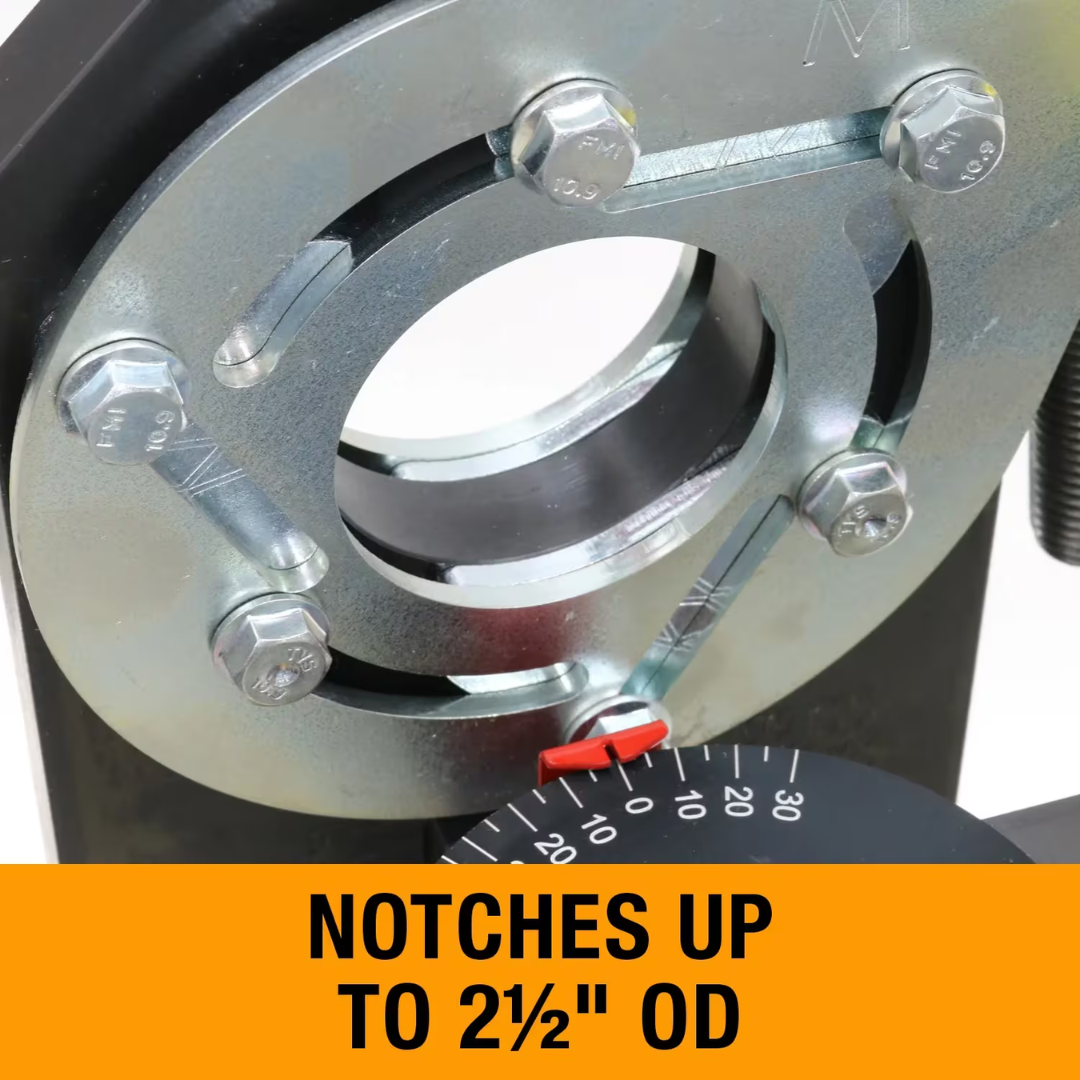

| Notch Capacity OD | 2.5 in. |
| Angle Adjustment Range | 0° to 220° |
| Notch Angle Range | 0° to 180° |
| Carriage Pivot Range | Up to 220° Left to Right |
| Work Height | 47.5 in. |
| Input Power | Electric Drill (Not Included) |
| Mounting Rail Offset Capacity | Up to 1 in. |
| Shaft Type | 1.25 in. Thomson® Shaft |
| Bearing Type | Sealed & Oiled Needle Bearings |
| Frame Construction | 0.75 in. Steel Plate Backbone |
| Net Weight | 43 lbs. |
| Gross Weight | 43 lbs. |
| UPC | 19907418405 |
| Warranty | 1 Year |
| California Prop 65 | Cancer and Reproductive Harm |
Baileigh Radial Jaw Tube and Pipe Notcher, 2.5" OD Capacity (TN-250) BA9-METN250 Performance & Construction

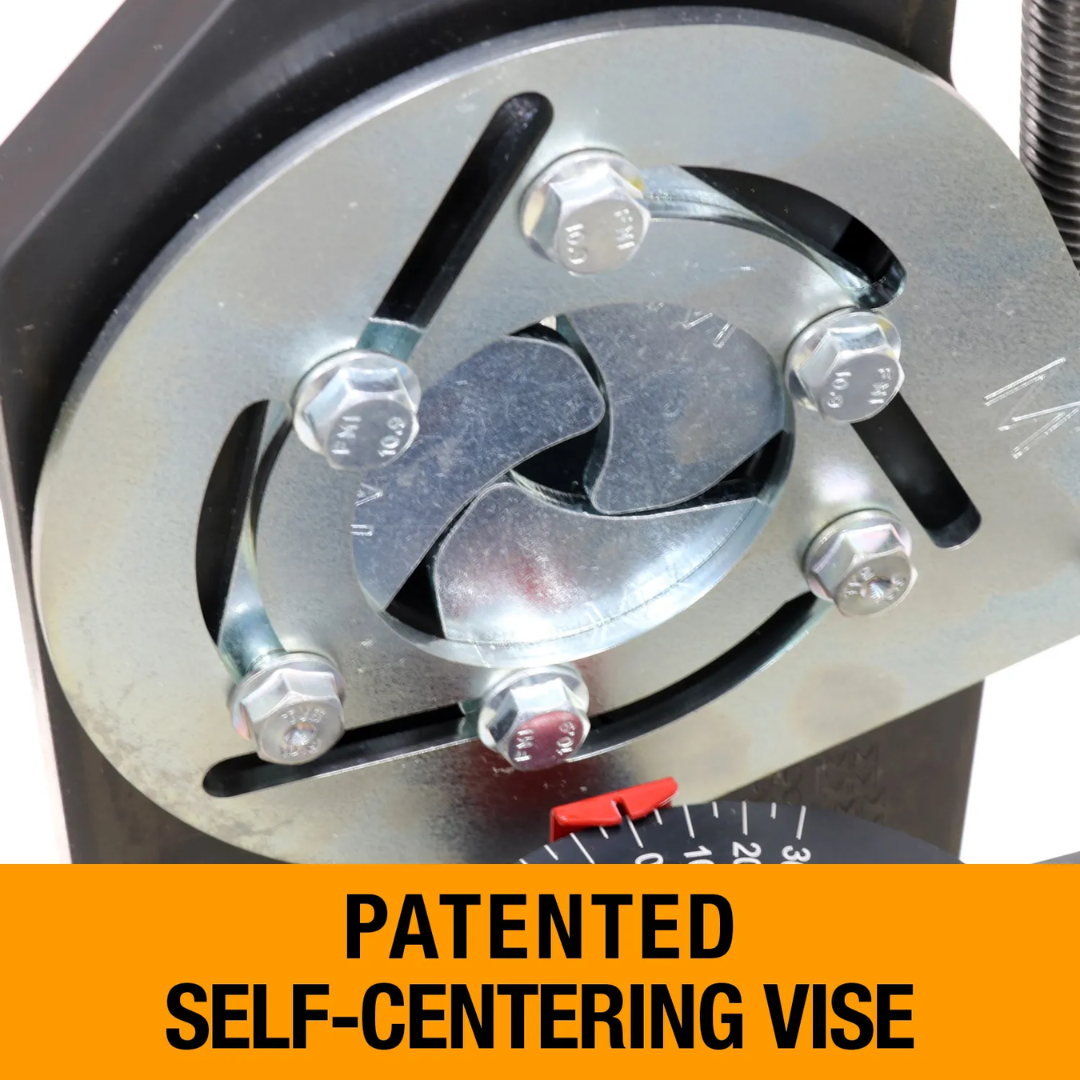

- Patented Self-Centering Radial Vise automatically centers tubing beneath the hole saw, producing accurate and repeatable notch profiles without time-consuming adjustments.
- 0.5" to 2.5" OD Tube Capacity accommodates a wide range of tubing sizes commonly used in fabrication, motorsports, architectural, and industrial applications.
- 220° Angle Adjustment Range provides exceptional flexibility when creating complex tube intersections and specialty joints.
- Carriage Pivot Capability up to 220° allows operators to create backside notches and difficult cuts without repositioning the workpiece.
- Ability to Notch Bent Tubing makes the TN-250 uniquely suited for custom fabrication projects where conventional notchers may not be effective.

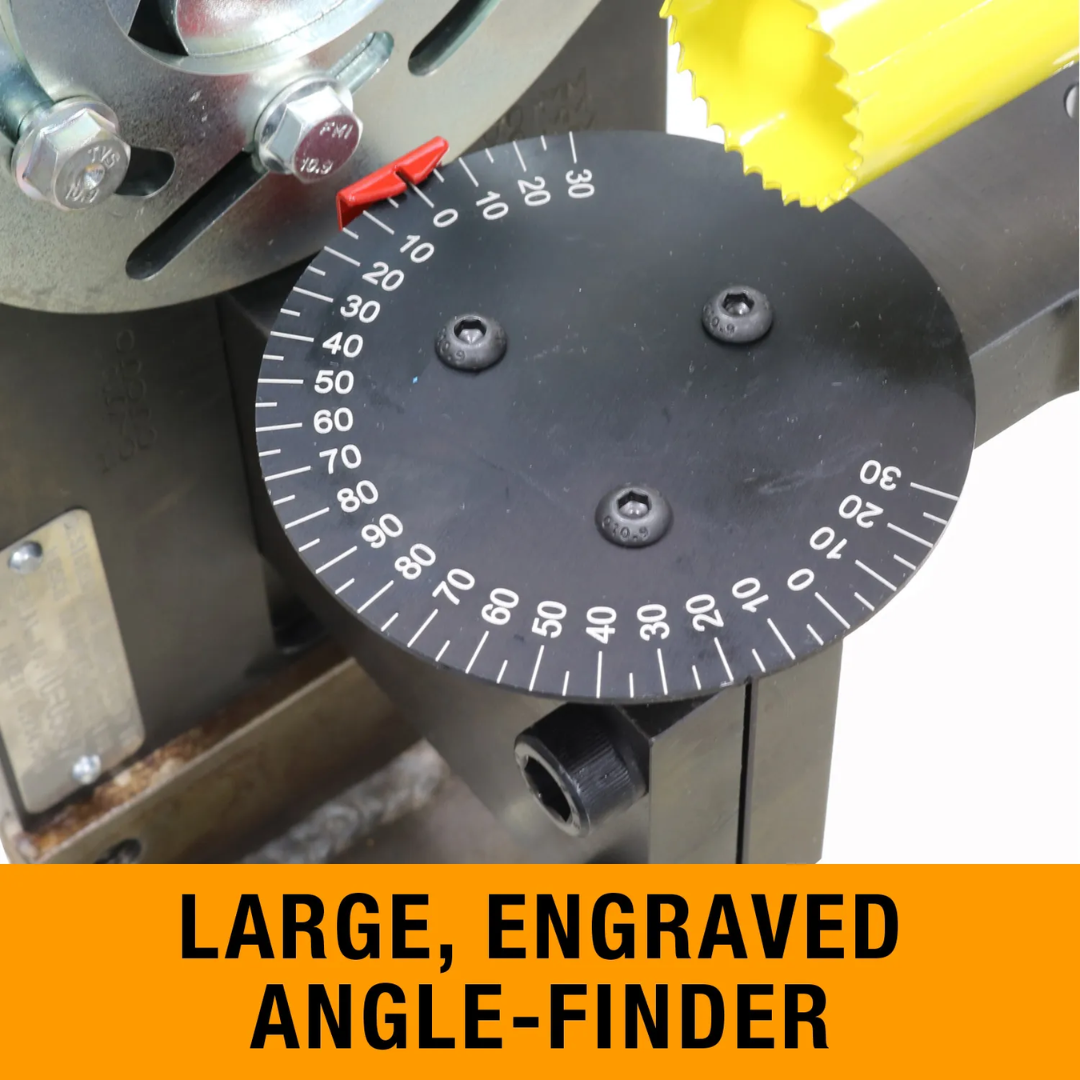

- Large Engraved Degree Dial enables quick and precise angle setup for repeatable fabrication results.
- Dual Slotted Mounting Rails with integrated scales permit offset notches up to 1 inch for advanced tube fitting applications.

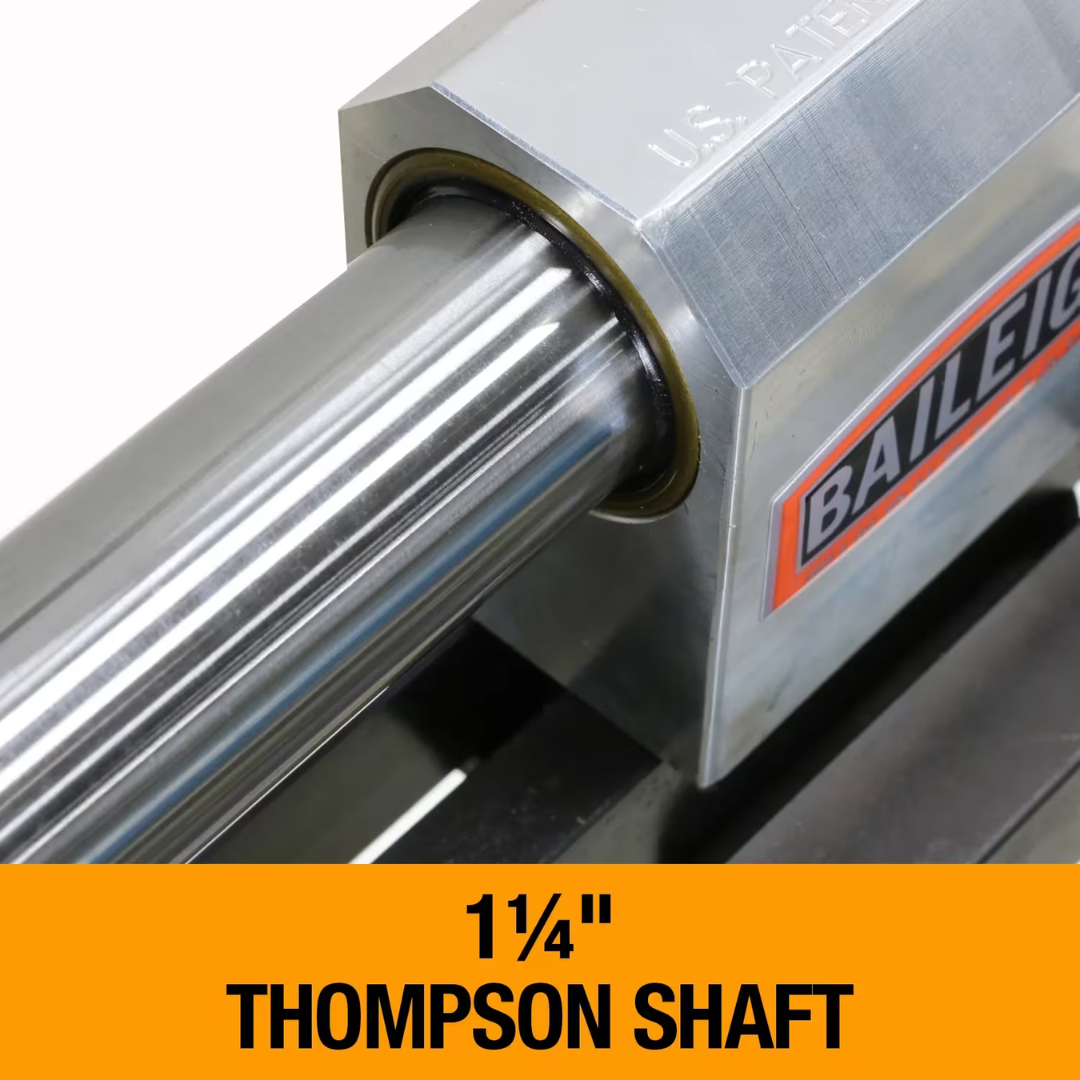

- 1.25-Inch Thomson® Shaft delivers smooth carriage movement and dependable alignment during operation.
- Sealed and Oiled Needle Bearings reduce friction, improve operating smoothness, and support long service life.
- Heavy-Duty 0.75-Inch Steel Plate Backbone provides exceptional rigidity and minimizes flex during demanding fabrication tasks.

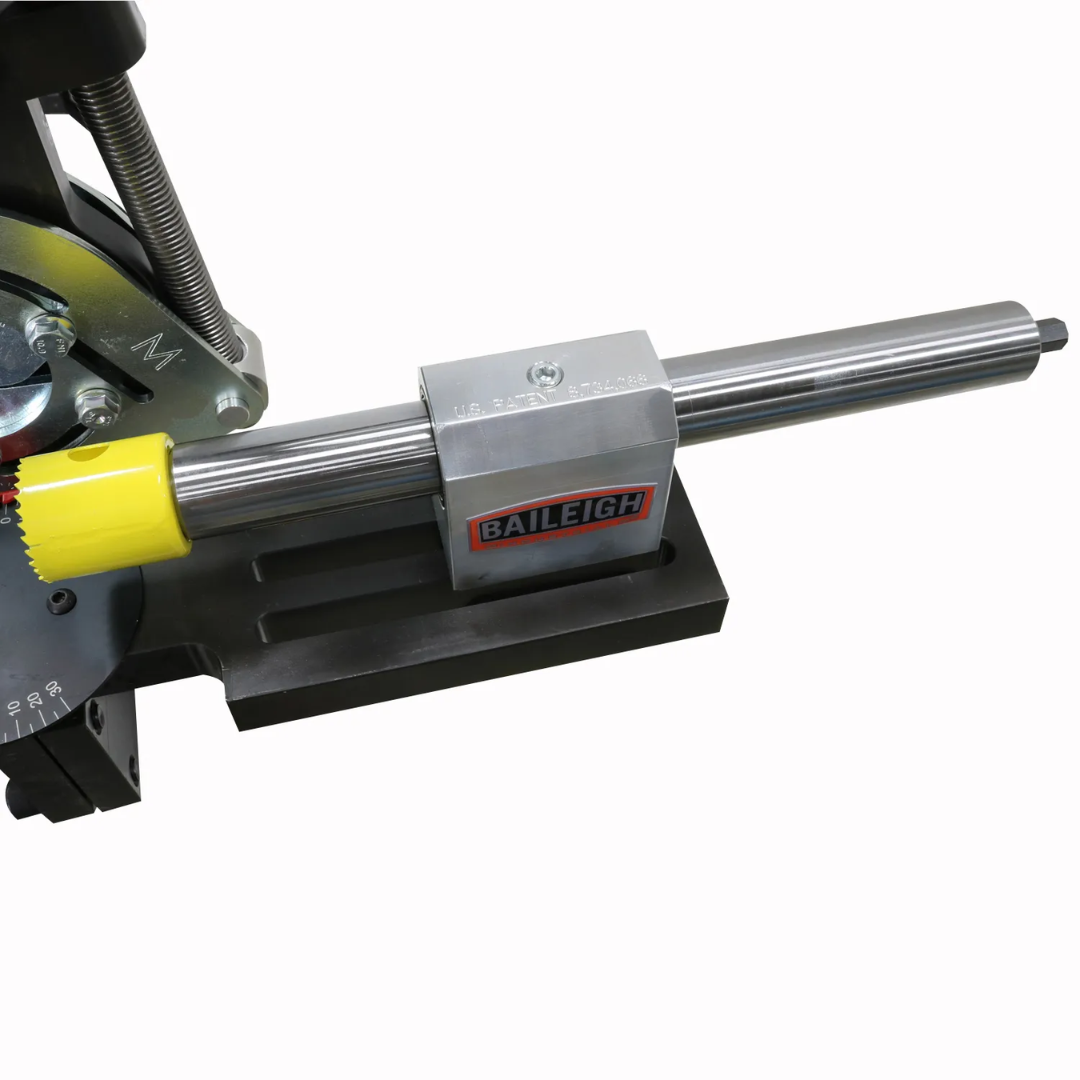

- Manual Hole Saw Operation allows fabricators to use their preferred electric drill while maintaining complete control of the notching process.
- Interlocking Component Design enhances machine stability and accuracy throughout repeated production use.
- Professional Fabrication Quality supports accurate weld preparation and cleaner tube fit-up for improved finished product quality.
Why Choose the Baileigh Radial Jaw Tube and Pipe Notcher, 2.5" OD Capacity (TN-250) BA9-METN250
- Patented self-centering vise ensures highly accurate and repeatable notch placement.
- Handles tubing from 0.5" to 2.5" OD for exceptional versatility.
- 220° pivoting carriage allows complex notch configurations and backside cuts.
- Can notch tubing even on bends and difficult workpiece geometries.
- Heavy-duty steel plate construction delivers industrial-grade durability.
- Large engraved degree dial improves setup speed and accuracy.
- Offset mounting rails support advanced fabrication applications.
- Smooth Thomson® shaft and needle bearing system ensure reliable performance.
- Backed by Baileigh's 1-year warranty and lifetime technical support.
The Baileigh Radial Jaw Tube and Pipe Notcher, 2.5" OD Capacity (TN-250) BA9-METN250 combines innovative self-centering technology, extreme angle flexibility, and rugged industrial construction into one of the most versatile manual tube notchers available. Whether building roll cages, handrails, custom frames, or structural tube assemblies, the TN-250 delivers the accuracy, repeatability, and fabrication efficiency professionals demand.
