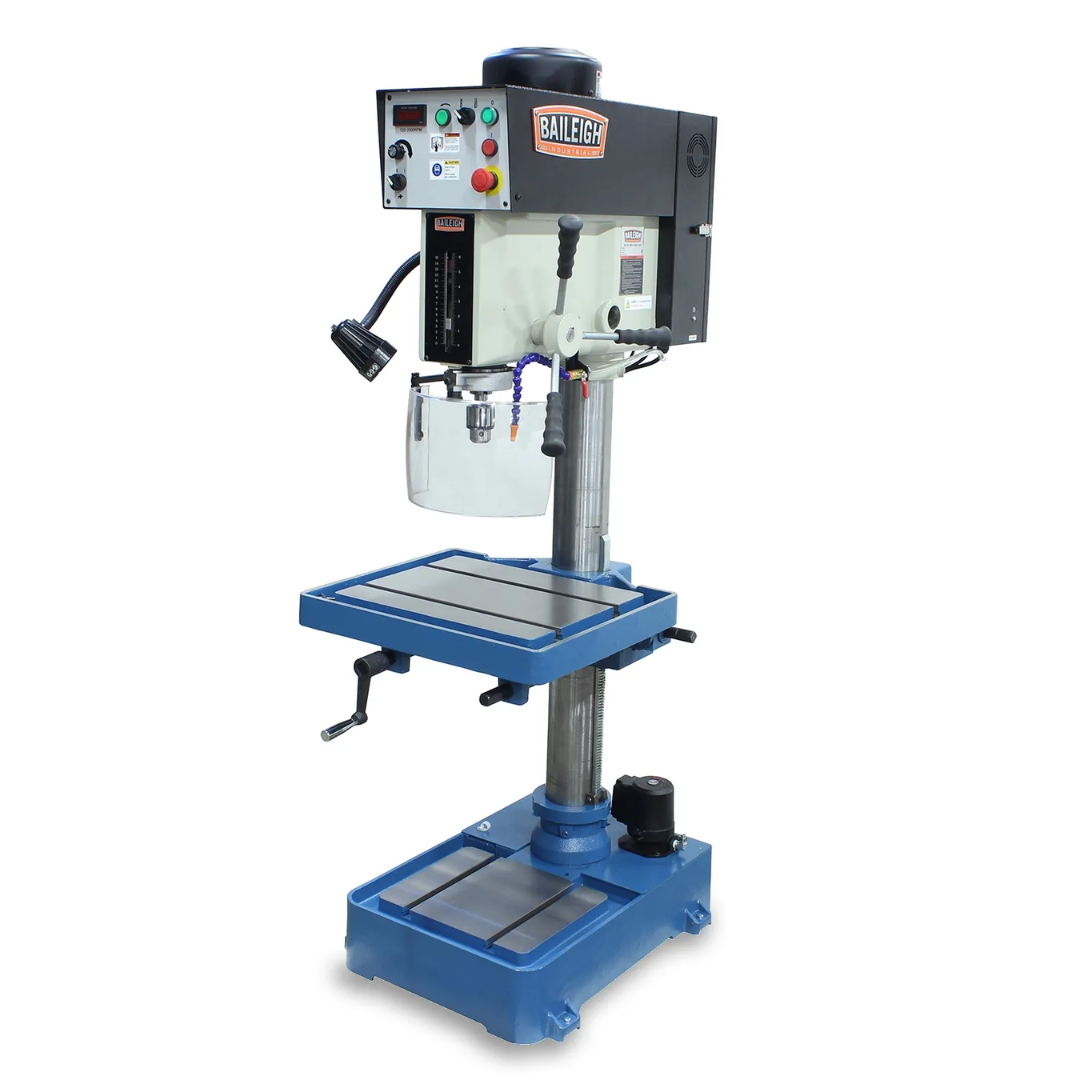

Baileigh Floor Drill Press: 20" Swing, 2 hp, 110 V, 1 Phase 1227902 Applications
- Metal fabrication and production drilling operations.
- Maintenance and repair workshops.
- Automotive manufacturing and restoration projects.
- General machine shop drilling and hole-making applications.
- Tapping operations in mild steel and other metals.
- Fixture fabrication and assembly work.
- Industrial prototyping and custom manufacturing.
- Precision drilling applications requiring variable spindle speeds.
Designed for shops that require industrial drilling capacity, variable speed flexibility, and accurate performance while operating on standard 110V power.
Baileigh Floor Drill Press: 20" Swing, 2 hp, 110 V, 1 Phase 1227902 Specifications
| Product | Baileigh Variable Speed Floor Drill Press |
|---|---|
| Model Number | DP-1375VS-110 |
| Part Number | 1227902 |
| Swing Capacity | 22" |
| Motor Power | 2 HP |
| Power Requirement | 110V, Single Phase |
| Drive Type | Inverter-Driven Variable Speed |
| Spindle Speed Range | 120 – 2,000 RPM |
| Number of Spindle Speeds | Continuously Variable |
| Drilling Capacity - Mild Steel | 1-3/8" |
| Drilling Capacity - Cast Iron | 1-1/16" |
| Tapping Capacity - Mild Steel | 3/4" |
| Spindle Taper | MT-3 |
| Table Size | 22" x 18.75" |
| T-Slot Size | 0.625" |
| Coolant Pump Motor | 1/8 HP |
| Coolant System | Integrated |
| Digital Speed Readout | Included |
| Net Weight | 706 lbs. |
| Gross Weight | 706 lbs. |
| Warranty | 1 Year Parts Warranty |
| UPC | 19907674092 |
| Prop 65 | Cancer and Reproductive Harm |
Baileigh Floor Drill Press: 20" Swing, 2 hp, 110 V, 1 Phase 1227902 Features & Benefits
- Powerful 2 HP inverter-driven motor delivers consistent torque and reliable drilling performance across a wide speed range.
- Variable spindle speed from 120 to 2,000 RPM allows precise speed matching for different materials, drill sizes, and tooling requirements.
- No belt changes required thanks to inverter-driven speed control for faster setup and increased productivity.
- Large 22-inch swing capacity accommodates larger workpieces and expands machining versatility.
- Drills up to 1-3/8 inches in mild steel for demanding industrial drilling applications.
- Integrated digital speed display provides real-time RPM monitoring for improved process accuracy.

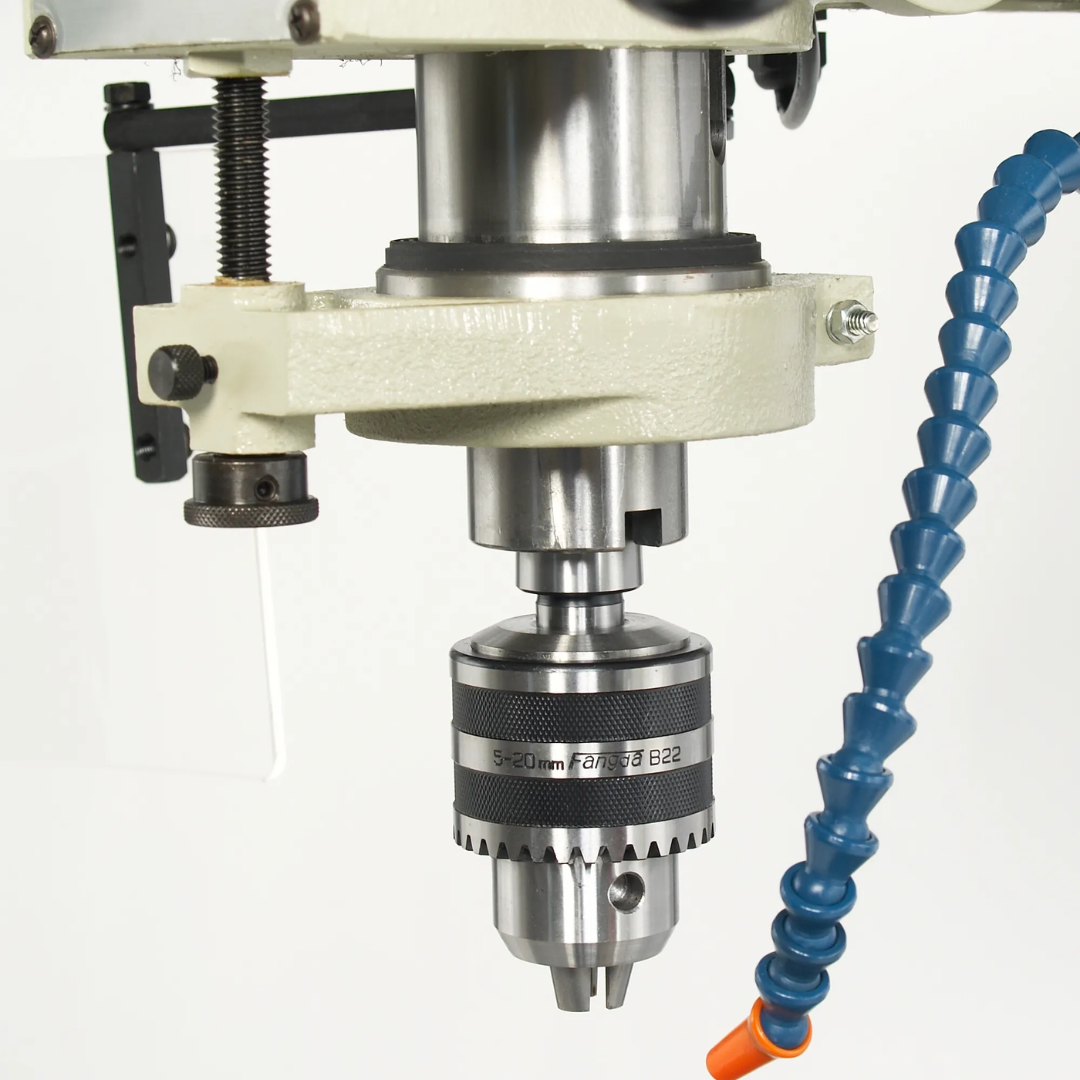

- MT-3 spindle taper supports a wide range of industrial tooling and accessories.
- Heavy-duty cast iron base, column, and table reduce vibration and improve drilling precision.

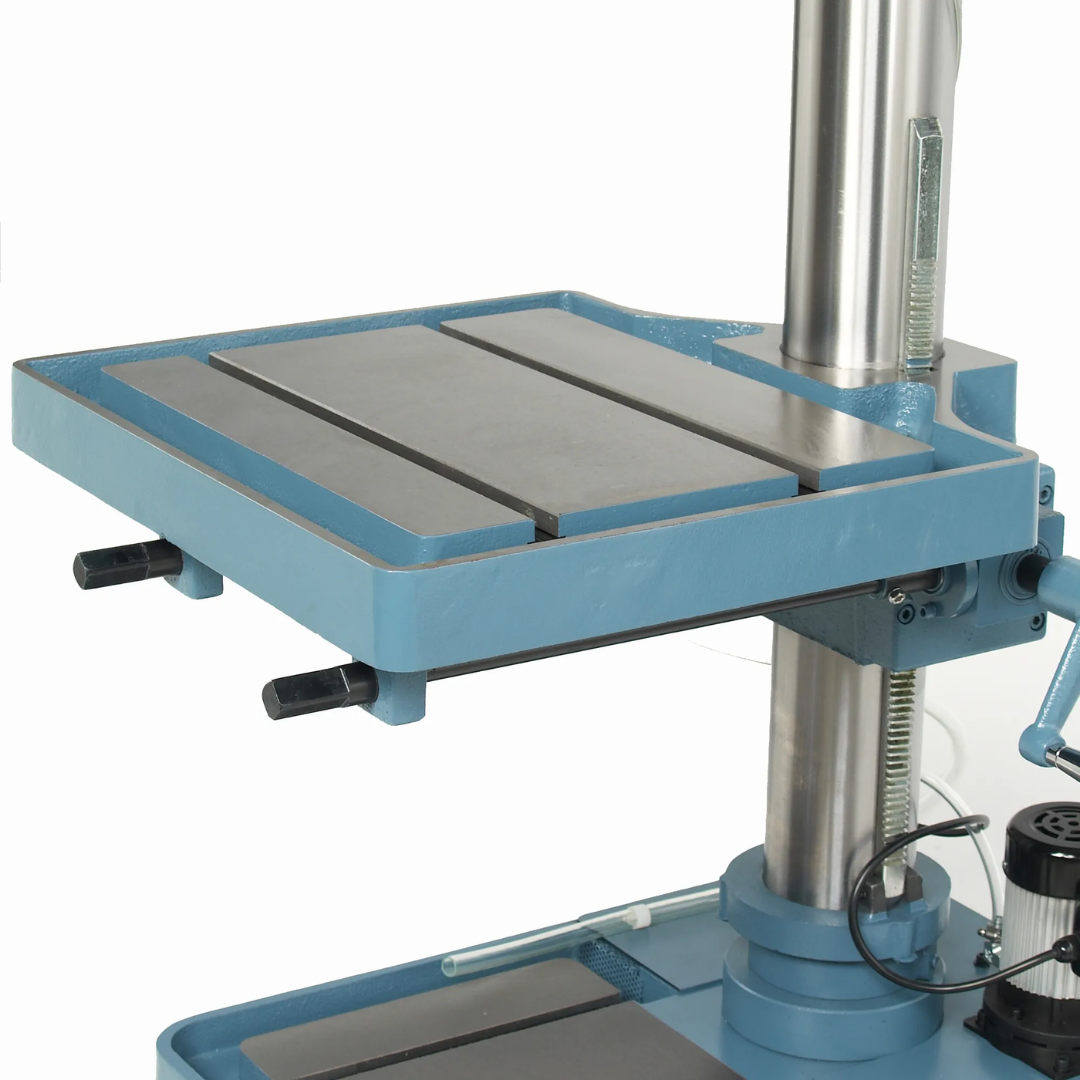

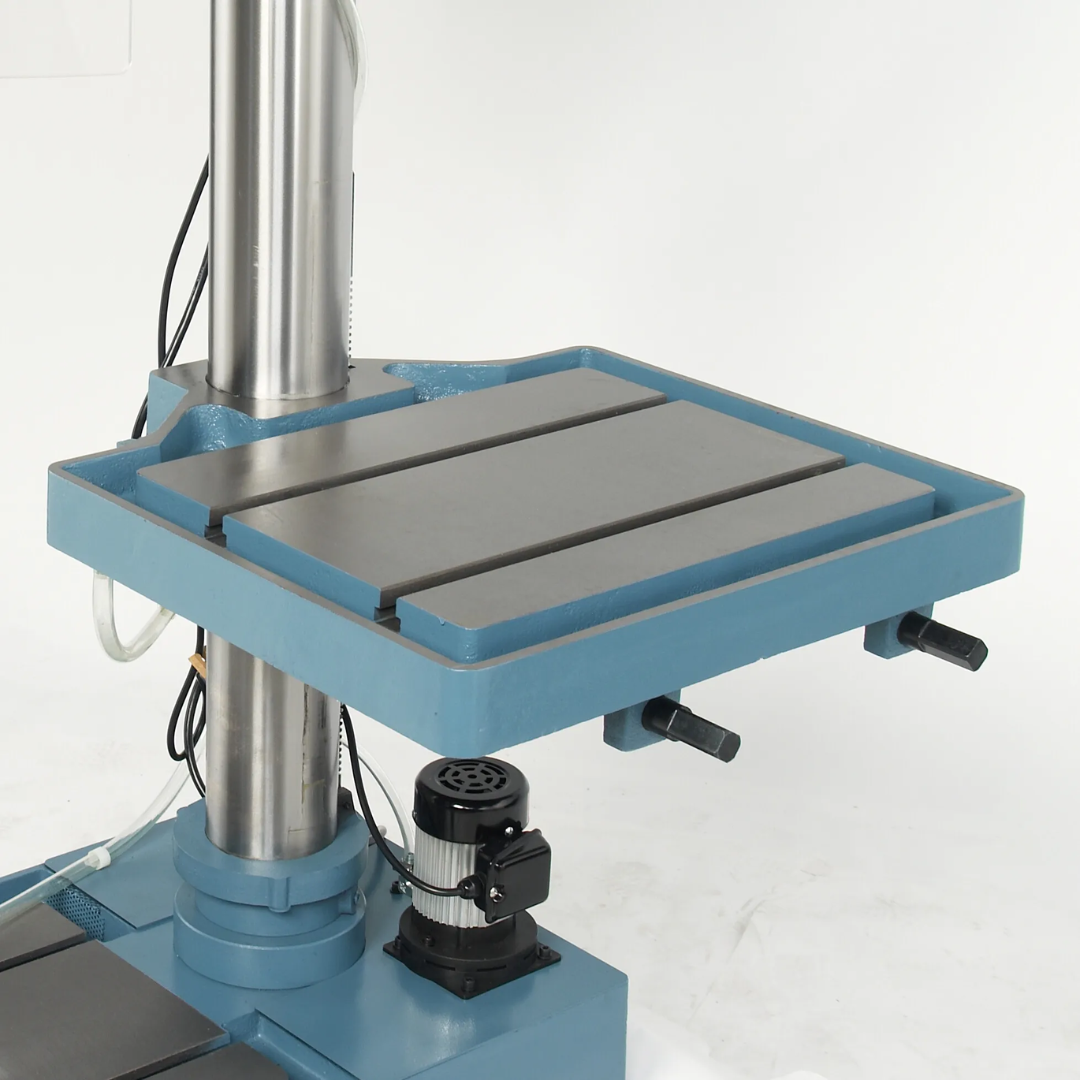

- Large 22-inch x 18.75-inch table with 0.625-inch T-slots enables secure workholding and fixturing.

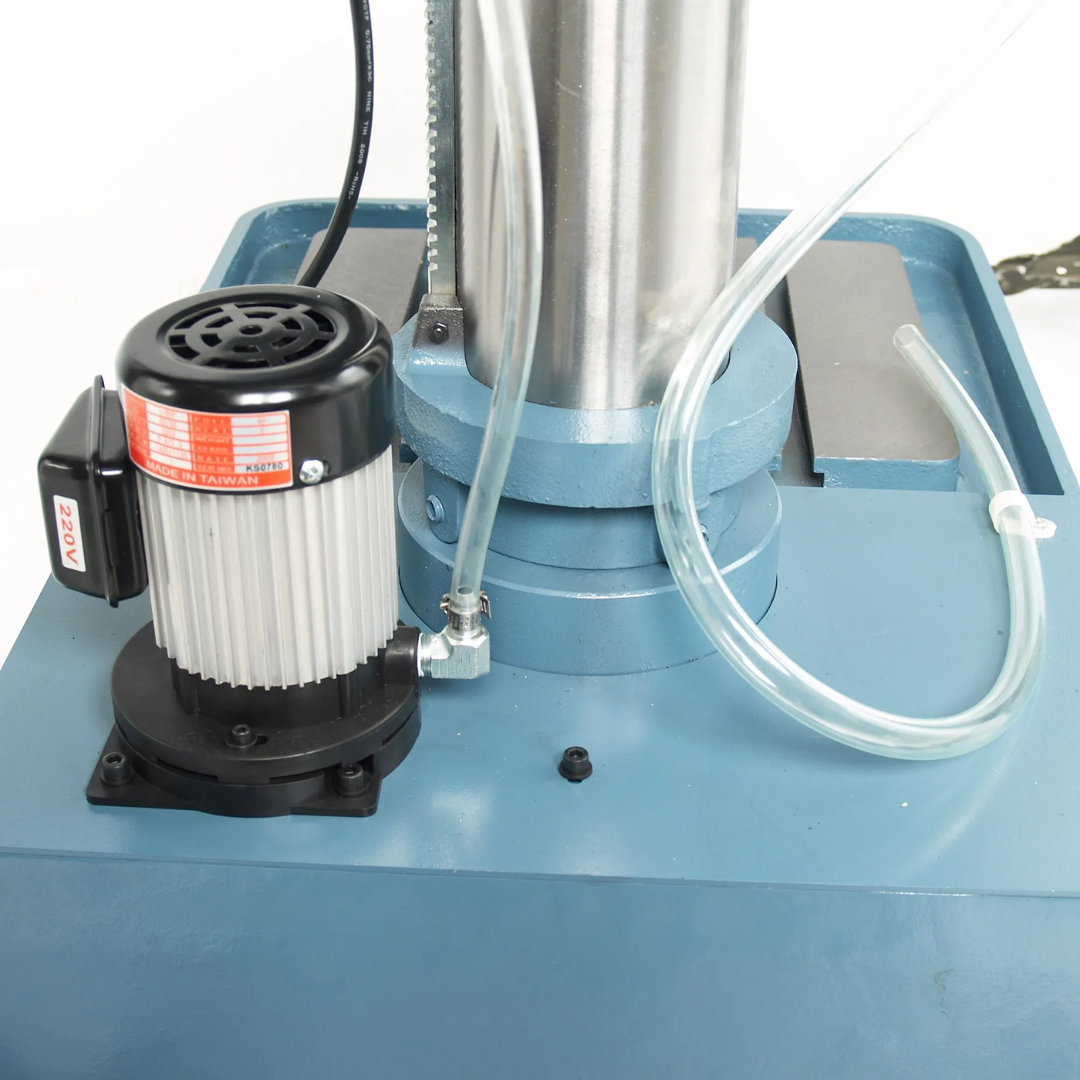

- Built-in coolant system helps extend tool life, improve cutting performance, and reduce heat generation.
Baileigh Floor Drill Press: 20" Swing, 2 hp, 110 V, 1 Phase 1227902 Performance & Construction
- Engineered for fabrication, maintenance, manufacturing, and industrial production environments.
- Rigid cast iron construction minimizes flex and vibration during heavy drilling operations.
- Inverter-driven variable speed technology provides smooth acceleration and precise spindle control.
- Capable of drilling large-diameter holes in mild steel while maintaining accuracy and repeatability.
- Integrated coolant delivery system supports extended drilling operations and improved tool longevity.
- Digital RPM display allows operators to optimize cutting parameters for different materials.
- Large work table and T-slot configuration support complex setups and oversized workpieces.
- Designed to provide industrial performance while operating from standard 110V shop power.
Why Choose the Baileigh Floor Drill Press: 20" Swing, 2 hp, 110 V, 1 Phase 1227902
- Powerful 2 HP inverter-driven motor with variable speed control.
- Wide 120–2,000 RPM speed range without belt changes.
- Large 22-inch swing capacity for increased versatility.
- Heavy-duty cast iron construction for superior accuracy and stability.
- Integrated coolant system and digital speed readout.
- Excellent drilling and tapping capacity for industrial applications.
- Operates on standard 110V power for convenient installation.
- Backed by Baileigh's 1-year warranty and lifetime technical support.
The Baileigh Floor Drill Press: 20" Swing, 2 hp, 110 V, 1 Phase 1227902 combines industrial drilling capacity, inverter-driven variable speed performance, rigid cast iron construction, and precision control features to deliver reliable results for fabrication, maintenance, and manufacturing operations.
