Baileigh Drill Press - (DP-15VSF) 1002989 Applications
- General metal fabrication and manufacturing operations.
- Precision drilling of steel, aluminum, stainless steel, and non-ferrous materials.
- Woodworking shops requiring accurate hole placement and repeatability.
- Maintenance and repair departments performing equipment servicing.
- Machine shops and prototype development facilities.
- Educational training centers and technical schools.
- Custom fabrication projects involving plastics, composites, and engineered materials.
- Production drilling applications requiring adjustable spindle speeds.
Ideal for users seeking a durable floor-standing drill press with variable speed control, precision drilling capability, and industrial-grade construction for daily shop use.
Baileigh Drill Press - (DP-15VSF) 1002989 Specifications
| Model Number | DP-15VSF |
|---|---|
| Product Number | 1002989 |
| Product Type | Variable Speed Floor Drill Press |
| Swing Capacity | 15" |
| Motor Power | 1 HP |
| Power Requirement | 110/220V Single Phase (Prewired 110V) |
| Spindle Speed Range | 400 - 5000 RPM |
| Drilling Capacity | 5/8" Mild Steel |
| Spindle Taper | MT2 |
| Spindle Travel | 6" |
| Table Size | 14" x 18" |
| Table Slots | 5/8" T-Slots |
| Table Adjustment | Rack-and-Pinion Vertical Adjustment |
| Digital Readout | Included |
| Work Light | Halogen Lamp Included |
| Net Weight | 400 lbs |
| Gross Weight | 400 lbs |
| Warranty | 1 Year |
| UPC | 731325405460 |
Baileigh Drill Press - (DP-15VSF) 1002989 Performance & Construction
- Heavy-duty cast iron construction includes a rigid base, column, and frame that significantly reduce vibration for greater drilling accuracy and long-term durability.
- Powerful 1 HP motor provides reliable performance across a wide range of drilling applications and material types.
- Variable speed operation from 400 to 5000 RPM allows precise spindle speed adjustment without the inconvenience of repeatedly changing belt positions.

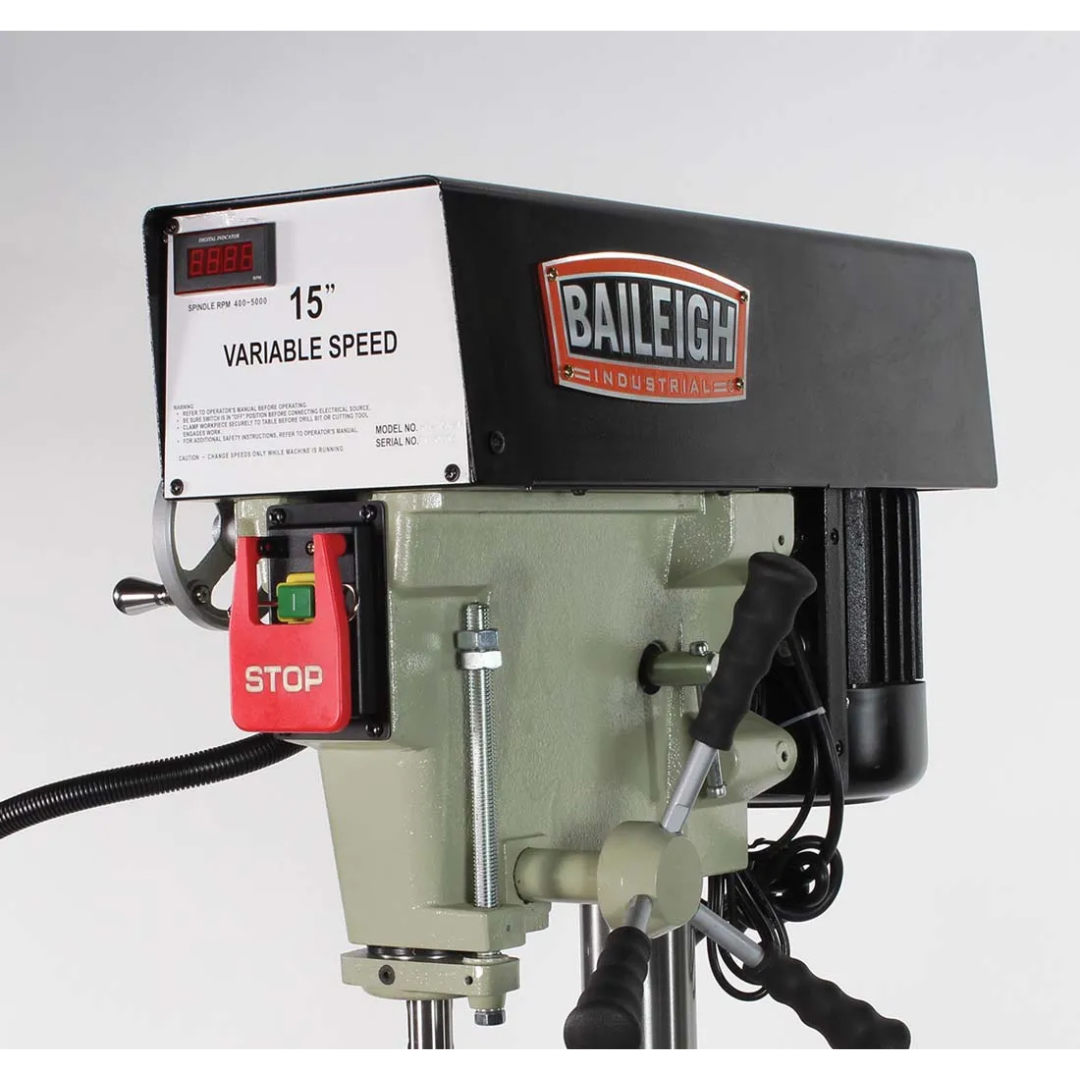

- Digital spindle speed readout displays actual RPM, making setup faster and ensuring repeatable drilling results.
- 15-inch swing capacity accommodates larger workpieces and expands the machine's versatility across numerous projects.
- 5/8-inch drilling capacity in mild steel provides ample capability for fabrication, maintenance, and production work.
- MT2 spindle taper supports a wide range of industry-standard tooling and accessories.
- 6-inch spindle travel enables deeper drilling operations and reduces repositioning requirements on taller workpieces.

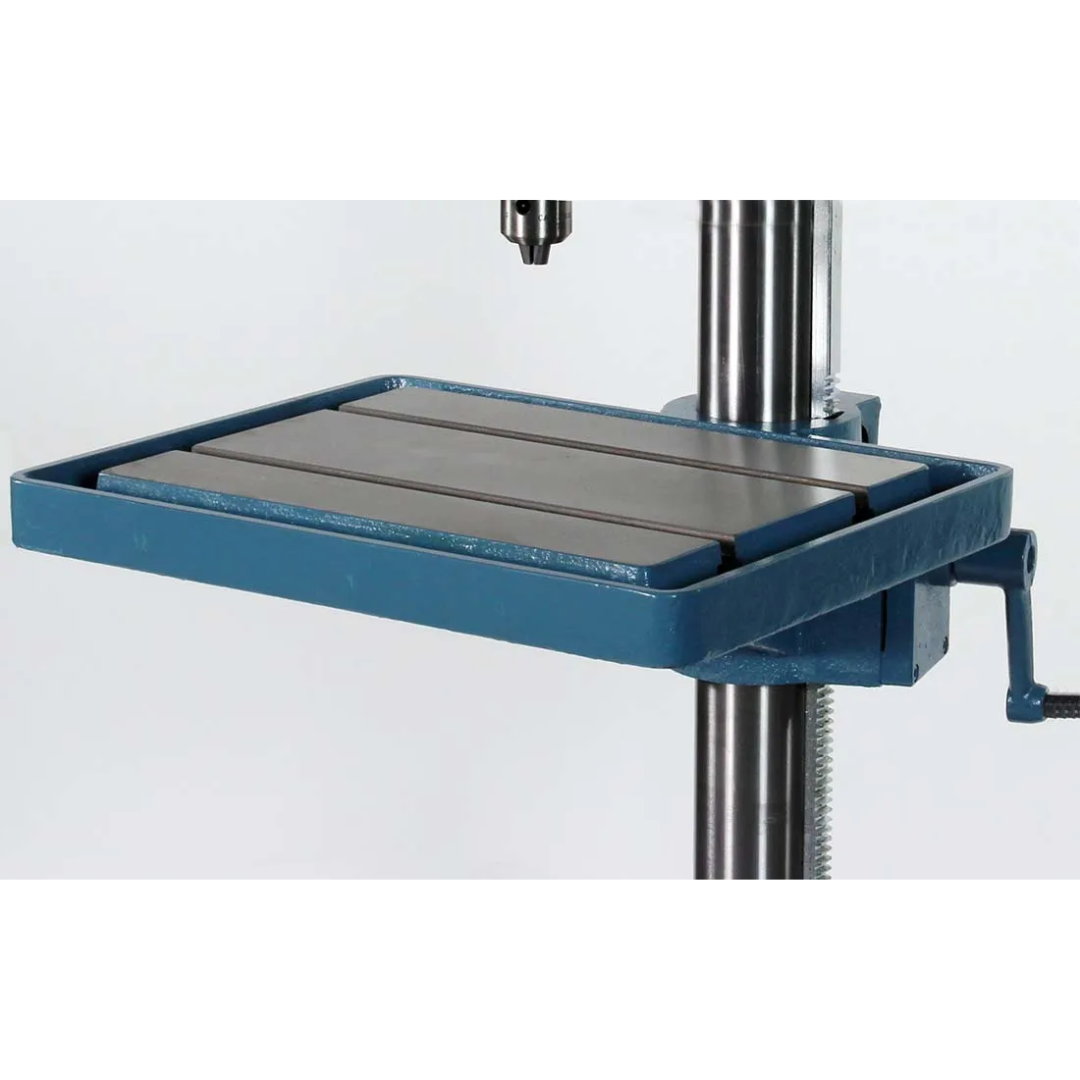

- Large 14-inch x 18-inch work table offers excellent support for larger parts and fabrication assemblies.
- 5/8-inch T-slots make it easy to secure vises, fixtures, and custom workholding devices.
- Rack-and-pinion table adjustment system allows smooth and efficient vertical positioning of the work surface.

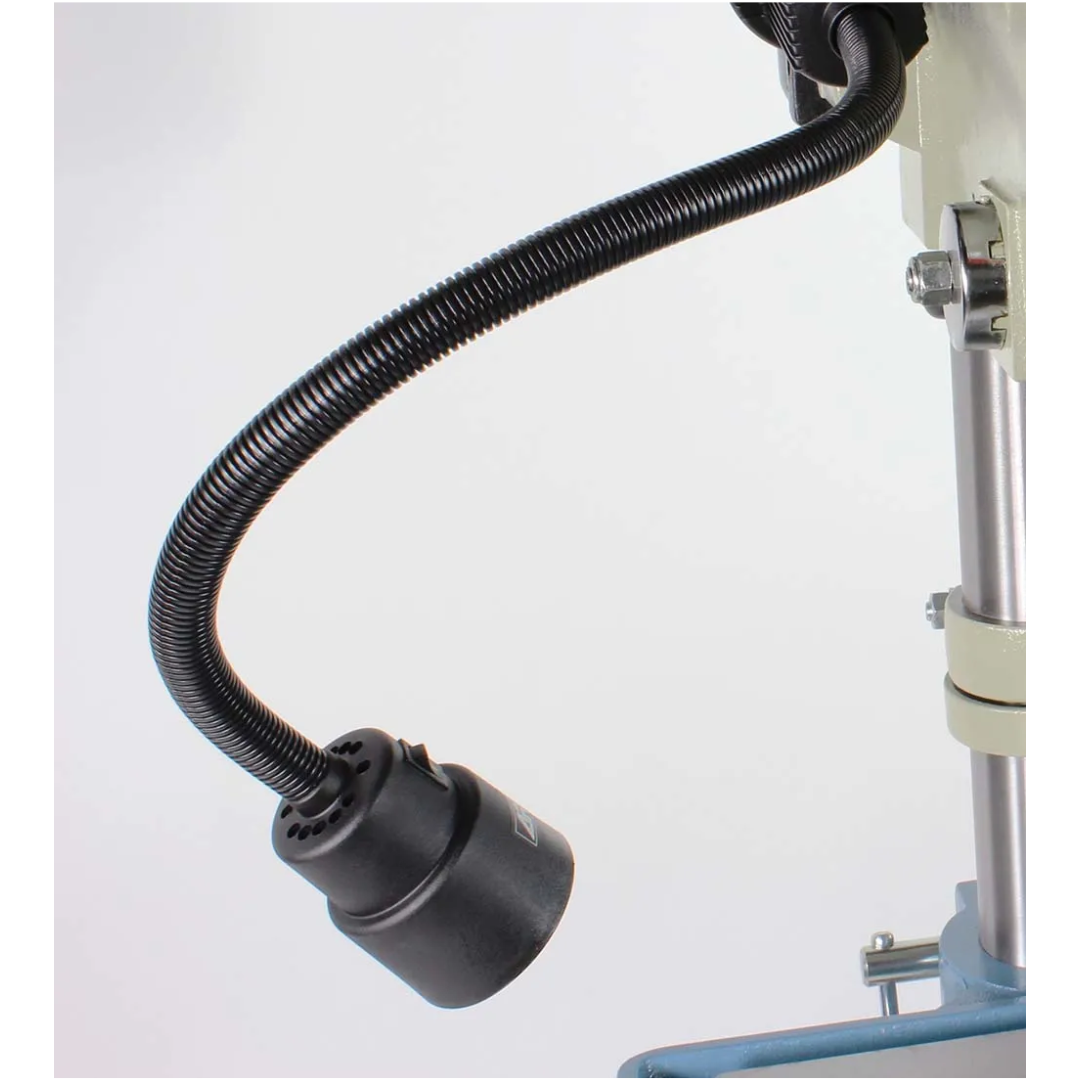

- Integrated halogen work light improves visibility at the cutting area for enhanced accuracy and operator convenience.
- 110/220V single-phase power provides installation flexibility while arriving prewired for standard 110V shop service.
- Belt-driven design combines smooth operation with dependable power transmission and long service life.
Why Choose the Baileigh Drill Press - (DP-15VSF) 1002989
- Wide 400 to 5000 RPM variable speed range for diverse drilling applications.
- Heavy-duty cast iron construction minimizes vibration and improves precision.
- Digital RPM display enables accurate spindle speed setup.
- Large 15-inch swing capacity handles oversized workpieces with ease.
- MT2 spindle taper supports common tooling and accessories.
- Large work table with T-slots enhances workholding flexibility.
- Prewired 110V operation simplifies installation while maintaining 220V capability.
- Backed by Baileigh's 1-year parts warranty and lifetime technical support.
The Baileigh Drill Press - (DP-15VSF) 1002989 combines industrial-grade construction, variable speed versatility, digital precision controls, and dependable performance to provide fabricators, machinists, maintenance professionals, and woodworkers with a reliable drilling solution built for years of productive service.
