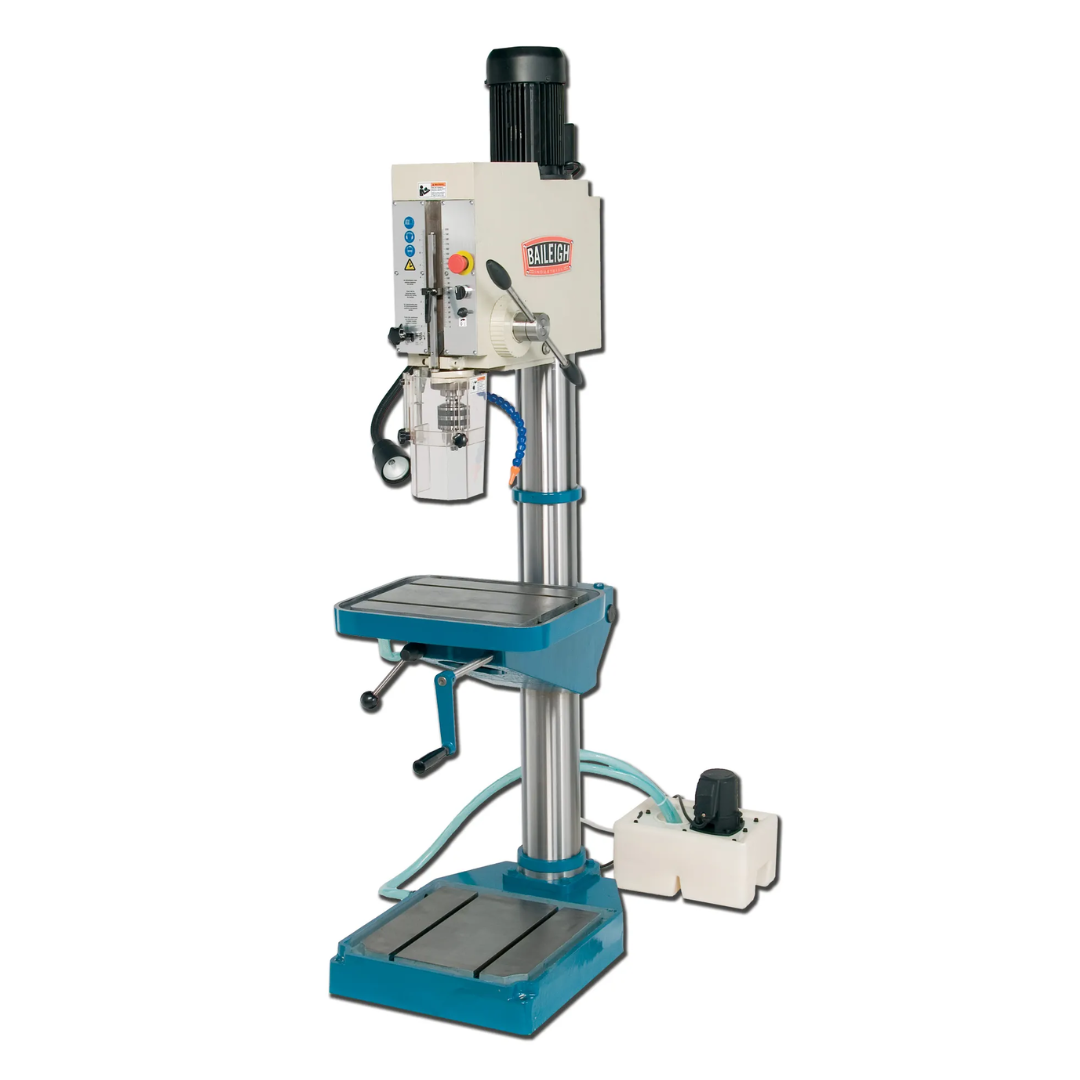

Baileigh Drill Press - DP-1500G 1002872 Applications
- Industrial fabrication and metalworking operations.
- Machine shop drilling, boring, and tapping applications.
- Maintenance and repair facilities requiring heavy-duty drilling capability.
- Manufacturing environments producing steel and metal components.
- Fixture and tooling fabrication projects.
- Precision drilling of mild steel, stainless steel, and non-ferrous materials.
- Thread tapping operations using the machine's auto tapping functionality.
- Production work requiring repeatable hole placement and drilling accuracy.
Ideal for professional shops that need a rigid, gear-driven drill press capable of handling large workpieces, heavy drilling loads, and precision tapping operations.
Baileigh Drill Press - DP-1500G 1002872 Specifications
| Manufacturer | Baileigh Industrial |
|---|---|
| Model | DP-1500G |
| Product Number | 1002872 |
| Product Type | Gear-Driven Drill Press |
| Motor Power | 3.5 HP |
| Voltage | 220V |
| Phase | 3 Phase |
| Drilling Capacity (Mild Steel) | 1.5 in. |
| Tapping Capacity (Mild Steel) | 1.3 in. |
| Swing | 20 in. |
| Spindle Speeds | 108 - 1800 RPM |
| Number of Speeds | 8 |
| Spindle Taper | MT4 (#4 Morse Taper) |
| Table Size | 20 in. × 16 in. |
| Gross Weight | 990 lbs. |
| Net Weight | 990 lbs. |
| UPC | 731325404364 |
| Warranty | 1 Year |
Baileigh Drill Press - DP-1500G 1002872 Performance & Construction

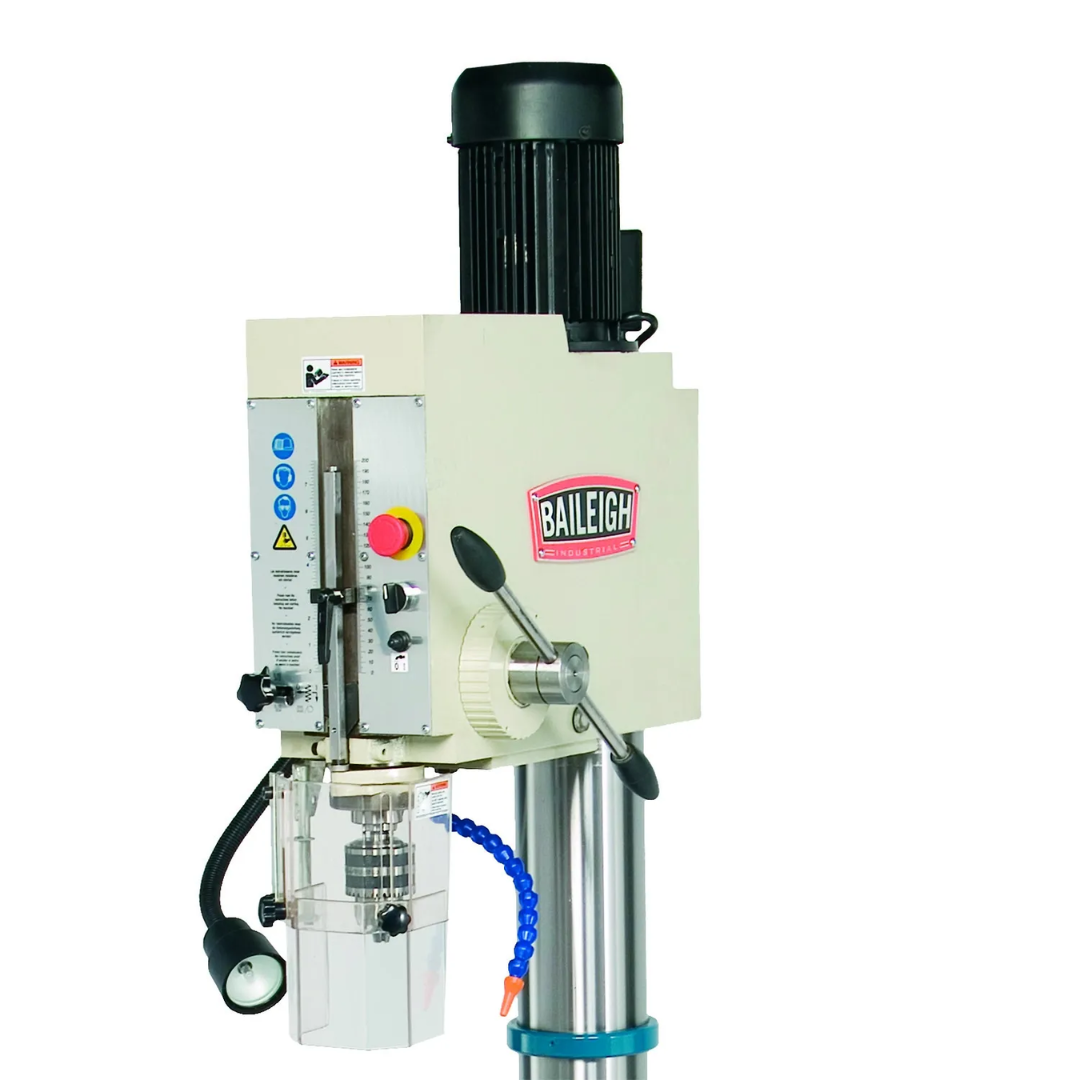

- Industrial gear-driven head transfers power efficiently and provides consistent torque throughout demanding drilling operations.
- Powerful 3.5 HP motor delivers the strength needed for large-diameter drilling and tapping applications.
- 1.5-inch drilling capacity in mild steel allows the machine to handle substantial industrial drilling workloads.

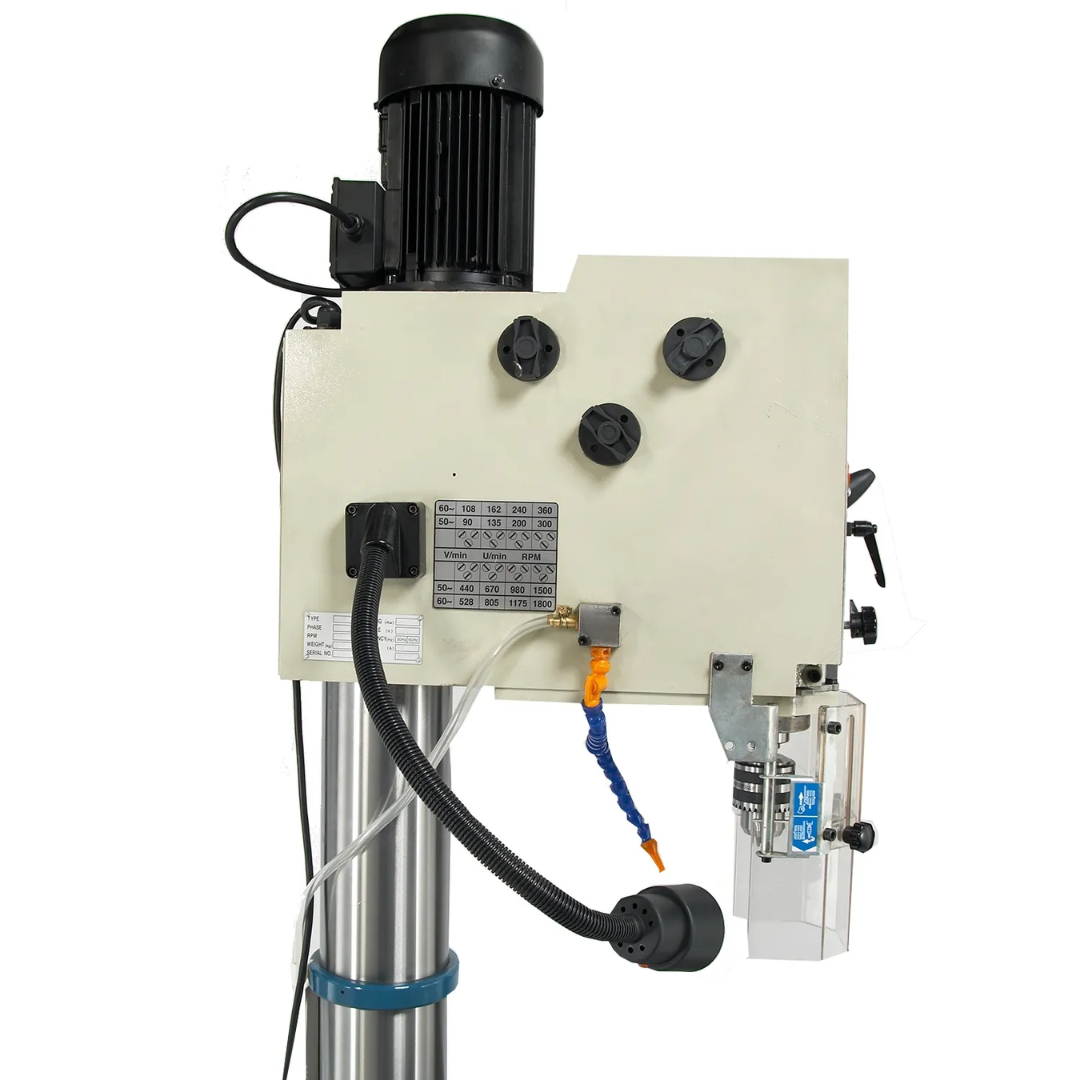

- 8 selectable spindle speeds ranging from 108 to 1800 RPM provide flexibility for different materials, drill sizes, and cutting conditions.
- Auto tapping capability improves productivity and simplifies threading operations.
- 20-inch swing capacity accommodates larger workpieces and expands machining versatility.
- MT4 spindle taper provides secure tooling engagement and compatibility with industrial tooling systems.

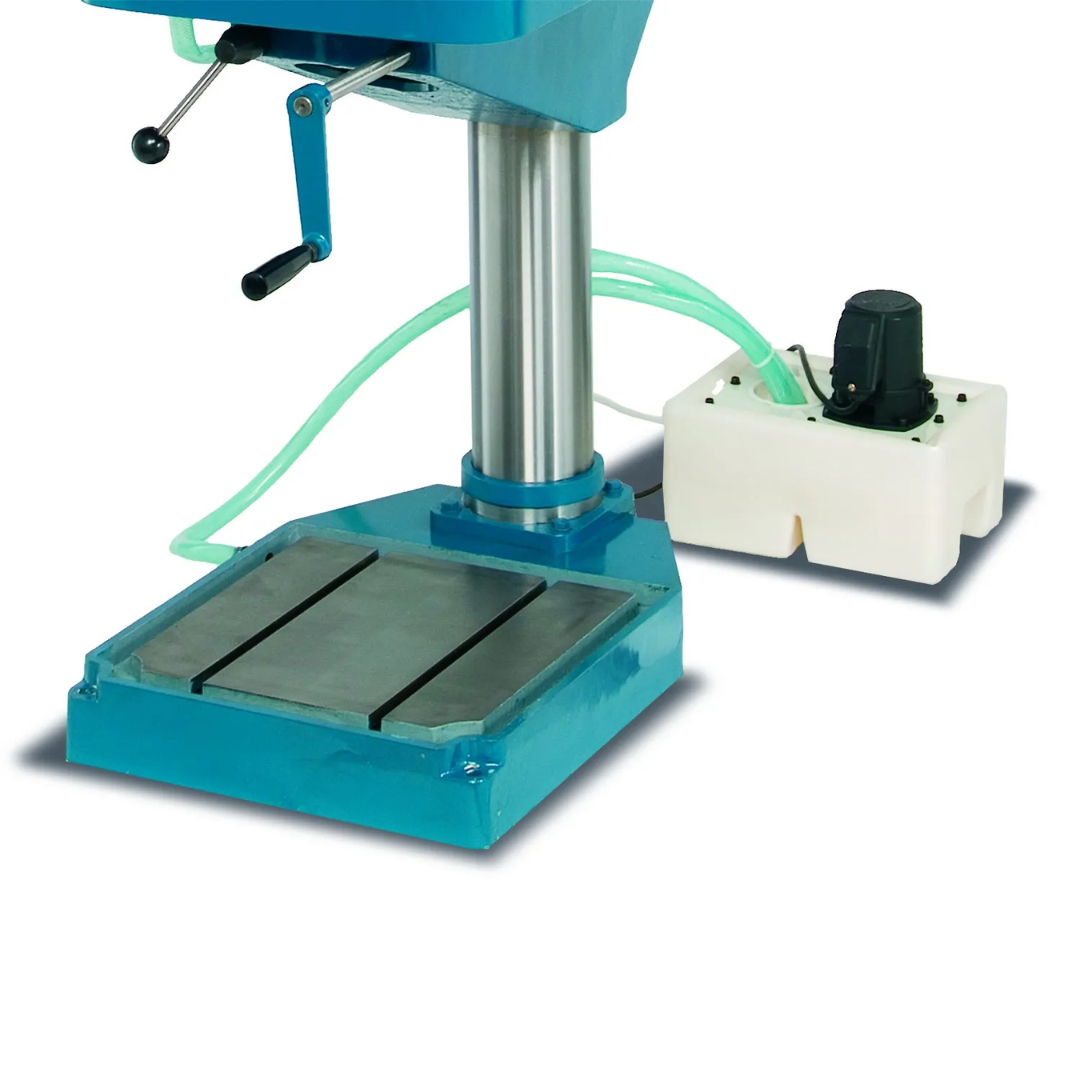

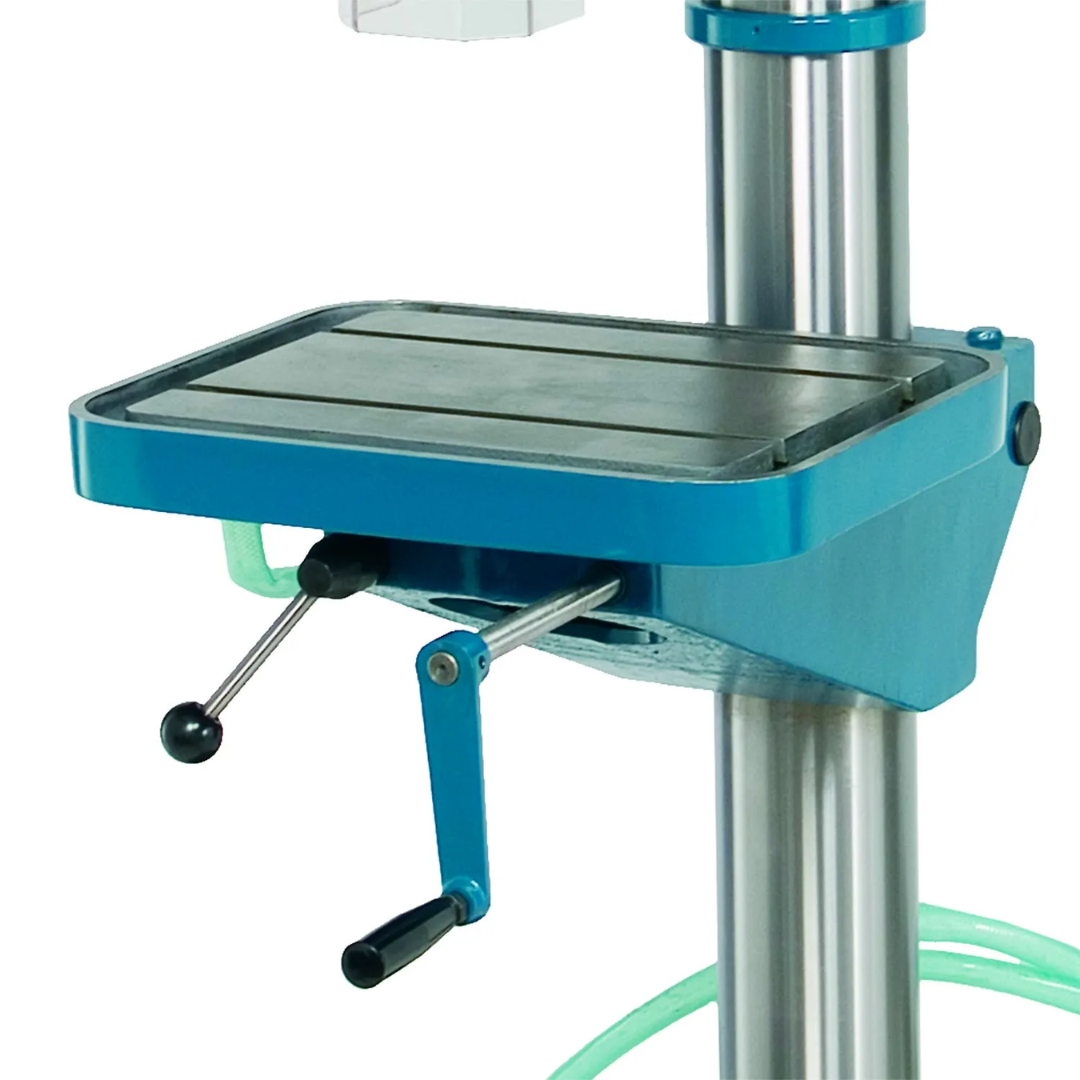

- Large 20-inch x 16-inch T-slot table supports fixtures, vises, and specialized workholding setups.
- Rigid cast iron base absorbs vibration and promotes greater drilling accuracy.
- Heavy 5.5-inch diameter steel column minimizes flexing during heavy feeds and deep drilling operations.

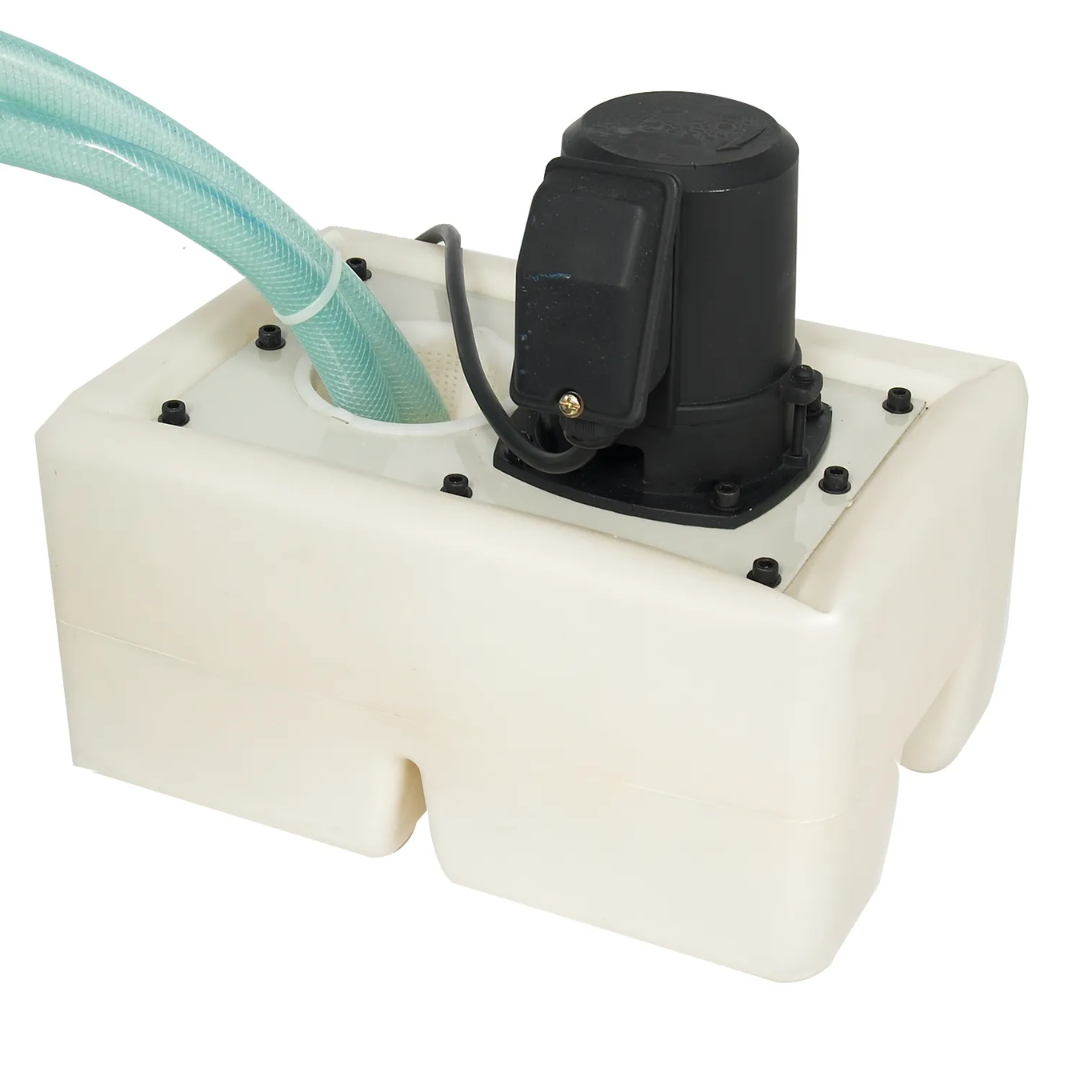

- Integrated coolant system helps improve tool life and cutting performance during extended machining cycles.

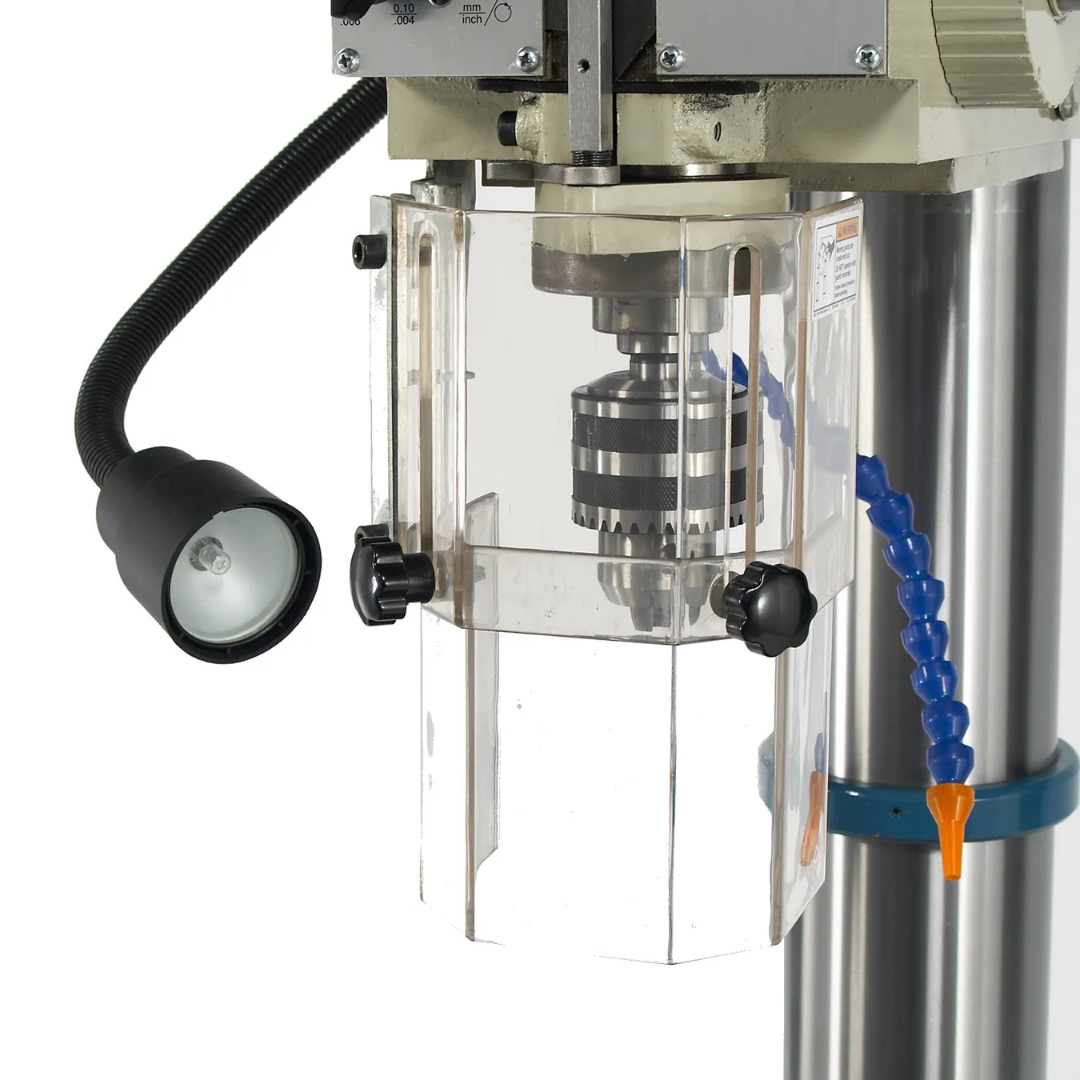

- Halogen work light enhances visibility around the work area for improved operator precision.
- Protective drill head shield contributes to safer operation in professional shop environments.
- Industrial-grade construction designed for long service life under demanding production conditions.
Why Choose the Baileigh Drill Press - DP-1500G 1002872
- Heavy-duty gear-driven design for industrial drilling applications.
- Powerful 3.5 HP motor operating on 220V three-phase power.
- Large 1.5-inch mild steel drilling capacity.
- Auto tapping capability increases productivity and versatility.
- 8-speed spindle range from 108 to 1800 RPM for material-specific machining.
- Rigid cast iron and steel construction minimizes vibration and deflection.
- Large T-slot table supports precision fixturing and workholding.
- Includes coolant system, work light, chuck, and safety shield as standard equipment.
- Backed by Baileigh's 1-year parts warranty and lifetime technical support.
The Baileigh Drill Press - DP-1500G 1002872 combines industrial-grade rigidity, powerful gear-driven performance, precision speed control, and versatile tapping capabilities into a professional drilling solution built for demanding fabrication, manufacturing, and machine shop environments. With its heavy-duty construction and substantial drilling capacity, it is engineered to deliver dependable results day after day.
