Baileigh Box & Pan Brake: 48" Bending Length, Bender (BB-4816) 1000460 Applications
- HVAC duct fabrication and custom ventilation components.
- Sheet metal fabrication shops producing boxes, pans, channels, and enclosures.
- Manufacturing facilities requiring accurate manual bending operations.
- Maintenance and repair departments fabricating replacement metal parts.
- Electrical enclosure and control panel fabrication.
- Architectural sheet metal and custom metalworking projects.
- Prototype development and low-to-medium production fabrication environments.
- Agricultural, industrial, and commercial sheet metal forming applications.
Designed for fabricators who need professional-grade sheet metal bending performance, flexible box and pan forming capabilities, and long-term durability in demanding workshop environments.
Baileigh Box & Pan Brake: 48" Bending Length, Bender (BB-4816) 1000460 Specifications
| Model | BB-4816 |
|---|---|
| Product Type | Manual Box & Pan Brake |
| Working Width | 48 in. |
| Bending Capacity | 16 Gauge Mild Steel |
| Maximum Bend Angle | 135° |
| Maximum Box Depth | 4 in. |
| Finger Quantity | 16 Hardened Fingers |
| Operation Type | Manual |
| Bend Angle Indicator | Included |
| Mounting Options | Heavy-Duty Stand Included or Bench Mount |
| Net Weight | 565 lbs. |
| Gross Weight | 565 lbs. |
| UPC | 731325392807 |
| Warranty | 1 Year |
| California Prop 65 | Cancer and Reproductive Harm |
Baileigh Box & Pan Brake: 48" Bending Length, Bender (BB-4816) 1000460 Performance & Construction
- 48-Inch Working Width allows operators to bend full-width sheet metal sections for fabrication, HVAC, and production applications.
- 16 Gauge Mild Steel Capacity provides the strength and capability required for a wide range of industrial sheet metal projects.
- Fully Welded Main Beam and Apron maximize structural rigidity, helping maintain bending accuracy while resisting deflection under load.
- 16 Hardened Removable Fingers of varying lengths provide exceptional flexibility when creating boxes, pans, channels, trays, and custom formed parts.
- 4-Inch Maximum Box Depth enables fabrication of deeper sheet metal components and more complex formed shapes.
- Integrated Bend Angle Indicator helps operators achieve accurate and repeatable bend angles with greater confidence and consistency.
- 0° to 135° Bending Range supports a wide variety of forming operations from simple bends to more advanced fabrication requirements.

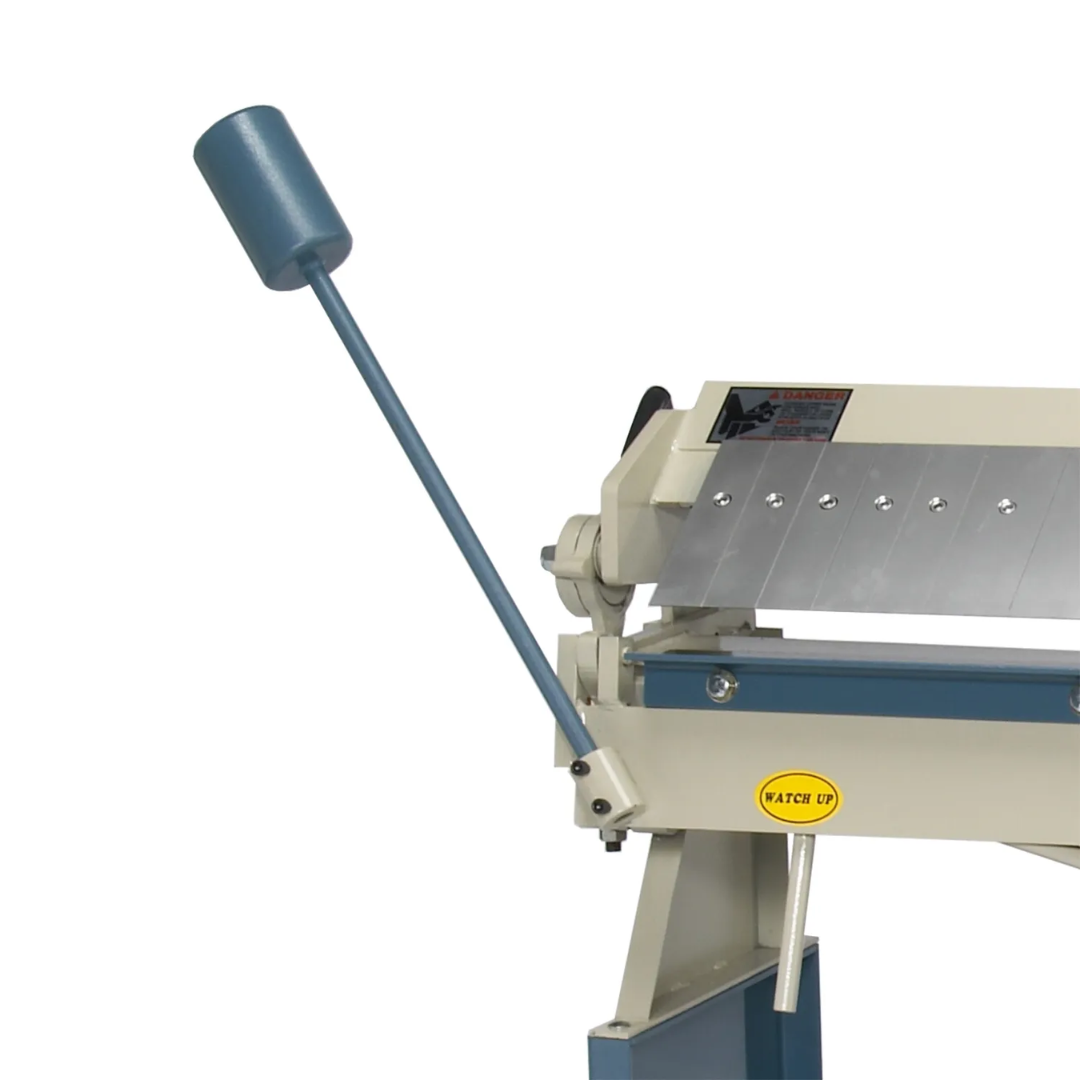

- Heavy Counterbalance Weight System reduces operator effort during bending operations, especially when working near maximum material capacity.
- Manual Operation eliminates electrical requirements while providing direct operator control and dependable performance.
- Flexible Installation Options allow the brake to be mounted on the included heavy-duty stand or secured directly to a workbench.
- Industrial-Grade Construction is designed for long-term use in fabrication shops, maintenance facilities, and production environments.
- Baileigh Warranty and Support includes a 1-year parts warranty backed by lifetime technical support for long-term peace of mind.
Why Choose the Baileigh Box & Pan Brake: 48" Bending Length, Bender (BB-4816) 1000460
- Professional-grade 48-inch box and pan brake for industrial fabrication applications.
- Bends up to 16 gauge mild steel with excellent accuracy and consistency.
- Includes 16 hardened fingers for creating a wide range of box and pan configurations.
- Features a 4-inch box depth capacity for greater forming flexibility.
- Integrated bend angle indicator improves precision and repeatability.
- Heavy counterbalance system reduces operator fatigue during operation.
- Fully welded frame construction ensures long-term durability and reliable performance.
- Includes heavy-duty stand and optional bench-mount capability.
- Backed by Baileigh's 1-year warranty and lifetime technical support.
The Baileigh Box & Pan Brake: 48" Bending Length, Bender (BB-4816) 1000460 combines industrial-strength construction, versatile finger brake functionality, and precise manual operation into a dependable sheet metal forming solution. Whether producing HVAC components, custom enclosures, architectural metalwork, or fabrication projects, this brake delivers the accuracy, durability, and flexibility professionals demand.
