Baileigh Arbor Presses: Pressure AP-3R 1000260 Applications
- Bearing installation and removal operations.
- Metal fabrication and assembly work.
- Riveting, staking, and fastening applications.
- Broaching and keyway production tasks.
- Press fitting bushings, sleeves, and mechanical components.
- Maintenance, repair, and machine shop operations.
- Fixture assembly and precision component positioning.
- General workshop pressing and forming applications.
The AP-3R is designed for fabricators, maintenance technicians, machine shops, and industrial facilities that require precise manual pressing performance with exceptional durability and control.
Baileigh Arbor Presses: Pressure AP-3R 1000260 Specifications
| Model | AP-3R |
|---|---|
| Operation Type | Manual Ratcheting Arbor Press |
| Rated Capacity | 3 Tons |
| Throat Opening | 5 in. |
| Maximum Material Height | 11 in. |
| Stroke Length | 11 in. |
| Ram Size | 1.5 in. Square Case-Hardened Ram |
| Die Plate | 4-Position Machined Bottom Plate |
| Frame Construction | Rigid Cast Iron |
| Input Power | Manual |
| Net Weight | 170 lbs. |
| Gross Weight | 170 lbs. |
| UPC | 731325391299 |
| Warranty | 1 Year |
| California Prop 65 | Cancer and Reproductive Harm |
Baileigh Arbor Presses: Pressure AP-3R 1000260 Performance & Construction
- 3-Ton Pressing Capacity delivers ample force for a wide range of assembly, broaching, staking, and fabrication applications.

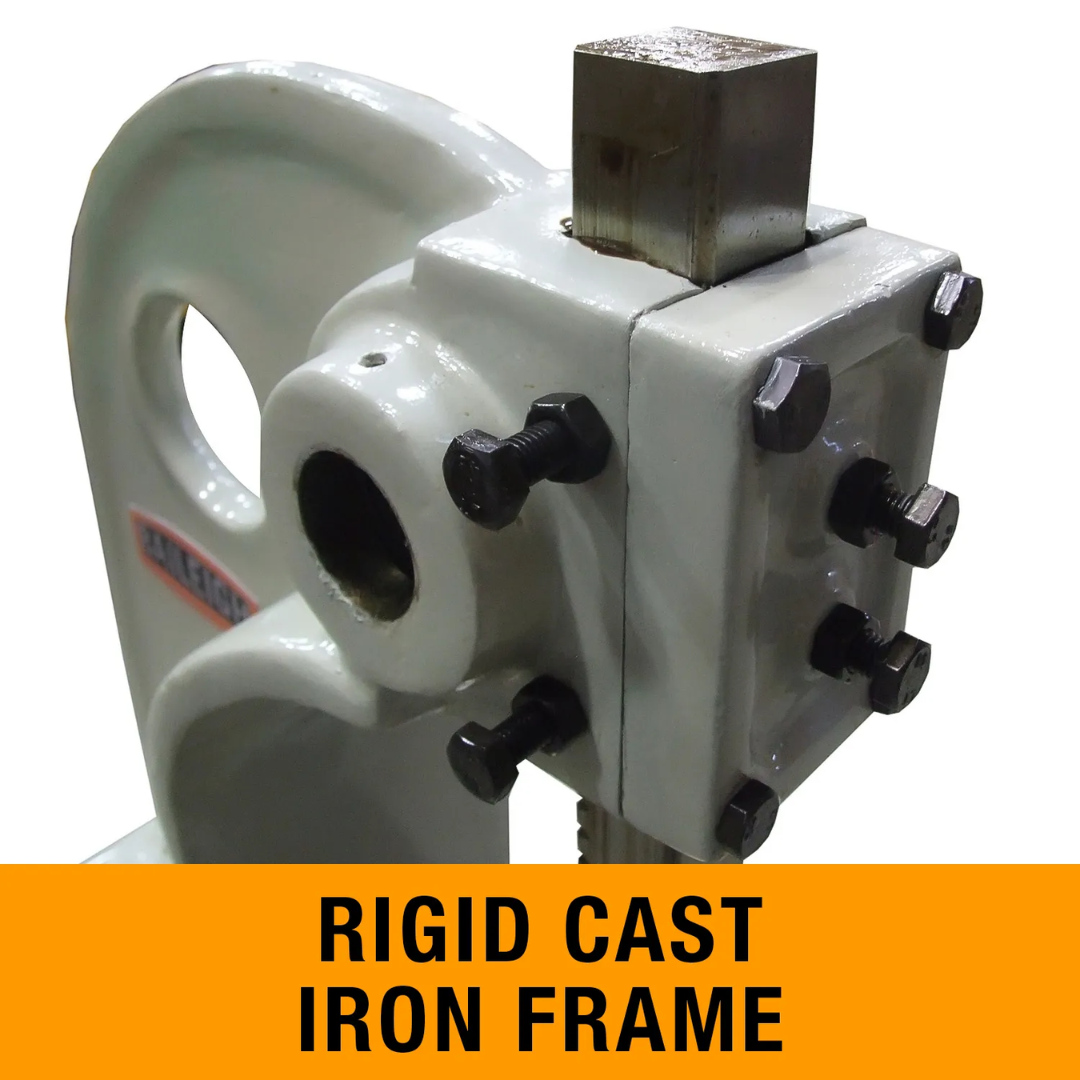

- Heavy-Duty Cast Iron Frame provides exceptional rigidity and minimizes deflection under load for consistent and accurate pressing performance.
- 5-Inch Throat Opening offers convenient access to workpieces and accommodates a variety of component sizes.
- 11-Inch Maximum Material Height allows operators to work with larger parts while maintaining excellent control and accessibility.
- Case-Hardened 1.5-Inch Square Ram delivers smooth, accurate force transmission and long-term wear resistance in demanding shop environments.
- Ratcheting Lever Mechanism provides controlled pressure application and enhanced leverage for precise manual operation.

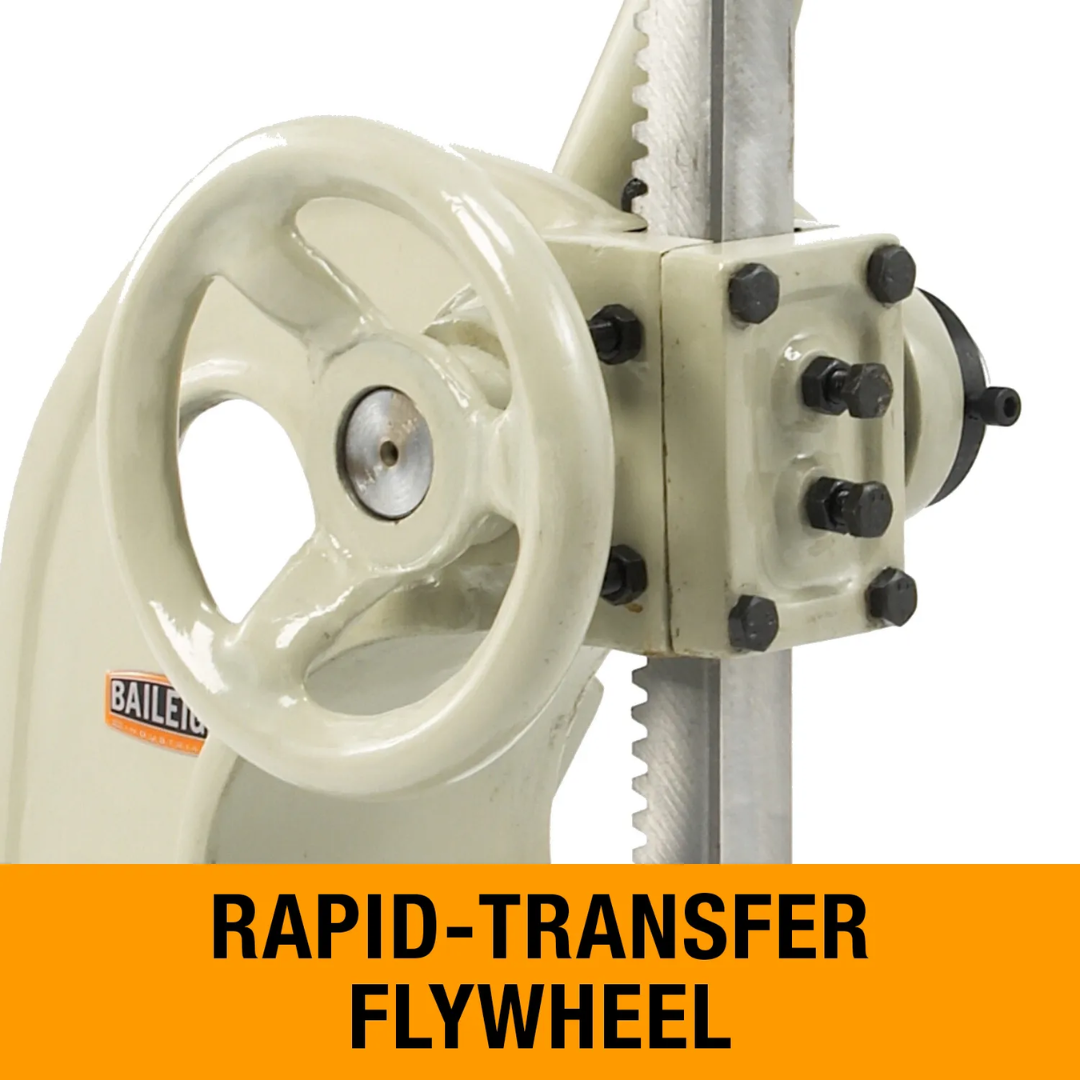

- Rapid-Transfer Flywheel System enables quick ram positioning and efficient setup adjustments, helping improve workflow productivity.
- Machined 4-Position Die Plate securely supports workpieces and allows multiple setup configurations for repeatable results.
- Adjustable Slideway System permits fine-tuning of ram tension and clearance for improved operational precision.
- Manual Operation eliminates the need for electricity while providing direct operator control over pressing force and movement.
- Industrial Workshop Design is built for repeated daily use in fabrication facilities, machine shops, maintenance departments, and production environments.
- Baileigh Warranty & Support includes a 1-year parts warranty backed by lifetime technical support for long-term confidence and reliability.
Why Choose the Baileigh Arbor Presses: Pressure AP-3R 1000260
- Powerful 3-ton manual pressing capacity for versatile shop applications.
- Heavy-duty cast iron construction resists flex and ensures long-term durability.
- Ratcheting leverage system provides excellent operator control and mechanical advantage.
- Rapid-transfer flywheel improves setup speed and productivity.
- 5-inch throat opening and 11-inch capacity accommodate a wide range of workpieces.
- Precision-machined 4-position die plate supports accurate, repeatable operations.
- Case-hardened ram delivers reliable performance and extended service life.
- Ideal for broaching, riveting, assembly, bearing installation, and maintenance work.
- Backed by Baileigh's 1-year warranty and lifetime technical support.
The Baileigh Arbor Presses: Pressure AP-3R 1000260 combines industrial-strength construction, precise ratcheting control, and dependable 3-ton pressing power into a versatile manual press built for demanding fabrication, assembly, and maintenance applications. Its rugged cast iron frame, rapid-transfer flywheel, and precision-machined components make it an excellent choice for professionals seeking accuracy, durability, and long-term reliability.
