Safetyspeed SR5A ACM Panel Saw and Router Combo Applications

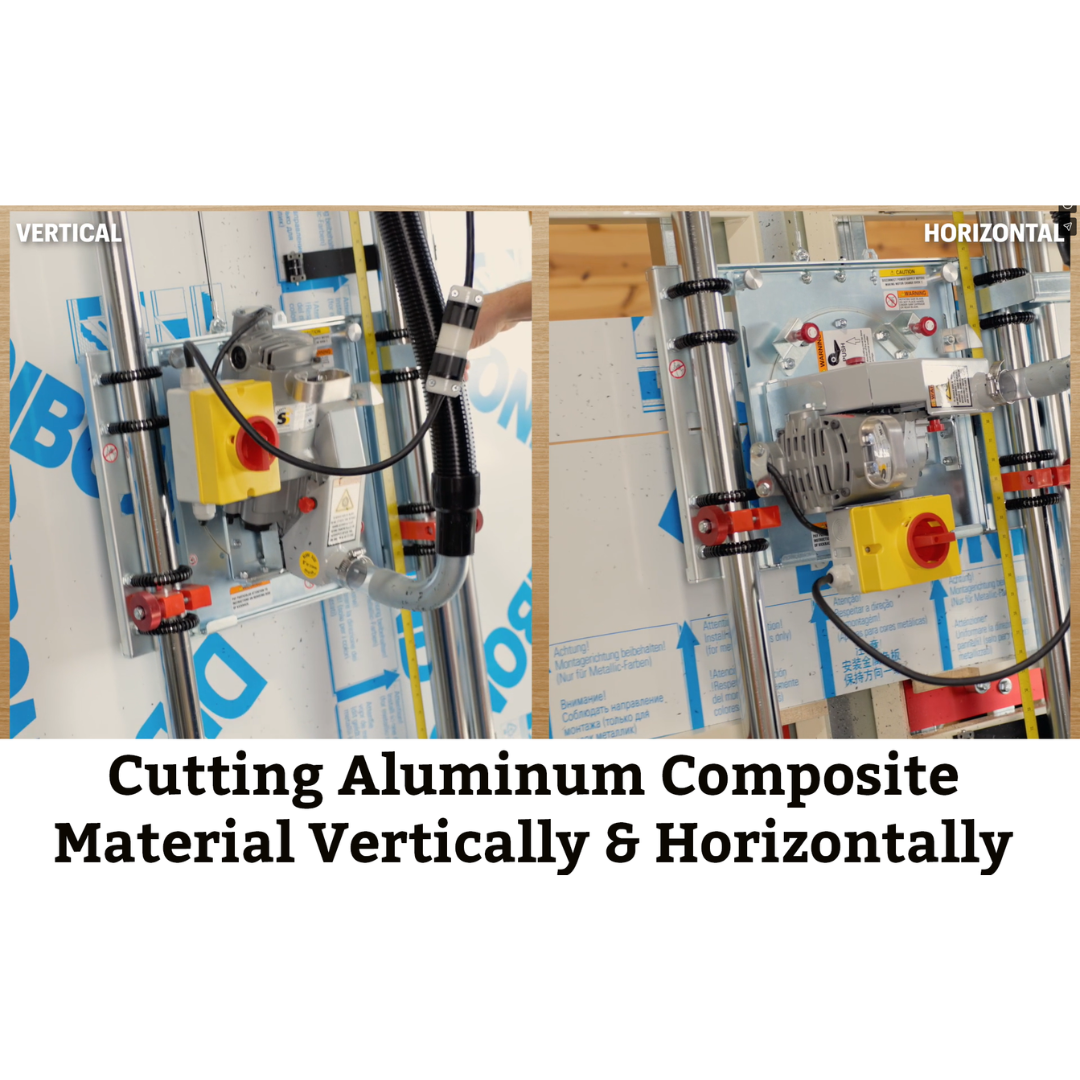

- ACM (Aluminum Composite Material) cutting and V-grooving
- Sign making and architectural panel fabrication

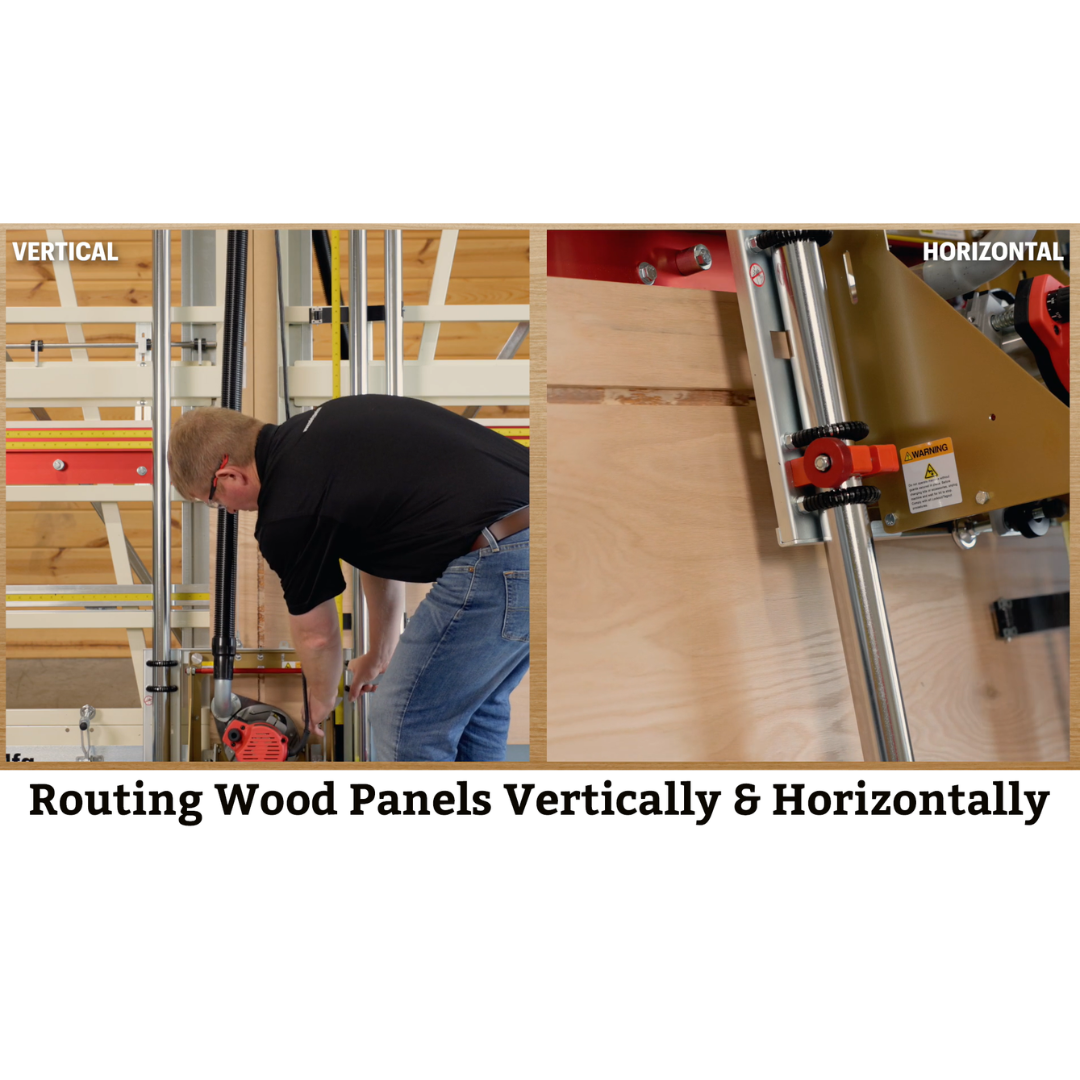

- Cabinetry and woodworking panel processing
- Plow cuts, cross dados, and rabbets routing operations
- Vertical panel sizing for large sheet materials
Ideal for shops requiring both precision panel cutting and routing capabilities in one efficient vertical system.
Safetyspeed SR5A ACM Panel Saw and Router Combo Specifications
| Maximum Crosscut | 62" / 1575 mm |
|---|---|
| Maximum Rip Cut | Unlimited |
| Maximum Cut Thickness | 1 3/4" (45 mm) |
| Cut Accuracy | 1/64" (0.4 mm) |
| Saw Blade Diameter | 8" (210 mm) |
| Saw Motor | 3.25 HP, 15 Amp (Milwaukee Tool) |
| Router Motor | 1.75 HP, 11 Amp (Milwaukee Tool) |
| Router Collet | 1/4" or 1/2" |
| Frame Length | 120" (3050 mm) |
| Machine Weight | 636 lbs |
| Shipping Dimensions | 120" x 17" x 92" |
| Country of Origin | USA |
Safetyspeed SR5A ACM Panel Saw and Router Combo Performance & Construction
- Dual Function Saw & Router System enables cutting and routing on a single vertical frame.
- Quick Changeover allows switching from saw to router in under one minute.
- Floating Router Head provides controlled plunge and lift for precise routing operations.
- Nylon Guide System ensures consistent V-groove depth for ACM panels.
- Welded Steel Frame delivers rigidity and long-term durability.
- Chrome-Plated Guide Tubes improve smooth carriage movement and longevity.
- Nylatron Roller Bearing System enhances cutting accuracy and smooth operation.
- Counterweight System ensures controlled, balanced cutting head movement.
- Dust Collection System captures debris during both cutting and routing processes.
Safetyspeed SR5A ACM Panel Saw and Router Combo Standard Equipment
- MID-WAY FENCE™ with stop and flip stop
- Four material clamps and hold-down bar
- Two blind dado stops
- Left and right quick stop gauges
- Fixed stand with mobility wheels
- Pair of 22" extensions
- Dust hood and hose kit
- Specialty saw blade and router bit for V-grooving
- Adjustable vertical and horizontal rulers
- Thin material pressure guard
- Injection molded material rollers
- Counterweight system
Safetyspeed SR5A ACM Panel Saw and Router Combo Routing Capabilities

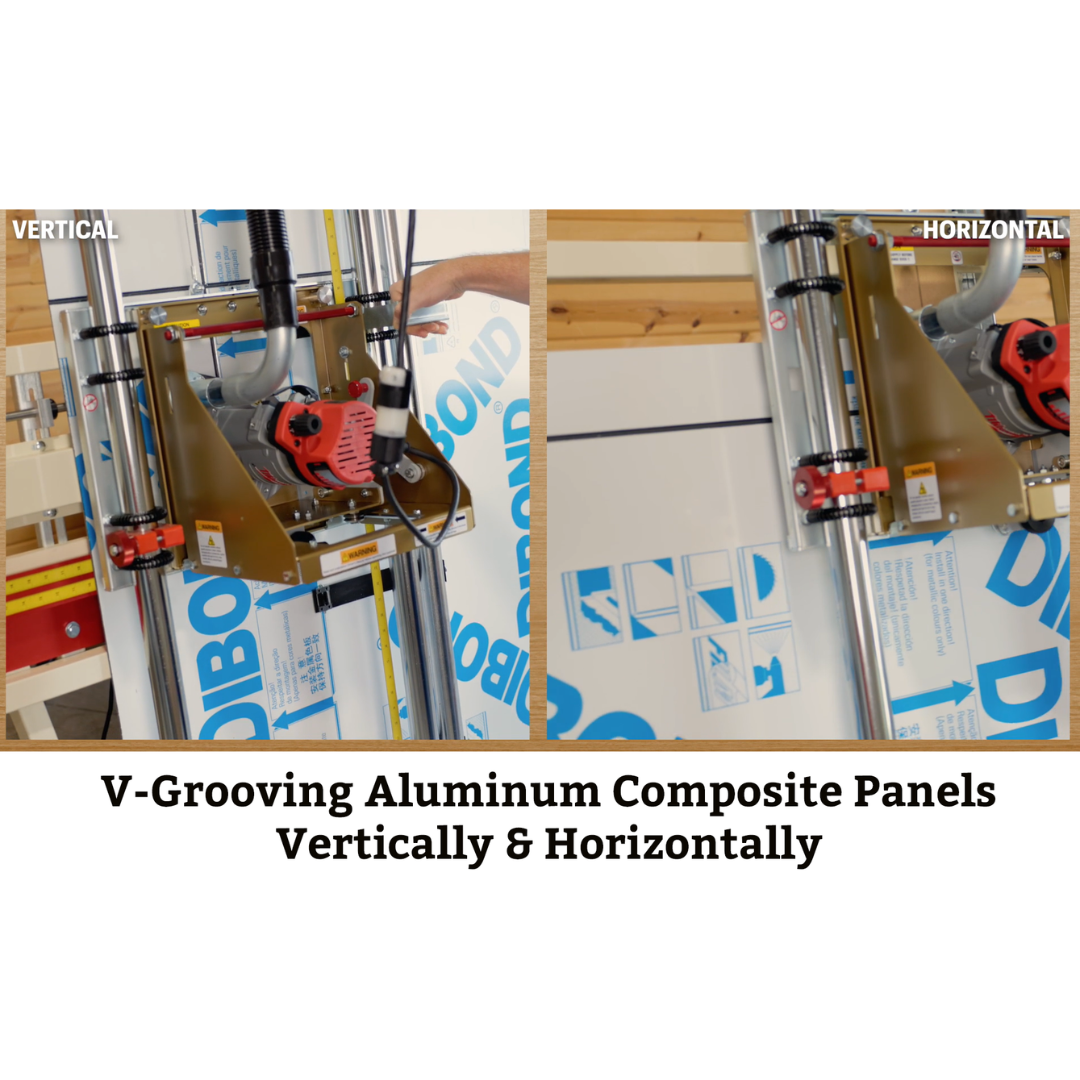

- V-grooving for aluminum composite panels
- Plow cuts and cross dados
- Rabbets and precision channel cutting
- On-demand plunge routing with floating head system
The integrated routing system expands functionality beyond cutting, allowing advanced fabrication processes on a single machine.
Why Choose the Safetyspeed SR5A ACM Panel Saw and Router Combo
- Combines sawing and routing in one space-saving system.
- Fast changeover increases productivity and reduces downtime.
- Precision V-grooving capability for ACM fabrication.
- Industrial-grade motors and components for long-term reliability.
- Comprehensive standard equipment package included.
The Safetyspeed SR5A ACM Panel Saw and Router Combo is a powerful, all-in-one solution engineered for professionals who demand precision cutting, advanced routing capability, and efficient workflow in a single vertical machine.
