Safety speed SR5 Panel Saw and Router Combo Applications
- Cabinet and furniture manufacturing
- Woodworking and millwork shops
- Panel processing including plywood, MDF, and composites
- Routing operations such as dados, blind dados, rabbets, and grooves
- Shops requiring both cutting and routing with limited floor space
Ideal for operations looking to combine two essential machines into one efficient, high-performance system.
Safety speed SR5 Panel Saw and Router Combo Specifications
| Model | SR5 |
|---|---|
| Maximum Crosscut | 62″ / 1575 mm |
| Maximum Rip Cut | Unlimited |
| Maximum Cut Thickness | 1.75″ / 45 mm |
| Cut Accuracy | 1/64″ / 0.4 mm (straight & square) |
| Frame Length | 120″ / 3050 mm |
| Machine Dimensions | 120″ × 11″ × 83″ |
| Weight | 538 lbs / 224 kg |
| Saw Motor | 3.25 HP, 15 Amp, 120V (Milwaukee Tool) |
| Router Motor | 1.75 HP, 11 Amp (Milwaukee Tool) |
| Saw Blade Diameter | 8″ / 210 mm |
| Blade Kerf | 5/8″ |
| Router Bit Compatibility | 1/4″ or 1/2″ collet |
| Guide Tubes | Chrome-Plated 1.75″ Steel |
| Bearing System | 8 Nylatron Roller Bearings |
| Certifications | TUV Certified to UL/CSA Standards |
| Country of Origin | USA |
Safety speed SR5 Panel Saw and Router Combo Features & Performance
- Dual-function machine combines panel saw and router capabilities in one system.
- Quick-change motor carriage switches from saw to router in under one minute.
- Heavily guarded saw blade enhances operator safety and reduces risk of accidental contact.
- Patented floating router carriage ensures consistent routing depth and precision.

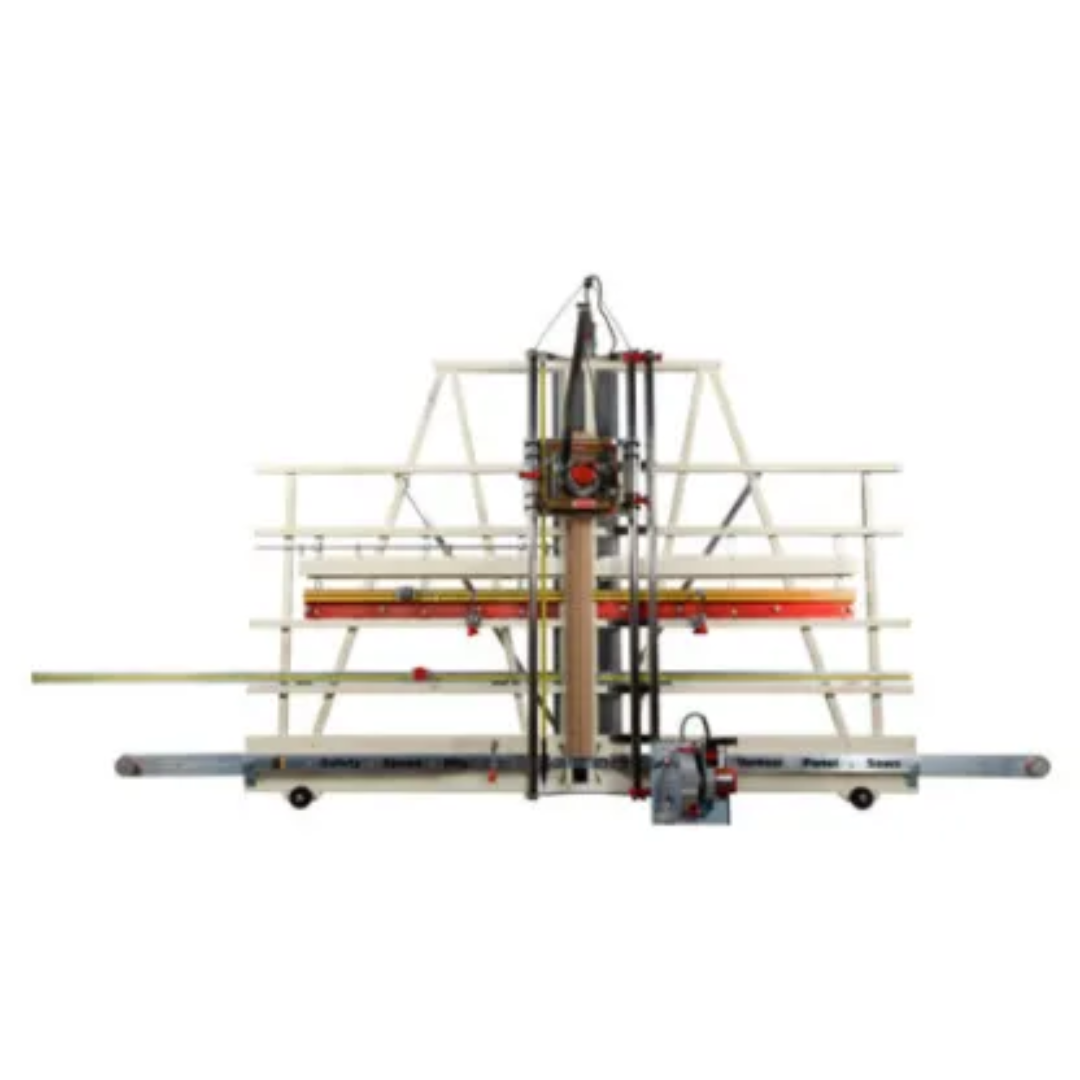

- 10 ft. welded steel frame provides rigidity and long-term durability.
- Chrome-plated 1.75″ guide tubes deliver smooth, accurate carriage movement.
- 8 Nylatron bearing system supports precision cuts with minimal maintenance.
- Enclosed counterweight system enables smooth vertical operation.
- Adjustable vertical and horizontal rulers improve measurement accuracy and repeatability.
- Integrated dust collection bonnet supports connection to external dust systems.
- Thin material pressure guard secures lightweight materials during cutting.
- Injection-molded rollers ensure smooth material handling.
- MID-WAY FENCE® system with flip stop allows ergonomic waist-level processing of smaller panels.
- 4 material clamps and blind dado stops enhance routing precision and repeatability.
- Supports both vertical and horizontal cutting and routing for maximum flexibility.
Safety speed SR5 Panel Saw and Router Combo Cutting & Routing Capabilities

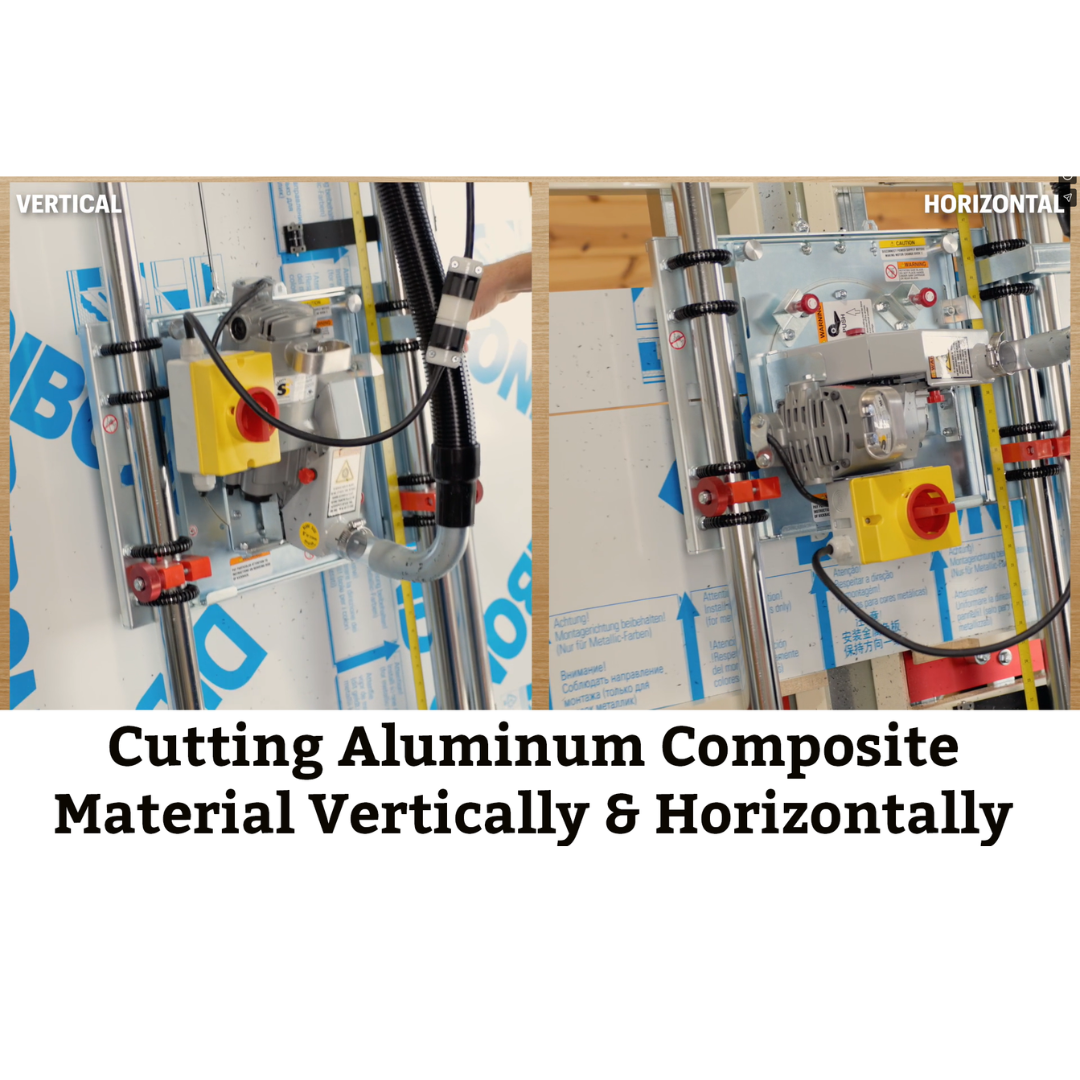

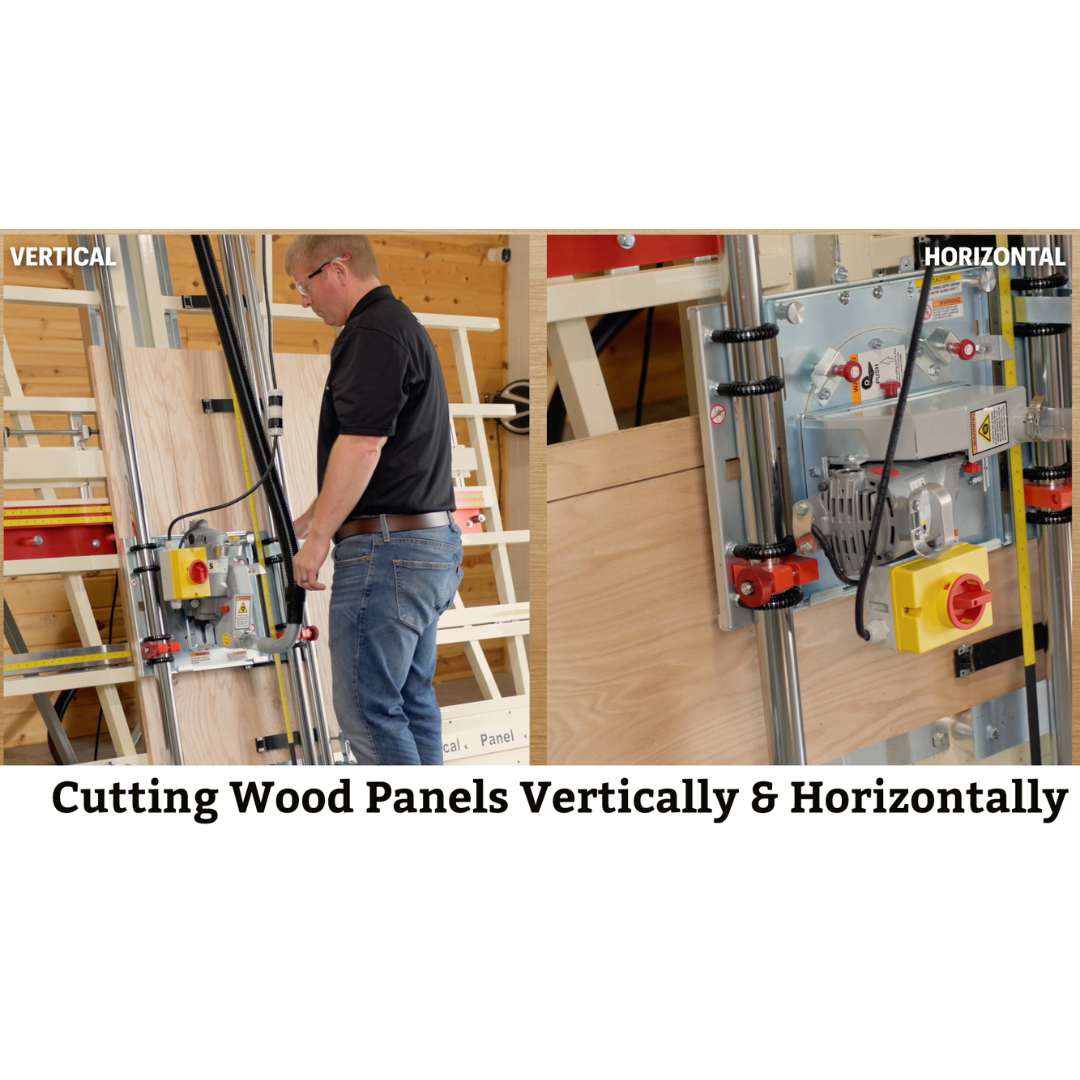

- Accurate panel sizing with vertical and horizontal cutting options

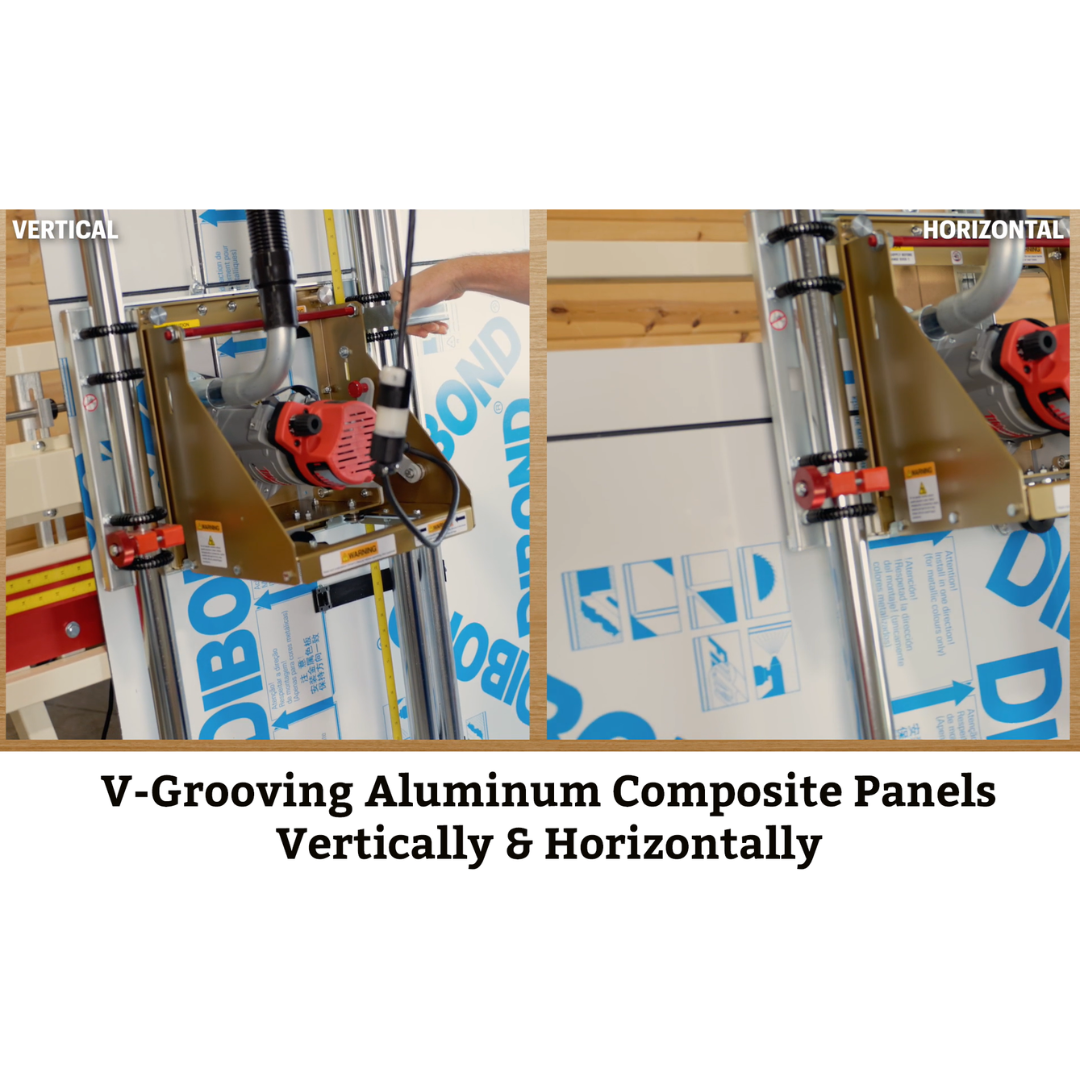

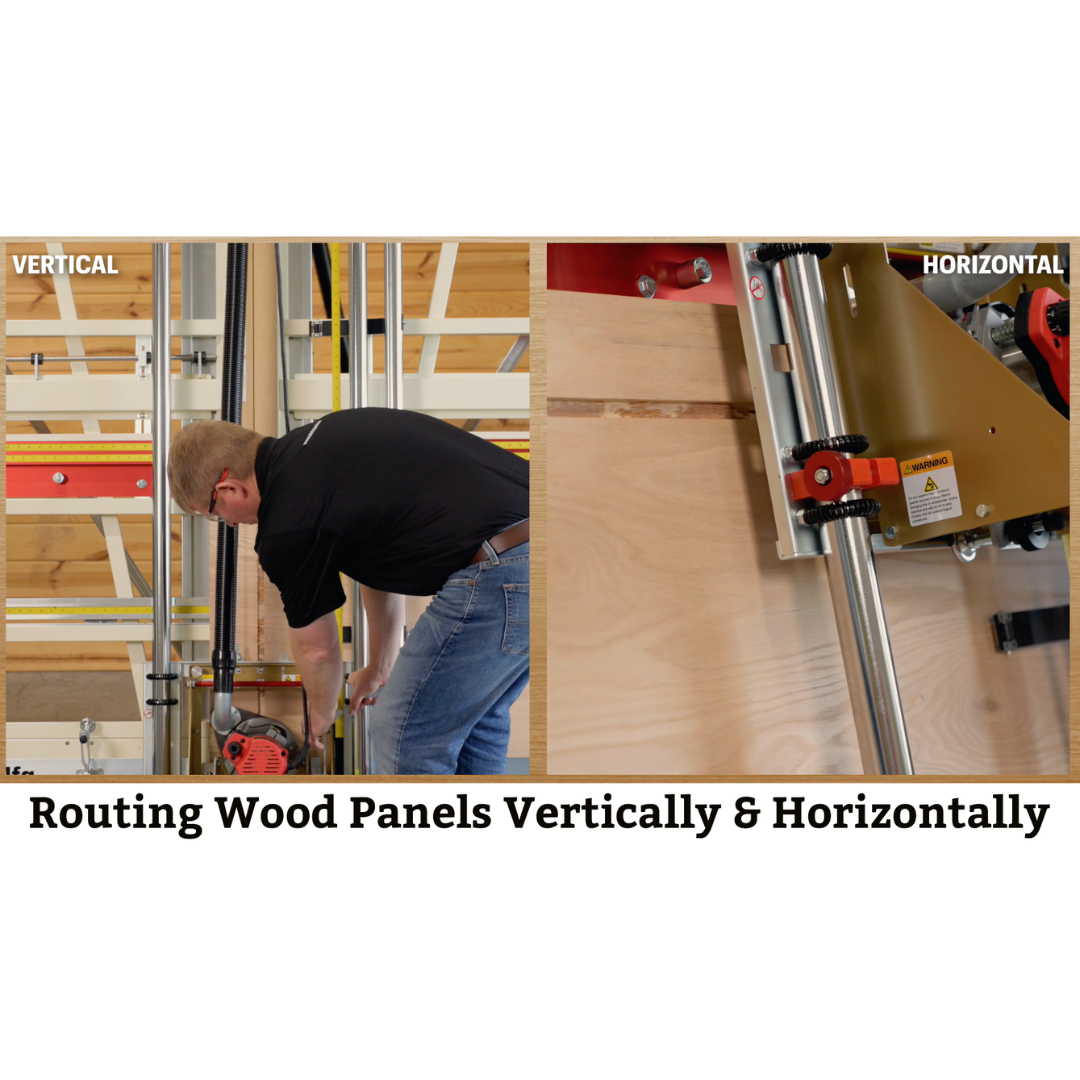

- Routing capabilities include plow cuts, cross dados, blind dados, and rabbets
- Handles full-size panels with efficient one-operator control
- Unlimited rip capacity for flexible material processing
- Consistent routing depth with floating router head technology
Why Choose the Safety speed SR5 Panel Saw and Router Combo
- Combines two essential machines into one space-saving solution
- Fast switching between cutting and routing increases productivity
- High precision accuracy of 1/64″ for professional results
- Enhanced safety with guarded blade and controlled operation
- Built for shops requiring both panel sizing and routing capabilities
The Safetyspeed SR5 Panel Saw and Router Combo delivers unmatched versatility, precision, and efficiency—making it the ideal investment for shops looking to streamline operations while maintaining professional-grade performance.
