Safety speed C5 Panel Saw Applications
- Cutting large plywood, MDF, and composite panels
- Cabinet and furniture manufacturing
- Jobsite and mobile cutting operations
- Workshops with limited floor space
- General woodworking and fabrication tasks
Perfect for professionals needing increased crosscut capacity while maintaining portability and efficiency.
Safety speed C5 Panel Saw Specifications
| Maximum Crosscut | 64" (1625 mm) |
|---|---|
| Maximum Rip Cut | 96" (2450 mm) |
| Maximum Cut Depth | 1 3/4" (45 mm) |
| Cut Accuracy | 1/32" (0.8 mm) |
| Frame Length | 60" (5 ft) |
| Saw Blade Diameter | 8" (210 mm) |
| Saw Blade Bore | 5/8" |
| Motor | 3.25 HP, 15 Amp, 120V (220V Available) |
| Motor Manufacturer | Milwaukee Tool |
| Machine Weight | 219 lbs |
| Shipping Weight | 342 lbs |
| Dimensions | 60" x 11" x 83" |
| Country of Origin | USA |
Safety speed C5 Panel Saw Performance & Construction
- Extended 64" Crosscut Capacity allows cutting larger panels compared to compact models.
- Portable 5' Frame Design fits easily into smaller workspaces and jobsite environments.
- Milwaukee Industrial Motor provides consistent power and long-term reliability.

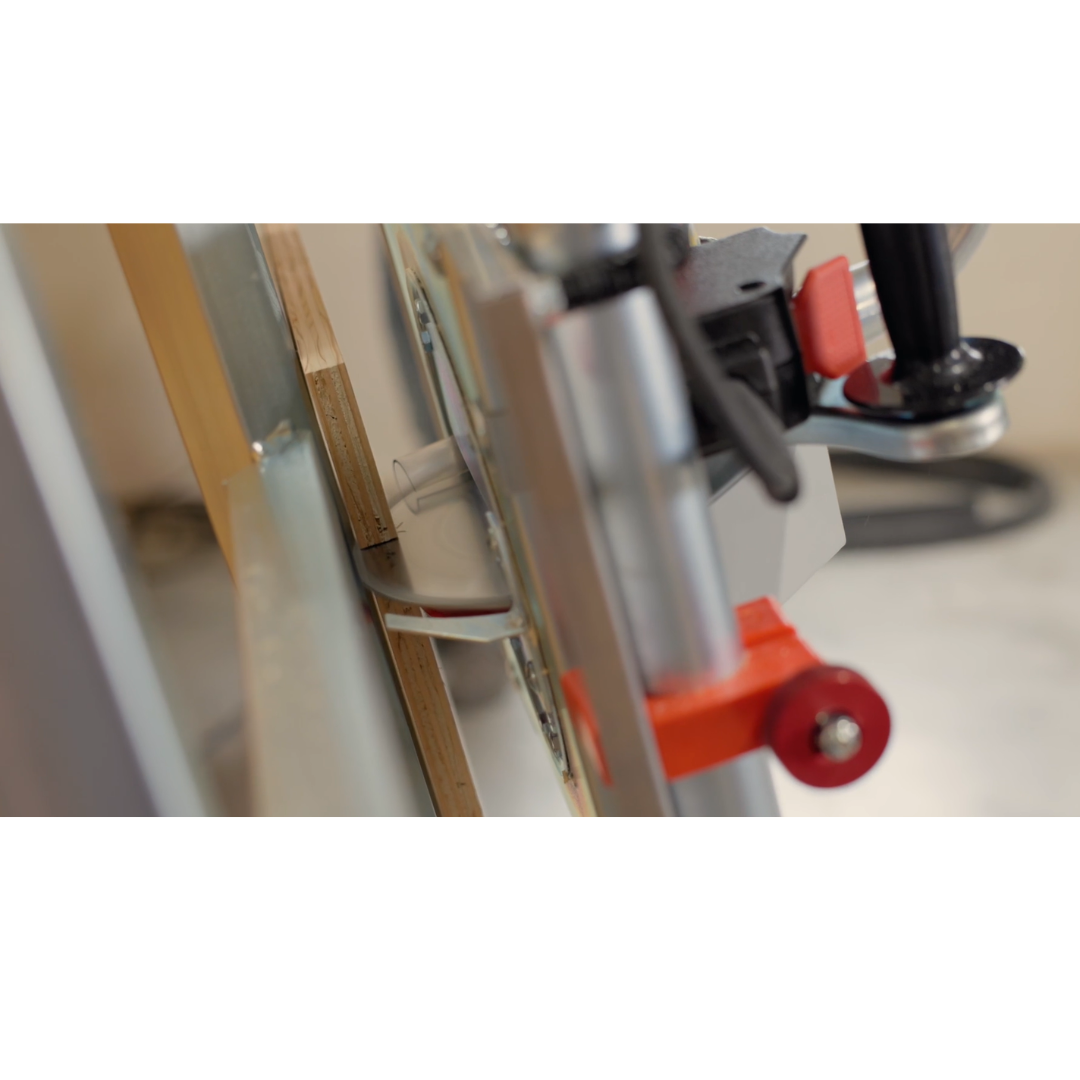

- Precision Guide Tube System ensures smooth, accurate cutting performance.

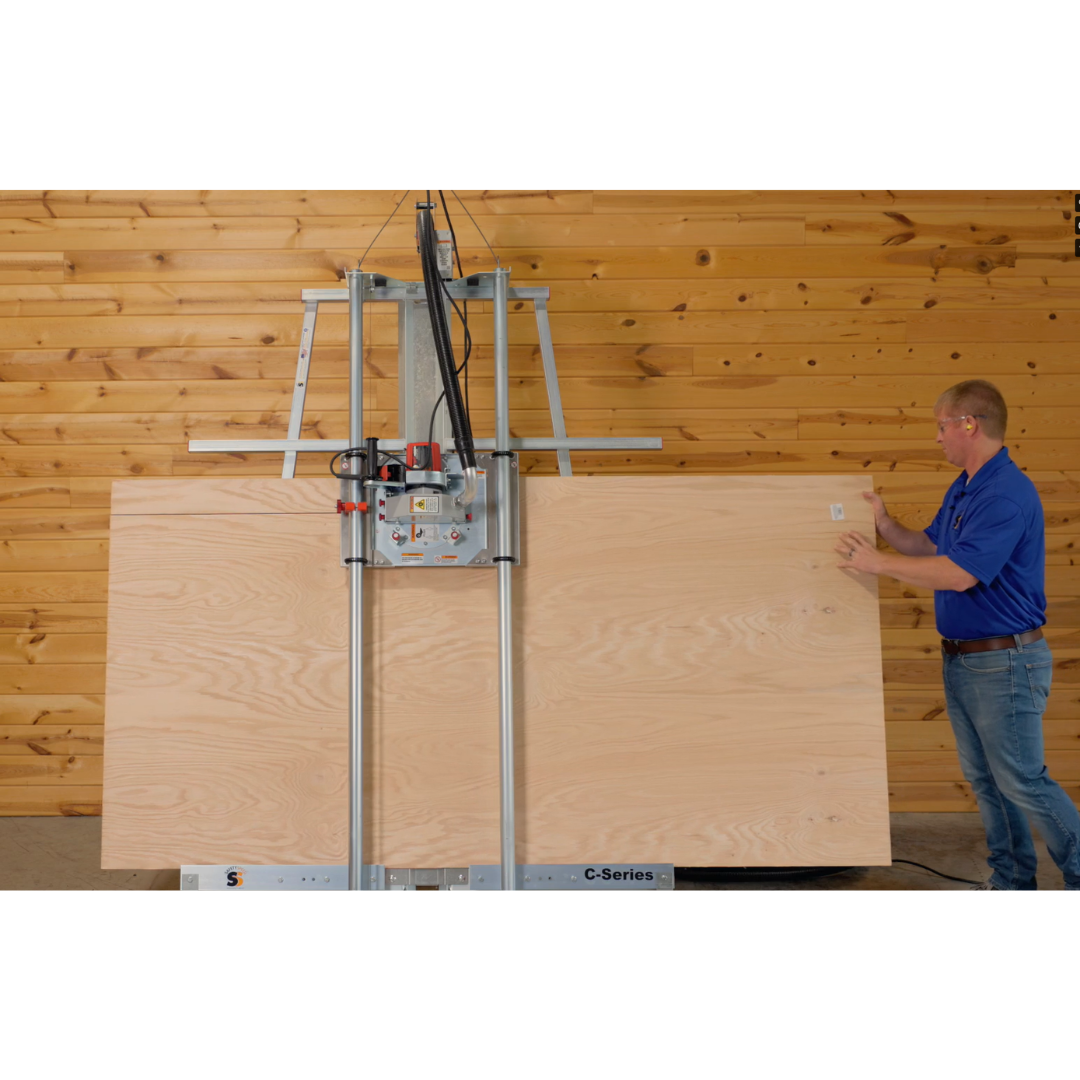

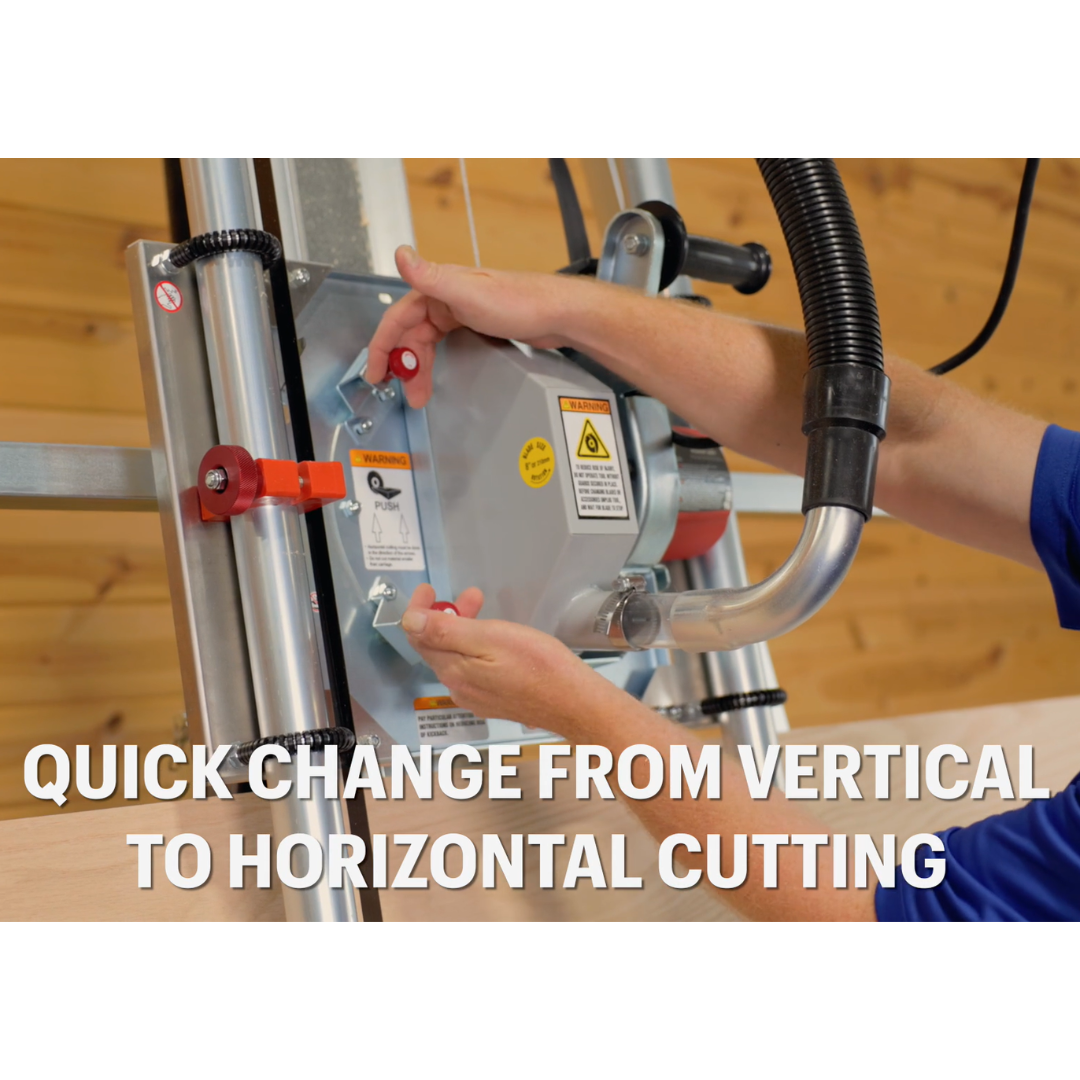

- Quick Vertical/Horizontal Changeover increases workflow efficiency.
- Spring Counterbalance System delivers controlled and effortless cutting motion.
- Integrated Dust Collection Bonnet helps maintain a cleaner working environment.
- Thin Material Pressure Guard improves accuracy when handling lightweight materials.
Safety speed C5 Panel Saw Standard Equipment
- 3.25 HP Milwaukee Tool motor
- Zinc-plated 1 ¾" steel guide tubes
- 4 Nylatron roller bearing systems
- Adjustable vertical and horizontal rulers
- Thin material pressure guard
- Injection-molded material rollers
- Spring-loaded counterbalance system
- Integrated dust collection bonnet
- Extended warranty
- TUV certified to UL/CSA standards
Why Choose the Safety speed C5 Panel Saw
- Greater crosscut capacity than the C4 while maintaining portability.
- Handles full-size panels with precision and ease.
- Compact footprint ideal for tight workspaces.
- Reliable, industrial-grade components for long-term use.
- Designed for both shop and jobsite applications.
The Safety Speed C5 Panel Saw offers the perfect balance of portability, increased cutting capacity, and precision performance—making it an excellent choice for professionals who need flexibility without compromising capability.
