Safetyspeed C4 Panel Saw Applications

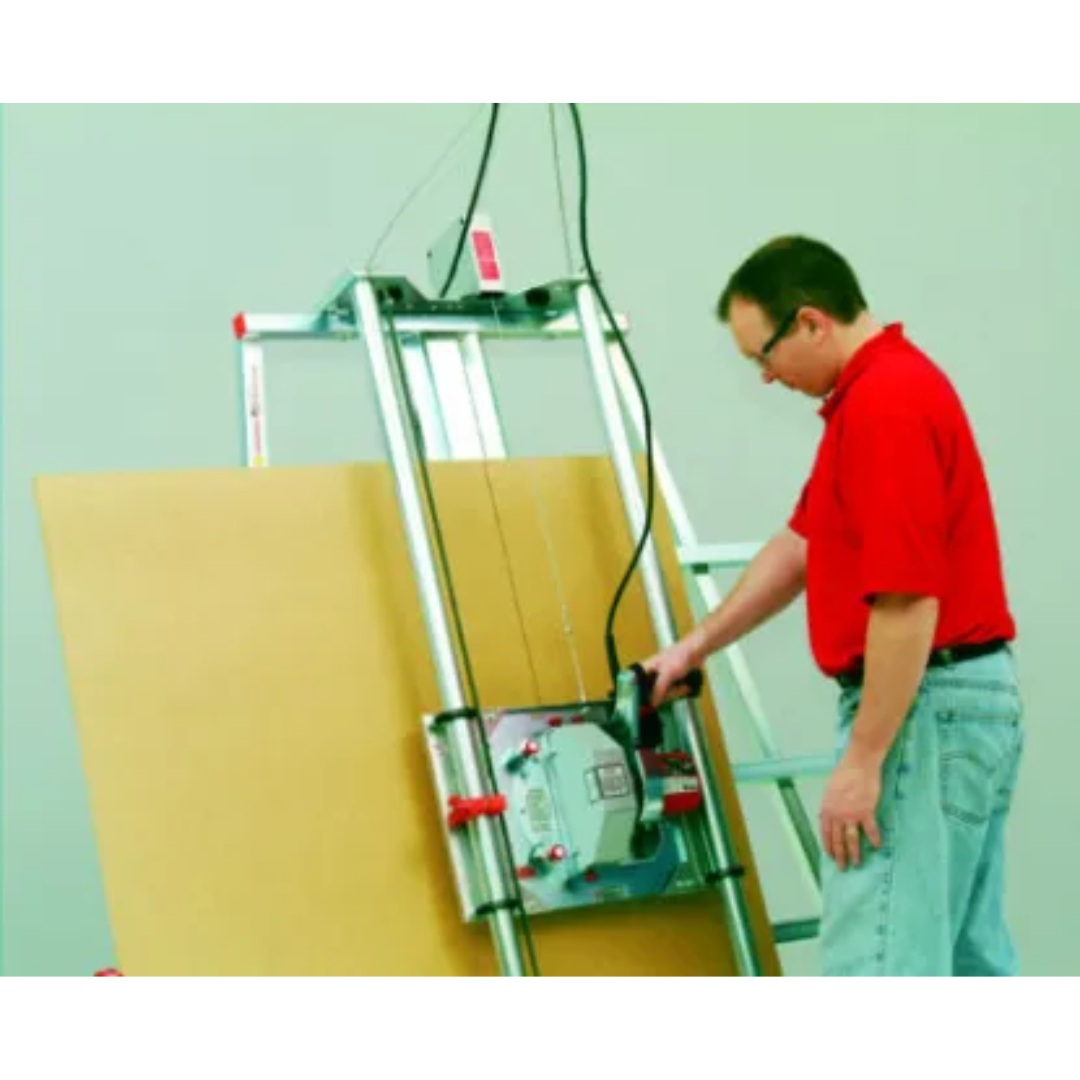

- Cutting 4' x 8' plywood, MDF, and composite panels
- Cabinet and furniture manufacturing
- Jobsite and on-location panel processing
- Small workshops with limited floor space
- General woodworking and fabrication tasks
Perfect for professionals who need a portable panel saw without sacrificing cutting accuracy and performance.
Safetyspeed C4 Panel Saw Specifications
| Maximum Crosscut | 50" (1270 mm) |
|---|---|
| Maximum Rip Cut | 96" (2450 mm) |
| Maximum Cut Depth | 1 3/4" (45 mm) |
| Cut Accuracy | 1/32" (0.8 mm) |
| Frame Length | 60" (5 ft) |
| Saw Blade Diameter | 8" (210 mm) |
| Saw Blade Bore | 5/8" |
| Motor | 3.25 HP, 15 Amp, 120V (220V Available) |
| Motor Manufacturer | Milwaukee Tool |
| Machine Weight | 189 lbs |
| Shipping Weight | 270 – 342 lbs |
| Dimensions | 60" x 11" x 70" |
| Country of Origin | USA |
Safetyspeed C4 Panel Saw Performance & Construction
- Compact 5' Frame Design delivers full panel processing capability in a space-saving footprint.
- Milwaukee Industrial Motor ensures reliable power and consistent cutting performance.
- Precision Guide Tube System with zinc-plated steel tubes and Nylatron bearings for smooth operation.
- Quick Vertical/Horizontal Cutting Changeover increases efficiency across multiple cutting applications.
- Spring Counterbalance System provides controlled and effortless saw carriage movement.
- Integrated Dust Collection Bonnet supports cleaner operation and improved visibility.
- Thin Material Pressure Guard enhances accuracy when cutting lightweight materials.
- Durable Construction built for consistent performance in professional environments.
Safetyspeed C4 Panel Saw Standard Equipment
- 3.25 HP Milwaukee Tool industrial motor
- Zinc-plated 1 ¾" steel guide tubes
- 4 Nylatron roller bearing systems
- Adjustable vertical and horizontal rulers
- Thin material pressure guard
- Injection-molded material rollers
- Spring-loaded counterbalance system
- Integrated dust collection bonnet
- Extended warranty
- TUV certified to UL/CSA standards
Why Choose the Safetyspeed C4 Panel Saw
- Compact and portable design ideal for small shops and job sites.
- Handles full 4' x 8' sheets with precision.
- Industrial-grade motor and components ensure long-term reliability.
- Simple operation with quick setup and adjustments.

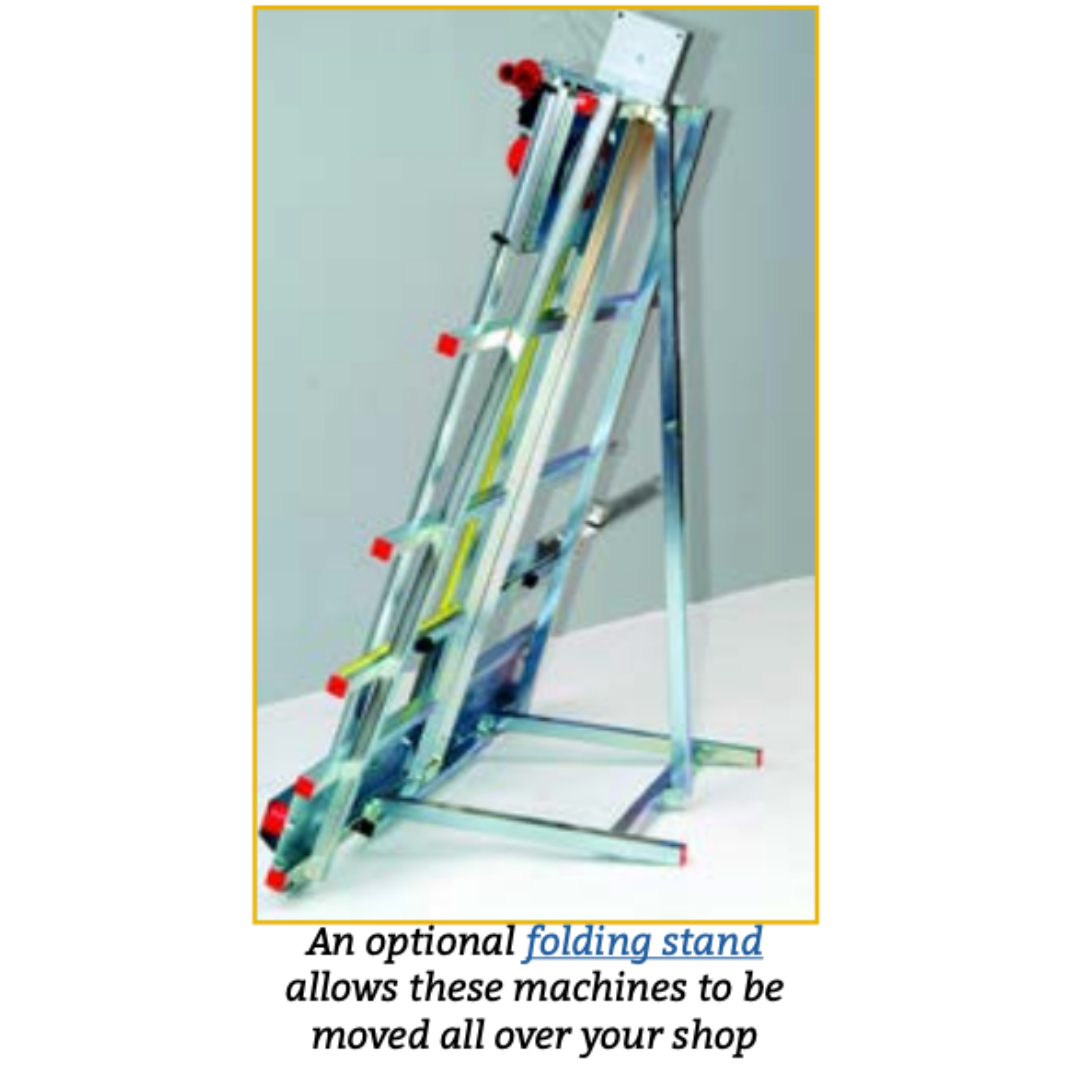

- Expandable with optional stand and wheel accessories.
The Safetyspeed C4 Panel Saw combines portability, precision, and industrial performance, making it a dependable solution for professionals who need efficient panel cutting in tight or mobile work environments.
