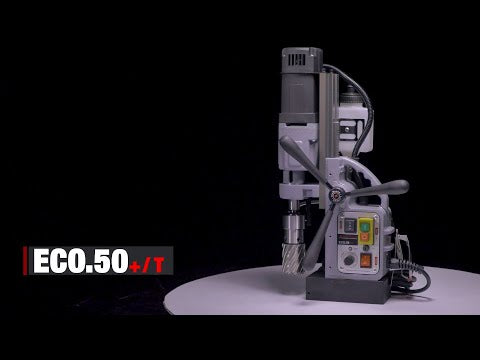

Euroboor ECO.50+/T Magnetic Drilling Machine Applications
- Industrial steel fabrication and structural construction
- Thread tapping and precision drilling in metal components
- Bridge construction and infrastructure maintenance
- Heavy equipment manufacturing and repair
- Shipbuilding, rail infrastructure, and industrial fabrication
- Maintenance operations requiring drilling and tapping on-site
Designed for professionals who need a versatile magnetic drilling machine capable of both high-precision drilling and efficient tapping operations in demanding steel fabrication environments.
Euroboor ECO.50+/T Magnetic Drilling Machine Specifications
| Model | ECO.50+/T |
|---|---|
| Maximum Annular Cutter Diameter | 2 in |
| Threading Capacity | 1/8 in – 13/16 in |
| Annular Cutter Range | 1/2 in – 2 in |
| Twist Drill Capacity | 1/16 in – 15/16 in |
| Countersinking Capacity | 3/8 in – 2 3/16 in |
| Tapping Range | M3 – M20 |
| Spindle Type | MT2 Morse Taper with 3/4 in Weldon adapter |
| Rotation Direction | Bidirectional (Right / Left) |
| No-Load Speed Gear 1 | 100 – 280 RPM |
| Load Speed Gear 1 | 250 RPM |
| No-Load Speed Gear 2 | 185 – 530 RPM |
| Load Speed Gear 2 | 460 RPM |
| Magnetic Force | 4,080 lb |
| Magnet Dimensions (L × W × H) | 6 11/16 in × 3 3/8 in × 1 7/8 in |
| Machine Height | 15 3/16 in – 21 1/4 in |
| Machine Length | 12 5/8 in |
| Machine Width | 8 1/4 in |
| Net Weight | 29.8 lb |
| Motor Power | 11.4 Amp |
| Total Power Consumption | 12.5 Amp |
| Voltage | 110 – 120 Volt |
| Power Supply Frequency | 60 Hertz |
| Power Connection | NEMA 5-15 Plug |
| Power Supply Type | AC Electric |
| Gearbox Lubrication | Grease Lubricated |
Euroboor ECO.50+/T Magnetic Drilling Machine Performance & Safety Features
- Drilling and Tapping Capability allows operators to perform both drilling and thread cutting operations using one versatile machine.
- Right / Left Rotation Function enables smooth tapping operations and easy tool extraction during threading tasks.
- Electronic Speed Adjustment allows operators to precisely control drilling speed for different materials and cutting tools.
- Two-Speed Gearbox optimizes torque and speed for drilling and tapping applications.
- Morse Taper 2 Spindle with integrated cooling and lubrication supports a wide range of drilling tools while improving cutting performance.
- Precision Height Adjustment ensures accurate drilling alignment while minimizing mechanical wear.
- Integrated Slide Mechanism improves drilling accuracy, reduces vibration, and increases machine lifespan.
- Dual Coil CNC-Machined 2-Way Magnet provides strong magnetic adhesion while consuming less energy and generating less heat.
- Overheat Protection safeguards the motor during intensive drilling or tapping operations.
- Advanced Electronic Protection reduces the risk of damage to the machine, tools, and workpiece during operation.
- Service Notification System alerts operators when maintenance is required to prevent unexpected downtime.
Euroboor ECO.50+/T Magnetic Drilling Machine Package Contents
- 1 × Carrying case
- 1 × Euroboor ECO.50+/T Magnetic Drilling Machine
- 3 × Capstan hub handles
- 1 × Lubrication / cooling system
- 1 × Spindle holder MT2 – 19.05 (3/4") including cooling/lubrication ring (IMC.20)
- 1 × Drift key
- 1 × Tap holder (Weldon DIN 376) M10
- 1 × Tap holder (Weldon DIN 376) M12
- 1 × Tap holder (Weldon DIN 376) M14
- 1 × Tap holder (Weldon DIN 376) M16
- 1 × Allen key 2.5 mm (3/32")
- 1 × Allen key 3 mm (1/8")
- 1 × Allen key 4 mm (5/32")
- 1 × Allen key 5 mm (13/64")
- 1 × Protection guard
- 1 × Safety chain
- 1 × Ear protection
- 1 × Safety goggles
- 1 × Safety gloves
- 1 × User manual
Why Choose the Euroboor ECO.50+/T Magnetic Drilling Machine
- Versatile drilling and tapping capability for industrial metalworking.
- Bidirectional rotation and adjustable speed for precise threading.
- Powerful 2-inch annular drilling capacity.
- Strong CNC-machined magnet for stable drilling performance.
- Advanced electronics for increased safety and longer machine lifespan.
The Euroboor ECO.50+/T Magnetic Drilling Machine combines powerful drilling capacity, precision tapping functionality, and advanced electronic safety systems. Designed for professional fabrication shops and jobsite operations, this industrial magnetic drill delivers reliability, versatility, and long-term performance in demanding metalworking applications.
